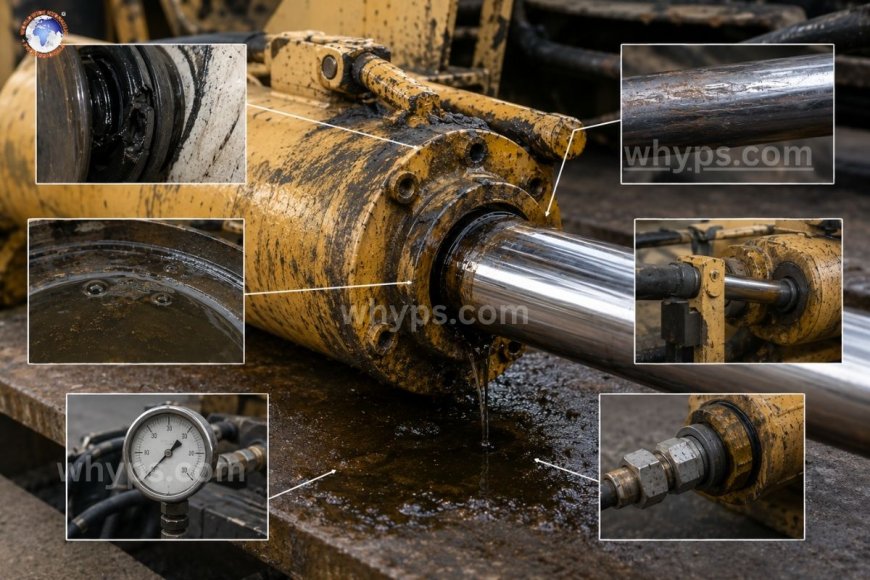

What are the most common causes of hydraulic cylinder leaks?

The most frequent causes of leaks in hydraulic cylinders are damaged or worn-out seals, pitted or scored surfaced rods, misalignment or side-loading, contaminated hydraulic fluid, excessive temperature or pressure in the system, and damaged or loose connections and fittings, and seal degrading due to contaminants, heat, and poor installation being the primary reason for most field failures.

Leaks in hydraulic cylinders are rarely apparent in the blink of an eye. They're usually the result of a slow and less obvious issue—for example, a seal that has been forming slowly for a long time or even a rod that received a scratch when it was hit with the impact or fluid that has been operating more hot than what the system was originally designed to. Understanding the root cause can help maintenance teams transition away from a reactive swap of seals to real leak prevention.

What is the significance of leaks in hydraulic cylinders?

A leaking cylinder is much more than just a home maintenance issue. Each drop that is lost, that the pump must make up for, results in more time to cycle, inconsistent force output, and a system that is working more than it needs to. If leaks are not addressed, they can accelerate as contamination is introduced through the same hole that fluid exits, and both issues can exacerbate one another. External leaks can also cause slip dangers and environmental compliance issues on the floor of the shop and in the shop, while internal leaks (fluid over sealing the piston) silently deprive the piston of its holding capacity without displaying any oil in the barrel.

Seals damaged or worn out

Seals are the initial protection against leakage. However, they are also the part that is often blamed for this, often in the wrong way. Seals for pistons, rod seals, wiper seals, and static O-rings degrade in time because of the combination of wear and tear along with heat exposure as well as chemical attack from components or incompatible fluids.

Common seal failure patterns:

• The process of hardening and cracking is triggered by prolonged exposure to heat, which diminishes the seal's capacity to conform to the bore or rod surface
• Extrusion of sealing gland clearance when under extreme pressure, in particular when the seal gland is worn out or too large.
• Abrasive wear caused by contaminated liquid with hard particles splattered across the surface of the seal
• Chemical shrinkage or swelling due to seal incompatibility with fluids, for example, the use of a seal made of nitrile (NBR) sealing process that uses an unrated fluid.

The choice of seal material is just as good as the seal quality. A seal that is rated for normal mineral-based hydraulic oil won't necessarily last in a system that is running in a fluid that is fire-resistant or operating at extremely high temperatures. The incorrect material is a frequent reason that is often disguised under the guise of "normal wear."

Pitted, scored, or corroded surfaces of rods

The rod's surface is the primary factor in how the seal on the rod and wiper seals can perform their job. Even a seal that is in good shape cannot guarantee an encapsulated seal against the rod that is damaged.

Damage to the surface of a rod typically comes in the form of:

• Impacts during the operation or transportation, causing denting and scratching on the plating of chrome
• Corrosion caused by exposure to water or salt air and the corrosive washdown chemicals that damage the surface when the chrome protective layer has been damaged
• Inadequately cleaned can allow airborne pollutants to be re-dragged to the surface of the cylinder during the return stroke and to abrade the rod through multiple cycles

When a rod is scored, any seal that is installed over it can leak regardless of how fresh. This is the reason why a rod inspection of the surface should always occur with sealing replacement instead of being viewed as an independent issue.

Side-loading and misalignment

Hydraulic cylinders are designed to expand and retract along a straight axis. As mounting hardware wears or brackets shift or a cylinder gets installed slightly off the design line, then the rod is subject to the side load it was not intended to bear.

The side-loading process causes uneven wear on the bushing and seal, which causes pressure to be concentrated on the one part of the rod as well as the bore. In time, this results in an oval-shaped pattern of wear instead of the regular circular wear that an appropriately aligned cylinder will display. And that unevenness is precisely what allows fluid to trace an avenue to get past the seal.

Hydraulic fluids contaminated with toxins

Contamination is a common motif in nearly every type of hydraulic failure and leaks in cylinders are not an exception. Particulate contaminants act as sandpaper on rod surfaces, seals and bore walls throughout each cycle, eventually creating tiny pathways through which allow fluid to escape.

The sources of contamination to be inspected are

• Ingress through missing or damaged wiper seals
• Particles that are introduced during top-offs of fluids or when replacing components
• Internal contamination caused by a degrading component somewhere else in the system, for example, the failure of a pump

Regular fluid analysis and properly rated filtration remains one of the most cost-effective methods to prolong the life of cylinder seals because they take care of the abrasive process before it can reach the seal in any way.

Extreme pressure or temperature

Cylinders and their seals are designed for specific temperatures and pressure ranges. However, operating outside these limits can cause other failures in this list. Pressure spikes resulting from shock loading, valve problems with relief, or other components that are not properly sized within the circuit can cause seals to erupt beyond their clearance for glands almost instantly. A sustained high temperature, however is slower but is equally effective in weakening the strength of the fluid's film and forming elastomeric seals that harden in the interior.

Examining the system's pressure logs and making sure whether relief valves have been in good order and are operating is a good check-up procedure whenever leaks start to occur on a cylinder that used to be without leaks.

Fittings that are damaged or loose, as well as connections

Some leaks are not in the cylinder. Port connections, tie-rod fasteners, and gland nuts may loosen because of vibration over time, or even a properly tight fitting may leak if the O-ring or sealant on the threads has deteriorated. The leaks that result are typically the easiest to repair; however, they are the most difficult to ignore because attention naturally focuses towards the seals first.

A quick inspection of the torque and visual of connections outside is a must in any leak-related investigation prior to when more extensive rod or seal work gets underway.

Finding the root cause

Since a variety of causes may produce similar symptoms, a successful leak investigation usually is a series of steps: determine the source of the leak (rod seal, piston seal, a fitting, or a static seal). Examine the surface of the rod for visible damages, verify the alignment and mounting hardware, and examine recent results from fluid analysis. The quick and easy seal replacement without following this procedure usually means that the same piston will be back in the shop within weeks, because the root of the issue—a damaged rod or ongoing contamination or misalignment—will not be addressed.

Leaks in hydraulic cylinders are usually caused by one failed component isolated. Wear and tear on the seal, rod damage or misalignment, contamination, and temperature or pressure variations tend to flow into each other. This is why an organized diagnostic method is superior to an easy seal swap in the long term. Finding the root of the problem instead of the symptom is the key to distinguishing the cylinder that has been in good condition for years and one that returns to the maintenance area.

1. The most commonly reported reason for leaks in hydraulic cylinders?

Seals that are damaged or worn out are the most commonly cited causes; however, the primary cause—such as heat or contamination, or a poor seal material—often causes the failure of the seal, the seal failure itself.

2. Can a leak in a hydraulic cylinder be repaired without replacing the seals?

Sometimes. If the leak is caused by an untight fitting or gland nuts, tightening or sealing the joint may solve it without the need for a full sealing kit repair.

3. What causes contamination to cause leaks from cylinders?

Particulate contaminants erode seal surfaces, and rods are finished with every cycle, eventually causing microscopic channels that permit fluid to leak out of the seal.

4. What is the reason why a new seal often leaks and then re-leaks?

A new seal that is installed on the surface of a pitted, scored, or corroded rod is not able to create a good seal, regardless of the state of repair, which is why the surface of the rod should be examined prior to sealing replacement.

5. Does misalignment actually cause the valve to leak?

Yes. The misalignment of the sides causes uneven wear on the bore and seal, creating an oval-shaped wear pattern that allows fluid to escape even though the material used to seal is sound.
