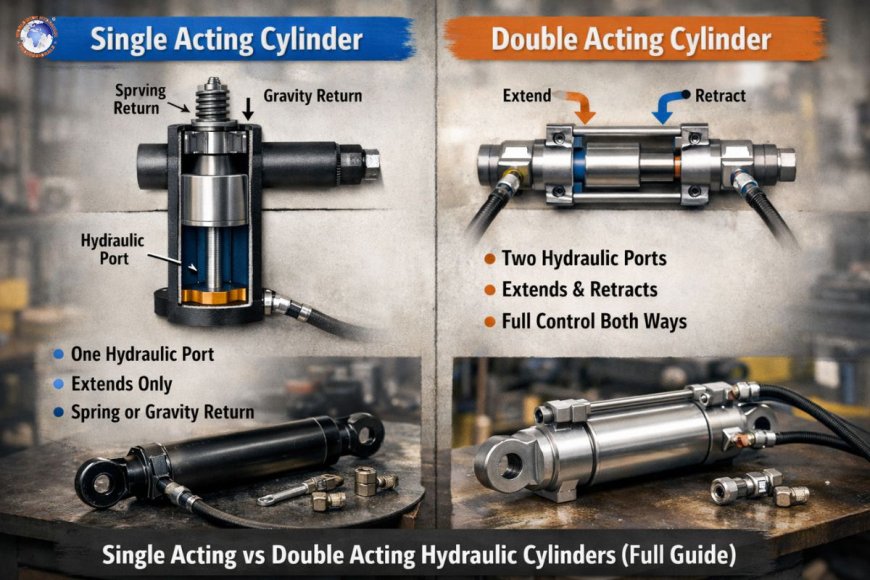

Single acting vs double acting hydraulic cylinders (full guide)

Hydraulic cylinders are a crucial component of modern machinery, and convert the power of fluid into force and motion. From construction equipment to agricultural machines to automation, industrial Cylinders play an important function in providing controlled motion and power.

Of the many types of cylinders available, single-acting and double-acting hydraulic cylinders are the most frequently utilized. Although they seem similar at first sight, their fundamentals and performance as well as applications differ greatly.

This complete guide will take you through all you must learn about single-acting vs. double-acting hydraulic cylinders - how they function, their benefits as well as disadvantages, and how to select the best one for your specific needs.

What is a hydraulic cylinder?

Hydraulic cylinders are a type of mechanical actuator that utilizes pressurized hydraulic fluid that is pressurized to create linear motion. It is composed of several important elements:

• Cylinder barrel
• Piston
• Piston rod
• Seals
• End caps

When the hydraulic fluid gets into the cylinder, it pushes on the piston, creating the force and movement.

What is a single-acting hydraulic cylinder?

A single-acting hydraulic piston employs hydraulic pressure to push it in only one direction. The return motion is triggered by an external force, such as:

• Gravity
• Spring mechanism
• Weight of load

How it works

• Hydraulic fluid flows through one port.
• The piston is pushed by pressure in one direction (usually extension).
• When pressure is released, the piston is returned to its initial position by gravity or by a spring.

Key features

• One hydraulic port for one hydraulic
• Simple design
• Lower cost
• Return strokes are not controlled by the return stroke.

Advantages of single-acting cylinders

1. Simple construction

Single-acting cylinders contain fewer components, which makes them simple to design, build, and maintain.

2. Cost-effective

Due to their simple design, they are typically cheaper than double-acting Cylinders.

3. Energy efficient

Hydraulic power is only used for one purpose, thus reducing the energy use in some applications.

4. Reduced maintenance

Reduced seals and moving parts lead to less damage and wear.

Disadvantages of single-acting cylinders

1. Limited functionality

They are only able to perform work in one direction, which limits their range of application.

2. Dependence on external force

Return motion is based on springs or gravity, which may not always be consistent or reliable.

3. Slower operation

Return strokes can be slow and less controlled than powered systems.

Common applications of single-acting cylinders

Single-acting cylinders are extensively employed in situations where force is required in only one direction

• Hydraulic Jacks
• Dump trucks (lifting beds)
• Agriculture equipment
• Clamping and pressing operations
• Platforms for lifting

What is a double-acting hydraulic cylinder?

A double-acting hydraulic cylinder uses hydraulic pressure to move the piston in both directions, extension and retraction.

How it works

• Hydraulic fluid is pumped in alternating fashion to both sides of the piston.
• The pressure on one side expands the piston.
• The pressure on the opposite side is what causes it to retract.
• Both are controlled and powered hydraulically.

Key features

• Two ports for hydraulics
• Complete Control in all directions
• More intricate design
• Performance enhancement capability

Advantages of double-acting cylinders

1. Bidirectional force

They offer force in both retraction and extension. They are highly adaptable.

2. Better control

Operators are able to precisely control the speed, position, and force both in the direction of.

3. Increased efficiency

Ideal for repetitive and continuous operation. Suitable for continuous and repetitive.

4. Higher productivity

More efficient and constant cycle times boost the overall efficiency of the system.

Disadvantages of double-acting cylinders

1. Higher cost

Complexity and more components raise the cost of manufacturing and installation.

2. Increased maintenance

Moving parts and seals require regular inspections and maintenance.

3. Complex system design

Needs additional valves, pipes, or control systems.

Common applications of double-acting cylinders

Double-acting cylinders are utilized for applications that require controlled movements in both directions:

• Backhoes and excavators
• Industrial machinery
• Automation of manufacturing
• Material handling systems
• Hydraulic presses
• Construction equipment

Key differences: single-acting vs double-acting cylinders

1. Direction of force

• Solo Acting: Only one direction
• Dual Acting: The extension as well as the retraction

2. Number of ports

• Single Acting: One port
• Double-Acting Two ports

3. Control

• Single Acting: Limited control over return
• Double Acting: Full control in both directions

4. Complexity

• Single Acting: Simple design
• Double-Acting More complex

5. Cost

• Single Acting: Lower initial cost
• Double Acting Greater initial capital investment

6. Efficiency

• One-Acting Effective for simple tasks
• Double Acting Effective for continual operations

Choosing the right cylinder for your application

The choice between single and double-acting cylinders rests on a variety of aspects:

1. Nature of work

• If the force is required only in one direction, One Acting
• If bidirectional movement is required If bidirectional movement is required, double acting

2. Load requirements

• For light to moderate loads, one acting could be sufficient
• The load is heavy or variable. Double acting is recommended

3. Control requirements

• A minimum of control is required - one acting
• Controlling precisely is essential, double-acting

4. Budget constraints

• A small budget - One actor
• Performance Priority Double acting

5. Installation environment

• Gravity-assisted systems – Single-acting
• Complex or horizontal motions - Double-acting

Maintenance considerations

Single-acting cylinder maintenance

• Verify wear and tear on seals
• Examine for leaks in the fluid.
• Make sure that the spring or return mechanism is in place

Examine corrosion and contaminants.

Double-acting cylinder maintenance

• Inspect both the ports and the hydraulic lines
• Check regularly for seals and seals. Check both sides
• Monitor the pressure balance
• Maintain proper lubrication
• Verify the valves for control and System alignment

Performance comparison

Speed

Double-acting cylinders typically provide speedier and more consistent speeds because of the power retraction.

Force output

Double-acting cylinders produce forces simultaneously, which makes them more flexible and powerful.

Durability

Both types are durable; however, double-acting cylinders can suffer more wear because of constant operation.

Safety considerations

If you are working on hydraulic cylinders, security is paramount:

• Be sure to let the pressure go out before maintenance
• Use the proper fittings and use hoses with proper fittings and
• Beware of overloading the cylinder
• Check regularly for damage or leaks
• Be sure to align properly to avoid breaking or bending

Single-acting cylinders can pose a danger if they fail to return, whereas double-acting cylinders require careful pressure control.

Future trends in hydraulic cylinders

Thanks to advances in hydraulic technology, both double-and single-acting cylinders are changing:

• Smart sensors to monitor real-time
• New sealing techniques for improved sealing
• Lightweight materials for greater efficiency
• Integration of automation systems with automation systems
• Hydraulic designs that are energy efficient

Dual acting Cylinders, specifically they are becoming more popular in precision and automated industries.

Double and single working hydraulic cylinders perform important parts in modern machines. The choice of which one to choose is contingent on your particular requirements, application, and budget.

• Single-acting Cylinders are great for easy and cost-effective tasks that require only one direction.
• Double-acting Cylinders give you the best control, flexibility, and performance in complicated operations.

Understanding the difference between them will help you make educated choices, improve the efficiency of your system, and guarantee long-term reliability.

If you're developing or upgrading the hydraulic system, be sure to examine your needs prior to deciding on the type of cylinder. A good choice will significantly affect safety, productivity, and the overall performance of your operation.
