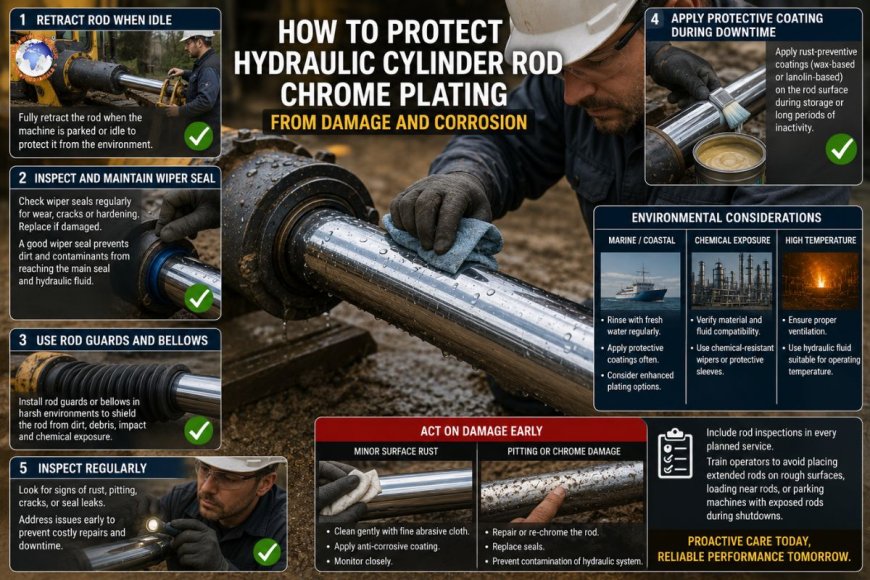

How to protect hydraulic cylinder rod chrome plating from damage and corrosion ?

The rod with a chrome plating is the most vulnerable part of any hydraulic piston. Each time the cylinder is stroked and the rod is removed from the barrel, it goes through the seal of the wiper, then returns to the system and carries whatever the environment decides to put onto its surfaces. Salt spray, mud, chemical mist, weld splatters, and marks of impact from flying debris—the rod can see everything. When the chrome surface is damaged, the damage is not just limited to the rod. Damaged seals, contaminated fluid, and bores of the barrel that are scored and eventually complete cylinder failure are the next steps.

The art of protecting the chrome plating of rods of hydraulic cylinders isn't an issue for maintenance on a peripheral level. It is essential to the life span of the cylinder as a whole, and in turn, it is the reliability for the machinery it runs.

What is the significance of chrome plating and why doesn't it work?

The plating of hard chrome on rods for hydraulic cylinders performs two functions that overlap. First, it gives the hardness needed to withstand abrasion while the rod moves through the wiper and seals throughout thousands of cycles. It also provides the very fine finish—typically between 0.2 up to 0.4 μm Ra—that seals require in order to function properly. If the surface is too rough, the seal is unable to keep an even oil film. Too smooth and the seal creates too much friction and heat.

Chrome plating usually ranges between 0.025 millimeters and 0.1 millimeters thick. It is not a huge barrier. Mechanical damage, corrosion, and chemical attacks do not require a deep penetration to cause enough damage to permit fluid leakage or failure of seals.

The most frequent failure types are:

Pitting corrosion is tiny, deep craters formed by chloride ions found in salt-laden road and marine environments. When a pit is formed, it functions as a stress consolidator and speeds up further attacks.

Damage from impact—cracks, dents, and gouges caused by contact with objects outside. Even the smallest damage can cause burrs that break seals with every stroke.

Chemical attack: exposure to caustics, acids, or other additives to hydraulic fluids that are not compatible with chrome. This could scratch the plating, as well as cause the formation of hydrogen embrittlement within the steel beneath.

The erosion and the frotting process during applications that have quick, short strokes, the rod might not retract completely enough to take advantage of the wiper seals' cleaning actions, which allows abrasive particles to build up and then grind the surface.

Protective measures during operation

1. Make sure the rod is retracted at idle

The best operating method is to reduce the rod completely—or to the extent that the application allows—when the machine is parked or idle. A rod that is extended is an open rod. It is a reservoir for aerosol particles as well as road chemicals, bird droppings, and ultraviolet radiation. The rod retracts inside the barrel and is shielded with hydraulic fluid within and the wiper seal on the point of entry.

This is crucial at night and during shift changes and when there is a prolonged period of idle time.

2. Check and maintain the seal on the wiper.

The wiper seal, sometimes known as a scraper seal, is the rod's primary protection against any contamination that enters the system. It is also the rod's bodyguard when it comes to the route. A functioning wiper seal removes dirt from the surface of the rod before it can reach the main seal of the rod or enter into the fluid.

Check wiper seals on a regular basis for cracked lips, cracks, and hardening. The seal of a wiper that is no longer springy allows abrasive particles to flow through the seal unchecked and accelerate wear of the rod. Replace the wipers as soon as you notice an indication of wear and tear—they're relatively inexpensive in comparison to the damage that a failing wiper may cause.

3. Install rod guards and bellows.

In extreme environments such as mining sites, construction sites, and agricultural field usage, protecting yourself passively is sensible. Bellows for rods (accordion-style rubber boots) cover the rod and protect the rod against direct exposure to dust, spray, and ultraviolet radiation. They are especially effective in preventing damage by impact and contamination in dusty or humid conditions.

Metal rod guards perform similar functions of mechanical protection in situations where risk of impact is high, for instance demolition equipment and forestry equipment.

4. Use protective coatings for downtime.

In the case of an extended period of storage or for seasonal periods of downtime, applying a rust-preventive coating to the surface of the rod is a great idea. The products specifically designed for chrome-based surfaces—usually wax-based or lanolin-based compounds—are able to absorb moisture and create barriers against chlorides and oxygen. Petroleum jelly has become a typical field solution, but specially-designed VCI (Volatile Corrosion Inhibitor) products are more durable and are less difficult to scrub off at the time of recommissioning.

Avoid applying grease directly to rod surfaces, as it will cause re-entry into the piston. Grease may contaminate hydraulic fluid and, based on the composition, could cause the seal to expand.

Considerations for application and environmental aspects

The marine and coastal environment

Salt is the most abrasive enemy under the field. Chloride ions pierce micro-cracks and pinholes within the surface of the chrome and attack the steel underneath directly, which causes corrosion to grow under the plating before, eventually, it will delaminate. For marine or coastal use the rod must be cleaned with fresh water on a regular basis—especially after exposure to salt-laden or sea spray air. It should also be coated with a protective coating that should be applied regularly.

In the case of marine environments that are constantly aggressive Consider constructing cylinders using IHCP (Induction Hardened Chrome Plating) or other treatment methods like HVOF (High Velocity Oxygen Fuel) thermal spray coatings or electroless nickel plating, which provide greater resistance to corrosion than conventional chrome.

Chemical processing environments

If the cylinder is operating in proximity to acid fumes, caustic washes, or chemical sprays, make sure you check material and fluid compatibility before concluding that standard chrome is suitable. Protective sleeves made of PTFE or rod wipers that are chemically resistant might be the best choice. Certain companies apply chemical-resistant lacquers to chrome during storage; however, it is necessary to remove them prior to operations to prevent seal damage.

Applications requiring high temperatures

Temperatures in the ambient can encourage oxidation and can result in thermal cycling stress in the layer of chrome, eventually creating micro-cracks. Make sure there is adequate ventilation around the cylinders in environments with high temperatures as well as ensure that the fluid used has a viscosity value that is suitable to the operating temperature range The fluid that is heated circulates through the rod seals and accelerates the aging process.

Reacting to damage that was not apparent earlier

If a visual inspection shows early-stage damages—small surface rust, superficial pitting, or hairline cracks in the chrome—the right response will depend on the severity.

Surface rust that is light on a rod that's been exposed for a while can be treated with an extremely fine cleaning cloth (0000 grade steel wool or an Acrocus cloth) and then an anti-corrosive coating, provided the chrome underneath is still intact. It is only a temporary solution, and the rod must be watched closely.

Significant pitting or corrosion breakthrough into the base steel or visible chrome delamination requires rod replacement or changing the chrome. A cylinder that has damaged rod surfaces can damage seal sets quickly, and the abrasive particles produced by surface degradation will move across the hydraulic systems, causing damage to valves, pumps, and other components that are precision.

Re-chroming is an alternative for expensive or large rods. The old chrome is removed before the rod is examined for straightness and dimensional integrity Any surface imperfections are fixed by the grinding process or by filling, and then a new layer of chrome is applied. The rod is then finish-ground and polished to a desired surface finish. The process allows restoring the rod to its original condition for less than replacement costs if the steel base is strong and stable.

The inclusion of building protection in maintenance schedules

The most effective protection method is one that is proactive rather than reactive. Include rod inspections in each planned service time. Look for damage to the surface or corrosion as well as sealing weeping around the point of entry to the rod. Record findings and compare the results over time. The rod that exhibits an increase in corrosion at a specific place usually indicates an exposure pattern to the environment, which can be cured.

Make sure that operators aren't placing rods with extended lengths on rough surfaces, putting loads close to rods of cylinders, or parking machines that have rods exposed during shutdowns that last for a night.

Chrome plating is extremely durable, but it's not self-repairing. The method of maintenance that is applied to the cylinder rod determines if the cylinder will reach its intended service life or fail prematurely and be able to take downstream hydraulic components along with it.
