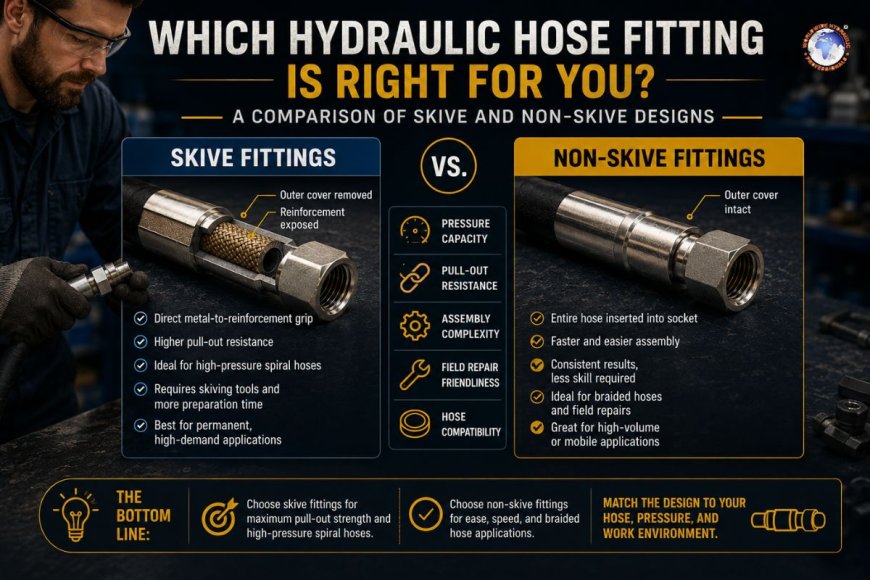

Which Hydraulic Hose Fitting Is Right for You? A Comparison of Skive and Non-Skive Designs

When you're putting together or replacing hydraulic hose assemblies, the fittings you select matter just as equally as the hose itself. Non-skive and skive designs are the two most popular types of fittings for hoses that are used in hydraulic systems. And the distinction between them goes way beyond preference for installation. Each one has its own distinct design logic, performance implications, and ideal usage scenarios.

If you make a mistake, it could result in premature failure of the assembly, hose blowouts at high pressure, or excessive expense and downtime. Making the right choice will result in an uninvolved, leak-free system that will perform reliably throughout its intended lifespan.

What exactly does "skive" really mean?

The term "skive" is a reference to a step that is preparatory in hose assembly—that is, the removal of a cover that covers the outer part and occasionally an inner tube from a hydraulic hose before the fitting is put in place.

When assembling a skive, the rubber covering that covers the pipe is cut to reveal the inner hose (outer skive), and in certain instances, the inner tube is removed in part (full skive), leaving the reinforcement wire or braid underneath. The fitting socket is then positioned over the reinforcement layer, and once the ferrule has been secured, it is able to grip the reinforcement directly. This forms a strong mechanical connection that secures this fitting in place to the central hose.

In a non-skive installation the hose is carefully cut and inserted straight into the socket for fitting, covering, and tube remaining intact. The hose is not removed. The socket can accommodate the entire length of hose and creates radial compression on the entire assembly, including the inner cover, reinforcement, and inner tube, all at the same time.

The physical distinction appears straightforward, yet it results in distinct performance differences.

What is the function of skive fittings?

The skive fittings are designed to directly connect with the reinforced hose. When you remove the cover, the fitting socket connects to the spiral or braided wire layer without material acting as a middleman. This direct interaction between reinforcement and metal results in an extremely high pull-out resistance, an essential metric for high-vibration or pressure-critical applications.

The full skive design goes beyond by removing a portion of the inner tube, permitting the nipple fitting to directly contact the tube without interference from the stack of materials. This creates a better fitting and more reliable sealing design.

The trade-off is time spent on preparation and the requirement for skill. Skiving should be performed with precision. If there is too much material removed, the reinforcement could be damaged. Too little, and the socket won't fit correctly. Inconsistently deep dives across an array of components cause variations in performance. This is precisely the kind of variation that leads to failures in the field.

Skiving requires specialized tools: skive machines, or rotary cutters, which are compatible with the hose's diameter and thickness. In the production environment the tooling is common equipment. When used in field repair scenarios, this tooling adds complexities.

How do non-skive fittings function?

Non-skive fittings were designed specifically to make assembly easier, without sacrificing performance for all hydraulic systems. They cut the hose in a square to fit into the socket, and then it is crimped. This is the whole process.

Its socket for a fitting that is non-skived is constructed with more precise internal tolerances and a particular bore geometry that allows for the entire hose wall stack. When the crimping tool is pressed into the socket, it expands the outer cover, moves the braid upwards, and then locks the entire assembly into position by the compressing of the entire hose.

This method removes the preparation factor. Every assembly is created exactly; inserting and crimping this reduces the training requirements and minimizes errors in assembly. In high-volume production environments, as well as mobile repair situations, this consistency can be of great practical value.

Non-skive fittings also are gentler on the hose's reinforcement during installation. Since the wire braid isn't directly in contact with the socket metal in the process of skiving, it isn't at risk of the wire fraying or causing damage occurring at this stage.

Performance comparison: Where each design is superior

Pressure rating: The skive and non-skive fittings are offered in a wide range of the hydraulic pressures that are used. The design of the fitting alone does not determine the maximum working pressure; the specification of the hose as well as the crimp diameter and the grade of the fitting material all play a role. But skives have been traditionally preferred for extremely high-pressure spiral hose applications (SAE 100R9, R12, R13, and R15) in which direct reinforcement is engineered into the geometry of the assembly.

Resistance to pull out: The skive fittings typically have higher pull-out forces since the socket grasps an element directly. For applications that have significant movement of hoses or axial loads and vibrations—agricultural equipment, marine structures, mobile construction equipment—this property can be pertinent.

Consistency in assembly: Fittings that are non-skived have a clear advantage on this metric. Eliminating the preparation step eliminates the main cause of variation. For shops that produce large volumes of assemblies or for training less skilled technicians Non-skive designs can lower the risk of defects.

Field repairability: Fittings that are non-skive are much more convenient to use in repair situations on the field. There is no skiving tool, no precise removal of the material, only a straight cut, a proper insertion depth, and a proper crimp. This is crucial in time-sensitive or remote repair circumstances.

Hose compatibility: Not all hoses can accept fittings that are not skive-compatible. Wire spiral hoses and heavy-wall constructions are usually fitted with skive fittings, as their wall geometry demands it. Braided hoses, particularly double and single wire braids -- are typically utilized with fittings that are not skived. Make sure the fitting series you choose to use is suitable for the particular hose type.

Crimp tooling concerns

Both non-skive and skive assemblies need to be properly crimped. The crimp diameter specifications differ between two methods for the same hose. The non-skive crimp is glued to the entire outside diameter of the hose and socket assembly, whereas a crimp for skive applies to a smaller diameter following the removal of the cover.

Utilizing non-skive crimp specifications for an assembly of skives (or reverse) creates incorrect crimp geometries and weakens holding. The manufacturers of fittings release separate information on crimping for every design, and the data has to be followed exactly. Using a programmable crimp machine that can store fitting-specific dies and dimension data will eliminate the risk.

The design should be matched to the design of the application

The decision between skived and fittings that are non-skived is at the connection between the type of hose requirements, the application, and operational requirements.

Select skive fittings for use with hoses that have a high spiral when the maximum amount of pull-out resistance is needed in the specification of the application and when the assembly volume is sufficient to warrant dedicated skive fittings, or when the manufacturer's instructions for assembly specifically mention skive fitting termination.

Use fittings that aren't skived when working with braided hoses within regular pressure ranges if the speed of field repairs and ease are important and where consistency in assembly between technicians is an issue or if you're making smaller quantities of assemblies without specialized skiving equipment on-site.

In many stores, both types of fittings are available—fittings with skives designed for more heavy spiral hoses and high-demand assemblies, as well as non-skive fittings that are used for braided hoses used in routine work and inventory of field service. This two-track design lets the fittings design be a part of the needs of the customer rather than forcing each assembly to fit into a specific classification.

Do not overlook the compatibility of hose fittings tests.

Whatever design you select, the compatibility between the fitting series and hose has to be checked prior to installation. Hydraulic fittings are designed to meet tolerances specific to dimensions of hose ID and OD, along with wall design. One fitting made by one manufacturer's non-skive line may not work with the hose made by another manufacturer, even though the nominal hose size is compatible.

Check the compatibility tables, compare the size of the hose's dash to the ratings of the fitting series, and ensure that the crimping specifications for crimp and set match the exact fitting-hose pair. An approved assembly comprising a fitting, a hose, the crimping die, and fitting crimp dimensions can be considered a secure assembly.

Fittings with skive and non-skive are valid in the hydraulic hose assembly. The most appropriate choice isn't necessarily about which one is more universally superior It's about the right design that is suited to the hose's construction pressure requirements and the operational requirements of your particular application. Know the structure logic behind each method, adhere to the compatibility requirements, and adhere to the specifications for crimps precisely. The result is assemblies that are strong.
