Hydraulic Cylinder Pin Removal Tools: Types, Applications, and Best Practices

Hydraulic tools for removing cylinder pins are specially designed devices that can remove clevis pins and pivot pins as well as trunnion pins from the mounting points of cylinders without harming the pin, bore, or the surrounding structure. The best tool is determined by the pin's diameter and material, accessibility, and seizure level limitations. There are options including manual drift punches to hydraulic pin pullers that can withstand hundreds of thousands of pounds.

Why does the removal of pins require the proper tool?

Hydraulic cylinder pins are prone to corrosion exposure as well as tight tolerances. When in use, they are subject to constantly high-shock loads and side thrust and contamination by mud and water along with hydraulic fluid. Over the course of time corrosion from fretting, galvanic interaction between metals that are not compatible, and mechanical deformation could connect a pin to its bore just as well as a press fitting.

People who don't realize this regularly end up damaging the eyes of cylinders or clevis ears. They may also crack them, alter the bores of pins, or hurt themselves using unintentional extraction techniques. A drift punch or the sledge that weighs ten pounds can be able to work on an unrusty 25 mm pin mounted on an excavator with a small footprint However, similar methods applied to a 75-mm trinion pin on a huge press cylinder could cause a split in the lug that holds the mounting before the pin can move.

The task of matching the tool to the job is not an act of caution to protect yourself. It's what differentiates a cylinder swap that takes two hours and a week-long welding repair.

Different types of tools for removing cylinder pins from hydraulic cylinders

1. Pin drivers and drift punches

The most basic category is drift punches, which are steel rods just a little smaller than the pin's diameter of the target. They are used with a hammer or slide hammer; they're appropriate for

• The pins are lightly corroded and can be found in places
• Pins with a smaller diameter (typically less than 40 millimeters)
• The pin's bore must be visible on both sides

The best practice is to use a tool with a flat, solid face, not a center punch that is tapered. A face that is tapered can enlarge the pin's end and makes removal more difficult. Make sure to apply penetrating oil for 24 hours prior to attempting removal whenever it is.

2. Slide hammer pin pullers

A slide hammer connects to the pin using an adapter that is threaded or a hook mechanism. The operator pushes the slug with a weighted slug backwards on the shaft and transmits the force of impact axially to the pin. The advantages include the following:

• Controlled force application with no lateral loads on the eye of the cylinder
• The ability to operate in tight areas where full-on swing is not possible
• The ability to adapt to various pin sizes by using interchangeable fittings at the end

Slide hammer sets that come with multiple adapters are standard in field service kits for construction as well as agricultural equipment.

3. Hydraulic pin pullers

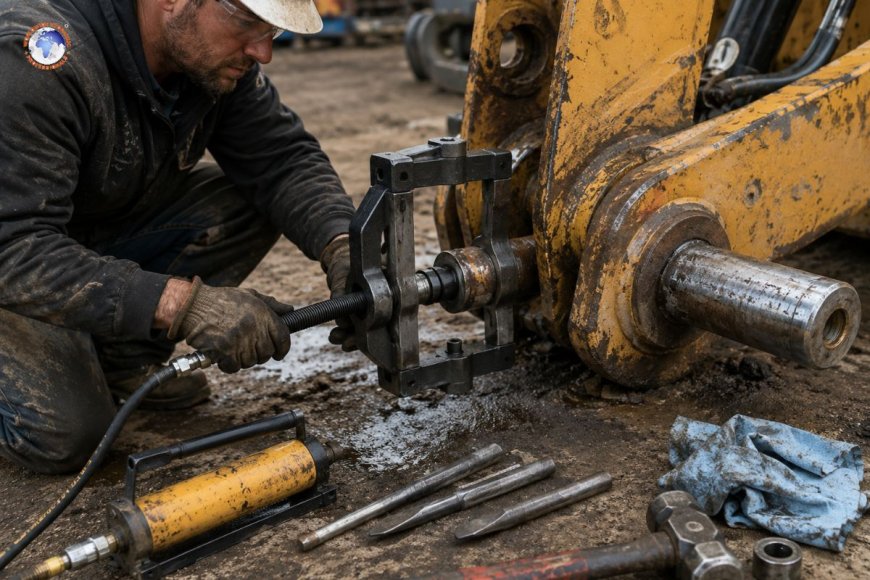

For seized, large-diameter or high-interference pins. Pullers provide controlled, long-lasting extraction force, typically between 5 and 50 tonnes, dependent on the type of pin. They comprise the pulling bridge or yoke, which spans the mounting pin, a threaded puller rod that is attached to the pin (via an adapter or threaded hole adapter), as well as a mechanical ram or pump that powers extraction.

Key variations include:

• The yoke is anchored against the mounting structure, and the pin is pulled by a ram. It is widely used to pull excavator bucket pins as well as the boom's cylinder pivots.
• Hollow-bore ram pullers A hollow hydraulic ram slides across the puller rod, which allows uninterrupted travel with no need to change positions. Ideal for pins with deep recess.
• Hydraulic pin puller sets with integrated hydraulics Self-contained, compact units utilized for OEM service technicians as well as rental fleets to rent particular machines.

Hydraulic pin-pulling tools are tools that are used for pins with more than 50 millimeters and for chrome or stainless pins that are seized by steel bores as well as for all situations where hammering might cause damage to precision-machined surfaces.

4. Mechanical screw pullers

They operate on the same basis as hydraulic pullers but are driven through a threaded screw instead of hydraulic pressure. They work well for moderate levels of seizure and for situations in which hydraulic equipment isn't available. They're slower, but they generate significant force and provide the technician a tactile signal when the load increases—an excellent indication of whether the puller is advancing or whether the mounting structure is starting to move in a dangerous way.

5. Affiliated OEM pin press tools

A variety of cylinder makers and equipment OEMs offer specific pin press tools that are specifically designed for certain models. These sets of tools typically comprise:

• Pilot adapters that are precisely sized to shield pin bores from pressing
• Stop collars to avoid over-travel
• Fixtures that are registered against the machine frame to ensure an axial alignment

Although expensive, OEM tooling pays for itself through the elimination of bore damage and rework within high-volume services.

Critical considerations for application

Surface treatment and pin material

The chrome or stainless steel pins that are seized in bores of mild steel have the galvanic corrosion issue, which can demand significantly higher extraction forces than the surface rust itself suggests. Heating should be handled cautiously around chrome pins, as excessive heat may cause hydrogen embrittlement or even spall the chrome layer in the bore.

Bronze bushings affect pin removal differently. Bronze flows cold under pressure and can hold pins mechanically even if visually clear. The force of the application and the shock caused by rotation (tapping the pin upside down prior to extraction axially) could break the grip.

Access and alignment

A misaligned force for extraction is among the most frequent causes of damaged cylinder eyes after pin removal. The puller needs to be positioned so that it is completely coaxial with the pin. Even a small degree of deviation increases the side pressure on the eye by a significant amount.

In chassis that are tight it may be necessary to use specially designed spacers or bridge bars that are extended to get the right geometrical shape. It takes an extra 30 minutes to put in the puller correctly, which is more efficient than fixing a broken clevis.

The extraction procedure requires lubrication prior to extraction.

The power of penetrating oils is often undervalued. When applied for a period of 24 to 48 hours prior to extraction, a good penetrant could reduce the need for extraction force by between 40 and 60% on pins that are seized. For pins that were stationary for a long time in outdoor equipment, several penetrant treatments over a period of time are appropriate. Heating the lug that is used to mount by using a heating torch or gun, and after which it cools, aids penetrative wicking through expanding and contracting that pin's bore.

Monitoring of load

Hydraulic pin pullers equipped with pressure gauges permit the technician to track the force applied in real-time. If pressure increases rapidly but without any pin movement, stop and examine. The cause could be the structure of the mounting, especially on older equipment that has cracks or corroded lugs, and if the pressure continues to rise, the force can transfer the fault from the pin onto the frame of the machine.

The best practices for secure and effective removal of pins

Reduce system pressure prior to beginning. Hydraulic cylinders should be completely depressurized, and the circuit should be locked out prior to the time any pin removal work commences. Accumulators that store energy must also be released.

The load can be supported independently. Don't depend on the cylinder or its pins for support of the weight of a suspended load when it is removed. Cranes, jacks, or blocking should independently carry the weight of the equipment before the pin touches.

Make sure the ends of your pins are clean prior to engagement. Burrs, dirt, and a mushroomed end to the pin hinder proper tool engagement. Wire brush and then file the pin ends to remove any dirt or burrs from their profile before joining any puller connector.

Make sure you use the correct adapter. An adapter for puller rods that is not sized correctly will tear under pressure. A larger one will not fit. The adapter should match the pin thread specifications precisely.

Thread engagement depth matters. Threads on puller rods must engage the pin a minimum of 1.5 times the diameter of the thread. A thread that is not engaged enough can pull the pin out when under stress, which releases stored energy quickly and potentially.

Note any anomalies in the extraction force. If a part required an extreme force for extraction, be sure to record the force. It could be a sign that the bore is worn and out of tolerance, or there is missing lubrication or a design problem that needs to be resolved during reassembly through bushing replacement, bore resizing, or lube fitting installation.

Reassembly issues

Pin removal and pin installation is a mirror operation The same level of precision applies. Replacement pins must be inspected to ensure that they have the correct dimensions (typically H7/f7 or a comparable running fit) and surface finish and the material's specifications. The bores must be checked for scoring, ovality, and bushing condition prior to the replacement pin is put in.

Anti-seize lubricant—applied to the pin shank, rather than the bore—is suitable for the majority of steel-on-bronze-based applications. In food processing, pharmaceutical, or other clean-environment hydraulics, make sure that the anti-seize component is compatible with the system's sanitation and regulations.

The removal of hydraulic pins from cylinders can be an exact maintenance job that requires careful preparation and the proper tools. Drift punches can handle everyday work. Slide hammers can extend the reach of their hammers and also protect nearby components. Hydraulic pullers handle the most pins that have been seized without causing structural damage. In all cases, proper axial alignment, adequate penetration time, independent load support, and attention to the force used for extraction are what differentiate a flawless repair from a costly problem.
