Hydraulic cylinders are essential components in construction equipment, agricultural machinery, industrial presses, forklifts, excavators, loaders, and many other hydraulic systems. These cylinders convert hydraulic pressure into mechanical force, allowing heavy equipment to lift, push, pull, or move loads efficiently.

Over time, however, hydraulic cylinder seals wear out due to pressure, friction, contamination, heat, and aging. When seals fail, hydraulic fluid leaks develop, performance drops, and equipment may stop functioning properly. Fortunately, replacing hydraulic cylinder seals is a manageable maintenance task for beginners when approached carefully and safely.

This guide explains everything beginners need to know about hydraulic cylinder seal replacement, including common symptoms of seal failure, required tools, step-by-step procedures, and maintenance tips to extend cylinder life.

What are hydraulic cylinder seals?

Hydraulic cylinder seals are specialized components designed to prevent hydraulic fluid leakage while maintaining pressure inside the cylinder. They also protect the internal components from dirt, moisture, and contaminants.

A hydraulic cylinder usually contains several different seals, including:

• Rod seals
• Piston seals
• Wiper seals
• Wear rings
• O-rings
• Backup rings

Each seal performs a unique function within the hydraulic system.

Why hydraulic cylinder seals fail?

Seal failure can occur for several reasons. Understanding the causes helps prevent future problems.

1. Normal wear and tear

Continuous movement creates friction between the seals and metal surfaces. Over time, seals naturally wear down.

2. Contaminated hydraulic fluid

Dust, dirt, water, and metal particles can damage seals and scratch cylinder surfaces.

3. Excessive pressure

Operating above recommended pressure levels can deform or crack seals.

4. Improper installation

Incorrect seal installation may twist, cut, or pinch the seals.

5. Temperature extremes

Very high or low temperatures can harden, shrink, or soften seal materials.

6. Damaged cylinder components

Bent rods, scratched barrels, or corroded surfaces can quickly destroy new seals.

Signs that hydraulic cylinder seals need replacement

Recognizing early warning signs can prevent expensive repairs and downtime.

External fluid leaks

Hydraulic fluid leaking around the rod or cylinder ends is one of the most common indicators.

Reduced performance

Weak lifting force or slow cylinder movement may indicate internal seal leakage.

Cylinder drift

If the cylinder slowly retracts or extends without command, internal seals may be bypassing fluid.

Jerky or uneven movement

Damaged seals can disrupt smooth hydraulic flow.

Excessive heat

Leaking seals can increase friction and heat buildup inside the system.

Contaminated equipment

Oil accumulation mixed with dirt around the cylinder rod often points to seal failure.

Safety precautions before starting

Hydraulic systems operate under extremely high pressure. Always prioritize safety before working on any hydraulic cylinder.

Important safety tips

• Turn off the machine completely
• Lower all attachments to the ground
• Release hydraulic pressure before disconnecting hoses
• Wear safety gloves and eye protection
• Use clean tools and workspaces
• Never work under suspended loads
• Follow manufacturer instructions whenever possible

Hydraulic fluid under pressure can penetrate the skin and cause serious injuries.

Tools and materials needed

Before beginning the repair, gather the necessary tools and supplies.

Basic tools

• Adjustable wrench set
• Socket set
• Snap ring pliers
• Seal picks
• Rubber mallet
• Torque wrench
• Screwdrivers
• Bench vise
• Soft jaw clamps

Supplies

• Replacement seal kit
• Clean hydraulic oil
• Cleaning solvent
• Lint-free cloths
• Emery cloth or polishing pad
• Thread locker (if required)
• Lubricating grease

Choosing the correct seal kit

Using the correct seal kit is extremely important.

Seal kits vary depending on:

• Cylinder manufacturer
• Cylinder bore size
• Rod diameter
• Pressure rating
• Operating temperature
• Hydraulic fluid type

Always match the seal kit with the exact cylinder model whenever possible.

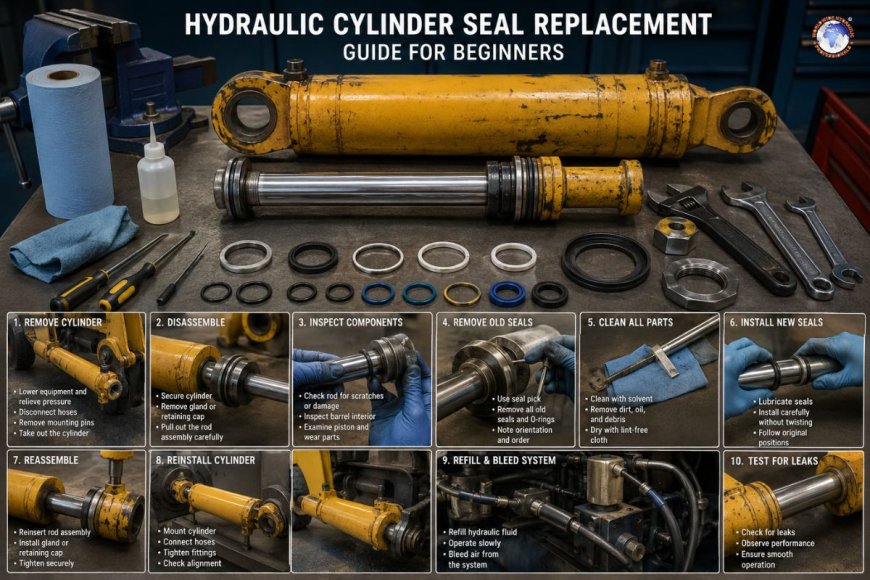

Step-by-step hydraulic cylinder seal replacement

Step 1: Remove the hydraulic cylinder

Carefully disconnect the cylinder from the machine.

Procedure

1. Shut down the equipment
2. Relieve hydraulic pressure
3. Disconnect hydraulic hoses
4. Cap hose openings to prevent contamination
5. Remove mounting pins or bolts
6. Lift the cylinder carefully

Large cylinders may require lifting equipment due to their weight.

Step 2: Clean the cylinder exterior

Before disassembly, thoroughly clean the cylinder exterior.

This prevents dirt and debris from entering internal components during repair.

Use:

• Degreaser
• Cleaning solvent
• Pressure washer (if appropriate)
• Lint-free rags

Cleanliness is critical in hydraulic systems.

Step 3: Secure the cylinder

Place the cylinder securely on a workbench or vise using soft jaws.

Avoid damaging the rod surface during clamping.

Step 4: Remove the cylinder gland

The gland secures the rod assembly inside the cylinder barrel.

Different cylinders use different retaining methods, such as:

• Snap rings
• Threaded retainers
• Bolted flanges
• Wire rings

Carefully remove the retaining mechanism.

If the gland is threaded, use an appropriate spanner wrench.

Avoid excessive force that may damage components.

Step 5: Extract the rod assembly

Once the gland is removed:

1. Slowly pull out the rod assembly
2. Keep components aligned
3. Prevent rod scratches or impacts

The rod assembly usually includes:

• Piston
• Rod
• Gland
• Internal seals

Inspect cylinder components

Before installing new seals, inspect all parts carefully.

Check the rod

Look for:

• Scratches
• Corrosion
• Pitting
• Bending

Even small imperfections can damage new seals quickly.

Inspect the cylinder barrel

Examine the inside surface for:

• Scoring
• Wear
• Rust
• Cracks

Examine the piston

Check for:

• Loose fasteners
• Surface damage
• Excessive wear

Inspect bearings and wear rings

Replace worn wear bands or guide rings if necessary.

Step 6: Remove old seals

Use seal picks carefully to remove old seals.

Avoid scratching metal surfaces during removal.

Take note of:

• Seal orientation
• Seal positions
• Assembly order

Photographing components before disassembly can help beginners during reassembly.

Step 7: Clean all components

Thoroughly clean every part before installing new seals.

Remove:

• Old oil
• Dirt
• Seal fragments
• Metal particles

Use lint-free cloths to prevent contamination.

Step 8: Install new seals

This is the most important step in the repair process.

Helpful installation tips

• Lubricate seals with clean hydraulic oil
• Avoid twisting seals
• Never stretch seals excessively
• Use proper seal installation tools if available

Install each seal exactly as the original was positioned.

Incorrect seal orientation can cause immediate leakage.

Common seal installation mistakes

Beginners often make avoidable mistakes during seal replacement.

Twisted seals

Twisted seals wear rapidly and leak prematurely.

Dry installation

Installing seals without lubrication may damage them instantly.

Using sharp tools

Sharp tools can cut seal edges.

Mixing up seal positions

Incorrect placement affects cylinder performance.

Ignoring surface damage

New seals cannot compensate for damaged rods or barrels.

Step 9: Reassemble the cylinder

After installing new seals:

1. Reattach the piston if removed
2. Tighten piston fasteners to the proper torque
3. Insert the rod assembly carefully into the barrel
4. Reinstall the gland
5. Secure retaining mechanisms

Move slowly to avoid damaging new seals during insertion.

Step 10: Reinstall the cylinder on the machine

Reconnect the hydraulic cylinder carefully.

Checklist

• Mount the cylinder securely
• Reconnect hydraulic hoses
• Tighten fittings properly
• Remove protective caps
• Verify alignment

Step 11: Refill and bleed the hydraulic system

Some fluid loss occurs during repairs.

Refill the hydraulic fluid to the correct level using the recommended oil type.

Operate the cylinder slowly several times to:

• Remove trapped air
• Circulate fluid
• Stabilize pressure

Watch for unusual noises or jerky motion.

Step 12: Test for leaks

After installation:

• Inspect hose fittings
• Check the gland area
• Observe rod movement
• Monitor pressure performance

If leaks appear, stop the system immediately and inspect the repair.

Tips to extend hydraulic seal life

Proper maintenance significantly increases seal lifespan.

Keep hydraulic fluid clean

Contamination is one of the leading causes of seal failure.

Replace filters regularly and maintain clean fluid.

Inspect rod surfaces frequently

Small scratches quickly damage seals.

Avoid overloading equipment

Excessive pressure shortens seal life dramatically.

Store equipment properly

Protect exposed rods from moisture and corrosion.

Replace wipers promptly

Damaged wiper seals allow dirt into the cylinder.

Maintain proper fluid temperature

Overheating accelerates seal deterioration.

When beginners should seek professional help

Some hydraulic cylinder repairs require advanced equipment or experience.

Consider professional repair if you encounter:

• Severely bent rods
• Deep barrel scoring
• Weld damage
• Custom cylinders
• High-pressure industrial systems
• Precision hydraulic applications

Professional repair shops can also perform:

• Rod straightening
• Barrel honing
• Chrome plating
• Pressure testing

Cost of hydraulic cylinder seal replacement

Seal replacement costs vary depending on cylinder size and application.

Typical costs

Small cylinders

• Seal kit: Low to moderate cost
• DIY-friendly

Medium industrial cylinders

• Moderate repair cost
• Requires more tools

Large heavy equipment cylinders

• Higher repair expense
• Often requires professional service

Replacing seals early is usually far cheaper than replacing an entire hydraulic cylinder.

Benefits of replacing hydraulic seals early

Timely maintenance offers several advantages.

Improved equipment performance

Fresh seals restore full hydraulic efficiency.

Reduced downtime

Preventing catastrophic failures keeps equipment operational.

Lower repair costs

Minor seal repairs prevent major internal damage.

Better safety

Leaking hydraulic systems can create hazardous working conditions.

Longer cylinder lifespan

Routine maintenance extends equipment service life significantly.

Hydraulic cylinder seal replacement may seem intimidating for beginners, but with patience, cleanliness, and proper procedures, it becomes a manageable maintenance task. Understanding how hydraulic seals function, recognizing signs of failure, and following safe repair practices can save time, reduce equipment downtime, and lower maintenance costs.

The key to successful hydraulic cylinder repair lies in careful inspection, proper seal installation, and maintaining a clean working environment. Even small mistakes can lead to premature seal failure, so taking the time to perform each step correctly is essential.

As you gain experience, hydraulic seal replacement becomes an invaluable skill for maintaining construction machinery, agricultural equipment, industrial systems, and hydraulic tools. Regular inspection and preventive maintenance will help ensure your hydraulic cylinders operate efficiently for many years.
