Hydraulic cylinders are among the most important components in construction equipment, agricultural machinery, industrial presses, forklifts, and hydraulic systems. They convert hydraulic pressure into linear force, enabling machines to lift, push, pull, and move heavy loads efficiently. However, like any mechanical component, hydraulic cylinders wear out over time due to contamination, pressure spikes, corrosion, damaged seals, or improper maintenance.

A leaking or malfunctioning hydraulic cylinder can reduce machine performance, increase operating costs, and even cause equipment downtime. Fortunately, many hydraulic cylinder problems can be repaired with the right tools, knowledge, and safety procedures.

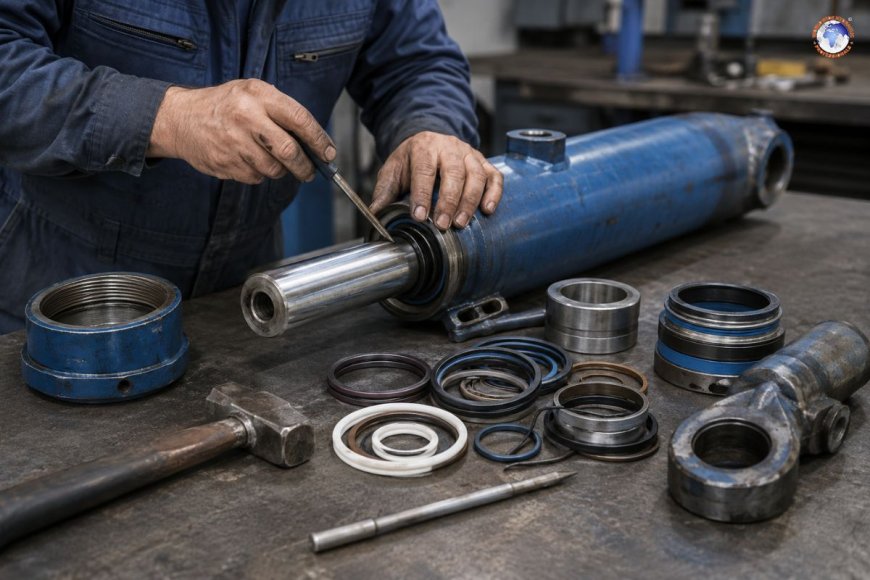

This step-by-step guide explains how to repair a hydraulic cylinder, including inspection, disassembly, seal replacement, troubleshooting, and reassembly.

What is a hydraulic cylinder?

A hydraulic cylinder is a mechanical actuator that uses pressurized hydraulic fluid to create linear motion and force. It typically consists of:

• Cylinder barrel
• Piston
• Piston rod
• Rod gland
• Seals and wear rings
• End caps

Hydraulic cylinders are used in:

• Excavators
• Tractors
• Loaders
• Cranes
• Hydraulic presses
• Manufacturing machines
• Dump trucks
• Forestry equipment

When any internal component fails, the cylinder may lose pressure, leak oil, or stop functioning properly.

Common signs of hydraulic cylinder failure

Before beginning repairs, identify the symptoms of failure. Common warning signs include:

External oil leaks

Oil leaking around the rod seal or end cap often indicates damaged seals or worn rod surfaces.

Reduced lifting power

If the cylinder cannot maintain force or pressure, internal seal leakage may occur.

Cylinder drift

A drifting cylinder slowly moves when it should remain stationary, often caused by worn piston seals.

Jerky or uneven movement

Contaminated hydraulic fluid, bent rods, or internal scoring can cause rough operation.

Unusual noises

Knocking or squealing sounds may indicate trapped air or damaged internal parts.

Visible rod damage

Scratches, rust, or bends on the rod can quickly destroy seals and reduce performance.

Safety precautions before repair

Hydraulic systems operate under extremely high pressure. Improper handling can lead to serious injuries.

Always follow these safety steps:

• Shut down the machine completely
• Release the hydraulic system pressure
• Disconnect the power source
• Wear gloves and eye protection
• Support the raised equipment securely
• Clean the work area thoroughly
• Use proper lifting tools for heavy cylinders

Never attempt repairs while the system is pressurized.

Tools and materials needed

Before starting the repair, gather the necessary tools and replacement parts.

Basic tools

• Wrench set
• Socket set
• Torque wrench
• Snap ring pliers
• Seal picks
• Soft-face hammer
• Bench vise
• Hydraulic jack or lifting device

Specialized tools

• Cylinder gland wrench
• Honing tool
• Micrometer or caliper
• Seal installation tools

Replacement materials

• Seal kit
• Hydraulic fluid
• Cleaning solvent
• Lint-free cloths
• Thread locker
• Replacement rod or barrel if damaged

Using the correct seal kit for your cylinder model is critical.

Step 1: Remove the hydraulic cylinder

The first step is removing the cylinder from the machine.

Procedure

1. Lower all attachments to the ground
2. Turn off the engine
3. Relieve hydraulic pressure
4. Disconnect hydraulic hoses
5. Cap hose openings to prevent contamination
6. Remove mounting pins and retaining clips
7. Carefully lift the cylinder free

Large cylinders may require hoists or lifting equipment.

Step 2: Clean the exterior

Before disassembly, thoroughly clean the outside of the cylinder.

Dirt and debris can enter the cylinder during repair and damage internal components.

Use:

• Degreaser
• Pressure washer
• Clean rags
• Compressed air

Pay special attention to:

• Rod area
• Ports
• Gland threads
• End caps

A clean cylinder reduces contamination risk significantly.

Step 3: Disassemble the cylinder

Hydraulic cylinders are assembled in different ways depending on design:

• Threaded gland
• Bolted end cap
• Snap ring retained
• Welded construction

Consult the manufacturer’s service manual if available.

General disassembly steps

Remove the gland retainer

Use the correct spanner or gland wrench to loosen the retaining mechanism.

Extract the rod assembly

Slowly pull the piston rod assembly from the barrel.

Disassemble internal components

Remove:

• Piston nut
• Piston seals
• Wear rings
• Rod seals
• Wipers
• O-rings

Keep all components organized during removal.

Step 4: Inspect all components

Inspection is one of the most important parts of hydraulic cylinder repair.

Carefully examine each component for wear or damage.

Inspect the rod

Check for:

• Scratches
• Chrome peeling
• Pitting
• Corrosion
• Bending

Minor scratches may be polished, but severe damage often requires rod replacement or rechroming.

Inspect the barrel

Look for:

• Internal scoring
• Rust
• Cracks
• Oval wear

Light damage can sometimes be repaired by honing.

Severe scoring may require barrel replacement.

Inspect the piston

Check for:

• Cracks
• Loose fit
• Worn seal grooves
• Surface wear
• Inspect seals and wear rings

Damaged seals commonly show:

• Hardening
• Tearing
• Flattening
• Swelling

Even if only one seal appears damaged, replacing the full seal kit is recommended.

Step 5: Repair or replace damaged parts

Once inspection is complete, determine which parts need repair or replacement.

Rod repair

Minor rod imperfections can be polished using fine emery cloth.

Bent rods usually require replacement because straightening may weaken the material.

Barrel honing

If the barrel has light scoring, honing can restore a smooth surface.

Honing helps:

• Improve seal life
• Remove glazing
• Restore surface finish

Avoid excessive honing, which changes internal tolerances.

Thread repair

Damaged threads can sometimes be repaired using thread chasers or inserts.

Step 6: Replace hydraulic seals

Seal replacement is the most common hydraulic cylinder repair.

Types of cylinder seals

Common seals include:

• Rod seals
• Piston seals
• Wiper seals
• Buffer seals
• O-rings
• Wear bands

Installation tips

• Lubricate seals with clean hydraulic oil
• Avoid twisting seals
• Use proper installation tools
• Install seals in the correct direction
• Do not overstretch seals excessively

Incorrect seal installation can cause immediate leakage.

Step 7: Reassemble the cylinder

After replacing seals and repairing damaged components, begin reassembly.

Reassembly procedure

1. Install new seals and wear rings
2. Reattach the piston to the rod
3. Tighten the piston nut to the manufacturer's torque specifications
4. Lubricate internal surfaces
5. Insert the rod assembly into the barrel carefully
6. Install the gland and retaining mechanism
7. Torque all fasteners correctly

Take care not to damage seals during insertion.

Step 8: Test the hydraulic cylinder

Testing ensures the repair was successful.

Bench testing

If possible, use a hydraulic test bench to check:

• Pressure holding
• Smooth operation
• Internal leakage
• External leakage

On-machine testing

Reinstall the cylinder and operate the machine slowly.

Check for:

• Oil leaks
• Proper extension and retraction
• Smooth movement
• Stable load holding

Monitor the repaired cylinder during initial operation.

Common hydraulic cylinder problems and solutions

Causes of hydraulic cylinder damage

Understanding the root causes helps prevent future failures.

Contaminated hydraulic fluid

Dirt particles damage seals and internal surfaces.

Improper pressure settings

Overpressure can rupture seals and deform components.

Side loading

Misalignment places excessive force on the rod and bearings.

Lack of maintenance

Ignoring leaks or dirty fluid accelerates wear.

Corrosion

Moisture exposure damages rods and internal surfaces.

Preventive maintenance tips

Regular maintenance greatly extends cylinder lifespan.

Keep hydraulic fluid clean

Use proper filtration and replace fluid as recommended.

Inspect seals regularly

Replace worn seals before catastrophic failure occurs.

Protect rod surfaces

Avoid impacts, rust, and contamination.

Check alignment

Ensure cylinders operate without side loading.

Monitor operating pressure

Prevent pressure spikes and overload conditions.

Lubricate pivot points

Proper lubrication reduces stress on mounting components.

When to replace instead of repair?

Sometimes replacement is more economical than repair.

Consider replacement if:

• The barrel is severely cracked
• Rod is heavily bent
• Multiple components are damaged
• Repair costs exceed replacement value
• Cylinder design is obsolete

For critical industrial applications, replacement may reduce downtime and improve reliability.

Professional repair vs DIY repair

DIY repair advantages

• Lower cost
• Faster minor repairs
• Useful for small equipment

Professional repair advantages

• Precision machining
• Pressure testing
• Rod rechroming
• Advanced diagnostics
• Warranty support

Large industrial cylinders usually require professional service centers.

Repairing a hydraulic cylinder requires patience, proper tools, and careful inspection. Most cylinder failures result from worn seals, contamination, improper operation, or neglected maintenance. By following a structured repair process, you can restore cylinder performance, reduce downtime, and extend equipment life.

The key steps include:

• Safe removal
• Thorough cleaning
• Careful inspection
• Replacing worn seals
• Repairing damaged surfaces
• Correct reassembly
• Proper testing

Preventive maintenance remains the best way to minimize hydraulic cylinder failures. Clean hydraulic fluid, regular inspections, and proper operating practices help ensure long-lasting and reliable hydraulic performance.

Whether working on construction equipment, agricultural machinery, or industrial systems, understanding hydraulic cylinder repair is an essential skill for technicians, mechanics, and equipment operators.
