Hydraulic systems are developed to provide steady, stable power in harsh industrial environments. However, a common issue encountered by hydraulic systems and fluid handling is pulsation of pressure. Pressure fluctuations caused by compressors, pumps, and the rapid change in flow conditions can cause noise, vibration, component wear, and instability in the system. This is why pulsation dampeners play a crucial function.

Pulsation dampeners are specially designed devices designed to withstand pressure spikes and ensure a smooth flow of fluid. Their performance is largely dependent on the system's pressure. Understanding the impact of pressure on the dampeners' pulsation is vital to keeping hydraulic efficiency high, prolonging the life of equipment, and minimizing operational issues.

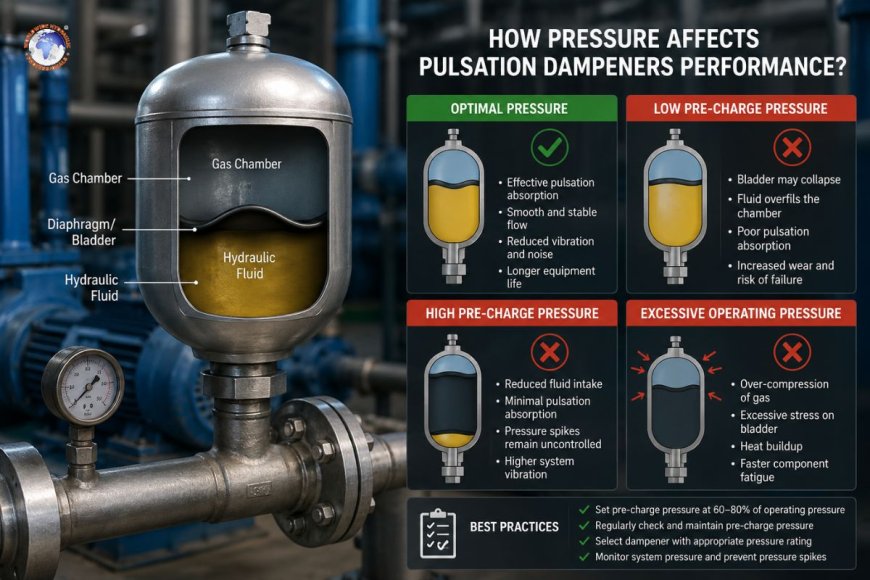

This article discusses how pressure affects the dampener's performance in pulsation and the science behind dampening, the problems with pressure that are common, and the best practices to achieve the highest level of performance.

What is a pulsation dampener?

A pulsation dampener can be described as a device that is used within fluid systems that reduces pressure pulsations as well as flow irregularities. The pulsations can be caused by:

• Positive displacement pumps

• Reciprocating compressors

• Hydraulic actuators

• Rapid valve operation

• Acceleration and deceleration of fluids

The dampener is a combination of an inflatable gas chamber diaphragm, flexible bladder, or piston that takes on sudden pressure changes and releases energy slowly. This results in a smoother flow and helps to stabilize pressure in the system.

Pulsation dampeners are extensively used in:

• Hydraulic systems

• Chemical processing

• Treatment of water

• Industries of oil and gas

• Applications for food and beverages

• Manufacturing of pharmaceuticals

Understanding pressure pulsations

"Pressure pulsation" is the term used to describe constant fluctuations in the pressure between and below the normal operating levels. When hydraulics are used, these pulsations can occur naturally as a result of pump cycling as well as fluid motion.

The pressure waves that they create can result in:

• Excessive vibration

• Pipe fatigue

• Seal damage

• Noisey operation

• Pump efficiency is reduced

• Inaccurate instrumentation readings

• Premature component wear

The goal of an pulsation dampener is to limit the frequency of these fluctuations prior to causing damage to the system.

The relationship between pressure and pulsation dampener performance

Pressure is among the primary factors that influence the operation of a pulsation dampener. The effectiveness of the dampener depends on ensuring that the right balance is maintained between the following:

• System pressure

• Gas pre-charge pressure

• Pulsation amplitude

• Conditions of Flow

When the relation between pressures isn't correct, the dampener can fail or be damaging for the entire system.

How do pulsation dampeners work under pressure?

The majority of pulsation dampeners have an enclosed chamber that is separated from the fluid via diaphragms, bladders, or pistons. The gas is compressible, whereas hydraulic fluid isn't.

When there is a rise in pressure:

1. The dampener's fluid is drained

2. The gas chamber is compressed.

3. The energy of pressure is absorption

4. The gas increases gradually

5. Flow gets more fluid

The effectiveness of this process is heavily dependent on the pressure level inside the device.

Importance of pre-charge pressure

Pre-charge pressure refers to the pressure of gas inside the dampener before it enters the system. It is among the most crucial parameters to set up.

For optimal operation it is essential to have the pre-charge tension typically set between 60% and 80% of the system's operating pressure, based on the purpose of the system.

What is the significance of pressure before charging?

If the pre-charge pressure is too low

When the pressure of pre-charge is low:

• The diaphragm or bladder could be prone to collapse.

• The chamber can be completely filled with fluid. chamber.

• The effectiveness of the dampening process decreases.

• Wear on components increases

• The bladder could rupture.

A low pre-charge pressure can cause slow dampener response as well as low absorption of pulsation.

If the pre-charge pressure is excessive

If the pre-charge pressure is excessive:

• The dampener is not able to receive fluid in a proper manner.

• Absorption of pulses decreases to a minimum.

• Pressure spikes remain uncontrolled

• System vibrations increase

In this situation the dampener becomes inactive.

Effect of operating pressure on dampener efficiency

Operating pressure directly affects the amount of energy that a damper will absorb.

Low operating pressure

When the system is at a low pressure:

• The expansion of gas is bigger

• Dampener response can be unstable

• Flow smoothing can be incongruous

When the pressure drops much below the design range, the dampener's performance will decrease significantly.

High operating pressure

When pressures are higher:

• Gas is compressed more quickly and

• The damper absorbs higher pressure spikes

• System stability increases when the system is correctly measured

However, pressure that is extremely high can cause problems as well:

• Excessive bladder stress

• Heat buildup

• Reduced gas volume

• Faster component fatigue

Thus, dampeners must be calibrated to the maximum pressure of the system.

Pressure differential and dampening action

The pressure difference between the gas and fluid side determines the dampener's efficiency.

A proper differential in pressure permits the gas chamber to

• Compress during pressure spikes

• Expand as pressure drops

• Maintain a steady flow

If the difference becomes too small or excessive, the dampening effect decreases.

The maintenance of consistent pressure conditions is crucial for ensuring reliable performance.

Pressure cycling and fatigue

Hydraulic systems typically experience constant pressure cycling. Each pressure pulse triggers repeated expansion and compression inside the dampener.

In time, this cycle may eventually lead to the following:

• Fatigue in the bladder

• Diaphragm cracking

• Leakage of gas

• A decrease in responsiveness

• Internal wear

The higher pressure cycle puts more stress on internal components, which can reduce the service life.

Systems that have high pressure fluctuations require high-end dampeners specifically designed for cycling.

Influence of pressure spikes

The pressure spikes can be a sudden, abrupt increase in system pressure. They can be caused by:

• Fast valve closures

• Pump switching

• Water hammer effects

• Rapid actuator movement

Extreme spikes may exceed the dampener's limits of design and can cause the following:

• Bladder rupture

• Housing damage

• Seal failure

• System shuts down

A properly pressurized pulsation dampener will absorb these spikes prior to them being able to spread across the entire system.

Gas compression and boyle’s law

The function of pulsation dampeners rests on the principle of compression of gas as explained in Boyle's Law.

P_1V_1=P_2V_2

This equation implies that when pressure rises, gas volume decreases, correspondingly.

Inside a dampener

• As hydraulic pressure increases, it will compress the gas.

• Lowering pressure allows gas to expand.

The controlled expansion and compression produces a dampening effect.

Knowing this connection helps technicians choose the right size of dampener and pre-charge pressure.

How does incorrect pressure affect system performance?

Pressure settings that are not correct can lead to various operational issues.

More vibration

When dampeners can't absorb the pulsations and vibration levels are high, they can be felt all over the hydraulic system.

The vibrations can cause damage to:

• Pipes

• Fittings

• Valves

• Sensors

• Mounting brackets

Noise problems

Pressure pulsations are often accompanied by an acoustic noise from the hydraulic system. A poor dampener's performance permits these waves of pressure to travel through the system undetected.

The correct pressure adjustment greatly reduces the amount of noise.

Reduced pump life

Pressure spikes put extra strain upon hydraulic pumps.

Without a dampening effect:

• Bearings wear more quickly

• Seals deteriorate

• The efficiency of pumps decreases.

• The risk of developing a cavity increases

The correct dampener pressure shields pumps from stress caused by mechanical forces.

Poor flow stability

Dampeners that are not properly pressurized may not be able to effectively smooth flow that can cause the following:

• Incorrect actuator movement

• Machine operation is inconsistent

• Variations in pressure at valves for control

• Accuracy of processes reduced

Stable pressure results in stable system performance.

Temperature and pressure interaction

Changes in temperature directly affect the gas pressure in pulsation dampeners.

As temperature rises:

• Gas pressure rises

• Stress inside the body is a major contributor to stress.

• Changes in the responsiveness of the damper

As temperature drops:

• Gas pressure drops

• The effectiveness of dampening may decrease.

This is the reason dampeners operating at extreme temperatures require care in pressure monitoring.

In extreme temperatures, thermal expansion can change the pre-charge conditions dramatically.

Choosing the correct pressure rating

Each pulsation dampener comes with the maximal pressure ratings. Making sure you select the correct pressure number is crucial to ensure safety and efficiency.

The dampener must be able to

• Normal operating pressure

• Peak pressure rises

• Pressure surges

• Conditions for starting pressure

If you use a dampener that is too small or not rated, the dampener could cause an unavoidable failure.

Signs of pressure-related dampener problems

A variety of signs indicate issues with pressure in the pulsation dampeners.

Common warning indicators

• Amplification of hydraulic noise

• Excessive vibration

• Changes in pressure gauge

• Pump knocking sounds

• Fluid hammer effects

• Reducing system efficiency

• Frequent seal failures

• Bladder damage

Inspections routinely help to identify problems before they become major issues.

Best practices for maintaining proper pressure

The correct pressure settings will ensure an optimal dampener's performance and a more durable service.

Be sure to monitor the pressure of the pre-charge regularly.

The pressure of gas decreases gradually with time due to leakage and permeation.

Regular checks are vital.

Match dampener to system pressure

Always select a dampener specifically made for the specific application's pressure range.

Avoid overpressurization.

The excessive pressure reduces the lifespan of components and increases the risk of failure.

Set up pressure relief systems when needed.

Inspect for gas leakage

The leakage of gas can reduce damping effectiveness significantly.

Make sure to inspect valves, seals, and charging ports frequently.

Use proper installation techniques

A wrong mounting could alter the pressure behavior and dampen performance.

Set up the damper.

• Near to the source of pulsation

• With the right direction

• With the right support

Applications where pressure control is critical

The performance of a pressure-sensitive pulsation dampener is crucial in particular sectors like

Oil and gas

High-pressure pumping systems require precise control of pulsation in order to safeguard pipelines and other equipment.

Chemical processing

Pressure stability guarantees accurate dosing and secure fluid transfer.

Hydraulic machinery

Equipment for industry and construction relies on smooth hydraulic pressure to ensure precision in movements.

Water treatment

Pressure surges can harm membranes, pumps, and pipes.

Food and beverage processing

Stable pressure increases sanitation of fluid handling and process stability.

Future trends in pulsation dampener technology

Modern pulsation dampeners are getting more sophisticated because of the following:

• Smart pressure monitoring

• Real-time diagnostics

• New bladder materials that are better than the original

• Advanced gas retention systems for gas

• High-pressure composite designs

These improvements increase reliability and provide improved pressure management in the most demanding hydraulic systems.

Pressure plays an essential aspect in determining the pulsation dampener's performance. From the pre-charge setting to operating pressures and pressure spikes, each aspect of operation for a dampener is dependent on the maintenance of a proper pressure balance.

A proper pulsation dampener that is pressurized reduces the amount of vibration, thereby reducing noise; shields components of hydraulics; and increases overall system performance. However, the wrong pressure setting can cause low dampening efficiency or equipment wear and tear, resulting in expensive downtime.

Understanding the impact of pressure on dampeners for pulsation allows maintenance experts and hydraulic engineers to improve the performance of the system and prolong its longevity. Regular inspections, correct pressure adjustment, and proper damper sizing are crucial to making sure that your system runs smoothly in any fluid handling or hydraulic system.
