Hydraulic systems are built to produce massive power using pressured fluid. From forklifts and excavators to industrial presses, mining equipment, and aircraft equipment, hydraulics are vital for modern industrial processes. At the core of these systems are fittings for hydraulics—the parts used to connect tubes, hoses, pipes, and valves while also carrying high-pressure fluid.

A frequent question in hydraulic engineering is, "What is the pressure that can be used for fittings made of hydraulic fluid?"

The answer may not be easy because the pressure ratings of hydraulic fittings depend on many factors such as the type of fitting, the material used, size, dimensions, designs, standards for design temperatures, and the conditions for use. Understanding these limitations is crucial for safety performance, efficiency, and reliability.

The article will examine the hydraulic fitting pressure ratings and what the factors are that determine their maximum pressure and industry standards, as well as common fittings and how to choose the appropriate fitting for high-pressure applications.

Understanding the pressure ratings of hydraulic fittings

The pressure rating of a hydraulic fitting is the highest internal pressure it is able to endure during operation in specified conditions. The rating is determined by engineers using calculations in engineering and pressure testing.

Hydraulic systems can be used in any location:

• Low pressure: lower than 500 PSI

• Medium pressure: 500-3,000 PSI

• High pressure: 3,000 to 6,000 PSI

• Ultra-high pressure: over 10,000 PSI

Certain hydraulic systems that are specialized, including industrial torque tools, water jet cutters, and heavy-lifting equipment, could exceed 20000 PSI.

Hydraulic fittings should be able to handle these pressures without leaking, cracking, deforming, or breaking.

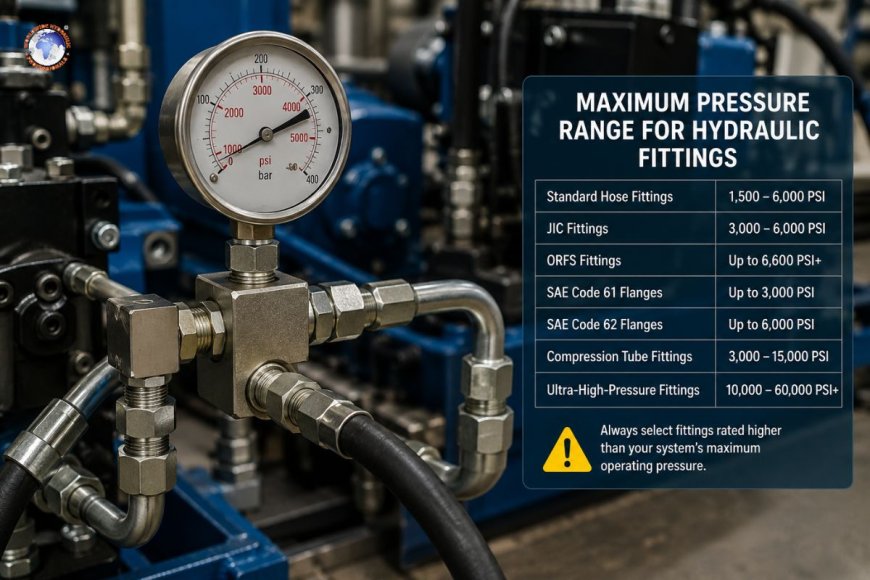

Typical maximum pressure ranges for hydraulic fittings

Diverse hydraulic fittings have been developed to meet different pressure requirements. Below are the most common pressure ranges that are used in the field.

1. Standard fittings for hydraulic hoses

The majority of the standard hydraulic hose fittings employed in mobile and industrial equipment are able to operate between the following:

• 1,500 PSI to 6,000 PSI

The fittings can be used in:

• Construction equipment

• Agriculture machinery

• Industrial presses

• Material handling systems

2. JIC fittings

JIC (Joint Industry Council) fittings are extensively utilized due to their durability and simple installation.

Pressure ratings typical:

• 3,000 PSI to 6,000 PSI

• A few smaller sizes could be able to handle pressures that are higher.

JIC fittings have an angle of 37 degrees for the seating surface to seal.

3. ORFS fittings

O-Ring Face Seal (ORFS) fittings are extremely popular for leak-sensitive and high-vibration applications.

Pressure range:

• As high as 6,600 PSI or more

These fittings are excellent for leak protection and are typically employed in hydraulic systems with heavy-duty requirements.

4. SAE code 61 and code 62 flanges

Flange fittings are often utilized in larger hydraulic systems.

SAE code 61

• Applications requiring medium-pressure

• Typically up to 3,000 PSI

SAE code 62

• High-pressure applications

• Up to 6,000 PSI

These fittings are typically employed in:

• Mining equipment

• Hydraulics offshore

• Large industrial systems

5. Compression tube fittings

Compression fittings are often employed in hydraulic and instrumentation tubing systems.

Common ratings:

• 3,000 PSI to 15,000 PSI

High-performance stainless steel compression fittings could outdo these in particular applications.

6. Ultra-high-pressure fittings

Specific hydraulic systems that are specialized require ultra-high-pressure fittings.

Pressure range:

• 10,000 PSI up to 10,000 to 60,000 PSI or greater

Applications comprise:

• Hydraulic bolt tensioning

• Water jet cutting

• Hydraulic tools for rescue

• High-pressure testing equipment

These fittings are designed with thick walls, high-precision threads, and modern sealing mechanisms.

Factors that determine maximum pressure

The capacity for pressure of a hydraulic fitting is contingent on a variety of important aspects.

1. Material durability

The fitting material has a significant impact on the capacity to hold pressure.

Carbon steel

• The most common material for fittings in hydraulics

• Economic and strong

• Ideal for high-pressure systems

Steel made of stainless steel

• Excellent corrosion resistance

• Most often, they are employed in the food, marine industries, chemical and food industries

• It may have slightly lower tension values than carbon steel certain models

Brass

• In low-pressure systems

• Not recommended for hydraulics that require high pressure.

Alloy steel

• It is used in ultra-high-pressure applications.

• It provides superior strength and resistance to fatigue

2. Fitting size

Smaller fittings are more likely to withstand greater pressure than fittings that are larger.

Why?

Since larger diameters exert more internal forces that force the threads and walls of fittings. The larger the diameter of fittings, the lower the maximum pressure ratings typically are.

For instance:

• A 1/4-inch fitting could be able to handle the pressure of 6,000 PSI

• A 1-inch fitting can only handle 3000 PSI

3. Thread design

Thread type affects sealing capacity and the performance of pressure.

Common hydraulic threads for hydraulics include the following:

• NPT

• BSPP

• BSPT

• JIC

• SAE

• Threads that measure Metric

An incompatible or poorly engaged thread combination can drastically reduce the capability of pressure and raise the risk of leaks.

4. Temperature

Hydraulic systems typically operate at extreme temperatures.

When temperatures rise:

• The strength of the material could decrease.

• Seals can soften or degrade

• Pressure ratings could be decreased

Manufacturers usually offer pressure ratings at certain temperatures, for example:

• 70°F (21°C)

• 100°F (38°C)

• 212°F (100°C)

Always check temperature derating charts for accurate pressure limits.

5. Dynamic pressure and pressure spikes

Hydraulic systems seldom operate with constant pressure.

Pressure spikes caused by

• Rapid valve closure

• Shock loading

• Pulsation of the Pump

• Sudden directional changes

could temporarily exceed system pressure ratings.

These spikes could be more than the normal operating pressures and could end up damaging fittings over the course of time.

To ensure this, fittings must be selected with a margin of safety that is greater than the norm of operating pressure.

Burst pressure vs working pressure

Hydraulic fittings generally come with 2 pressure specs.

Pressure of work

The maximum operating pressure the fitting is able to safely handle.

Pressure burst

Pressure at which the fitting is unable to function.

The typical burst pressure is

• Four times greater than the work pressure

For instance:

• Pressure at work: 5 000 PSI

• Burst pressure: 20.000 PSI

However, the system should never be operated near to the pressure of a burst.

Industry standards for hydraulic fittings

Hydraulic fittings are produced in accordance with strict international standards.

Standards of SAE

The Society of Automotive Engineers (SAE) sets up a number of specifications for hydraulic fittings.

Examples:

• SAE J514

• SAE J1453

• SAE J518

These standards define:

• Dimensions

• Materials

• Ratings of pressure

• Testing is a requirement

ISO standards

The International Organization for Standardization (ISO) also specifies the requirements for hydraulic fittings.

Examples:

• ISO 8434

• ISO 6149

These standards ensure safety and compatibility across the world.

DIN standards

German DIN specifications are frequently employed in Europe and in industrial hydraulics around the world.

Risks of exceeding pressure limits

Utilizing hydraulic fittings above their pressure ratings can be very hazardous.

The possible consequences are:

1. Leaks in hydraulics

Pressure that is too high can cause damage to threads and seals, which can cause leaks in the fluid.

Leaks reduce:

• System efficiency

• Lubrication quality

• Stability of pressure

2. Hose blow-Off

The pressure can force hoses from fittings, in particular in the event that crimping isn't done correctly.

This could lead to an abrupt hydraulic fluid discharge and equipment failure.

3. Fitting cracks and rupture

A series of pressure spikes could cause metal fatigue.

Eventually:

• Fittings crack

• Threads fail

• Components can break

This could result in catastrophic accidents.

4. Safety hazards

Fluids containing hydraulics under pressure can get into the human skin, causing severe injury to the skin.

High-pressure injuries requiring immediate medical attention. They could result in injuries to tissues or amputations.

How to select the right hydraulic fitting?

Selecting the right hydraulic fitting is crucial for ensuring secure and reliable operation.

1. Be aware of the pressure in your system

Always determine:

• Normal operating pressure

• Maximum pressure spikes

• Conditions of pressure cycling

Select fittings that are rated higher than the pressure that is expected to be the highest.

2. Match the application

Different applications require different types of fitting.

For instance:

• ORFS fittings to prevent leaks

• Flange fittings are used for large, high-flow systems

• Compression fittings to allow instruments

3. Verify compatibility

Make sure that the product is compatible with:

• Threads

• Hose kinds

• Tube materials

• Hydraulic fluids

Unskillful combinations could lead to leaks and even failures.

4. Consider environmental conditions

Accounts for:

• Corrosion exposure

• Temperature extremes

• Vibration

• Chemical exposure

The harsh environment may require stainless steel or special coatings.

5. Follow manufacturer specifications

Always remember:

• Torque recommendations

• Installation procedures

• Ratings of pressure

Incorrect installation is the primary reason behind failures of hydraulic fittings.

Importance of regular inspection

Even fittings that are properly rated for hydraulics may deteriorate with time.

Regular inspections should be able to identify:

• Corrosion

• Cracks

• Leaks

• Connections that are loose

• Thread damage

• Hose wear near fittings

Maintenance that is preventive greatly reduces the chance of failures of the hydraulic system.

The future of high-pressure hydraulic fittings

Industries are demanding larger and more compact hydraulic systems; the technology continues to advance.

The latest technological advances include:

• Technology for sealing improved

• Materials that are lightweight and high-strength.

• Coatings that resist corrosion

• Smart fittings that monitor condition sensors

These advances help hydraulic systems become more secure, efficient, and capable of handling even greater pressures.

The pressure that can be applied to fittings for hydraulics is determined by the design, size, material, and application. Standard fittings for hydraulics usually manage pressures of 3,000 to 6,000 PSI, and ultra-high-pressure fittings can go over 60,000 PSI.

Knowing the pressure ratings is crucial to ensure the safety of hydraulic systems and their performance. Overstepping the limits of fitting pressure could cause leaks, damage to equipment downtime, and even grave safety risks.

To ensure reliable operation:

• Choose fittings that have the appropriate pressure ratings

• Be aware of pressure spikes and temperature fluctuations.

• Be sure to follow industry standards.

• Make sure you check the condition of your equipment regularly and maintain it

Fittings in hydraulic systems might appear to be small parts; however, they play a significant role in the integrity of the system as well as safety for the user. Selecting the correct fitting for your hydraulic system isn't just an issue of technicality—it's an investment in productivity, reliability, and safety at work.
