Swivel fittings vs fixed fittings: which is better for your system?

When it comes to designing and maintaining a fluid power or hydraulic system, each component selection can have consequences. Hose fittings, which appear to be tiny hardware components, can have a significant impact on the system's longevity as well as maintenance time and leak prevention. One of the debated options in the design of systems is whether to make use of swivel fittings instead of fixed fittings.

The truth is that neither of them is "better." Each fitting type has a distinct engineering function, and selecting the wrong type for your particular application could cause premature failure of the hose or leaks for a long time, as well as excessive expense. This article will explain the different fitting types in the different areas, how each performs, and the best way to select the most appropriate one for your particular system.

The basics of understanding

Before comparing the two, it is important to understand the purpose behind each one.

Fixed fittings (also called non-swivel or rigid fittings) are permanently crimped or threaded onto the hose's upper end. Once they are installed, the fitting and hose make up one permanent unit. The fitting is not able to rotate. The pipe must be positioned in such a manner that allows for the natural adsorption of the fitting's connection points without adjustments to the angular position after the assembly.

The fittings that are swivel, on the other hand, have the use of a rotating nut or sleeve that permits the fitting body to move freely, usually 360 degrees about its own internal axis. The rotation takes place at the point of connection and not within the hose. This means that the hose remains free of torsional stress throughout installation and operating.

The mechanical distinction is simple. However, the engineering implications are deep.

The case that holds swivel fittings

Eliminating the torsional stress

One of the primary causes of premature failure of hoses within a hydraulic system is twisting of the hose. When a fixed fitting has been fitted and the hose has a slight off-center with its port, engineers often compensate by bending the hose assembly back into place. The hose is then torqued around its axis—often by 5-10 degrees. In time this stress causes degrading of the inner layers of reinforcement (typically wire braids or spiral wounds) and makes the hose more vulnerable to failure caused by pressure.

Fittings that swivel eliminate this issue completely. The fitting turns to meet the port's angle and allows the hose to be installed with no twist. For systems in which the hoses are replaced regularly—for wear or maintenance cycles—that means every time they are reinstalled, it keeps the hose's integrity.

The process of routing is simplified in geometries with tight geometry.

Modern hydraulic systems used in mobile machinery, industrial equipment, or marine uses are becoming increasingly small. Routing hoses through narrow engine compartments and manifolds for valves and multi-axis actuator assemblies may be a challenge in terms of geometry. The swivel fittings give the flexibility required to ensure proper hose geometry without the awkwardness of crossings, bends, or sharp radius violations.

In manifolds with multiple ports, where a number of hoses connect within close proximity, the fixed fittings may cause routing conflicts, i.e., the hoses crossing each other, crossing over the minimum bent radius, or pushing on structural members. Fittings that swivel allow each pipe to be directed towards its intended destination, which reduces the amount of clutter and the possibility of scratching.

Accommodating dynamic movement

In situations where connected components are moved in relation to one another, like articulating arms and steering platforms that pivot, swivel fittings are able to absorb the angular movement that could otherwise be transferred to the hose through repeated bend cycles. This is especially important near the connection points, as tension pulsations with mechanical movement create a stress zone.

They don't take away the requirement for a flexible hose in dynamic situations; however, they can guard the most vulnerable part of the system connecting the rigid port as well as the flexible hose.

Maintenance and assembly is easy

From a practical point of view, they are more straightforward to install. Technicians do not have to plan out the orientation of the hose or fight with precise rotational positions in the assembly. This helps reduce errors during installation and is especially useful when working in areas in which conditions aren't optimal.

The argument for fittings that are fixed

Lower cost

Fixed fittings are less complicated in their construction; they don't have an internal swivel mechanism or additional sealing surfaces and therefore are less costly to produce and purchase. For large systems that have hundreds or even dozens of fittings, the price difference can quickly add up. If hose routing is easy and torsional stress does not pose an issue, fittings that are fixed can be a cost-effective option.

Less leak points

Each swivel fitting has an additional sealing interface that is dynamic—typically an O-ring or a face seal that fixed fittings do not include. Although modern swivel fittings are extremely robust, any seal can be a risky issue in the event of contamination, thermal expansion, or degrading seals. For systems with extremely high pressures (above 400 bars) or when working that use aggressive fluids, reducing seal surfaces is an engineering necessity.

Structural stability for static application

In the case of hoses that are routed continuously and seldom interrupted—like fixed pipework used in industrial installations, for instance—the swivel fitting's rotational flexibility-fitted swivel provides no advantage and can add an unnecessary amount of mechanical work. Fixed fittings, when properly placed using the correct hose orientation, offer a more solid and stable connection that is less vulnerable to loosening due to vibration over time.

High-pressure performance

Fixed fittings, specifically the straight-thread O-ring (ORFS) as well as JIC 37-degree flares, are designed to ensure the highest level of pressure integrity at the connection interface. Lack of the swivel feature ensures that the fitting body is able to absorb pressure forces symmetrically and directly. For ultra-high-pressure applications, such as presses made of hydraulic fluid, testing equipment, as well as certain injection systems, fixed fittings are the most preferred option due to this.

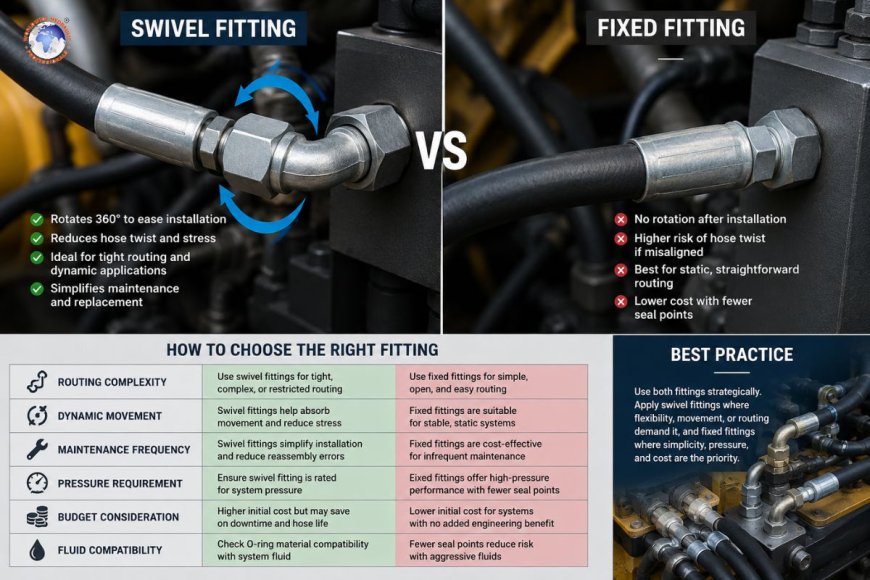

Key decision factors

Deciding between fixed and swivel fittings boils down to an honest evaluation of the requirements of your system:

Complexity of route When hoses have to navigate narrow, steep or narrow pathways Swap fittings help minimize the difficulty of routing and the possibility of an incorrect installation.

Dynamic contrasts with. Static applications: Systems with moving or vibrating components greatly benefit from fittings that swivel at the connection points. Static systems don't.

The frequency of maintenance: Systems with frequent hose replacements, especially in mobile or field equipment settings -- can benefit from swivel fittings as they decrease the chance of technicians causing a twisted hose in the process of reinstallation.

The pressure rating: For extremely high-pressure systems, you should check if the swivel mechanism of the fitting you're looking for is suitable for the operating conditions. A majority of swivel fittings made of high quality can are able to handle pressures that exceed 400 bar; however, this should be confirmed in each case.

Budgetary limitations: In low-dynamic applications that can be easily routed Fixed fittings offer reliability at a lower price. Do not specify swivel fittings if they cost more, but don't add engineering value.

Compatible fluid: Ensure that the seal on the O-ring in the swivel fittings is compatible with the system fluid, especially for phosphate ester fluids, biodegradable hydraulic oils, or chemical media that are aggressive.

Common errors to avoid

The most common errors in the assembly of systems are making use of a fixed fitting and then turning the hose in order to alter the port's alignment. This causes the exact tension that reduces the hose's life span. It's possible to avoid it by using a swivel fitting when designing.

Additionally, speculating too much on fittings that swivel across a system if the application doesn't require them increases the cost and adds sealing interfaces with no engineering rationale.

A well-designed system employs both kinds of fittings in a way that is planned, fitted with fixed fittings where the geometry and operating conditions permit them, and swivel fittings in cases where complex routing or dynamic movement requires them.

Fixed fittings and fittings with swivels are both tools to complement the toolkit of fluid power engineers. The benefits of swivel fittings are significant for dynamic applications, intricate routing environments, and systems that have regularly scheduled maintenance. Fixed fittings are the best option for static, high-pressure or high-cost applications where the geometry of hoses can be adjusted during the design phase.

The issue is not the type that is the best for all people -- but which type is appropriate for this particular situation for this system in this operating environment. Make sure you answer that question in detail at each point of assembly; then your equipment will become improved because of it.
