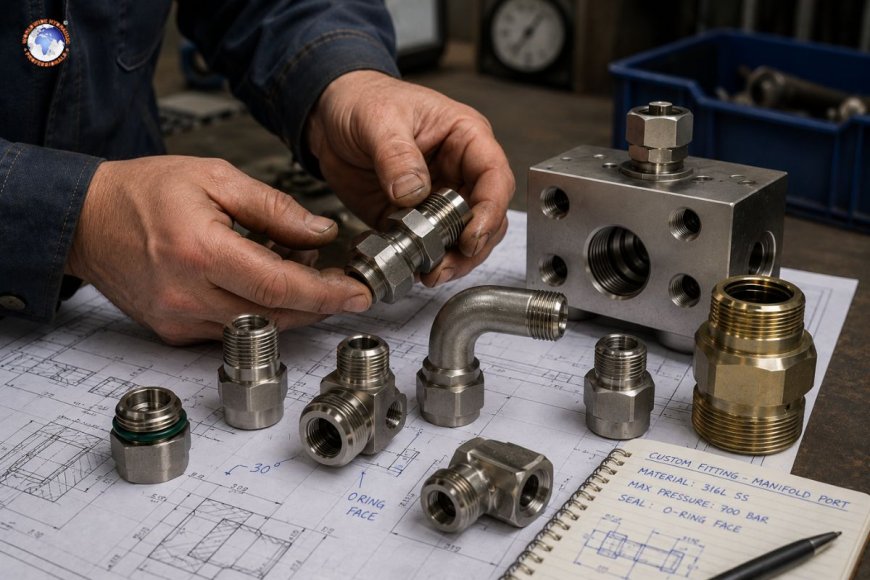

Custom hydraulic fittings: When standard sizes won't work and what to do

Hydraulic systems are based on the highest level of precision. Each component, including the cylinder, the pump, the hose, and the valve—needs to function in harmony without any compromise. Fittings are usually the most overlooked element engineers consider in the course of design, yet they're usually the first thing to trigger issues on the shop floor or on the field. The majority of hydraulic fittings adhere to standard dimensions and thread forms, and, for the majority of cases, it is perfectly fine. But there are times when regular fittings don't have the specifications you require, and forcing the use of a different method causes more problems than it resolves.

Being aware of when you've entered the custom-fitting zone and knowing how to act if you find yourself in that situation could save your project from costly downtime and ensure that your hydraulic system operates at the level it is designed to perform.

Standard fittings aren't sufficient in certain applications?

The market for hydraulic fittings is extensive. There are many options available for JIC, NPT, BSPP, BSPT, and SAE O-ring face seal (ORFS) as well as the metric DIN, as well as many other thread types with a variety of configurations, sizes, and dimensions. Adapters are available to bridge the common threads with mismatches. For most mobile and industrial hydraulics, this catalog will cover everything you require.

However, certain applications extend beyond the boundaries. The most common situations where fittings that are standard fail to meet the requirements are the following:

Space limitations and odd port angles. In small hydropower units, large equipment cabs, or aerospace-adjacent devices, the physical boundary around the port might not allow for a straight or even an average 45-degree elbow. A hose routing that requires a 30 or 75-degree elbow is not available in the catalog standard. Bending a hose in a sharp manner near a fitting to make up for the missing geometry results in stress concentrations at the hose's end, which reduces the life of a hose significantly and could cause leak points when a hose is vibrating.

Older or obsolete equipment. Older European machines and old industrial presses, as well as certain agricultural equipment, were produced according to thread standards but have been discontinued in mass quantities. BSP parallel threads remain widespread, but certain thread pitches in metric or manufacturer thread designs require customized fittings or expensive machine overhauls to the port. This is not recommended for manifolds that have been hardened or cylinder heads.

Specific material requirements. Standard steel fittings are suitable for the majority of mineral oil-based hydraulic fluids. However, systems that utilize phosphate ester-based fire-resistant fluids, high-water-content fluids, or even aggressive synthetic fluids could require fittings made of the stainless steel of 316L or titanium or nickel-alloy material. While stainless fittings are offered in the common thread form, exotic alloys aren't, and machining on a custom basis becomes the only alternative.

Pulsating or high-pressure duty that is over the limits of rating in catalogs. Hydraulic fittings that are standard in design are tested to specific working pressures and cycle counts. Systems that operate in the 700-bar range (10,000 psi) and higher or those that are subject to extreme pressure cycling with high frequency could surpass the fatigue and burst rating of the catalog components. Custom fittings for these applications are constructed with larger wall thicknesses, more precise tolerances in geometrics, and usually different sealing geometries that can manage the load.

Manifold integration. Hydraulic manifolds that are machined to fit compact multi-circuit systems may require fittings that have unusual thread-to-port configurations, integrated check valves, or restrictions on orifices that do not come with off-the-shelf parts.

Inquiring whether you really need an individual fitting

Before you embark on the path of custom-made fabrication, it is advisable to conduct an exhaustive check to ensure there's no catalog-based solution that is available. The market for fittings is huge, and a large number of engineers only know the smallest portion of what's available.

Begin by confirming the thread's shape precisely. Utilize a gauge for thread pitch and calipers to verify the thread's form, diameter, nominal value, and pitch. A lot of apparent mismatches are common thread types that are based on another regional standard, such as an unorthodox port might be one that is metric. DIN 3852 taper that just requires the sourcing of a European hydraulic dealer.

Then, determine if an adapter that is multi-piece is feasible. Three or four normal adapters in series could create unusual thread or geometry combinations. There is a tradeoff of leak pathways at each joint and a heavier assembly. If the task is based on vibration, several adapters that are in series pose a risk.

In the end, you should consult an expert hydraulic distributor rather than a general industrial vendor. Distributors who concentrate exclusively on the use of fluid power carry designs that are not found in an industrial catalog, for example, long-reach nipples and elbows with a close pattern, as well as dual-seal designs, which are technically common products but are not widely available in the market.

If none of these options provide a solution, then customized fabrication might be the most appropriate way forward.

The process of manufacturing custom fittings

Hydraulic fittings that are custom-designed can be created using CNC milling and turning, typically using bars of the needed material. It is a simple process for those who are specialized in the production of precision fluid power components. However, there are a few aspects that the engineer who specifies the design must be sure of before cutting any metal.

Thread gauges and documentation. The specifications submitted to the manufacturer should include an approved thread type, the nominal diameter, pitch, thread tolerance or class, as well as the length of engagement. Any confusion here could cause a fitting to fail and not be able to seal properly or cause damage to the mating port. If the port originally came made from older equipment and the thread's shape is not clear, the manufacturer may provide a casting of the port or the actual component to analyze the thread.

Method of sealing. A custom fitting is only as effective as the sealing interface. The maker must know the method of sealing used to achieve it. This could be the use of a metal-to-metal taper, an O-ring that is placed in a groove that is retained, or a compression sleeve or face seal. Mixing seals, such as inserting a parallel thread into an opening designed for taper sealing -- can result in an item that leaks, regardless of the precision of its machine.

Surface finish and material. The base material has to fit with hydraulic fluids and temperatures of operation, as well as any environmental factors, like salt spray or exposure to chemicals. The finish of the sealing interface is important. When fitting face seals with O-rings, the sealing surface must be manufactured until Ra is 0.8 μm or greater to ensure that there are no micro-leak paths. More rough finishes can be used on taper threads, which rely on thread compounds or tape to seal.

Tests and certificates for pressure. A reputable custom fitting manufacturer can hydrostatically test their finished fittings to a multiplicity of the pressure that is rated prior to shipping. For applications that are critical, including offshore, aerospace-adjacent, or safety-critical industrial systems, you should request a certification of conformance. They will also keep documentation of the results of the pressure test.

A practical guideline when you are ordering fittings that are custom-made

The length of lead time is a typical issue for custom fittings. In contrast to catalog fittings, which can be delivered within a day, custom fittings usually require two to four weeks from confirmation of specification until delivery. This can be longer in the case of intricate geometries or exotic materials. If your system isn't and you're waiting to receive a new fitting, prepare to plan accordingly.

Minimum order quantities differ significantly. Certain manufacturers produce only one fitting for emergency repair, but the price per unit is excessive. Other manufacturers set the minimum between five and ten items. For applications that are likely to be replicated on several machines, placing an order for an inventory of spare parts at the time of the first production run greatly lowers the cost per unit and also helps to prevent any potential lead time issues in the future.

Save the machining drawing. After a custom fitting has been proved in service The drawing becomes the valuable asset. The loss of documentation for a custom fitting design requires having to repeat the whole specification and validation process each time a new one is required.

Custom fittings are an element of design

The hydraulic equipment that needs multiple fittings custom-made is sending an important message that deserves to be heard. A couple of custom parts could be required due to legacy equipment or the extreme conditions of service. A system that is based on the use of eight or six customized components suggests that the manifold structure and port layout or the layout of the system may be improved by a redesign.

Custom fittings are a valid and frequently necessary instrument for hydraulic engineers. Utilized with purpose—to resolve the problem in a particular way that is not addressed by catalog They extend the capabilities of a hydraulic system to areas that conventional components are unable to achieve. The trick is to approach the problem in a systematic way: examine the thread's form and exhaust catalog options, clearly define, and then document every detail that is revealed on the other end.
