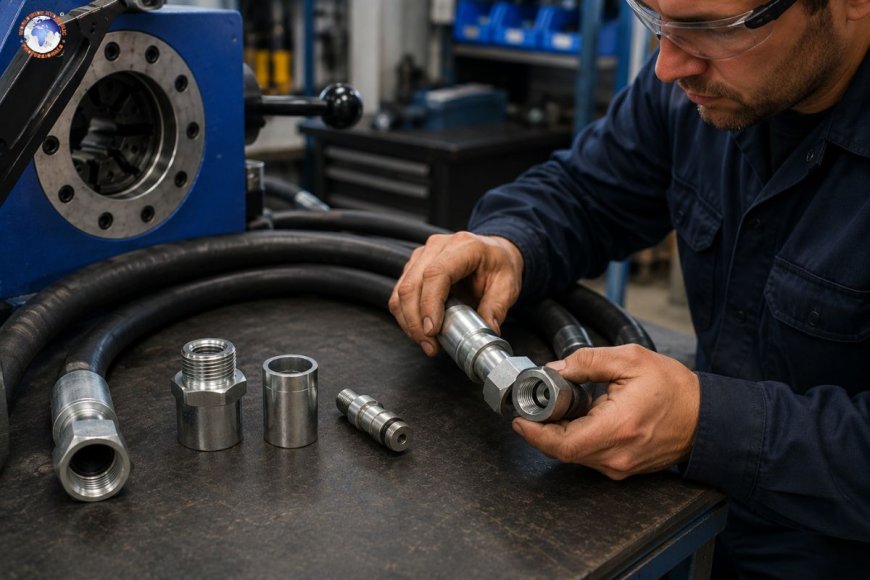

Reusable vs Crimp hydraulic fittings: pros, cons and when to choose

Hydraulic hose assemblies are as strong as the fittings that keep them together. When it's time to repair or build a hose assembly, among the more crucial choices an engineer or technician has to make is between fittings that can be reused and crimp fittings. Both kinds are engineered to ensure leak-free, secure connections, but they are different in how they function, how much they cost as well as how long they last, and the locations where they are most effective.

Knowing these distinctions isn't simply a matter of taste. For high-pressure hydraulic systems, an incorrect choice of fitting can cause an early failure, expensive downtime, or even serious dangers to safety. This guide will break down each type of fitting in detail to help you choose the most appropriate one for your specific application.

What are reusable hydraulic fittings?

Reusable fittings—sometimes referred to as field-attachable, field-repairable fittings—are mechanical fittings that are put together and removed using tools that are standard. They are comprised of a nipple and socket (or insert). The hose's end is cleaned, and the socket is threaded onto the hose, and the nipple is threaded through the socket to secure the hose to the inside.

The most important feature lies in the title: these fittings can take off hoses and be inspected and reattached onto the new hose. There is no special equipment required to install.

Common uses for fittings that can be reused:

• Repairs to field situations in which the crimping machine is not available
• Remote locations and mobile equipment when the repair of hoses is required on-site
• Systems with low to medium pressure where regular disassembly is the norm.
• Maintenance environments in which technicians have to change hoses in a hurry without causing downtime

What are hydraulic fittings for crimping?

Crimp fittings remain fixed to the ends of hoses using an electric or hydraulic crimping machine. The machine uses radial compression force on the ferrule of metal or sleeve that wraps around the hose, locking the fitting into the desired position. Once the fitting has been crimped, the connection is permanent—the fitting is not able to be removed and reused on a different hose.

Crimp assemblies make up the most popular option for the factory-built hose assemblies and high-pressure industrial systems. The precision and consistency of an appropriately calibrated crimping device make connections that are reproducible and structurally consistent.

Common uses of fittings for crimps:

• Circuits for high-pressure hydraulics (over 3000 PSI)
• Factory-produced and OEM-made hose assemblies
• Mobile hydraulics and heavy construction equipment and agricultural machinery
• Applications that require certified, tested assemblies that have been documented with pressure ratings

Pros and cons Reusable fittings

Advantages

There is no special tooling needed. The biggest benefit of reusable fittings is the fact that they are able to be installed using the most basic of hand tools—such as a wrench and vise, in the majority of cases. This makes them extremely useful for field repair situations in which a crimping device cannot be found.

Cost-effective over time for low-volume use. Even though the price per fitting for reused fittings is usually greater than crimp ferrules, there is no cost to invest in the equipment for crimping. For businesses that do not often make the hose assembly, it could provide significant savings.

Reusability can reduce the amount of waste materials. If a hose is damaged, it is not just the hose that must be replaced. The fitting hardware is able to be cleaned, examined, and then reused on a new hose, which can reduce the cost of parts in repair-intensive areas.

It is ideal for prototype or temporary assemblies. When designing prototypes, test circuits as well as temporary hydraulic lines. Fittings that are reusable allow configurations to be altered quickly without removing the fitting hardware.

Disadvantages

Pressure rating lower. Reusable fittings generally are tested for lower working pressures than the equivalent crimp fittings. Although they can be used for a variety of hydraulic applications, they're not the most appropriate option for circuits with ultra-high pressure or for pulsating loads in time.

Inconsistent quality of assembly. The correct installation is contingent on the skills and expertise that the installer has. Incorrectly tightening or over-tightening the socket can cause an insecure connection, leakage, or increased wear of the hose at the point of entry into the fitting.

More prone to vibration-induced loosening. Since they depend on the force of clamping threads, reused fittings are susceptible to loosening in high-vibration conditions if they are not secured properly and checked.

Additional assembly steps. Field-attachable fittings generally require additional steps—measuring the hose, the socket, socket positioning, and the insertion of a nipple—as compared to the one stroke of compression of the crimping machine.

Pros and cons of Crimp fittings

Advantages

More consistent and higher pressure ratings are more reliable and consistent. Crimp fittings make an electrically homogeneous connection that is endorsed by fitting manufacturers to be compatible with a specific combination of fittings and hoses. They are therefore the preferred option for high-pressure and critical systems for safety.

Superior resistance to vibrations and impulse load. The 360-degree radial compressive force of the crimp fitting spreads load equally across the hose's circumference. This makes crimp assemblies more resistant to vibration and pressure spikes typical of hydraulic systems.

Faster production in volume. After a crimping device has been properly set up and calibrated for an exact fitting and hose combination, the assemblies can be made efficiently and regularly. If a shop builds hose assemblies on a regular basis, it is a huge improvement in efficiency.

A cleaner, more professional appearance. Crimp assemblies feature a consistent look and finish that exceeds the requirements for OEM or industrial buyers. They can also be checked for pressure as well as documented to meet quality control for quality assurance purposes.

Disadvantages

Needs a crimping device. The initial investment for the purchase of a hydraulic or electric crimping machine is often substantial. Field technicians who are mobile or do not have access to a machine are unable to make crimp assemblies on-site.

Fittings are used only once. Crimped fittings are permanently damaged and can't be used again. When a fitting fails, both the hose and the fittings are destroyed, which increases the cost of materials for repair.

Incorrect crimp specs cause failures. The wrong crimp die, the wrong crimp diameter, or hoses that are not matched with fitting combinations result in assemblies that appear good but have structural issues. Correct calibration and compliance with manufacturer specifications is not a matter of debate.

The most important decision-making factors: How to decide when to select any kind?

A note on the compatibility of hoses

The fittings are not used as a stand-alone unit—the fitting has to be compatible with the appropriate type of hose and hose I.D. as well as the pressure ratings. Flexible fittings can be used for a smaller selection of hose types in comparison to crimp fittings made to meet nearly all SAE, DIN, and ISO hose standards. Always check the compatibility of the documentation of the manufacturer's hose prior to making the installation.

Reusable fittings are a necessity as part of field maintenance kits and service areas as well as low-pressure circuits where speed and ease of use are more important than maximizing performance. Crimp fittings set the norm for high-pressure, production-quality hydraulic assemblies, where safety certification and a long-lasting service life are top priorities.

For the majority of mobile and industrial hydraulic systems that operate above 3000 PSI, crimp assemblies must be the norm. Reusable fittings should only be used in cases where their distinct advantages that do not require tooling, field repairability, and reusability are in line with the needs of the task. When in doubt, check the hose specifications of the manufacturer and follow the established guidelines for assembly.

The right fitting selection is not just a buying choice but an important decision for the integrity of your system. If you do it correctly, those hydraulic hoses will give you the performance and longevity that your system requires.
