What are the common signs that a hydraulic hose is about to fail?

The most typical indicators of an imminent hydraulic hose breakdown are wear or abrasion that exposes reinforcement layers, obvious cracks or blisters, weeping or leaks around fittings, soft or bulging areas of pressure, flattened or kinked sections, and strange noises or vibrations in operation. Any of these signs should be a prompt for a hose inspection and, in many instances, proactive replacements since hydraulic hoses seldom fail in a graceful manner or without warning. A hose that bursts under pressure could cause injuries or even a risk of fluid injection and even unplanned downtime.

Hydraulic hoses can be used as consumable items; they are not a permanent fixture. Even a properly specified and installed hose deteriorates over time as a result of the effects of pressure cycling, abrasion chemicals, and heat. The ability to recognize warning signs before they become obvious is the key to distinguishing between a scheduled replacement for routine maintenance and a shutdown in an emergency or even an injury from high-pressure injection. This guide will walk you through the physical and visual as well as performance signs that indicate that a hose is approaching its useful lifespan.

Why do hydraulic hoses fail earlier than their lifespan is rated?

Manufacturers assess hoses' theoretical lifespan determined by the number of bend radius cycles, pressure conformity, and the temperature range. In the real world, that time frame is cut by things like

• Abrasions from the hose's contact on the machine frame, hoses, or structural elements
• A wrong curvature: this strains your reinforcement layer only at one point
• The pressure rating of the hose's working pressure
• The chemical incompatibility of material used for hose tubes with the hydraulic fluid
• UV and ozone exposures on hoses destined for outdoor use or near sources of heat
• Incorrect crimping or fitting assembly, which causes an issue at the coupling

Because the stressors increase the problem, a visual inspection can't be enough—a hose might appear to be in good condition from the outside, but its internal structure is weak.

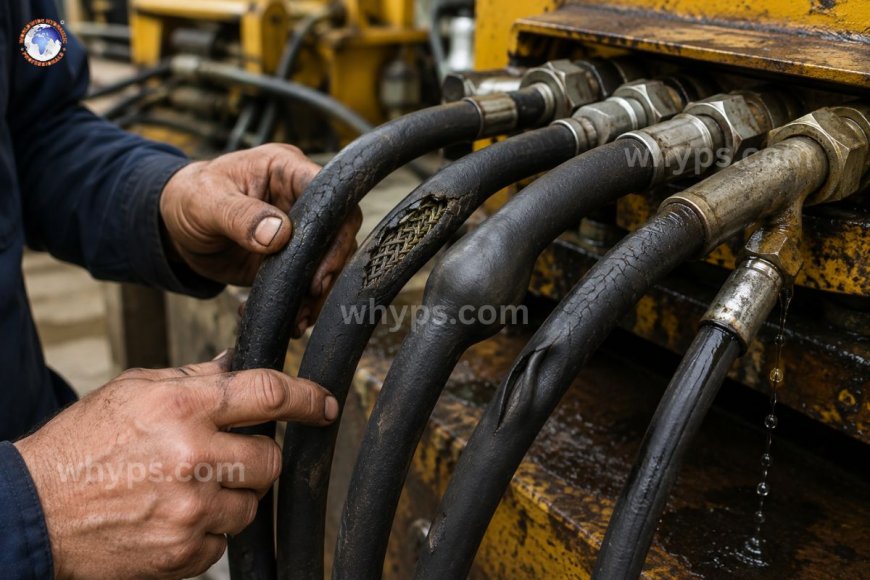

1. Cracks in the covering: puncture and blistering

The cover on the outside is the first line of defense and is usually the first evident warning signal.

Cracks on the surface

Small cracks within the covers—particularly ones that extend parallel to the spiral wrap of the hose—indicate that the rubber compound has dried out or was overheated. The cracks will get worse as the cover loses its flexibility. It's usually the initial sign of the exposure of reinforcement.

Abrasion and exposure to reinforcement

If the cover is thin enough to expose any wire or the reinforcement spiral beneath and you need to replace it immediately, replace the hose. The exposed wire isn't only a leak threat; it's a structural problem that is waiting to occur, as the reinforcement layer actually holds the pressure in the system.

Boozing or bubbling

A bubble or blister on the hose's cover almost all the time indicates that the reinforcement has failed in part and fluid is moving between the reinforcement layer and the cover under pressure. This is among the most urgent warning signs that usually precedes the possibility of a rupture.

2. Weeping and leaks at fittings

Fluid seepage, even a tiny amount, at the fitting with crimped connections or on the hose body is a sign that the fitting has lost its integrity. The most frequent causes are

• Over- or under-crimped fittings
• Damaged or even degraded O-ring or seal at the coupling
• Cracks in the fatigue at the point that the hose is connected to the ferrule

Weeping fittings are often misinterpreted to be "just needing a tighter connection." Most of the time leaky crimped fittings are not able to be tightened again—the entire assembly has to be terminated again or the hose completely replaced.

3. Soft spots, bulking, and kinks

A hose that bulges or expands when pressurized is a classic indicator of a failed reinforcement. The spiral or reinforcement braid is what stops the hose's tendency to expand when under pressure. Once wires break or wear out, the rubber cover is forced to take the load that it was not intended to bear.

Flaws and kinks are equally harmful, but they're typically caused by routing, not the aging process. A kinked hose slows the flow, increases pressure locally, and puts stress on the bend, accelerating fatigue failure at the particular point, even if it appears fresh.

4. Unusual sound, vibration, or performance loss

Sometimes, the first signal isn't visible at all. Be on the lookout for:

• The sound of knocking or chattering emanating from the hose's route could indicate unreliable clamping of the hose or that is rubbing against a hard surface
• The hose is vibrating more frequently, causing a greater vibration. hose, which can be an indication of internal collapse or an obstruction in part.
• Slow actuator response or pressure drops, which could indicate internal hose delamination that is limiting the flow space

The symptoms can be easily identified as an issue with a valve or pump. It's important to rule out the possibility of a hose issue before considering that there is a problem with a component elsewhere within the circuit.

5. The age of the hose and cure date

Every hydraulic hose comes with a manufacturing (cure) year and date. Even hoses with no obvious damage should be assessed against SAE and industry guidelines regarding shelf life and service life. Typically, the combined life is around 10 years from manufacturing for a variety of rubber hydraulic hoses; however, this can vary based on the type of construction and the severity of the application. High-pressure, high-cycle, or mobile equipment types generally require much shorter intervals for replacement regardless of their visual condition.

Checklist of inspections: what to be looking for during routine maintenance

A routine visually-based inspection—best at each scheduled maintenance interval and at the end of any operation that is high-load—can identify most of these signs before they become unsafe downtime that was not planned or an accident.

A safety note

Don't use your hands or fingers to look for an issue with hydraulic fluid. High-pressure hydraulic fluids can enter the skin with pressures much less than the pressures that most systems are operating at. Moreover, the injuries caused by injections may cause significant tissue damage, even if the injury appears to be minor. Make use of a piece of wood or cardboard to test for leaks. Always pressurize the system prior to checking or replacing the pipe.

A hydraulic hose is not likely to fail without warning. But the indicators are present if the inspection process has enough depth to spot the signs. Damage to the cover, leaks in fittings bulging, kinks, irregular noise, and a cure date are just six signs that are worth incorporating into any checklist of preventive maintenance. Making hose replacement a scheduled job rather than a reactive task will help protect the safety of the operator and uptime.

1. How often do you need to inspect hydraulic hoses?

Hydraulic hoses need to be checked visually every regular maintenance interval and after high-load or high-cycle operations. High-pressure or high-vibration operations often require weekly or even daily visual inspections.

2. Does a hydraulic hose break without warning signs?

It's rare, but it's feasible; it's possible, especially in the case of inner reinforcement fatigue, which hasn't got to the cover. This is the reason why cure dates and duty-cycle-based replacement plans are important along with visual inspection.

3. Is it safe to continue the hose in use with only a tiny leak?

No. Leaks in fittings or in the hose's body suggest a faulty assembly, and a leak of hydraulic fluid under pressure can pose a significant danger of injury from injection, even at what appears to be a small drip.

4. What causes a hose from a hydraulic system to expand under pressure?

The appearance of bulging usually indicates that the inner strengthening layer—called the spiral or wire braid—is weak or has partially failed, causing the external cover to be able to withstand the weight it was not designed to support.

5. How long will the hydraulic hoses usually last?

Service life varies widely by application, but many rubber hydraulic hoses have a combined shelf-life-plus-service-life guideline of around 10 years from the manufacture date, with high-cycle or high-severity applications requiring much earlier replacement based on condition.
