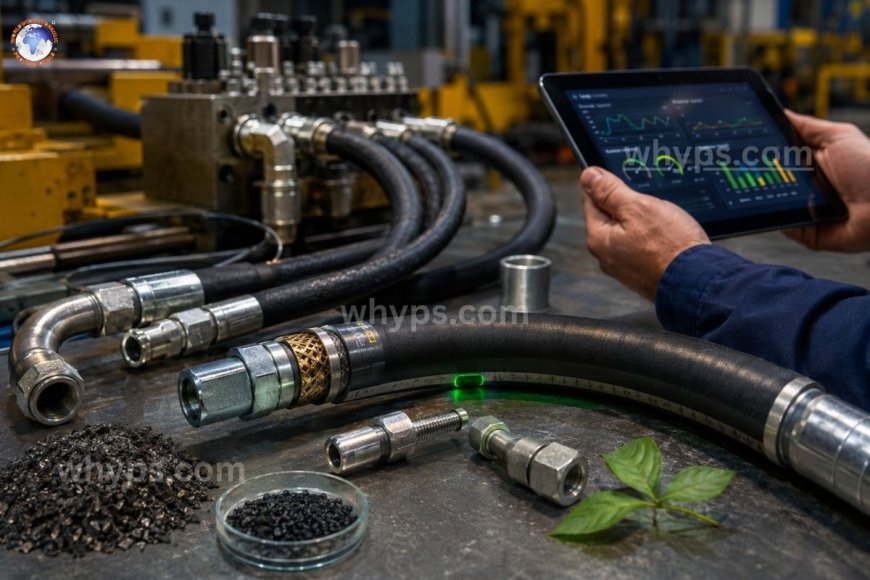

What innovations are happening in hydraulic hose safety and durability?

Hydraulic hose durability and safety are increasing with smart sensor-integrated hoses that monitor wear and pressure in real-time, high-quality, abrasion-resistant thermoplastics or synthetic covers that prolong service life in tough environments, braid and spiral reinforcement upgrades that increase the working pressures without increasing extra bulk, and bio-based low-emission cover materials that comply with the strictest standards for environmental protection—changing the management of hoses from replacements that are reactive to data-driven maintenance.

The failure of hydraulic hoses is one of the most frequent and costly breakdowns in the power system of fluids. A single rupture could lead to an injury to a fluid injection at high pressure or an unplanned stoppage in production or an expensive environmental cleanup. Over the years, hose technology was slowly evolving—better rubber compounds, more tight tolerances for crimps, and increasing pressure ratings. This pace has accelerated dramatically. Manufacturers are today combining materials science with embedded electronics, as well as digital monitoring, to create hoses that are safer to handle and last longer in harsh conditions. This is where the breakthroughs are taking place.

Smart hoses that have sensors embedded

The most significant change in hose technology is a shift away from components that are passive to instruments. Intelligent hydraulic hoses incorporate sensors into the hose's assembly to monitor pressure along with temperature and wear in real-time instead of relying on a technician to spot the presence of a bulge or a weep in a scheduled inspection.

Real-time monitoring of conditions

Embedded sensing components can detect pressure spikes that are abnormal or heat buildup in a particular area or early-stage abrasion damages and transmit that information to the handheld device or control system. In lieu of waiting around for the hoses to fail or to wait for the PM cycle that comes next, maintenance personnel are notified when a hose on a particular machine is threatening to fail.

Predictive maintenance is superior to reactive replacement.

With analytics software, the sensor data generates predictive maintenance models that identify the hoses that are nearing their end of life in accordance with actual operating stress instead of a general time-based replacement schedule. For fleets with hundreds or even dozens of hose assemblies, such as presses, mobile equipment, and mining equipment, this can reduce the amount of downtime that is unplanned and the necessity of replacing hoses with a lot of lifespan left.

Leaks and ruptures can be detected at the source.

Certain monitoring systems go one step further, with built-in sensors that are able to determine not only that a hose is failing but also the approximate location along its length where the puncture, leak, or rupture took place. In multi-hose vehicles this location information cuts diagnostic time dramatically in the event that something goes wrong.

Advanced cover materials to resist resistance to heat and abrasion

The cover's exterior is primary protection against the elements, and the chemical composition of the cover has seen significant advancements.

Thermoplastic polyurethane (TPU) as well as synthetic coatings

Thermoplastic polyurethane and other synthetic covers that are engineered are replacing traditional rubber in high-wear applications. They resist wear caused by friction and contact with abrasive particles more effectively than conventional rubber covers. This translates directly into a greater service life in areas such as quarries, steel mills, or demolition locations where pipes slide against rock structures and metal fines.

High-temperature formulations

Tube and cover materials engineered to withstand prolonged high-temperature exposure can extend the lifespan of hoses in areas near furnaces, foundries, or hot-process machines, where conventional covers become hard, crack, and lose flexibility quickly. A higher resistance to heat is also important to safety. A cover that is not damaged resists the type of damage that can lead to unexpected, unpredictable failure.

Resistance to chemical and fluid contact

As hydraulic fluids evolve—for example, biodegradable and water-glycol-based formulations—the materials for cover and tubes are being developed to resist cracking, swelling, and permeation from an array of fluid chemistry, not just traditional mineral oils.

The construction industry is advancing and reinforced.

Under the cover, the reinforcement design continues to improve to increase the pressure capacity and still allow hoses to be manageable to move and set up.

Constructions of braid and higher-pressure spirals

Multi-spiral wires and fine braid geometries can allow greater working pressures within the same or smaller outer diameter, which is important when the routing space is limited. Higher burst-to-working-pressure safety margins are also becoming more common as a baseline expectation rather than a premium feature.

Kink resistance and fatigue resistance

Cover and reinforcement combinations designed to resist kinking in tight bend radii reduce the common reason for premature failure: the kinked hose causes localized stress, which weakens walls over time even though it's not causing immediate failure.

Sustainability-driven material innovation

Environmental pressure is an actual factor in HSE R&D and is no longer an incidental thought.

Bio-based and low-emission chemicals

Manufacturers are working on hose covers and components made from bio-based polymers, which reduce dependence on petroleum feedstocks while providing the abrasion and chemical resistance that the application requires. These materials are designed to complement biodegradable hydraulic fluids that support installations that must comply with the environmental discharge regulations or spill response requirements.

The design is based on circularity.

There is a growing interest in fittings and hoses that are designed to facilitate easy material recycling and reuse after their use-by date, instead of the mixed-material construction that made the older hose assemblies hard to recycle.

Assembly, fittings, and inspection technology

Hose safety doesn't only concern the hose itself; the fitting process and assembly are equally important.

Crimp tolerances tighter and assembly confirmation

Modern crimping equipment as well as verification procedures are reducing assembly mistakes that cause a significant proportion of early failures in hoses. A hose that is correctly rated with a faulty crimped fitting is a problem within the system.

Modular fitting and non-welded construction advances

Improvements in non-welded pipe and fitting connection are helping to reduce the number of joints that fail in a system as well as easing inspection since these connections are often tested and repaired without cutting into welding assemblies.

3D-printed and rapid prototyping components

Additive manufacturing is beginning to play a part in the production of custom-fit designs and protective parts more quickly, which is helpful for old machinery in which OEM parts are difficult to locate.

What does this mean for the maintenance teams?

The real-world application is a change in perspective: the management of hoses is shifting from a routine that is based on calendars towards a condition-based approach that is based on actual sensor data wherever it's available, as well as higher-quality base materials and construction all over the world. Facilities that use intelligent hose monitoring on their most risky or high-consequence circuits, like high-pressure presses, mobile equipment close to personnel equipment that handles hot fluids -- receive the most immediate and valuable warning signals. In all other areas, upgrading to abrasion-resistant cover reinforced with higher margins and certified crimp assemblies effectively reduces the risk of failure even with no embedded electronics.

1. What is a clever hydraulic hose?

Smart hydraulic hose is a hose that is equipped with sensors that can monitor the conditions of temperature, pressure, and wear in real-time and transmits that information to a monitoring system, so maintenance teams can take action before the onset of a malfunction.

2. How can abrasion-resistant covers prolong the life of hoses?

Covers made of thermoplastic polyurethane, or engineered synthetic substances, resist wear and tear from friction and abrasive particles superior to standard rubber, reducing the degrading, which eventually removes the layer of reinforcement.

3. Can the hydraulic hoses be made eco-friendly?

Yes. Manufacturers are creating parts for hoses from bio-based polymers and other materials made for recycling as well as formulating covers and tubes that are suitable for biodegradable hydraulic fluids.

4. Does higher-pressure hose reinforcement mean bulkier hoses?

Not necessarily. The advancements in braid and spiral wire construction are increasing the capability of pressure in the same space or smaller diameter. This allows for smaller machinery to be used that have small routing spaces.

5. What is the reason fitting and crimping quality are as important in the same way as the quality of hose?

A hose with the proper pressure and fitting can fail before it is time if the fitting is not correctly crimped or assembled, as the connector point is usually the weakest link within the assembly. Modern crimping equipment and methods for verification are closing the gap.
