How can leaks or contamination affect a hydraulic winches?

Hydraulic winches are designed to perform in harsh circumstances like offshore platforms, construction yards that are heavy vessels, marine vessels, mining operations, and more that depend on them to ensure safe loading. The heart of every hydraulic winch lies in the pressurized fluid circuit, which transmits power with incredible accuracy. But the same fluid circuit can also be the most vulnerable component. Leaks and contamination are two most frequently encountered and damaging dangers to the hydraulic winch's performance Both are often overlooked until serious damage has already taken place.

Knowing how each failure mode is created how it develops, what it does to the entire system and what steps to take to stop it is crucial information in the field of maintenance engineering, operator and procurement teams that are responsible for winch-dependent operation.

The importance of hydraulic fluid in the winch operation

Before we can look at failure-related issues and their causes, it is important to know the role of hydraulic fluid within a winch. The fluid has four purposes: it transfers the force of it to the motor, it lubricates the entire internal components, it disperses the heat produced during operation, and it serves as a sealing fluid within the precision-machined clearances.

If fluid integrity is compromised—whether due to leakage reducing volume or pressure, or by contamination that alters its properties—each of these functions is affected. This results in a chain of performance declines and an increase in wear on components.

External leaks: Easily visible, but often omitted

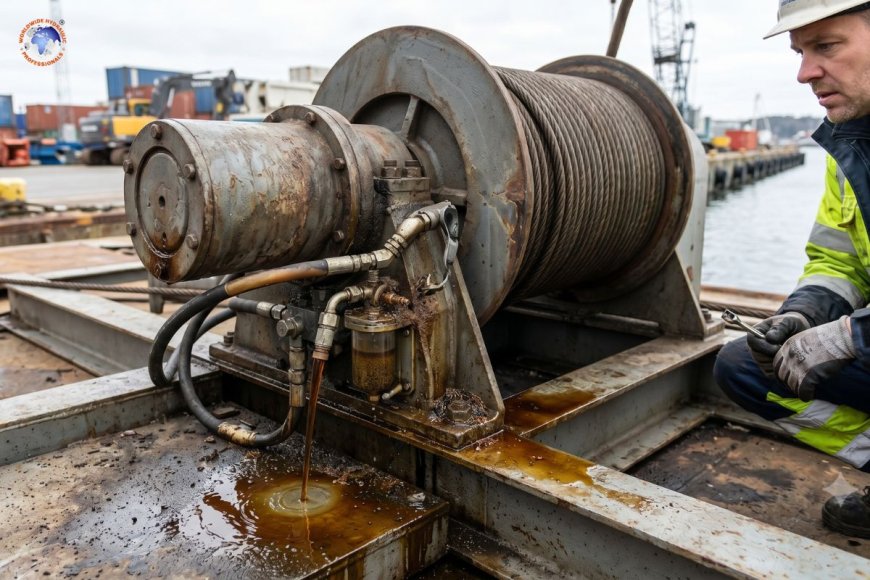

External leaks are by far the most visible form of loss of fluid. They can occur in sealings, hose connections, fittings, valve body gaskets, and cylinder rod connections. A winch that operates with the slightest external leak could be losing both volume of fluid and pressure in the system at the same time.

The consequences of this are immediate. As the fluid level decreases as the pump's pressure drops, it begins to collapse, drawing in air with fluid. Cavitation produces intense localized pressure surges and micro-implosions that cause damage to the pump's internals as well as valve seats and motor housings on an extremely small scale. The early stage of cavitation is like hearing gravel that is moving through the circuit. Before it can be heard, damage to components is already taking place.

The drop in pressure caused by fluid loss is a direct impact on the capacity of a line puller and winch speed. A line pulling system that is rated for 20 tons in line pulling at 200 bars operating pressure could be able to deliver just 60-70% of the capacity, if there is 10 to 15 percentage deficit in fluid volume. For operations that require loads such as offshore mooring, crane anchor winches, and subsea cable lay-out—this loss in performance causes operational failure and risk of safety.

External leaks can also cause secondary dangers. The presence of hydraulic fluid in the plates on decks or in drums that rotate can cause fire and slip risk. In marine environments, leaks of fluid that reaches open water can trigger environmental compliance issues under MARPOL and the equivalent regional regulations.

Leaks in the internal network: secret performance stealer

Internal leakage is harder to identify, but it is more harmful over the long run. It is caused by fluid that bypasses damaged or worn internal seals, and then crosses over between the high-pressure and low-pressure parts of a part which is usually in the hydraulic motor or directional control valve as well as the brake valve.

In contrast to external leaks, internal leaks don't reduce the overall volume of fluid. It is simply the result of recirculation of fluid that is not productive and converts heat energy from pressure instead of mechanical work. The first sign is a decrease in output of torque at the drum. A winch, which once held an appropriate load under a particular pressure, will start creeping, which will result in a slower drum rotation even when the valve is in the position of holding. This is a crucial safety issue in any load suspension application.

Internal leakage is also a major contributor to the degradation of thermal energy. The fluid that is pushed through the tight spaces under pressure can generate substantial heat energy. When the temperature of the bulk fluid rises to 60-70°C or higher, viscosity declines and the thickness of the lubrication film decreases and the rate of oxidation that occurs in the oil base increases. The oxidized hydraulic fluid loses its anti-wear additives, which form varnish and sludge accumulations on valve spools and ultimately cause the seal degradation that led to the bypass leak in the first place—creating a self-reinforcing loop.

Contamination is the root reason behind the majority of hydraulic failures

Data from industry shows consistently that particulate pollution is responsible for the majority of the failures in hydraulic components. The estimates vary between 70 and 85 percent of all premature hydraulic failures that occur across mobile and industrial applications. In the case of winch systems, specifically, contamination can enter through a variety of pathways and affect parts in ways that are hard to reverse once they have been established.

Particulate contamination is made up of hard particles—the metal-based wear and tear debris, casting residue, weld slag, and pipe scale suspended in the fluid. These particles are abrasives in the clearances that are precise for motors, hydraulic pumps, and valves. The clearances of modern-day axial piston pumps as well as hydraulic motors are usually maintained to tolerances of 5-25 microns. The particles above or beyond this size damage the surfaces of the running surfaces, creating secondary contamination that causes wear and tear that accelerates.

When it comes to hydraulic winches, the particulate matter can be particularly damaging on the brake valve as well as the counterbalance valve, two essential components for the controlled lowering of loads and holding. These valves utilize precise-lapped spools and seats that are unable to seal quickly when particles cause damage to their surfaces. A brake valve that is contaminated may fail to support a load or could remain in the open position, resulting in an uncontrolled drop in load.

Water contamination can enter hydraulic systems through condensation in the reservoir headspace as well as damaged breather caps for the reservoir and sealing failures at rods for cylinders, as well as improper control of fluids during top-up processes. Even tiny amounts of water that are as small as 0.05-0.1 percent by volume are able to cause serious damage. Water speeds up the destruction of oil bases. It encourages corrosion of ferrous and steel components and encourages the growth of microbial organisms in mineral oil systems and triggers additive loss that reduces your fluid's protective wear chemical.

In cold-climate winch applications, the presence of water poses a further threat: ice build-up in valve orifices and spools during shutdown times that can lead to damaged or blocked valves at the time of start-up.

Chemical contamination - incompatible mixing of fluids or residues of solvents due to cleaning processes and the addition of unsuitable package of additives disturbs the delicately balanced chemistry the fluid. Seal swell additives designed for one type of fluid could cause shrinkage of seals in another. Mixing mineral and synthetic fluids could result in additive precipitation, resulting in gel-like deposits that hinder the filter elements and obstructions.

System-level effects in winch applications

The consequences of contamination and leaks cannot be confined to a specific component. In a winch hydraulic system, the hydraulic motor drum brake, spooling transfer valve, counterbalance valve, and load-holding circuits all work together. The degrading of one part can load other areas.

A directional control valve that is contaminated that is slow to respond or sticks causes pressure spikes when the operator adjusts the valve's inputs using an override. These spikes can cause fatigue of hoses and tension-fitting connections. A motor damaged by particles causes metal debris that flows downstream, causing damage to your brake valve. A hot fluid system due to bypass leakage within the system reduces sealing service life for every part of the circuit at once.

The end result is an unpredictably failing system but without warning—operating at a reduced capacity and posing the chance of a sudden failure.

Strategies for prevention and maintenance

The control of leaks and contamination demands an organized maintenance plan rather than reactive repair

Management of filtration is the most effective single intervention. Return-line filters that are rated at B10 > 200 (ISO 16889) are required on all winch systems that are in operation with pressure-line filtration for proportional and servo valve circuits. Filter elements should be replaced according to the condition of the equipment -- using differential pressure indicatorsand not on calendar intervals.

Analyzing and sampling fluids on a regular basis (every 500 to 1,000 hours of operation or every quarter) allows for the early detection of wear and contamination. ISO cleanliness codes, particle counts, measurement of water content, and wear metal analysis yield actionable data prior to the onset of problems.

Inspection of hoses and seals should be incorporated into pre-operation inspections with scheduled replacement intervals set based on operating temperature and duty cycle as well as the recommendations of the manufacturer, not the failure records.

The maintenance of the reservoir and breather can prevent contamination from ingress. Desiccant breathing devices on the reservoir, designed to meet the airflow capacity that the unit is crucial for humid or dusty conditions.

Hydraulic winches work on the edges of high pressure, high force, and precise fluid mechanics. Leaks and contamination can attack the chemical and mechanical foundations of the system at once. The fact of the matter is that neither of them can be tolerated at a level that would be deemed acceptable in fluid power with lower-precision applications. In the case of operations where reliability of the winch is a safety issue, the need for a leak prevention and contamination control program is not a matter of maintenance. It is an essential requirement for operation.
