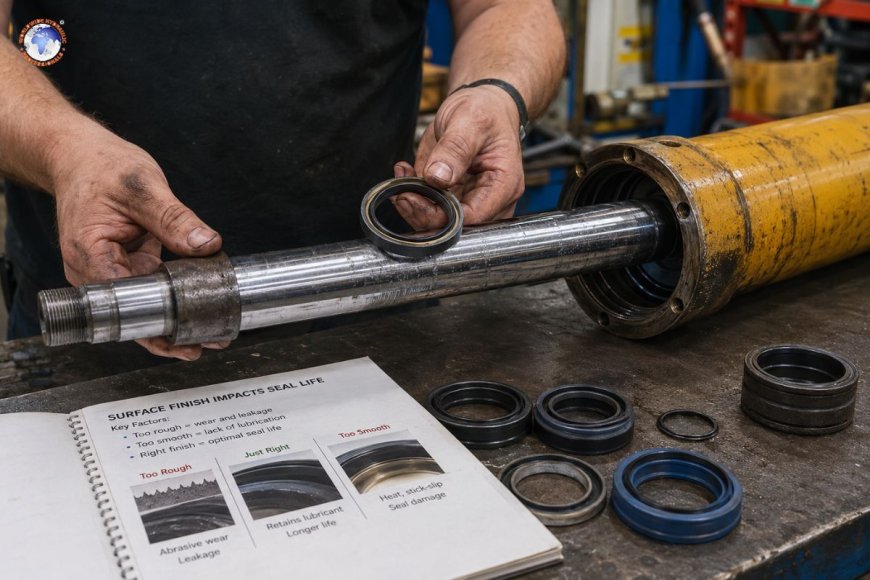

How does surface finish impact hydraulic seal life?

For hydraulics, failure of seals is among the most frequent and preventable reasons for unplanned downtime. Maintenance teams typically look at fluid cleanliness and seal material compatibility or pressure ratings when diagnosing leaks. The most often overlooked aspect is the finish on the metal parts that seals use against. Cylinder bore finish and rod surface texture and the geometry of the housing groove all have a direct, quantifiable influence on the duration the seal will last. Knowing this is crucial to anyone who is designing, installing, or repairing hydraulic cylinders.

What is the importance of the surface finish for seals?

A hydraulic seal functions by ensuring continuous contact with a mating surface, usually piston rods or cylinder bore walls. This contact zone is the place where everything happens: the fluid is held back, and the seal expands and contracts under pressure as well as dynamic friction controlled by a stroke.

When the surface of mating is rough, the tiny peaks (called asperities) behave as abrasives on the seal's lip or face. Each stroke can remove a small portion of sealing material. As time passes, the wear causes an opening for leakage. The seal might appear to be intact at first glance, but it has loosened enough material around the lip of the sealing to let fluid flow through it under pressure.

A surface that is too smooth can cause its own issues. A slack surface for a rod or bore cannot hold the thin film of lubricant, which reduces friction between the seal and the metal. In the absence of this film, the sealing will run dry, generating heat and speeding up wear via adhesion, not the abrasion process. This is commonly referred to as stick-slip failure, and it can be especially damaging to polyurethane and PTFE-based seals.

The perfect surface finish is in a predetermined range of texture that is smooth enough to retain lubricant and smooth enough to not scratch the seal.

Key surface finish parameters

Surface finish is measured through roughness parameters specified within ISO 4287 and related standards. For hydraulics, engineers work mostly with three measurements.

Ra (Arithmetic Mean Roughness) is the most frequently defined parameter. It is the measure of the average of the deviations of surface valleys and peaks from an average line. For hydraulic seals that are dynamic and run on a piston rod RA values are usually defined within 0.1 μm to 0.4 μm. Cylinder bores might accept slightly higher values, generally 0.2 μm up to 0.8 μm, based on seal type and pressure.

The Rz (Mean Roughness Depth) records the average peak-to-valley height across a range of sampling lengths. The Rz sensor is particularly sensitive to scratches or high-pitched peaks compared to Ra by itself. A surface may be able to have a reasonable Ra value but an increased Rz when it has minor but noticeable imperfections. Both parameters must be in compliance with the specifications to ensure an effective seal.

Rpk as well as Rvk (Reduced Peak Height and Valley Depth) come from the curve of bearing ratios between Abbott and Firestone. Rpk defines the height of sharp peak that are above the roughness of the coreThese are the asperities that erode the seal. Rvk is the measurement of the depth of valleys that are below the surfaceThese valleys contain the lubricating oil. A properly finished hydraulic rod's surface has a low Rpk (minimal abrading peak) and a well-controlled Rvk (adequate retention of oil). This type of profile is usually created by hard chrome plating and then superfinishing or the more popular option to high-velocity oxygen fuel (HVOF) Ceramic coatings that have controlled grinding.

The impact on various seal materials

Certain sealants do not respond equally to surface finishes. The material selection and the surface finish specifications must be in line.

Nitrile (NBR) seals are moderately resistant to surface alterations, but they are vulnerable to abrasion due to sharp peaks on hard surfaces. They work well within that Ra 0.2-0.4 mm range for dynamic surfaces. Below this range, the absence of oil retention can increase friction and heat, reducing the compound of rubber.

Polyurethane seals are stronger and more resistant to wear than nitrile. This makes them better suited for slightly rougher surfaces. But, they're extremely vulnerable to surface that is not smooth enough. Polyurethane has greater coefficients of friction than other rubber materials and depends heavily on the film of lubricant. When a rod is polished to a mirror, the polyurethane seals will generate enough frictional heat that they can begin degrading the hydrolytic process.

PTFE-based seals as well as loaded lip seals are able to tolerate a greater variety of surface finishes because of the self-lubricating capabilities of PTFE. But Rz values higher than 4 μm on rod surfaces can cause mechanical damage to PTFE lips, particularly when subjected to extreme oscillating forces.

Seals for rods and wipers that are used in environments with contamination need to be compatible with rod surfaces within the Ra 0.1-0.2 μm range. Pollutants that get in the wiper embed themselves in between the seal lips and the surface—a rougher rod is more prone to trapping particles and increases wear on the three bodies of abrasive.

Processes for manufacturing and the finishing characteristics

The process of manufacturing that is used to finish the bore or hydraulic rod directly determines the attainable surface profile. Not only that of the Ra standard, but also the contour of the peaks as well as valleys.

Cylindrical grinding is typical for the initial rod finishing. It results in the lay pattern (directional texture), which runs around the rod. This is usually beneficial for seals since the pattern does not cause leak pathways across the rod's direction. The grinding alone frequently leaves abrasive peaks, which require additional processing.

Honing is the most common method for finishing the bores of cylinders. Crosshatch honing results in an interlocking pattern of grooves at angles that are controlled that typically range from 25 to 35 degrees from the circumference. This type of cross-hatch design is perfect to retain oil and keep RPK low. The groove's depth and angle can be controlled to create an elongated finish, a smooth bearing surface with tiny reservoirs for oil.

Lapping and superfinishing are performed after grinding to eliminate the peaks caused by abrasive procedures without drastically cutting down the valley's depth. The result is a profile with a low Rpk and a well-controlled Rvk as well as a high bearing ratio—the perfect profile to ensure a long life of seals.

The plating process of hard chrome, even though experiencing regulatory pressures due to concerns about hexavalent chrome, is widely used to make piston rods. When properly applied and ground, hard chrome can produce excellent Ra values and a high surface hardness. The primary risk is the micropitting that occurs from plating imperfections, which can result in small-scale high Rz values that are not visible to the normal Ra measurement.

HVOF coatings containing chromium carbide or tungsten carbide are being increasingly utilized in lieu of hard chrome. They are able to be ground and then superfinished to achieve the same requirements for surface profile and provide superior resistance to corrosion.

Damage patterns that signify an issue with the surface finish

If a seal's failure is studied, the sign of damage on the seal usually is a sign of surface damage.

A uniform abrasive wear pattern across the entire seal lip appearing relatively early in the service life, indicates that the mating surface may be too rough. The wear pattern is a reflection of the direction of the surface texture.

The hardening or glazing of the seal lip with no excessive wear on the abrasive surface can lead to a smooth surface and insufficient oil distribution. This happens frequently following rod replacement, with a rod that has been ground to a greater level of polish than what was originally specified.

Spiral leak pathways—thin helical grooves that are worn into the seal—are a sign of an uneven rod surface that has an incorrect layout direction or pattern of grinding that allows fluid to flow over the seal during a dynamic operation.

For procurement and maintenance engineering teams, the practical consequence is clear: surface finish specifications should be clearly stated in the procurement of rod and bore documents, not left to the default practices of suppliers.

The specifications for rods should include Ra, Rz, Rpk, and Rvk values, along with dimensional tolerances. Specifications for bore honing should include cross-hatch angles and the ratio of plateaus. The inspection process for replacement rods and cylinders repaired must include a profilometer measurement and not only visually inspect or test the hardness.

When cylinders are rebuilt following sealing failure, make sure to measure the mating surfaces prior to applying new seals. A worn rod or bore that has passed visual inspection could still have roughness levels that are not within the acceptable range and can cause the destruction of seals that are replaced on the same timeframe as the originals.

Surface finish isn't an additional element in the the hydraulic seal specifications. It is a major factor in predicting seal life, and its inclusion into routine maintenance practices is one of the greatest leverage advancements for hydraulic system managers.
