Fittings made of hydraulic fluid are one of the important elements in every hydraulic device. They join pipes and hoses as well as pumps, valves, and cylinders to ensure the fluid's integrity at high pressure. The selection of the appropriate fitting material is vital as it directly affects the system's performance longevity, durability, and costs of maintenance, as well as security.

A frequent concern in the design of hydraulic systems is the following: Are fittings made of stainless steel better in comparison to carbon steel?

The answer may not be simple. While stainless steel is typically considered to be the most desirable alternative, carbon steel is the industry standard for a variety of hydraulic applications. The "better" choice is based on working conditions as well as the environment's exposure and budget, pressure requirements, and long-term maintenance requirements.

This article explains the distinctions between carbon and stainless steel hydraulic fittings. It compares their properties and benefits as well as disadvantages and applications to assist you in making the right choice.

Understanding hydraulic fitting materials

Hydraulic fittings are constructed using various materials; however, carbon steel and stainless steel are the two that are most frequently utilized in mobile and industrial hydraulic systems.

What are carbon steel hydraulic fittings?

The carbon-steel hydraulic fittings are manufactured predominantly from carbon and iron, typically with protective coatings like

• Zinc plating

• Zinc-nickel coating

• Black oxide finish

• Phosphate coating

The coatings increase resistance to corrosion and prolong the life of your equipment.

Fittings made of carbon steel are extensively used due to the fact that they provide:

• High-strength

• Excellent pressure handling capabilities

• Lower manufacturing costs

• Excellent machinability

They are typically employed in standard hydraulic systems, where exposure to corrosion is low.

What are stainless steel hydraulic fittings?

The stainless steel fittings are chromium-rich (typically at minimum 10.5 percent), which creates an oxide layer that is passive at the base. The layer protects the steel against corrosion, rust, and.

Common grades are:

• 304 Stainless Steel General-purpose corrosion resistance

• 314 Stainless Steel—Increased resistance to chemicals and saltwater

Hydraulic fittings made of stainless steel are ideal for harsh conditions where chemical, moisture, or washdown conditions exist.

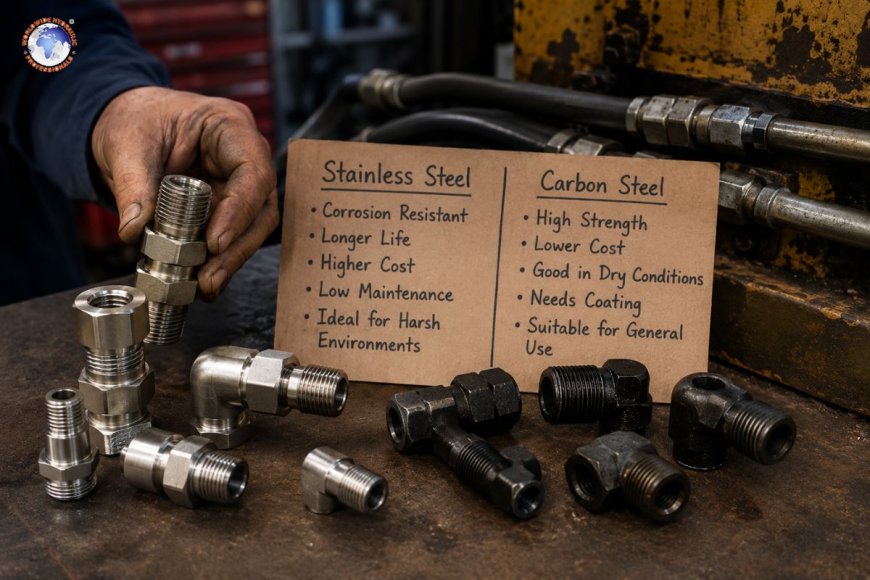

Key differences between stainless steel and carbon steel hydraulic fittings

1. Corrosion resistance

This is the reason stainless steel is clearly superior to carbon steel.

Stainless steel

Steel made of stainless is naturally resistant to the following:

• Rust

• Salt exposure

• Chemical attack

• Moisture damage

• Oxidation

Even when damaged, the passive oxide layer restructures, ensuring continuous protection.

Carbon steel

Carbon steel heavily depends on coatings that are applied externally to provide corrosion resistance.

When the coating becomes damaged as a result of:

• Vibration

• Abrasion

• Thread wears

• Exposed to harsh weather

...the metal's base is vulnerable to rust and degradation.

Winner: Stainless steel

For outdoor, marine, food-grade, chemical environments, stainless steel is superior.

2. Strength and pressure handling

Hydraulic systems typically operate under pressure that is extremely high, making their strength an important consideration.

Carbon Steel

Carbon steel is generally a good choice for the following:

• High Tensile Strength

• Excellent fatigue resistance

• Strong mechanical durability

This makes it perfect for industrial equipment that is heavy-duty.

Stainless steel

The stainless steel is also able to perform very well under pressure, though some types may have less yield strength than carbon steel that has been hardened.

However, the best hydraulic-grade stainless fittings are designed to be used in high-pressure applications.

Winner: A slight edge toward carbon steel

For ultra-high-pressure systems that are controlled conditions, carbon steel typically is a superior material at a lower expense.

3. Cost

Cost is usually the primary element for some hydraulic system owners.

Carbon steel

Carbon steel fittings can be described as the following:

• Affordable

• Easy to locate

• Lower cost of manufacturing

They're often the most cost-effective solution for hydraulic systems with large capacities.

Stainless steel

The price of stainless steel fittings is typically four times the price of similar carbon steel fittings because of the following:

• More expensive raw material costs

• More complicated Machining

• Lower production volumes

Winner: Carbon Steel

If budget is the main factor, carbon steel is typically the better choice.

4. Maintenance requirements

Maintenance costs are often the most important factor in determining the long-term value of a property.

Stainless steel

This requires little maintenance as it is naturally resistant to corrosion.

This translates to:

• A lower frequency of inspection

• Lower replacement rates

• Reduced time to shut down

Carbon steel

More monitoring is required, particularly in environments that are corrosive or humid.

Protective coatings could degrade, which may require the following:

• Replacement

• Recoating

• More frequent inspections

Winner: Stainless steel

The low maintenance aspect of it often compensates for the higher price at purchase.

5. Temperature resistance

Hydraulic systems are able to be used in extreme or cold temperatures.

Stainless steel

It is reliable across a larger temperature range and preserves its structural integrity even during thermal cycling.

Carbon steel

It is strong under normal industrial temperatures, but they could be more susceptible to degradation of coatings under repeated stress.

Winner: Stainless steel

For extreme temperatures, or those that fluctuate, stainless steel is more effective.

Application comparison

When stainless steel Is better

The fittings for hydraulics made of stainless steel are the best option for

Marine applications

Saltwater exposure quickly corrodes carbon steel.

Examples:

• Offshore platforms

• Hydraulics for ships

• Dockside lifting equipment

Food and beverage processing

For sanitation, you need corrosion-resistant and easily cleaned materials.

Examples:

• Washdown systems

• Beverage production lines

• Food-grade hydraulic equipment

Chemical processing

Chemical exposure can quickly damage carbon steel coated with chemicals.

Examples:

• Acid handling systems

• Chemical transfer hydraulics

• Industrial processing plants

Outdoor hydraulic equipment

Continuous exposure to moisture, rain, and UV radiation speeds up corrosion.

Examples:

• Agriculture equipment

• Forestry equipment

• Construction equipment used in coastal regions

When is carbon steel better?

Carbon steel is usually the better option for

Indoor industrial systems

The controlled factory environment reduces the chance of rust.

Examples:

• Presses for manufacturing

• Hydraulic power units

• Injection molding systems

Budget-sensitive projects

Large hydraulic installations could have hundreds of connections.

Carbon steel is a significant source of cost savings.

High-pressure systems in dry environments

In areas where the risk of corrosion is low, carbon steel provides superior strength for a lower price.

Lifecycle cost: The real decision factor

A lot of buyers are focused on the initial cost.

This could be deceiving.

While stainless steel might be more expensive initially, its long-lasting nature generally reduces overall costs by:

• A smaller number of replacements

• Less downtime

• Lower maintenance labor

• Lower risk of leakage

In environments that are corrosive, stainless steel is able to last for a longer time than carbon steel.

In controlled and dry environments, carbon steel usually provides the highest price.

Which one should you choose?

The choice is based on your operating conditions.

Choose stainless steel if:

Your system is operating in:

• Corrosive environments

• High humidity

• Marine conditions

• Chemical exposure

• Washdown applications

If durability is more important than upfront costs.

Choose carbon steel if:

The system you are using operates as follows:

• Indoors

• In dry conditions

• In controlled industrial settings.

In the event that cost efficiency is your primary concern.

Are stainless steel hydraulic fittings better?

Yes, however, only in the proper application.

Hydraulic fittings made of stainless steel are superior when resistance to corrosion as well as long-term durability and minimal maintenance are important.

But carbon steel is the most practical option for a variety of standard hydraulic systems since it provides the following:

• Excellent strength

• Lower cost

• Performance that is reliable in controlled environments

The most effective hydraulic fitting isn't just the most expensive, but the one that is compatible with the system's operational conditions.

When deciding between carbon steel fittings for hydraulics, take a look at:

• Environmental exposure

• Pressure needs

• Maintenance expectations

• Budget

• Costs of lifecycle

Selecting the best material will ensure maximum efficiency of the hydraulic system security, reliability, and efficiency for many years to come.
