How to remove a stuck hydraulic fitting safely?

Hydraulic fittings are specifically designed for durability under pressure—this is exactly what makes them so difficult to take off when they are required. It doesn't matter if you're dealing damage. JIC fitting in a portable excavator an O-ring face seal that has seized on an industrial press or a threaded NPT connection on an old manifold for a pump A broken fitting for hydraulics is among the many challenges encountered in workshops that test your patience as well as your method.

The stakes are high. When you apply force that isn't right in the incorrect direction, you'll be dealing with a damaged port thread, a manifold casting that is cracked, or a sagging sealing surface, or orat the very worst -- an injury to a person. This guide goes through each phase of the removal procedure in detail to help you take off even the most obstinately fitted fitting without turning a routine job into a fabrication issue.

The reason why hydraulic fittings clog in the first

Before you reach for an instrument, you need to be aware of the issue you're facing. Hydraulic fittings can be damaged for a variety of different reasons. The best method to remove them depends on the mechanism.

Galvanic corrosion can be the typical cause of corrosion, especially when dissimilar metals come together—a fitting made of steel within an aluminum manifold block is the most common pairing. In the course of months or years the electrochemical reaction bonds them at the thread's connection. You can tell this by the brown or reddish remnants surrounding the fitting.

The thread sealant and the hydraulic adhesive compounds, like PTFE tape, Loctite, or anaerobic sealants, are made to resist leakage and vibration. They can also serve effectively when it comes to disassembly.

The process of thermal cycling causes a continual expansion and contraction of the interface of fittings, eventually welding the threads cold or forming the surface of the seat. Fittings for hydraulic circuits that operate hot—such as close to motors, power converters, or brake circuits—are especially susceptible to this.

Mechanical galling happens when threads are placed in place without sufficient lubrication, particularly for stainless steel. The surfaces are micro-welded when they are subjected to friction and torque.

Extended service lives simply mean fittings that haven't been removed within the last decade of service will be able to resist all they have.

Essential safety equipment and tools

Make sure you have the right equipment available prior to starting. The way you can make adjustments mid-task is the way fittings are damaged and accidents happen.

Personal Protection Equipment Safety glasses or an eye shield are not negotiable. Hydraulic systems that are depressurized can keep fluid in reserve under pressure. A suddenly unlocked fitting could let out a stream of hot oil. Wear gloves that are resistant to hydraulic fluid and keep absorbent rags available.

Wrenches and spanners: Use an open-ended wrench or flare-nut wrench, sized to fit the fitting's flats, and never adjustable wrenches, pipe wrenches, or other wrenches for precision fittings because they can turn the hex. A high-quality torque wrench is ideal for re-installations that are controlled later. For heavier-duty use, impact wrenches may be utilized with the appropriate fitting sockets for hydraulic fittings; however, only after the fitting is broken off by hand.

Penetrating Fluid: A good penetrating oil—PB Blaster, WD-40 Specialist Kroil or aerosol acetone-ATF blends are your most important chemicals all in one. Avoid applying heat to the hydraulic components until all options are exhausted.

Heating Source: Propane torch or MAP-gas torch to provide controlled, localized heating. Do not use an open flame in proximity to hydraulic reservoirs, hoses, or any other component in which some residual fluid could be present.

Backing Wrench: A crucial tool that is often overlooked more than it is. Don't apply the torque to a fitting unless you support the fitting, union, or port body using another wrench. The transfer of rotational loads by means of the hydraulic unit to the manifold or cylinder port is a proven method to break castings or destroy downstream seals.

Step-by-Step removal process

Step 1: Depressurize and isolate the circuit.

This isn't an option. Verify that the circuit pressure is alleviated by shutting down your hydraulic unit and resetting the relevant control valves back into neutral floating positions, and then checking the gauges for pressure in the system. If the system is equipped with an accumulator, the accumulator should be cleaned separately; it is a typical and potentially dangerous error. Lock out and then tag the system according to your LOTO procedure prior to any wrench getting in contact with the fitting.

Step 2: Cleanse the entire area, including the fitting.

Make use of a wire brush, rag, and solvent to get rid of dirt and dried hydraulic fluid as well as scale from both the body of the fitting and the thread's root. Clean surfaces allow penetrating liquid to get into the thread interface and let you be able to clearly see the flats of the wrench. They also shield hydraulic ports from contamination in the event that the fitting is removed abruptly.

Step 3: Apply penetrating fluid generously

The fitting-to-port connection should be soaked as well as the thread's root with penetrating oil. Give the time needed—15-30 minutes for mild corrosion as well as several applications spread over a long period of time for fittings that are heavily corroded. Apply the penetrant and wait. Tap the fitting's body gently using a hammer made of brass to stimulate capillary wicking into the threads. Apply again. Don't rush this step, and it will determine if you can remove the fitting without causing any damage or end up damaging it.

Step 4: Make an attempt at a controlled breakaway using the backing wrench

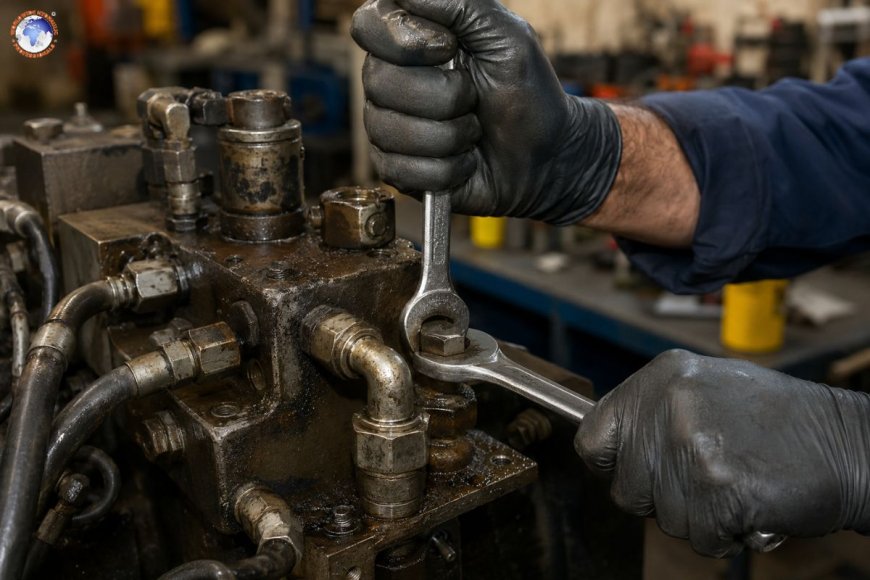

Set your back wrench on the fitting that is adjacent, the port, the union nut, or the boss to absorb the forces of reaction. Apply a steady, smooth force to the fitting that is stuck in the direction of loosening (counter-clockwise for right-hand threads that are standard). Do not jerk or load with impact at this point. If you notice the fitting moving, proceed with a slow, deliberate rotation. A fitting that moves for a quarter turn before stiffening again is often galled and must be worked both ways (tightened slightly and then loosened even more) to break the corrosion bond slowly.

Step 5. Apply heat locally if the penetrant isn't enough

If controlled torque using penetrants hasn't resulted in movement, then localized heat is the next option. Heating causes an increase in the temperature in the connection between the port and the fitting, especially effective when the steel fitting is placed within an aluminum body because aluminum expands about twice as fast as steel.

The torch should be applied to the port's body but not to it directly. It should be heated for 20-30 minutes until it is warm to the touch, but just far from glowing. Avoid overheating aluminum castings—temperatures of more than 300 degrees Celsius will melt the alloy and permanently weaken it. Make sure to work quickly and do the fitting while it's still warm. Keep an extinguisher of Class B near and make sure the hydraulic fluid is removed from the circuit before attempting to ignite any fire.

Do not apply the heat on stainless steel connectors inserted to stainless steel portsThe risk of galling is very high, and heat will cause it to get worse.

Step 6: Use an impact wrench for severe seizure

For fittings made of steel that are heavily corroded in cases where other approaches have not worked, using a cordless or pneumatic impact wrench that is fitted with the right fitting socket that is hydraulic can deliver the impulsive force needed to break up corrosion bonds without causing damage to port threads. Make use of short, controlled swaths instead of continuous impact. Always ensure that you back up to the component that is mating.

After removal: Examine and prepare for the reinstallation

After the fitting has been removed, check the threads at the port as well as the port. Small pitting from corrosion is acceptable. Damaged cross-threaded, galled, or plated surfaces should be repaired prior to the reassembly. Make use of thread chasers (not tapping that removes any material) to clean threads on ports. Replace any fittings that show the surface of the seal is deformed, in particular on JIC 37-degree flares, O-ring face seals, or soft-seat designs where the geometry of sealing is essential.

The port should be cleaned thoroughly prior to installing the new fitting. Lubricate the threads in accordance with the type of fitting. Anti-seize compound is recommended for steel-in-aluminum assembly. Clean hydraulic fluid for sealing O-rings or a fresh sealant to tapered thread (NPT/BSPT) applications. Torque according to the specifications of the manufacturer and keep a record of the installation for your maintenance journal.

What not to do

Do not use pipe wrenches or shifting spanners on fittings made of hex—they round flats and make removal much more difficult. Don't apply heat in a blind manner without checking that the circuit has been completely drained and that all seals and hoses are safe to remove. Don't assume that adding more force will fix the issue. Excessive force can lead to the fitting being bent or a damaged port, both of which turn the task of maintenance into a repair and machining task.

The removal of a stuck hydraulic fitting is a fundamental issue of method and patience rather than brute force. Fitters who destroy the least manifolds are the ones who devote the most time to penetration use, heat strategies, and utilizing the right backing support prior to ever having to apply the full force. Be consistent; ensure your sealing surfaces and your fitting will come clean and free each time.
