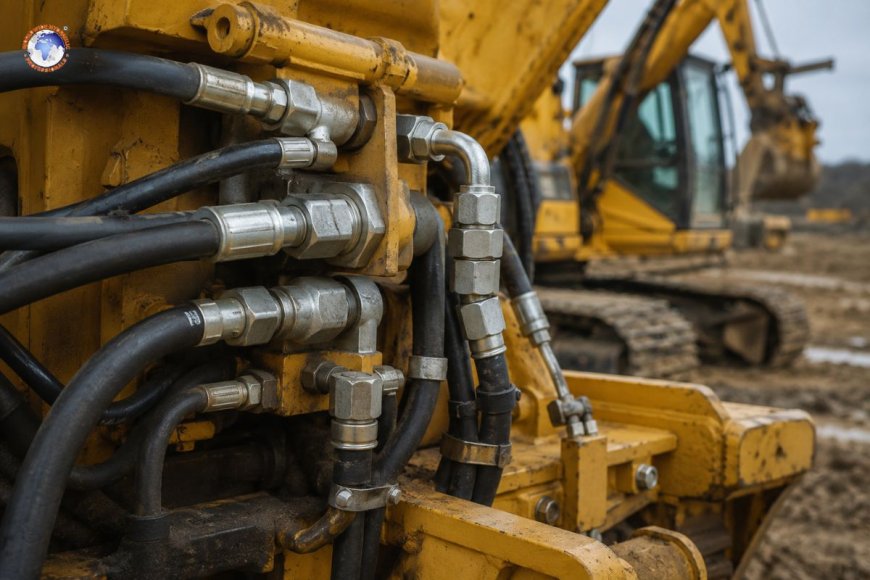

Hydraulic fittings for high-vibration mobile equipment applications

Hydraulic fittings used on mobile machinery—excavators, agricultural machinery, forest equipment, and off-road vehicles—require vibration-proof designs, like JIC 37° flare fittings, with appropriate torsion retention ORFS (O-Ring Face Seal) connections and clamped or banded anti-vibration or thread locking methods to stop fretting, loosening, or fatigue loss. Standard fittings designed for low or static vibration industrial applications often fail prematurely in the vibrations that mobile equipment produces, making the selection of fittings for vibrations crucial for safety and uptime.

Mobile hydraulic equipment is used in the most difficult mechanical conditions a fitting could ever encounter. Harmonics from engines, unlevel terrain, the impact of the digging and grading process, as well as the structural resonance of booms and arms all combine to cause continuous, multi-axis vibration. Fittings that have not been designed or manufactured to handle this kind of environment may leak, loosen, or crack from fatigue—usually at the worst moment, on the job, away from a service area.

What causes vibration to be particularly harmful to fittings for hydraulics?

Mechanical loosening in comparison to. fatigue failure

Vibration can damage fittings by attacking the use of two different failure mechanisms, and knowing the difference is crucial in deciding on the best measure to counter it.

Mechanical loosening happens when cyclical motion can overcome the friction holding the threaded connection. Even a well-torqued fitting may revert to a more gradual motion during prolonged vibration, particularly in the event that the fitting was not tightened to the correct specifications or had the locking function. The result is small weeping leaks, which get worse during the course of operation.

Failure to resist fatigue is more nefarious. Repetitive stress cycles—sometimes even below the strength of the material—cause tiny cracks that spread through time, often beginning with stress points such as the thread root or in the zone where the fitting connects to the hose or tube. As opposed to an elongation process, fatigue failure usually is not a sign of warning in the event of the sudden complete fitting crack.

Resonance and frequency match

The most dangerous risk for mobile devices is resonance. When the natural frequency of a fitting assembly is in line with that generated by an engine pump or hydraulic cycle, the amplitude of the cylinder increases significantly. This is the reason why similar fittings work perfectly on one machine but fail quickly on another. The length of the routing as well as mounting points and unsupported hose spans can all alter the frequency of resonance of the fitting.

The most suitable fittings for environments with high vibration

ORFS (O-ring face seal) fittings

ORFS fittings join via an O-ring that is compressed between two faces that are flat, instead of relying upon metal-to-metal thread contacts to seal. Since the seal isn't reliant on friction between threads, ORFS connections are inherently more resilient to the tiny vibrations that vibration causes, and they are able to resist the seep-and-leak pattern that flare fittings exhibit when subjected to continuous cyclical load. ORFS is now the most popular choice for mobile equipment that has new hydraulic circuits, specifically in high-pressure zones around the ports for the cylinder and pump.

JIC Fittings for deg flares (With the correct retention of torque)

JIC fittings are still popular across mobile devices due to their compatibility with previous systems and the lower cost of components. They can be used in vibration-prone environments, but only when torqued to the specifications of the manufacturer and, ideally, coupled with a second locking mechanism. The under-torqued JIC connections are among the most frequently cited causes of field leaks caused by vibrationThe flare seal is dependent on a constant metal-to-metal pressure, which is eroded by vibration.

Banjo fittings

Banjo fittings are often used in highly vibration-sensitive, tight zones like steering circuits, brake lines, and engine-adjacent routing that is cramped because their rotating design permits the hose's orientation to be adjusted after installation, which decreases the bending and torsional stress on the hose. The flexibility of rotation allows the fitting to relax naturally when the machine is flexed instead of transferring that strain directly to the rigid joint.

Crimped (skived) fittings for hose ends as opposed to. field-attachable ones

For circuits with high vibration, fittings made of crimped hose ends that are skived by a factory generally perform better than the field-attachable (screw-together) fittings. The process of crimping results in a more consistent, long-lasting compression around the hose reinforcement layer, which reduces the chance of the fitting breaking free from the hose with time, an issue that is more frequent when using field-attachable designs for high-cycle vibration services.

Design and installation methods to prevent failure due to vibration

Properly routing hoses and supporting

Unsupported hose spans increase the frequency of resonance and can increase the risk of resonance. Routing hydraulic hoses using adequate clamping intervals that are suggested by the manufacturer of the hose rather than permitting long runs to flex as they please greatly reduces the stresses on the connection points for fittings. Clamps should permit some motion instead of fixedly fixing the hose since there is a need for flex to absorb movement of the machine without directly transferring it into the fitting.

The bend radius is a strain reliever as well as a tension reliever.

Fittings placed at or near the bend radius of a hose's minimum put stress on the junction of fitting and hose. Keeping a large bend radius and fittings with angled angles (45° or 90°) in cases where routing geometry demands that a change in direction shifts the stress of bending away from the body of the fitting.

Specification of Torque and verification

Every fitting type has a manufacturer-specified torque range, and mobile equipment technicians should verify torque with a calibrated wrench rather than "feel," particularly during initial commissioning and after any component replacement. The fittings that are under-torqued loosen up faster when subjected to the force of vibration. Over-torqued fittings may cause cracks or deformation on sealing surfaces. fitting bodies, which can cause completely different failure modes.

Thread-locking and anti-vibration measures

Threaded connections are used in zones of high vibration Secondary retention methods (such as thread-locking substances designed for hydraulic use, such as lock washers or wire-locking on crucial joints) can provide a backup measure to loosening that goes beyond torque alone. These techniques are especially useful for fittings that are difficult to check frequently, like those that are hidden within frames or booms.

Considerations for coatings and materials

Vibration-prone fittings benefit from the use of materials and coatings that protect against cracks and fatigue and corrosion that could cause it to accelerate. Forged steel fittings typically offer more resistance to fatigue than casting alternatives because of their grain structure, and coatings like zinc-nickel plating can provide corrosion protection, which helps to maintain thread integrity and retention of torque over the course of the equipment's lifespan—corrosion of thread root is an acknowledged cause of fatigue cracks forming.

Prevention and inspection strategies for preventive maintenance

As vibration-related issues develop over time, scheduled inspections catch the majority of issues before they develop into field breakdowns. A good inspection schedule includes checking the fitting torque prior to commissioning, at the end of the first 50 to 100 operating hours (as connections are able to settle) and regularly at intervals of service thereafter. Inspections should be focused on early leak indicators, dirt or dust accumulation at fitting joints, weeping oil, or discoloration because these are often the first signs of the appearance of a visible drip by several operating hours.

Mobile equipment that is highly vibrational requires the use of a fitting choice and an installation plan that goes above and beyond the normal hydraulic practice. ORFS connections, properly torqued JIC fittings or banjo fittings that are in torsion-prone or tight zones, and factory-crimped hose ends each tackle different aspects of the problem. When combined with a disciplined route routing for hoses and a torque check as well as preventive maintenance, these options effectively reduce the risk of fatigue and loosening failures that cause an overwhelming portion of the unplanned downtime for hydraulics on the job.

1. What kind of hydraulic fitting is the best for mobile equipment with high vibration?

ORFS (O-Ring Face Seal) fittings are typically the most suitable option for mobile equipment that is highly vibrational since their sealing mechanism does not depend on the constant friction of threads and therefore is more resistant to loss of tension that vibration can cause when fittings are made of traditional flare.

2. What causes hydraulic fittings to become loose on excavators as well as other mobile machines?

Fittings get loose due to continuous engine, terrain, and hydraulic cycling vibration slowly overpowering the friction that holds threaded connections, particularly when the fitting was not torqued enough during the installation or did not have another locking device.

3. Could JIC fittings be employed in a safe manner in applications with high vibration?

Yes, it is, but only when torqued to the specifications of the manufacturer and ideally coupled with a thread-locking compound or mechanical locking, as JIC seals depend on metal-to-metal contact pressure, which causes vibration to cause erosion over time.

4. How often should fittings for hydraulics be checked on equipment that is susceptible to vibration?

A realistic schedule includes torque testing after commissioning, a follow-up inspection after the first 50 to 100 working hours when connections are settled and a visual check for leak indicators every regular interval of service thereafter.

5. What is the reason for an abrupt hydraulic fitting break instead of a leak that is gradual?

Sudden fractures typically result from fatigue failure. Repeated vibrations create tiny cracks in stress concentration locations like thread roots that spread silently until the fitting snaps suddenly, without warning.
