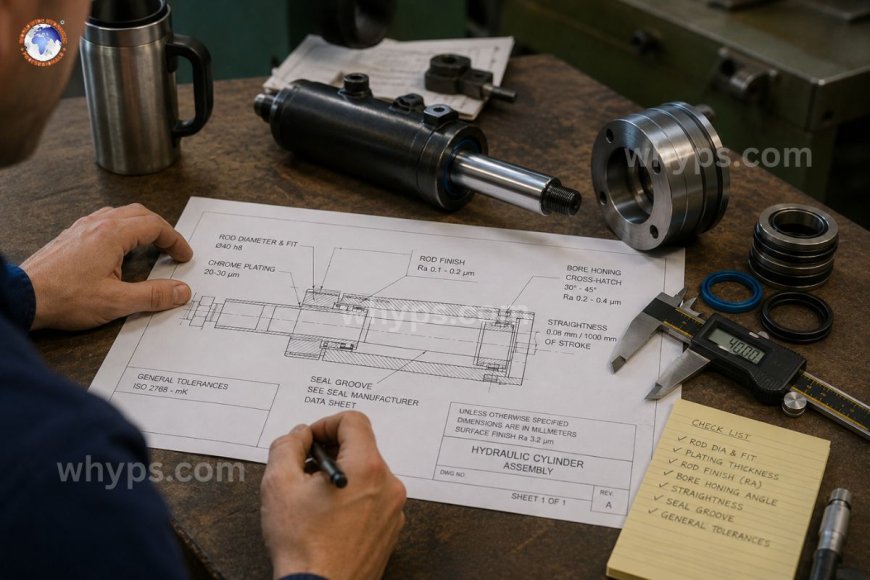

Specifying a hydraulic cylinder for CNC machining: rod finish, bore honing, and the drawing callouts that get missed

A cylinder has passed dimensional inspection it is then assembled and then begins cutting the seal of the rod in about a thousand cycles. The diameter of the rod was shown on the print. The bore's diameter was also on the print. Rod seal scoring can have a variety of potential causes, including rod misalignment, contamination, insufficient seal material selection improper hardness, side loading and lubrication that is not adequate - the failure of a single cylinder rarely can be attributed to one cause by itself. In this instance, an neglected reason could be the rod's post-plating finish as well as the bore's honing requirements and the honing specification, neither of which had been clearly identified on the drawing of the cylinder to allow the shop to machine to.

This is a common occurrence in hydraulic cylinder drawing software. Diameters have tight tolerances due to the fact that they're simple to draw and are easy to examine. Cylinder rod finishing thickness, plating thickness, and bore honing patterns get an unspecific callout or none at all due to their difficulty to precisely define and are easy to believe that the factory is going to "do it right." In the case of a static bracket, this isn't a cost. For a cylinder rod or bore with thousands of seal cycles dynamically A finish that is not specified is an unavoidable cause when a properly dimensioned component fails to perform in the field.

An accurate hydraulic cylinder design requires many things to be nailed down in one go The rod's diameter must be matched the bore honing finish as well as the thickness of chrome plating on the rod as well as the dimensions of the seal groove as well as the general tolerance standard for each other dimension of the drawing that's not individually listed. A lot of metric cylinder drawings employ ISO 2768 for that last element, although company-specific specifications and other frameworks like ISO 8015 or ASME Y14.5 are often used to supplement or replace ISO 2768 according to the manufacturer. If ISO 2768 is the referenced standard, comparing the class letter of the title block against the ISO 2768 tolerance classes and tables can take a couple of minutes. This is something easy to overlook in a drawing which already appears complete. Incompletely completing any in these callouts for engineering drawings results in parts that pass inspection against the callouts available but is still insufficient compared to the ones that do not.

Rod diameter is a good fit, as well as chrome plating

Many industrial cylinder designs utilize shaft tolerance classes like H8 or H9 for the rod's diameter, which is which is matched with an H8 bore within the gland. Some manufacturers specify the diameter of their finished rods directly based on their sealing system instead of relying on ISO shaft fittings. Making sure the right fit class is used is not as important as engineers believe; however, ensuring the proper tough chrome plating's thickness and the finish correct is more important for the sealing life of the hydraulic seal.

Plating with hard chrome on a cylinder rod typically extends from 20-40 microns in thickness. Numerous rods are polished after plating but without significant grinding except if dimensional corrections are required to bring the diameter of the plated rod back to a reasonable tolerance. The finishing goal for dynamic seals typically falls within the Ra 0.1 to 0.2 microns range for surface roughness. A thinner plating doesn't necessarily mean more effective: a coating that is applied over the limit of the specification alters the diameter of the rod that is sufficient to alter the fit and a thicker layer of plating can increase the risk that the rod will crack or become porous in the event that processes controls are inadequate and could reduce the resistance to corrosion at the seal's lip.

Honing the cylinder bore straightness and pattern

The bore of the cylinder must have two additional things that are beyond the tolerance of diameter that is a honing cross-hatch design which retains a thin film of oil for an engine seal and also straightness maintained over the entire duration of stroke. It is not simply examined at a handful of locations. The suggested cross-hatch angle must be in line with the manufacturer's or seal provider's specifications reference varies in some cases, with some stating 20-30 degrees, some 30-45 degrees and some stating 40-60 degrees dependent on the angle measured as an included angle or measured from to the bore's axis. The precise figure is less important than confirming the convention that the drawing follows and specifying it clearly.

A bore that has been honed to the proper diameter, but with the incorrect cross-hatch angle can either deprive the seal of the lubricating film which accelerates wear or holds excessive oil, leading to leakage through the seal. A deviation in the straightness of a long period of time causes side loading to the piston seal, even in the case of a bore that remains within the tolerances at each location it was determined.

A seal groove, and dimensions of gland

The depth and width of the groove must be determined based on the groove design chart to determine the exact cross-section and seal compound not left to general tolerance. The groove geometry must be in line with the installation guidelines of the seal manufacturer in totality including lead-in chamfers as well as surface finishing requirements for groove walls, not only the dimensions of width and depth. A groove that is cut 0.1 millimeters undersize on the depth will compress the seal, which reduces its lifespan and a groove that is cut too large lets the seal be moved under pressure and then extrude out of the gap.

Specification examples by the duty class of the cylinder

The below figures represent design goals derived from standard industrial practices, but not universal standards - the actual specifications should be verified by the seal manufacturer's guidelines as well as the cylinder manufacturer's specifications for drawing requirements applicable to the particular application.

If tighter specifications do not provide more value

Not every cylinder requires high-cycle specifications as over-specifying adds costs to manufacturing of cylinders without adding longevity to the service life of applications that do not require it:

• Single-acting cylinders for low-cycle and applications that are low-pressure (under 100 cycles for each year) seldom warrant the use of a Ra 0.05 finish or 40 micron chrome
• Cylinders that are replaced at a fixed maintenance interval, irrespective of their condition do not benefit from spec levels that are aimed at prolonging the service life beyond the timeframe.
• Short-run test rigs or prototypes generally are best supported by an industrial standard rather than a high-cycle one since the cylinder can be repaired or replaced prior to wear becoming the primary aspect.

Making sure that the ranges shown above correspond to the real-world application instead of settling for the most precise specification is where the majority of the cost-savings in an RFQ for a cylinder is.

Why is it that a cylinder rod requires an exact surface finish, in the event that the diameter has already been tolerable?

Diameter tolerance determines fit and surface finish regulates how seals wear and the extent to which it holds the oil's lubrication during rotation. A rod that is machined to the proper diameter but with too rough or smooth a surface finish could contribute to premature wear of the seal even if all dimensional requirements is fulfilled.

What is the difference between h8 and rod fittings, and is it important which is stated?

Both are clearance fitments against the bore for the gland bushing. h8 is more secure in its tolerance band than the h9. In high-pressure or high-cycle applications, h8 minimizes the chance of side-play developing when it wears out the bushing. For applications that require light duty generally, h9 is adequate and is a bit less costly to keep. Certain cylinder makers do away with ISO shaft fits completely and choose to specify the rod's diameter directly against their seal manufacturer's fitting chart.

Does honing the cross-hatch angle really affect the cylinder's service life?

It is possible. The cross-hatch angle determines the amount of oil film the bore's surface stores between the seal of the piston with the walls. A too low angle could risk cutting off the seal's the lubrication it needs; too high risks expanding leakage beyond the seal. The precise range of the target can differ depending on the source and measurement methods This is the reason why it is important to specify both the angle and the measurement convention instead of leaving the assumption.

Does a store have to use the word "chrome plated" without a thickness range?

This leaves both the resistance to corrosion and the final rod diameter not established. A range of thicknesses should be defined in conjunction with the finish requirement since the thickness of plating directly influences the final diameter and fitting of the bushing to the gland.

What is the the seal groove's tolerance impact leakage from cylinders?

A groove that's too small compresses the seal, speeding up wear and decreasing service longevity. A groove that is too large allows the seal to move under pressure and then expand into the clearance gap which is the most common source of leakage from the outside that a visual inspection of the rod's diameter and bore alone isn't able to identify.

Does it make sense to specify the duty level that is highest by default to prevent underspecifying?

It's not often. The most precise Chrome thicknesses, finishes and straightness specifications cost more to process and check and the cost is wasted on projects that never be able to exceed the wear limit the more precise spec is made for. Achieving the right match between CNC tolerances in machining and finish specifications with the actual duty cycles is the most cost-effective method in the majority of Requests for Quotations.

A drawing of a hydraulic cylinder is more than a set of tolerances and diameters. The specifications of surface finish and plating bore honing, the geometry of seal grooves and general tolerances all affect sealing performance and the life of the cylinder. If these parameters are clearly identified as a component of the overall design of the hydraulic cylinder the manufacturers have little room to interpret and inspections are more precise and the final cylinder is more likely to function as expected when in use.
