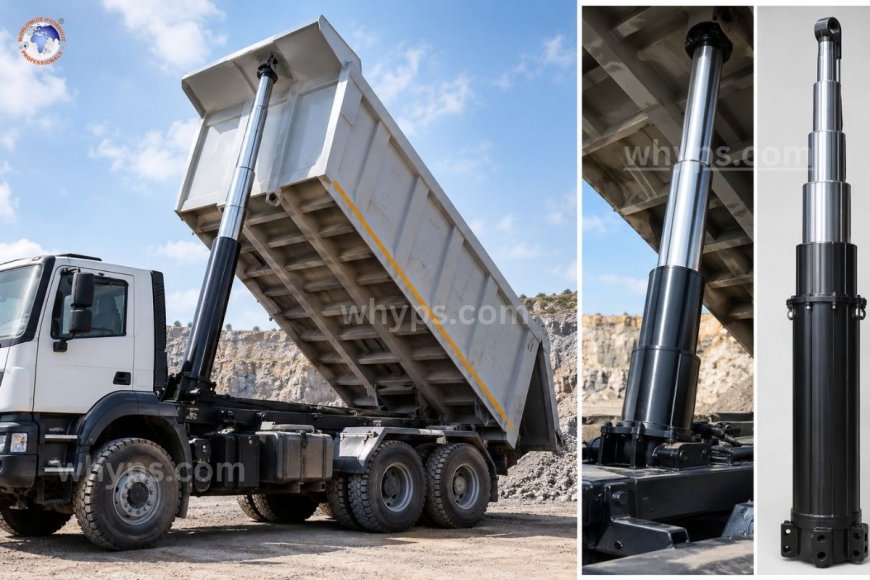

Heavy-duty telescopic hydraulic cylinders for dump trucks

Heavy-duty telescopic hydraulic cylinders are the lifting heart of a dump truck. Built from nested sleeves that extend in stages, they deliver a long stroke from a compact retracted length, letting the body tip to a steep dump angle while fitting neatly between the chassis rails. Choosing the right stage count, bore size, seals, and materials directly affects payload safety, cycle time, and service life.

Why dump trucks rely on telescopic cylinders?

A loaded dump body can weigh tens of tonnes, and it must rise to roughly 45–55 degrees to discharge material cleanly. A single-stage cylinder able to deliver that stroke would be far too long to mount under the body. A telescopic cylinder solves this problem by nesting several tubes inside one another, so it retracts to a fraction of its fully extended length.

This compact packaging matters in three ways:

• Space efficiency: The cylinder fits into the limited gap between the chassis and the body floor.
• Long stroke: Total extension can be three to five times the retracted length.
• Lift geometry: A front-mounted or underbody telescopic cylinder provides a smooth, near-vertical push that suits end-dump and rear-dump designs.

How a telescopic cylinder works?

A telescopic cylinder consists of a main barrel, one or more intermediate sleeves, and a final plunger or rod stage. Pressurized oil enters through the base port and acts on the stage areas in sequence.

Staged extension sequence

Because the largest-diameter stage has the greatest effective piston area, it extends first, when the load is heaviest and force demand is highest. Each smaller stage then follows. This produces a characteristic pattern:

• Stage one moves slowly with maximum force.
• Later stages move faster with less force, since the effective area shrinks.
• Retraction usually reverses the order, with the smallest stage returning first.

This built-in force-and-speed profile suits dumping well: slow, powerful lift at the start, then quicker travel as the load shifts and the body angle increases.

Single-acting vs. double-acting

Most dump truck cylinders are single-acting. Oil pushes the stages out, and gravity plus the body weight return them when the control valve releases pressure. This keeps the design simple, lightweight, and economical.

Double-acting telescopic cylinders add a retract port so oil can power the return stroke. They are used where the body must be pulled down against resistance, in specialty vehicles, or where controlled lowering is critical, though they cost more and are more complex to build.

Key design features of heavy-duty units

Sleeve and bearing design

Each sleeve needs generous overlap with the next stage when fully extended. Long bearing surfaces and wide bearing spacing resist the bending moments produced by uneven loads or sloping ground. Bronze or polymer-composite wear bands are common, and their length-to-diameter ratio is a key indicator of side-load tolerance.

Seals and wipers

Every stage needs its own sealing package. Typical arrangements include:

• Rod or sleeve seals that hold pressure and prevent external leaks.
• Wiper seals that remove mud, dust, and grit from each exposed sleeve during retraction.
• Guide rings that keep metal surfaces apart and absorb radial load.

Because dump trucks work in quarries, construction sites, and farms, high-quality wipers and abrasion-resistant seal compounds such as polyurethane are especially valuable. Contamination ingress is one of the leading causes of early sleeve and seal failure.

Materials and surface treatment

Sleeves are typically made from high-strength seamless steel tubing, precision honed or ground for a smooth internal finish. Outer surfaces are commonly hard chrome plated or protected with alternatives such as nickel-chrome or thermal spray coatings to resist scoring, corrosion, and impact from stones and debris.

Ports, stop rings, and mounting

The base port should be sized for adequate flow to avoid excess heat and pressure drop. Internal stop rings limit each stage's travel and prevent sleeves from separating. Mounting options such as trunnion, clevis, or cross-tube bases should match the chassis design so the cylinder can pivot freely as the body rises.

Sizing and specification

Stroke and stage count

Stroke is set by the body's required dump angle and the mounting geometry. More stages allow a longer stroke from a shorter retracted length, but each added stage increases cost, weight, and the number of potential leak paths. Three- to five-stage designs cover most standard dump trucks.

Force and pressure

Lifting force follows the basic relationship F = P × A. The first stage must be able to lift the fully loaded body at the lowest angle, where the lever arm is most unfavorable. Specifiers should confirm:

• Maximum payload plus body weight.
• Lift geometry and cylinder angle at the start of the lift.
• System working pressure and relief valve setting.
• A suitable safety factor, with allowance for pressure spikes.

Stability and buckling

At full extension, the smallest stage is slender relative to its length, which raises buckling risk. Verify stability for the worst-case load position, and avoid dumping on steep side slopes where side loading increases sharply.

Common failure modes

Understanding typical problems helps buyers choose better designs and plan maintenance.

• Seal wear and internal bypass: Allows the body to drift down or lift slowly under load.
• Scored sleeves: Caused by abrasive contamination or damaged wipers, leading to rapid seal destruction.
• Bearing wear: Produces sleeve wobble and uneven loading.
• Bent or dented stages: Typically the result of side loading, overloading, or striking obstructions.
• Contaminated oil: Particles accelerate wear throughout the cylinder, pump, and valves.
• Corrosion and pitting: Often found where chrome plating has been chipped or worn through.

Maintenance best practices

A disciplined routine extends cylinder life considerably.

• Daily: Check for external oil leaks, wet sleeves, and visible damage. Clean exposed sleeves before retracting where practical.
• Weekly: Inspect wipers, pivot pins, and mounting bushings. Grease mounting points as specified.
• Periodically: Sample and test hydraulic oil, replace filters on schedule, and check relief valve settings.
• Operating habits: Avoid dumping on uneven ground, never exceed rated payload, and do not drive with the body partially raised.
• Storage and handling: Keep spare cylinders capped, supported horizontally, and protected from moisture and dust.

A simple drift test, raising the loaded body and watching for downward creep over several minutes, quickly reveals internal seal condition.

Selection checklist for buyers

When comparing heavy-duty telescopic cylinders, ask suppliers for the following:

• Stage count, bore sizes, and total stroke with retracted length.
• Rated working pressure and tested burst pressure.
• Bearing length and overlap at full extension.
• Seal materials and wiper design for your operating environment.
• Surface treatment and corrosion protection details.
• Mounting style compatibility and replacement seal kit availability.
• Warranty terms and rebuild support.

Heavy-duty telescopic hydraulic cylinders let dump trucks lift enormous loads through a long stroke while keeping packaging compact. Getting the specification right, from stage count and sizing to seals, bearings, and coatings, protects both the equipment and the people working around it. Pair a well-chosen cylinder with clean oil, protective wipers, and consistent inspection, and it will deliver reliable service across thousands of dump cycles.

1. How many stages does a dump truck telescopic cylinder usually have?

Most dump truck cylinders have three to five stages. More stages provide a longer stroke from a shorter retracted length, but they also add cost, weight, and sealing points.

2. Why do telescopic cylinders extend the largest stage first?

The largest stage has the greatest piston area, so it generates the most force at a given pressure. This lets it handle the heavy initial lift before smaller stages take over at higher speed.

3. Are dump truck telescopic cylinders single-acting or double-acting?

Most are single-acting, using oil to extend and the body weight to retract. Double-acting versions are used when powered retraction or controlled lowering is required.

4. What causes a telescopic cylinder to lose pressure or drift down?

Common causes include worn piston or stage seals, scored sleeves, leaking control or load-holding valves, and contaminated oil. A drift test and valve isolation checks help identify the source.

5. How often should a dump truck cylinder be inspected?

Check for leaks and damage daily, inspect wipers and mounting points weekly, and test oil and filters on a scheduled basis. Rebuild intervals depend on duty cycle, environment, and inspection findings.
