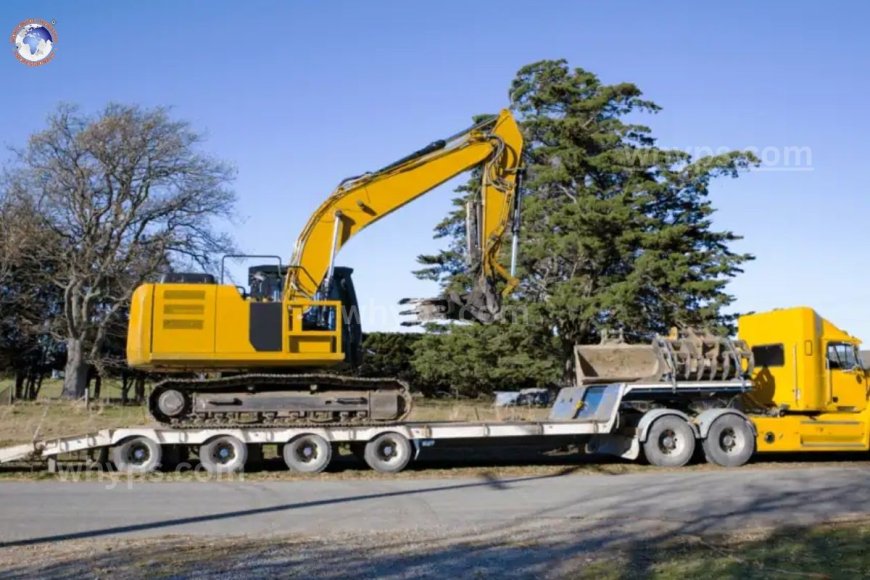

7 Ways to prevent costly equipment damage

Avoiding damage to expensive equipment when transporting heavy hydraulic equipment boils down to seven specific inspections: protection of the cylinder rod fluid position, inspection of cooler brackets and sealing for contamination fluid management with elevation awareness sealing prior to transport, and trailer selection that is calibrated to hydraulic geometries.

Risks associated with transporting heavy equipment are usually problems with dimensions or weight; they arise within the hydraulic system, which is where road vibrations, pressure, pressure at the position, and contamination affect components designed for controlled operating conditions. The majority of move planning is based on the weight of the vehicle and its height clearance, which leaves the hydraulic system not adequately accounted for. This is precisely where foreseeable, costly failures can begin.

The seven steps below require a disciplined pre-transport procedure instead of a complete system overhaul. If they are consistently applied, they provide significant hydraulic protection in exchange for the amount of effort they require.

1. Verify tie-down contact points by rod positions on cylinders.

Chains and straps that touch exposed rods in cylinders can cause instant surface scratches. A visual inspection after transport will not always detect micro-abrasions. Cylinder rods with hard chrome plating are specifically designed with an exterior that has a finish that ranges between Ra 0.05 and 0.3 microns, as well as the Rz ranges from 0.6 up to 2.0 microns. Scoring that pushes the rod out of the window can compromise the seal of the wiper and opens the way for particles to enter directly to the bore of the cylinder.

Prior to securing the machine to the ground, mark every tie-down point to the machine's hydraulic geometry. Then change the route of any strap coming into contact with an edge of a rod. Properly transporting heavy loads of industrial machinery involves separating these sensitive components from contact with abrasives. Make sure to use rubber-lined chain dog chains or foam-backed protective sleeves on any hardware that is routed to secure rods that are exposed.

The condition of the rod is documented prior to and following transport. The presence of visual proof will ensure that the failure to deliver the attribution post-delivery has been documented as a baseline instead of a dispute over the claim.

2. Position booms and arms at manufacturer-specified transport angles.

A crane or excavator boom set at a work angle during transport causes hydrostatic pressure differentials throughout the entire hydraulic circuit. These pressure differentials cause continuous loads on check valves as well as work-port seals. Normal operation does not impose this particular stress mode for long periods of time.

Fluid that is trapped in an isolated circuit increases pressure when it heats. Heating a liquid that is trapped to 20 degrees Celsius can increase the pressure by several hundred bars. That increase is enough to damage the motor seal and coupler seals or even break the housing.

Confirm the manufacturer-specified transport position for every machine before loading. Federal cargo securement regulations establish the standard for equipment that weighs 10,000 lbs or more: Accessories such as the hydraulic shovel "must be completely lowered and secured to the vehicle," and articulated equipment "shall be restrained in a manner that prevents articulation while in transit." Beyond that level, OEM documentation should dictate the final arrangement.

Release system pressure prior to that the device is secured to remove any existing load in the circuit prior to when the hauling process begins.

3. Examine cooler mounting brackets prior to and immediately following transportation.

Hydraulic oil coolers as well as heat exchangers rest on a mount designed for the typical frequency of vibrations that are typical to machine operation. They're not made to withstand the high-frequency, continuous broadband road vibrations of a flatbed that is moving at a highway speed. The cracking of the brackets' fatigue core delamination, cracking, and fitting loosening are all a result of the conditions of transit.

The issues are exhibited as an overheated condition during the initial post-transport work cycle, not being a visible issue within the vehicle. Surface quality on the route is a direct hydraulic component when traveling for a long time. Construction access roads that aren't paved and mountain switchbacks can accelerate the wear of brackets more than interstates that are smooth across the same distance.

Check the cooler mounting brackets and the fittings that go with them prior to loading and following delivery. Don't wait until an upcoming service period to examine these structural elements. For rough-road hauls, look into the bracing of brackets or vibration-damping mounts prior to the haul starting.

4. Connect all hydraulic connections to the closed position prior to loading.

Connection points that are open and breathing mechanisms for hydraulic reservoirs allow the airborne particles and moisture throughout the transportation event. The contamination introduced by this method does not pass through the machine's filtration system completely, as the filters are only doing their work while the engine is operating. There is no circulation, which means there is no filtering; therefore, particles will simply build up in the oil that is used for bulk.

Research suggests that more than 70 percent of all failures result from contamination in hydraulic oil, with 60-70 percent of all failures being attributed to particles of solids.

Particulates in the transit process circulate in a fluid manner at start-up. Cleaning targets that are met prior to loading can be reversed with just one long-haul operation when connections that are open remain unprotected. The most hazardous contaminants that can be found within the hydraulic system typically fall between 6 and 14 microns, which means that the human eye is unable to detect anything smaller than 40 microns. This makes the issue of contamination almost impossible to track without prior and post-sampling oil.

Cap all hydraulic fittings that are open and connections prior to the time the machine is able to roll on the deck. Refill reservoir breathers using sealed transport caps that are rated for the anticipated environmental conditions. Wrap or tape the rods of cylinders that are in contact with road dust while in travel.

5. Use desiccant breathers to move across temperature and elevation gradients.

Long-distance travel through varying elevations and temperatures cause the water reservoir fluid in hydraulic tanks to expand or shrink. The volumetric fluctuations drive the breathing cycle that is active throughout the journey.

Ambient temperatures drop by about 2 degrees Celsius per 1,000 feet of elevation rise, which means a 3,000-foot climb could cool headspace air in reservoirs by about 6 degrees Celsius. This cooling shrinks the headspace, and air is breathed in through the breathing holes and vents, pulling unfiltered air into any weakened seal. The temperature drop is creating the vacuum rather than the elevation itself. Ambient pressure drops by about 1 centimeter of mercury per 1,000 feet during the same period of time, and the lower pressure outside is pushing air out, not into.

Temperature-related thermal contraction in that range can reveal tiny cracks in old hose assemblies that can hold pressure well under stable conditions. Inspections after delivery often attribute this particular failure mechanism to age of service intervals instead of the actual stress from transit.

Monitor fluid levels prior to and after transportation, as the presence of abnormal levels after transport indicates active breathing in the reservoir throughout the transport. Install desiccant breathers that filter the air exchange with moisture during transport. Record the elevation profile of the route when moving through mountain corridors to ensure that post-transport inspections can account for the thermal strain the system was subjected to.

6. Apply pre-transport inspection equipment that is equivalent to the pre-operation inspection.

Transport isn't a rest time in the hydraulic systems. It is an uncontrolled stress-related event without a person in the system to identify or react to a forming leak. A seal that is worn but works well in normal service is unable to withstand the combined pressure of road vibrations and hours of static pressure.

Every item of maintenance that is carried by a machine over the long haul is an opportunity for transit to transform into a real failure. Moving excavators in a safe manner requires using these equipment transportation suggestions directly to the prior transport inspection procedure. Examine all cylinder seals that are external to the cylinder for cracks or weeping, since a seal that is weeping is quickly an unsound seal with constant stress.

Test hose assemblies under pressure and check for wear and blisters, abrasions, or fitting wear. Make sure all hydraulic connections are torqued in accordance with the specification. Self-loosening can be driven more through vibration than the movement of joints, "in particular, transverse slip," and the transverse dynamic load is greater for self-loosening than those axial preload are lost long before the fitting exhibits any signs of weeping. Note any system that has delayed maintenance as an immediate transportation risk, not the post-delivery task.

7. Choose the type of trailer and securing method using the geometry of hydraulic components as an input.

The type of trailer and the securing method determine the frequency and amplitude of the dynamic load that the hydraulic system carries during transportation. Flatbeds and step-decks emit totally different vibration profiles than lowboys and RGNs. The equipment's height, the center of gravity, and suspension travel all influence the way road-induced vibrations reach the hydraulic cylinders, cooler assemblies, and delicate running hoses.

A machine that is secured by chains with hard points on a stiff deck will transmit a lot more shock load onto its hydraulic parts than one that is positioned in an isolated trailer configuration. When planning a move, specify the type of trailer, the location of the hydraulic component, and the machine geometry as the primary inputs, along with normal weight conformance.

Verify that the securing plan does not cross-cut coolers or cylinders by comparing the diagram to the layout of the hydraulic system. Examine whether rubber-isolated load-distributing tie-downs are suitable for the surface of the trailer prior to getting the details in place.

The most important thing is the bottom line.

Every transport incident is a stress test for hydraulics. Cylinder rod scoring load, check valves, cooler bracket fatigue, and reservoir vacuum all happen in a single event across the distance. The machine may appear as if it's in good condition, yet it's carrying the concealed conditions that cause internal displacement of fluid or particulate pollution that show up at the beginning of operation.

The chasm in logistic planning that is focused on weight and the mechanical plan, which accounts for sealing integrity in hydraulic seals, is the point where damage can be prevented. The seven maintenance checks listed above are a linked prevention plan instead of a list of specific recommendations.

Conducting the pre-transport inspection using the same rigor and technical precision as the pre-operation inspection will ensure that rods with exposed rods as well as delicate cooler brackets and vulnerable breathers make it through the transport without damage.
