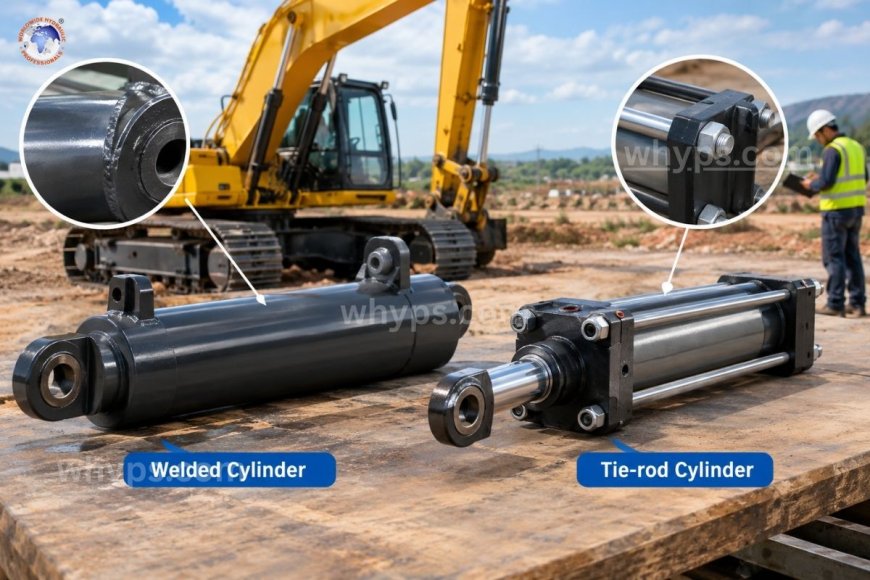

Welded vs tie-rod hydraulic cylinders: which is better for mobile equipment?

For most mobile equipment, welded hydraulic cylinders are the better choice. Their one-piece barrel construction handles higher pressures, shock loads, vibration, and dirty job-site conditions with a more compact, lighter package. Tie-rod cylinders still make sense where pressures are moderate, the duty cycle is lighter, and easy field disassembly or low upfront cost matters more than ruggedness. Choosing between welded and tie-rod cylinders is one of the most common design decisions in hydraulic machinery. Excavators, loaders, cranes, dump trucks, telehandlers, and agricultural machines all depend on cylinders that survive pressure spikes, side loads, mud, water, and constant vibration. The construction method behind the cylinder has a direct effect on how well it performs under those conditions. This guide compares both designs so you can match the cylinder to the machine.

How tie-rod cylinders are built

A tie-rod cylinder uses a barrel that is clamped between two end caps by a set of long threaded steel rods, usually four. The rods run along the outside of the barrel and are tightened with nuts to hold the whole assembly together. Inside, the piston, rod, seals, and bearings work the same way as in any double-acting cylinder.

Key characteristics of tie-rod designs

• Modular construction: the barrel, caps, and tie rods are separate parts, which makes the cylinder easy to assemble and disassemble.
• Standardized dimensions: many tie-rod cylinders follow NFPA or ISO envelopes, so replacements are widely interchangeable.
• External rods: the exposed rods add width and can snag debris or take impact damage.
• Pressure limits: the clamping force depends on rod stretch, so tie-rod cylinders are typically used at lower to medium working pressures.

How welded cylinders are built

A welded cylinder has its end caps, usually the base cap, welded directly to the barrel, while the rod-end gland is typically threaded or bolted in so the internals can be serviced. The result is a solid, tube-based structure with no external tie rods.

Key characteristics of welded designs

• Compact profile: without tie rods, the cylinder is slimmer and fits tighter machine envelopes.
• High pressure capability: the welded joint and thick-wall tube handle higher working pressures and pressure spikes.
• Custom mounting: clevises, trunnions, lugs, and eyes can be welded on to suit nearly any machine geometry.
• Greater robustness: a one-piece structure resists vibration, shock, and external damage.

Welded vs. tie-rod cylinders: key differences

Pressure and load capability

Mobile hydraulic systems commonly run at pressures that would stress a tie-rod design. Because tie rods rely on tension to hold the end caps against the barrel, repeated pressure cycling and shock loads can stretch or loosen them over time, leading to leaks at the end cap joints. A welded cylinder carries those loads through the barrel and welds itself, which is why heavy equipment manufacturers rely on it for booms, sticks, buckets, and outriggers.

Size, weight, and packaging

Space on a mobile machine is always tight. Welded cylinders have a smaller outside diameter for the same bore, and they remove the weight of the tie rods and nuts. That helps with machine balance, payload, and fuel efficiency. Tie-rod cylinders are wider because of the rods and corner-mounted end caps, which can be a problem where the cylinder sits close to a boom, frame, or guard.

Durability in harsh environments

Mobile equipment faces mud, dust, water, road salt, and impact. Exposed tie rods can corrode, collect debris, or get bent by contact. Welded cylinders have a smooth outer surface that is easier to protect with paint or coatings and less likely to be damaged. For construction, mining, forestry, and agriculture, that durability is a major advantage.

Serviceability and repair

This is where tie-rod cylinders shine. Backing off the nuts lets you separate the end caps from the barrel and replace seals, pistons, or rods quickly. Many welded cylinders are still serviceable, since the gland can usually be unscrewed and the rod assembly removed. But the welded end cap means the barrel cannot be fully taken apart, and a damaged barrel often means replacing the whole cylinder. For shops with limited tooling, tie-rod units can be simpler to rebuild.

Mounting flexibility and side loads

Mobile machines rarely load a cylinder perfectly in line. Boom swing, uneven ground, and articulation introduce side loads and bending forces. The rigid, integrated structure of a welded cylinder tolerates this better, and weld-on mounts let engineers place the pivot exactly where it is needed. Tie-rod cylinders have fixed mounting styles that follow standard envelopes, which limits customization.

Cost considerations

Tie-rod cylinders are usually cheaper to buy, particularly in standard sizes and moderate volumes. Welded cylinders cost more upfront because of the welding, machining, and testing involved, but their longer service life under heavy duty often lowers the total cost of ownership. For a machine that works every day in rough conditions, the extra investment typically pays back through fewer failures and less downtime.

Which is better for mobile equipment?

In most mobile applications, welded cylinders win. They suit the pressures, shock loads, vibration, and space constraints that define off-highway machinery. That is why they dominate the main working functions on excavators, wheel loaders, backhoes, cranes, dump bodies, telehandlers, and similar equipment.

Tie-rod cylinders are still a good fit in some mobile cases:

• Light-duty attachments and auxiliary functions at moderate pressure
• Small utility equipment, trailers, and lifting gates
• Machines where standard NFPA or ISO replacements are easy to source
• Applications where field rebuilds by technicians with basic tools are a priority

The deciding factors are working pressure, duty cycle, environment, and service strategy, not just price.

How to choose the right cylinder

Use this checklist when specifying a cylinder for mobile equipment:

1. Working and peak pressure: include pressure spikes from load holding and valve shifting, not just relief valve settings.
2. Duty cycle: continuous, heavy cycling favors welded construction.
3. Environment: dirt, moisture, chemicals, and impact risk push the choice toward welded designs with protective coatings.
4. Space and weight limits: check the installed envelope and the weight budget.
5. Mounting and load direction: consider side loading, pivot geometry, and stroke length for buckling risk.
6. Serviceability: Decide whether rebuilds will happen in the field or in a dedicated shop.
7. Total cost of ownership: compare purchase price against expected life, downtime, and repair cost.

Maintenance tips for both designs

Whichever type you choose, good maintenance extends cylinder life:

• Inspect rods regularly for scoring, pitting, and chrome damage, since a damaged rod destroys seals quickly.
• Keep wipers and rod surfaces clean to stop abrasive dirt from entering the cylinder.
• Check for external leaks at the gland, ports, and end caps.
• Maintain fluid cleanliness with proper filtration, because contamination is a leading cause of seal and bore wear.
• Check alignment and mounting pins to prevent side loading and bushing wear.
• For tie-rod cylinders, periodically check rod torque and look for corrosion on the rods and nuts.

Welded and tie-rod cylinders both do their jobs well, but they are built for different conditions. Welded cylinders offer the strength, compact size, and ruggedness that mobile equipment demands, making them the standard choice for demanding applications. Tie-rod cylinders remain a practical option for lighter-duty, moderate-pressure, and easily serviced equipment. Match the construction to your pressure, environment, and maintenance plan, and the cylinder will deliver reliable performance for years.

1. Are welded hydraulic cylinders stronger than tie-rod cylinders?

In general, yes. Welded cylinders handle higher pressures, shock loads, and side loads because their end caps are joined directly to the barrel instead of being clamped by external rods.

2. Can tie-rod cylinders be used on mobile equipment?

Yes, in lighter-duty or moderate-pressure applications such as small attachments, utility machines, and lifting gates. They are less common on the main boom and bucket functions of heavy machinery.

3. Can welded hydraulic cylinders be repaired?

Often, yes. The rod-end gland can usually be removed to replace seals, rods, and pistons. However, damage to the barrel or welded joints may require replacing the whole cylinder.

4. Why are tie-rod cylinders cheaper?

They use standardized, modular parts and simpler manufacturing, with no welding or custom machining required for most sizes, which lowers the upfront price.

5. Which type lasts longer in harsh conditions?

Welded cylinders generally last longer in dirty, high-vibration, high-pressure environments because they have no exposed tie rods and a more rigid structure.
