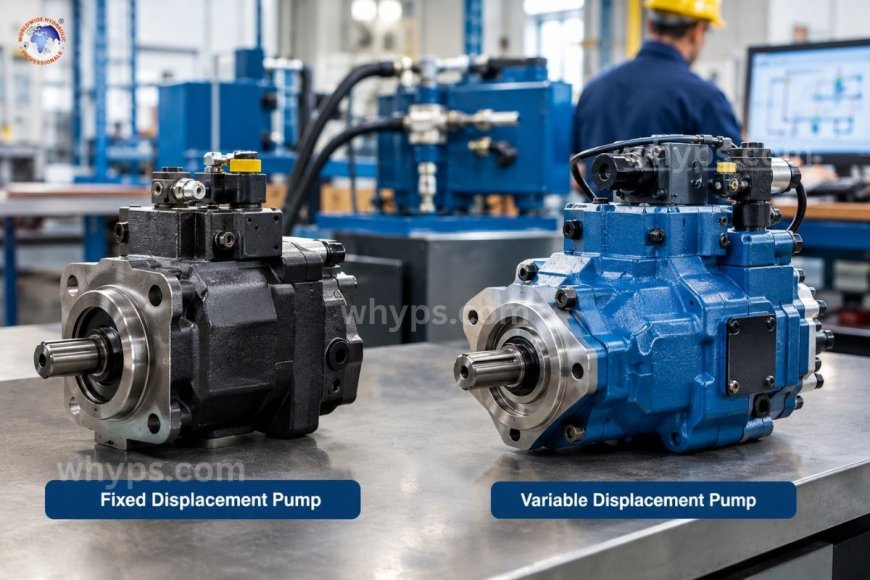

Variable displacement vs fixed displacement pumps: which is better?

Neither type is better in every situation. Fixed displacement pumps deliver a constant volume of oil per revolution, which makes them simple, rugged, and affordable for steady-duty circuits. Variable displacement pumps adjust their output to match demand, which cuts wasted energy and heat in systems with changing loads, but they cost more and need more careful setup and filtration. The right choice depends on duty cycle, efficiency goals, budget, and maintenance capability.

What is pump displacement?

Displacement is the volume of fluid a pump moves in one shaft revolution, usually expressed in cubic centimeters per revolution (cc/rev) or cubic inches per revolution. Multiply displacement by shaft speed and you get the pump's theoretical flow.

Pressure is a different matter. A pump does not create pressure; pressure builds when flow meets resistance in the circuit. This distinction is important because the displacement design determines what the pump does when the system does not need its full flow. That single behavior drives most of the differences between the two pump types.

How fixed displacement pumps work

A fixed displacement pump moves the same volume of oil per revolution no matter what the system demands. Flow changes only when shaft speed changes. When actuators need less oil than the pump delivers, the surplus has to go somewhere. In most circuits it passes over a relief valve and returns to the tank, and the energy it carried is converted into heat.

Common fixed displacement designs

• Gear pumps: Compact, inexpensive, and tolerant of moderate contamination. External gear pumps are common in mobile equipment and power packs, typically at pressures up to roughly 250 bar (3,600 psi).
• Vane pumps: Known for quiet operation and smooth flow, widely used in industrial machinery and moderate-pressure systems.
• Fixed axial piston pumps: Offer high pressure capability and good efficiency where constant flow is acceptable.

Advantages of fixed displacement pumps

• Lower purchase price
• Simple construction that is easy to service and repair
• Predictable, steady flow
• Wide availability and easy interchangeability
• Greater tolerance for less-than-perfect fluid cleanliness (especially gear designs)

Limitations of fixed displacement pumps

• Energy is wasted whenever demand is below pump output
• Excess heat often requires larger reservoirs or coolers
• Flow cannot be adjusted without changing speed or adding valves, flow dividers, or extra pumps
• Running against a relief valve for long periods accelerates oil degradation

How variable displacement pumps work

A variable displacement pump can change how much oil it delivers per revolution. In an axial piston design, a swashplate changes angle: a steeper angle lengthens the piston stroke and increases flow, while a shallower angle shortens it. In variable vane designs, a movable cam ring changes the pumping chamber volume. As demand falls, the pump reduces its output instead of pushing surplus oil over a relief valve.

Common control methods

• Pressure compensator: Reduces displacement as system pressure approaches a set value, so the pump supplies only enough flow to hold pressure and cover leakage.
• Load sensing: Senses the pressure at the load and keeps the pump a fixed margin above it, delivering only the flow and pressure the work requires.
• Torque or power limiting: Reduces displacement when pressure and flow together would overload the engine or electric motor.
• Electro-hydraulic (proportional) control: Uses electronic signals to program flow and pressure, enabling precise, repeatable control and integration with machine controllers.

Advantages of variable displacement pumps

• Output matches demand, reducing wasted energy
• Lower heat generation and smaller cooling requirements
• Smooth, precise control of speed and force without extra throttling
• One pump can serve multiple functions with varying needs
• Reduced fuel or electricity consumption in suitable applications

Limitations of variable displacement pumps

• Higher initial cost
• More complex internals and control components
• Stricter fluid cleanliness requirements
• More specialized service knowledge needed for setup, tuning, and repair

Side-by-side comparison

Energy efficiency and heat: where the real difference shows

A simple example shows why the efficiency gap matters. Suppose a machine needs 80 L/min only briefly but spends most of its cycle needing about 20 L/min at 200 bar. A fixed displacement pump sized for the 80 L/min peak keeps delivering 80 L/min the entire time. The surplus 60 L/min flows over the relief valve at full pressure.

The power lost is roughly pressure multiplied by flow divided by 600, which gives 200 × 60 / 600 = about 20 kW of continuous heat. That is energy purchased as fuel or electricity, then paid for again in cooling capacity.

A pressure-compensated or load-sensing variable displacement pump in the same circuit reduces its displacement to roughly what the actuators need. Heat drops sharply, oil life improves, and the machine can use a smaller cooler or reservoir. The saving depends on how much time the system spends at part load, which is why duty cycle should always be the first question.

When to choose a fixed displacement pump

A fixed displacement pump is usually the better choice when:

• The system runs at a steady flow and pressure for most of its duty cycle
• Budget and simplicity matter more than energy savings
• Operating hours are low, so efficiency gains would never repay the extra cost
• Maintenance staff or field conditions favor simple, easily replaced components
• The circuit already uses an unloading valve or accumulator to manage idle periods

Typical examples include small power packs, log splitters, basic lifting circuits, and auxiliary functions on mobile equipment.

When to choose a variable displacement pump

A variable displacement pump is usually the better choice when:

• Demand changes frequently or varies widely over the work cycle
• Energy cost, fuel consumption, or heat rejection is a real concern
• Precise control of speed, force, or pressure is required
• Several actuators with different needs share one pump
• Operating hours are high, so efficiency savings accumulate quickly

Typical examples include excavators, injection molding machines, presses, machine tools, and industrial automation systems.

Cost of ownership, not just purchase price

A fair comparison looks beyond the price tag. A variable displacement pump may cost significantly more up front, but lower energy use, reduced cooling needs, and longer oil life can offset that premium over time, particularly in equipment that runs many hours per year.

On the other hand, if the machine runs only occasionally, or if the load is nearly constant, the extra investment may never pay back. A fixed displacement pump also costs less to repair or replace when it does fail. Estimate annual operating hours, average load profile, and energy price before deciding.

Maintenance and fluid cleanliness

Variable displacement piston pumps have tight clearances and precise control components, so they are less forgiving of contamination than most gear pumps. Follow the manufacturer's recommended ISO 4406 cleanliness target, use properly rated filtration, and monitor fluid condition with regular oil analysis.

Fixed displacement pumps are generally more tolerant, but they still suffer from wear when oil is dirty, overheated, or aerated. For either type, good practice includes:

• Keeping suction lines sealed and correctly sized to avoid cavitation
• Maintaining oil at the right viscosity and temperature
• Checking compensator and control settings after service
• Replacing filter elements on schedule, not only when a bypass indicator trips

For simple, steady, low-hour applications, a fixed displacement pump is often the smarter and more economical choice. For systems with varying demand, long operating hours, or a need for precise control and lower heat, a variable displacement pump usually delivers better performance and lower lifetime cost. Match the pump to the duty cycle, not to a general preference, and you will get the best balance of efficiency, reliability, and cost.

1. Is a variable displacement pump more efficient than a fixed displacement pump?

In systems with changing demand, yes. A variable displacement pump reduces output when full flow is not needed, so less energy is wasted as heat. In a system that runs at constant full flow, the efficiency difference is small.

2. Can I replace a fixed displacement pump with a variable displacement pump?

Often yes, but it is not a simple swap. Mounting, port sizes, control type, relief valve settings, case drain connection, and fluid cleanliness all need review, and the circuit may need changes to take advantage of the new pump.

3. Which type is cheaper to maintain?

Fixed displacement pumps are generally cheaper to repair or replace because they are simpler. Variable displacement pumps can cost more to service, but they may reduce heat-related wear and oil degradation when properly maintained.

4. What is the difference between a fixed pump with a relief valve and a pressure-compensated variable pump?

The fixed pump keeps delivering full flow and sends unused oil over the relief valve as heat. The pressure-compensated variable pump reduces its displacement once pressure reaches the set point, delivering only what the system needs.

5. Do variable displacement pumps run cooler?

Usually, yes, in applications with part-load operation. Because they avoid dumping surplus oil across a relief valve, they generate less heat, which can reduce cooler size and extend oil and seal life.
