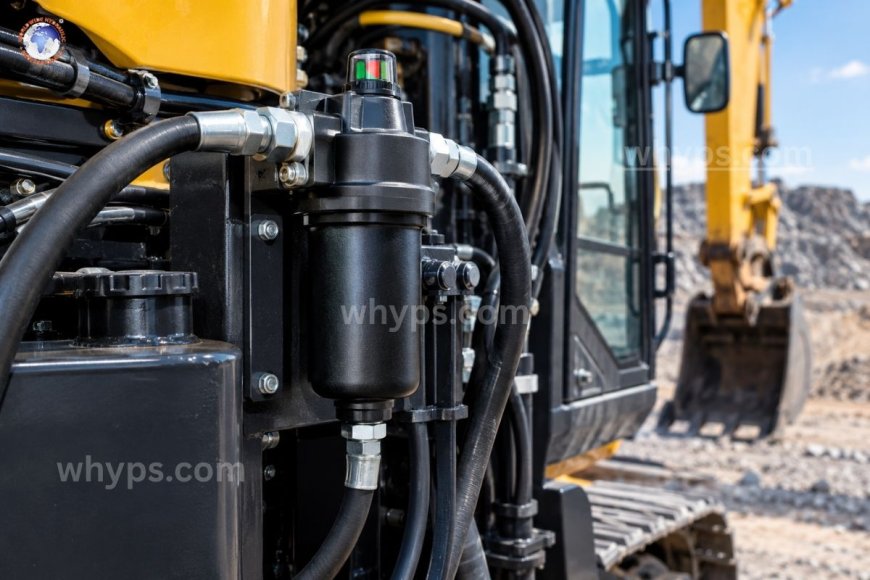

Compact return-line filters for mobile hydraulic systems

Compact return-line filters are space-saving filter assemblies installed on the return side of a mobile hydraulic circuit, where they capture wear debris and ingressed contaminants before oil re-enters the reservoir. Sized correctly, they protect pumps, valves, and cylinders on excavators, loaders, cranes, and agricultural machines without adding bulk, weight, or complicated plumbing.

Why does return-line filtration matter on mobile equipment?

Mobile hydraulic machines work in some of the dirtiest conditions in industry. Dust, mud, vibration, temperature swings, and constant cylinder movement all push contaminants into the system. Every time a rod retracts, a thin film of oil on its surface is exposed to the environment, and anything clinging to that surface can be dragged back past the wiper and into the oil.

Inside the system, moving parts also generate their own debris. Pumps, motors, valves, and seals shed fine metal and elastomer particles as they wear. If those particles are not removed, they circulate, scratch precision surfaces, and generate more particles in a destructive cycle.

A return-line filter is the last checkpoint before oil reaches the tank. Because all the oil coming back from actuators passes through it, it captures particles generated by the entire circuit. This makes it one of the most effective places to control contamination, and it is a core part of any serious filtration strategy.

What makes a return-line filter "compact"?

Traditional return-line filters can be large, heavy, and difficult to fit on modern machines where engine bays, frames, and tanks are packed tightly. Compact designs solve this problem through smarter engineering rather than reduced performance.

Typical design features

• High-capacity pleated media: Synthetic or glass-fiber media is pleated to maximize surface area in a small housing, delivering good dirt-holding capacity from a short element.
• Integrated bypass valve: A built-in bypass opens when the element is clogged or the oil is cold, protecting the filter from collapse and the system from starvation.
• Low-profile housings: Short, spin-on or cartridge designs fit into limited space and allow easier servicing.
• Integrated indicators: Visual or electrical clogging indicators help technicians know when to change the element.
• Lightweight construction: Aluminum or reinforced polymer housings reduce machine weight, which matters on mobile equipment where every kilogram affects efficiency.

Where they fit best

Compact return-line filters are common on skid steers, mini excavators, backhoes, telehandlers, forestry equipment, sprayers, and small cranes. They also suit auxiliary circuits, attachments, and power packs where a full-size filter simply will not fit.

Key selection criteria

Choosing a compact filter is not just about finding something that fits the space. A filter that is too small for the flow will create back-pressure, bypass constantly, and fail to protect the system.

Flow rate and pressure drop

Start with maximum return flow, not just pump flow. In circuits with differential cylinders, the oil leaving the blind side during retraction can be significantly higher than the pump output, because the blind-side area is larger than the rod-side area. Regenerative circuits, accumulators, and flow-sharing valves can also produce return surges.

A widely used guideline is to size the filter for at least the maximum return flow, and often with a safety margin, so that the clean pressure drop stays low. High pressure drop at the filter raises back-pressure on valves, wastes energy, and generates heat. Always check the manufacturer's flow-versus-pressure-drop curve at your operating viscosity, not at a single reference point.

Filtration rating and beta ratio

Filtration rating describes the particle size the filter captures and how efficiently. The Beta ratio, measured through the ISO 16889 multi-pass test, is the most reliable way to compare filters. For example, a beta ratio of 200 at 10 microns means that for every 200 particles of that size entering the filter, one passes through.

Match the rating to your target cleanliness level under ISO 4406. Systems with servo valves or high-pressure piston pumps need tighter filtration than those running gear pumps and basic directional valves. As a rule, return-line filters in mobile systems commonly fall in the 10 to 25 micron range, but the right choice depends on the most sensitive component in the circuit.

Bypass valve setting

The bypass valve protects the filter and system when pressure drop rises, but it also lets unfiltered oil through. Choose a bypass setting that is high enough to avoid opening during normal cold starts, yet low enough to protect the element media. Pair it with an indicator so the element is changed before bypass becomes routine.

Cold-start and viscosity behavior

Mobile machines often start in cold conditions, when oil is thick and the pressure drop across the element is much higher than at operating temperature. A filter that performs well at 40°C may bypass continuously at start-up in winter. Look for designs with media and bypass settings tested for cold-flow behavior, and consider oil viscosity grades suited to your climate.

Element strength and dirt-holding capacity

Dirt-holding capacity determines service life. Compact housings limit element length, so media quality becomes critical. High-quality multi-layer media can deliver long intervals while maintaining stable efficiency. Also confirm collapse pressure ratings, because surges or cold starts can stress weak elements.

Mounting options for compact return-line filters

The mounting style affects installation effort, service access, and overall system layout.

• In-tank (immersed) filters: The filter sits inside the reservoir, which saves external space and contains leaks. Servicing may require opening the tank cover, so access should be planned.
• Tank-top filters: Mounted on the top of the reservoir, these allow easy element changes and a clean look. Many designs return oil directly below the fluid level to reduce foaming.
• In-line filters: Installed in the return hose, these offer flexible placement and suit retrofit projects, but they add connections that must be sealed and supported against vibration.

Whichever style is used, make sure the return outlet discharges below the oil surface and away from the pump suction. This reduces aeration and foaming, which can damage pumps through cavitation.

Installation and maintenance best practices

Even the best filter fails to protect a system if it is installed or serviced poorly.

1. Flush new systems and replacement components. New hoses, cylinders, and tanks often contain assembly debris that can overload a fresh element in the first hours.
2. Pre-fill elements carefully. Avoid introducing contaminated oil when changing elements, and keep new filters sealed until use.
3. Monitor the indicator. Replace elements when the indicator trips at operating temperature, not simply when it flickers during a cold start.
4. Follow a time-based backup interval. Even if the indicator never triggers, media can degrade, so replace elements at the interval recommended for your duty cycle.
5. Take oil samples. Regular analysis shows whether the filter is keeping cleanliness within target and gives early warning of wear.
6. Inspect the old element. Cutting open a used element can reveal metal flakes, rubber fragments, or sludge that point toward the source of wear.

Common mistakes to avoid

• Sizing for pump flow only, which ignores return surges from differential cylinders and leads to high pressure drop and constant bypass.
• Choosing the coarsest rating to reduce cost, which allows damaging particles to circulate and shortens component life.
• Ignoring cold-start conditions, which can leave the filter in bypass for long periods.
• Skipping the indicator, which turns maintenance into guesswork.
• Poor return placement, which causes foaming and cavitation that no filter can fix.
• Relying on return-line filtration alone. Return filters protect the tank, but they do not shield the pump from contaminants already in the oil. Combine them with breathers, good sealing practice, and, where needed, pressure or off-line filtration.

Compact return-line filters give mobile hydraulic systems strong contamination control in a package that fits real-world machines. The right choice balances flow capacity, pressure drop, filtration efficiency, cold-start behavior, and serviceability. When selected using true return-flow data and maintained on a disciplined schedule, they extend the life of pumps, valves, and cylinders; reduce unplanned downtime; and keep machines working when it matters most.

1. What is a compact return-line filter?

It is a space-saving filter installed on the return line of a hydraulic circuit that captures contaminants before oil flows back into the reservoir. Compact versions use high-surface-area pleated media and low-profile housings so they fit tightly packed mobile machines.

2. How do I size a return-line filter for a mobile machine?

Size it for the maximum return flow, not just pump flow, because differential cylinders and regenerative circuits can create higher return surges. Check the manufacturer's pressure-drop curve at your operating viscosity and include a safety margin.

3. What micron rating is best for mobile hydraulic return filters?

Many mobile systems use ratings between 10 and 25 microns, but the best choice depends on the most sensitive component and your target ISO 4406 cleanliness code. Systems with servo valves or high-pressure piston pumps generally need finer filtration.

4. Why does my return-line filter bypass in cold weather?

Cold oil is thick, which raises pressure drop across the element and can open the bypass valve. This is normal for a short warm-up period, but prolonged bypass suggests the filter is undersized, the oil grade is too heavy, or the element is clogged.

5. How often should return-line filter elements be replaced?

Replace them when the clogging indicator trips at operating temperature, and follow a time-based interval as a backup. Oil analysis helps fine-tune the schedule, since duty cycle, environment and cleanliness targets all affect service life.
