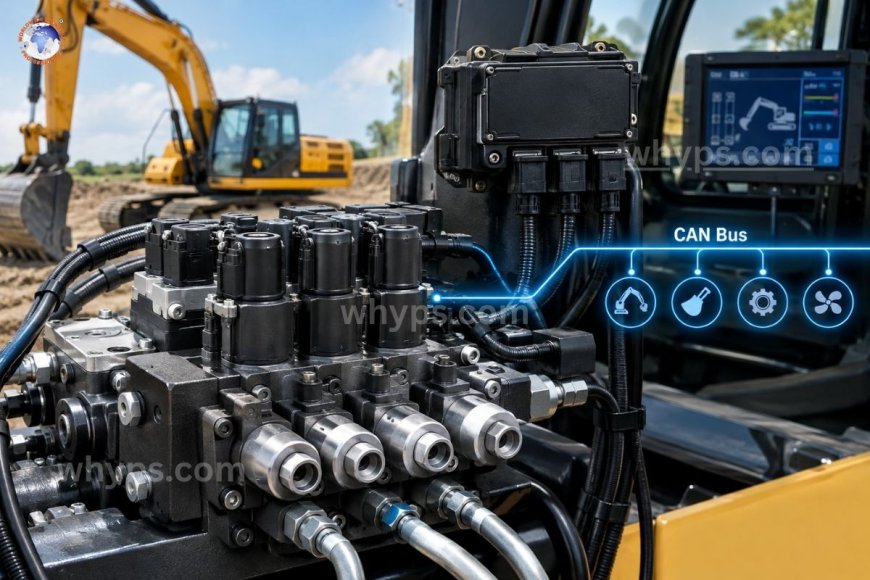

CAN Bus hydraulic directional control valves for mobile machinery

CAN bus hydraulic directional control valves are electro-hydraulic valves that receive their spool commands as digital messages over a Controller Area Network instead of analog voltage or current signals. This lets mobile machines run many hydraulic functions over a single two-wire data line, with built-in diagnostics, software-adjustable response, and far less wiring than conventional proportional valve systems. Modern excavators, loaders, cranes, telehandlers, and forestry machines ask more of their hydraulics than ever. Operators expect smooth multi-function control, owners expect uptime, and regulators expect safety and efficiency. CAN bus directional control valves answer all three by combining proven hydraulic hardware with networked intelligence. This guide explains how they work, where they fit, and what to consider before specifying them.

What is a CAN bus hydraulic directional control valve?

A directional control valve routes oil to the correct side of an actuator and, in proportional designs, meters how much oil flows. A CAN bus version adds an onboard electronic controller to the valve section or valve bank. That controller listens to messages on the machine's CAN network, interprets a spool position or flow command, and drives the solenoids or pilot stages that move the spool.

Instead of one pair of wires per function running back to a central controller, every valve on the machine shares the same two-wire bus plus power and ground. The valve becomes a smart node on the network rather than a passive output.

Why mobile machinery is moving away from analog control

Traditional proportional valves use analog current signals. They work well, but they scale poorly:

• Wiring complexity: A multi-section valve bank can need dozens of conductors, each a potential failure point from chafing, corrosion, or connector fatigue.
• Signal noise: Analog signals are vulnerable to electrical interference from alternators, ignition systems, and motor drives.
• Limited feedback: The controller usually cannot tell whether the spool actually moved as commanded.
• Hard-wired tuning: Changing ramp times or flow limits often means replacing hardware or reprogramming a separate amplifier.

CAN bus is designed for noisy vehicle environments. It uses differential signaling, error detection, and message prioritization so commands arrive reliably even on a vibrating, electrically harsh machine.

How the system works

Valve-mounted electronics

Each valve section, or the whole bank, carries a microcontroller, driver stages for the solenoids, and often position or pressure sensors. The electronics convert incoming digital commands into precise PWM currents that position the spool, and they report status back to the network.

Network protocols

Most mobile valves use a standard higher-layer protocol on top of CAN:

• SAE J1939: Common on engines and on high- and off-highway vehicles, which simplifies integration with engine and transmission controllers.
• CANopen: Popular in cranes, aerial platforms, and industrial mobile equipment, with a standardized device profile and configuration tools.
• Proprietary profiles: Some manufacturers use custom message sets for tighter performance, usually with a gateway to J1939 or CANopen.

Checking which protocol the machine controller already speaks is one of the first steps in valve selection.

Closed-loop spool control

High-performance CAN valves include a spool position sensor, typically an LVDT or Hall-effect device. The onboard controller compares commanded and actual positions many times per second and corrects any error. The result is better repeatability, reduced hysteresis, and compensation for temperature, pressure, and wear. Some designs also add pressure compensation or load-sensing support so that actuator speed stays consistent as loads change.

Key benefits of CAN bus directional control valves

• Reduced wiring and weight: Fewer conductors and connectors mean faster assembly, lower cost, and fewer leak-and-fault points.
• Better controllability: Operators get smooth, predictable responses, and engineers can tune ramps, flow curves, and deadband in software.
• Integrated diagnostics: Valves report faults such as open circuits, short circuits, spool sensor errors, and over-temperature, often with standardized fault codes.
• Machine-level coordination: The controller can combine joystick input, engine speed, pump displacement, and valve position to optimize efficiency and avoid stalling the engine.
• Flexible configuration: One valve hardware platform can support different machine variants through parameter changes rather than hardware changes.
• Support for advanced functions: Features such as anti-sway on cranes, return-to-dig on excavators, and implement automation depend on fast digital control.

Typical applications

Excavators and backhoes use CAN valves for boom, stick, bucket, and swing functions, with coordinated motion and operator-selectable response modes.

Wheel loaders and telehandlers benefit from smooth lift and tilt control, ride control, and attachment flow settings stored in software.

Mobile cranes and aerial work platforms rely on precise, safe motion with redundancy and diagnostics that support safety standards.

Agricultural and forestry machinery uses networked valves for implement control, ISOBUS integration, and automated functions such as headland sequences.

Municipal and utility vehicles use them for plow, sweeper, and body functions where multiple attachments must share one hydraulic system.

Selection considerations

Hydraulic performance

Start with the basics: maximum flow per section, working pressure, spool type, and load-holding requirements. A smart valve cannot compensate for an undersized spool or wrong center condition. Confirm the valve suits the system architecture, whether open-center, closed-center, or load-sensing.

Electrical and protocol fit

Verify supply voltage (typically 12 or 24 VDC), CAN baud rate, protocol, addressing scheme, and whether the valve supports the message set your controller needs. Check available configuration tools and documentation.

Safety requirements

For lifting and personnel-carrying equipment, review the applicable functional safety standard, such as ISO 13849 or ISO 25119 for agricultural machinery. Some CAN valves offer redundant sensors, safe-state outputs, and diagnostic coverage designed for these requirements. Do not assume a standard valve meets a given performance level.

Environmental ratings

Mobile equipment faces vibration, shock, washdown, dust, salt, and temperature extremes. Look for appropriate ingress protection, rated connectors, and validated operating temperature ranges for both the hydraulics and electronics.

Installation and wiring best practices

• Use proper CAN cabling: Twisted-pair cable with correct impedance reduces noise and reflections.
• Terminate the bus correctly: A 120-ohm resistor is needed at each end of the main line, and no more than two terminations should be present.
• Keep stubs short: Long branches degrade signal quality.
• Separate power and signal routing: Avoid running the bus alongside high-current cables or solenoid feeds.
• Provide clean power and solid grounds: Voltage dips during engine cranking or heavy loads can cause resets or communication errors.
• Protect connectors: Use sealed, locking connectors and strain relief to prevent moisture ingress and fretting.

Diagnostics and maintenance

One of the biggest practical advantages of CAN valves is faster troubleshooting. A technician can connect a laptop or handheld tool to read fault codes, view live spool position, and compare command versus feedback. Many systems log events, helping identify intermittent problems that analog systems hide.

Hydraulic maintenance remains essential. Contamination is still the leading cause of valve sticking and spool wear, so follow the manufacturer's cleanliness targets and filter change intervals. Keep software and parameter versions documented so replacement valves can be configured identically. Treat firmware updates as controlled changes, and always test function and safety behavior afterward.

The direction is toward even more integration: valves that share data with telematics for predictive maintenance, support for CAN FD with higher data rates, and tighter coupling with electrified drivelines where hydraulic functions are managed alongside electric motors. As automation and semi-autonomous operation grow, networked valves with sensor feedback will become the standard building block for precise, safe, and efficient mobile hydraulics.

1. What is the main advantage of a CAN bus directional control valve over an analog proportional valve?

The main advantage is reduced wiring combined with richer control and diagnostics. One shared network replaces many individual signal wires, and the valve can report faults and spool position back to the machine controller.

2. Which CAN protocols are most common in mobile hydraulic valves?

SAE J1939 and CANopen are the most common. J1939 is widespread in engine-driven vehicles, while CANopen is common in cranes, platforms, and industrial mobile machines. Some valves use proprietary profiles with gateway support.

3. Can a CAN bus valve still work if communication is lost?

It depends on the design. Well-engineered valves are configured to move to a defined safe state, usually spool center, when messages stop arriving. Always confirm the fail-safe behavior and test it during commissioning.

4. Do CAN bus valves eliminate hydraulic maintenance?

No. They improve diagnostics, but the hydraulic section still depends on clean oil, proper filtration, and correct operating temperature. Contamination can stick a spool regardless of how advanced the electronics are.

5. Are CAN bus valves suitable for retrofitting older machines?

Sometimes. Retrofitting requires a compatible controller, joystick or input devices, power supply and a valve bank that fits the hydraulic circuit. It is often more practical for new designs or major rebuilds than for simple replacements.
