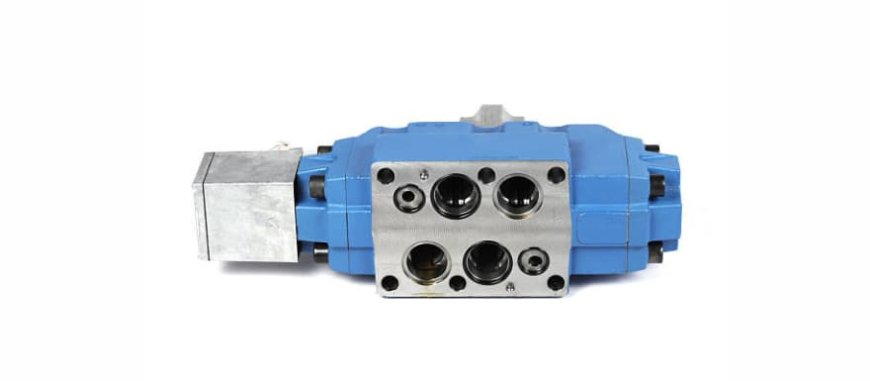

The Precision Powerhouse: Key Trends Shaping the Electro-Hydraulic Servo Valve (EHSV) Landscape

Electro-Hydraulic Servo Valves (EHSVs) are often overlooked heroes of motion control, delivering the precision, speed and force needed for some of the most strenuous applications in the world—from directing the flight surfaces of an aircraft to running heavy industrial equipment.

As industry continues to push towards more automation and efficiency, the EHSV marketplace is quickly evolving. Below is a summary of the trends and advances influencing the evolution of this essential technology.

1. The Rise of the "Smart" EHSV -Digitalization and IoT Deployment

The most disruptive trend we see is the move towards "intelligent" or connected servo valves. Traditional EHSVs are strictly mechanical-hydraulic devices with a control input determined by an analog electrical signal. Many of the contemporary advancements within EHSVs include provisions for digital intelligence that are becoming part of the valve.

Onboard Electronics and Sensors: In addition to the traditional valve-on position sensors now being manufactured inside the valve, EHSVs are beginning to integrate sensors and digital control algorithms (Digital Signal Processing - DSP), thus allowing for real time monitoring, self-diagnostics, and configurability resulting in higher performance and stability.

Predictive Maintenance: The integration of the Industrial Internet of Things (IIoT), with smart EHSVs, can now send important performance data (spool position, pressure and temperature) to a central system. This move from reactive to predictive maintenance can lead to the anticipation of failures, desirable reductions in expensive operational downtime, and an extended life of the valve service.

Digital Twins: Advanced modeling is developing digital twins of EHSV performance that will enable operators to monitor the valve's condition, and even age the component in real time to optimize efficiency and schedule maintenance.

2.  Efficiency and Sustainability: The Green Hydraulics Movement

With increasing pressure on industries to reduce their carbon footprint, energy efficiency has become a major design focus. EHSVs are contributing to many aspects of what can be termed "Green Hydraulics" development in the following ways:

Optimized Designs: Manufacturers are designing new concepts that intensely minimize power consumption and reduce pressure loss. Independent Metering Valve Technology (IMVT) innovation is evolving wear points by replacing existing open-center systems to reduce hydraulic flow when there is no demand, generating significant energy savings.

Advanced Materials: Use of lighter and more robust materials such as ceramics and composite materials are improving performance and reducing leakage which is a major part of wasted energy and reduced environmental impact.

Renewable Energy Applications: The EHSV market is finding considerable energy in the renewable energy space, where EHSV valves are usually employed to control the blade pitch of wind turbines and positioning of sun tracking solar cells.

3. Miniaturization and Precision in Direct-Drive Technology

The evolution of valve designs is heading in the direction of miniaturization, or lighter, smaller, faster sorting components in response to demands from applications, particularly in aerospace and robotics:

Miniaturization - There is an observable trend for EHSVs to only get miniaturized or lighter for usage in compact and portable applications consisting of advanced robotics and unmanned aerial vehicles (UAVs).

Direct-Drive Servo Valves (DDSV) - This category is experiencing robust growth. The simplicity of DDSV designs, compared to a 2 stage valve arrangement, allows for faster response, more precise control, and improved reliability, all of which are essential for the performance of high-risk applications such as housed at the flight control system.

Additive Manufacturing (3D Printing) - All leading manufacturers are exploiting their EHSV designs by utilizing Additive Manufacturing (AM) in order to manufacture designs geometries inside. Doing so optimizes the fluid dynamics, lightweight, and speeds production with significant flexibility to realize higher performance and efficiency than was possible previously using traditional machining.

4. Market Supporters: The Ongoing Push Towards Automation

The foundation of growth in the industry is provided by the continued growth of automation in numerous industries:

Aerospace & Defense: The aerospace industry is the largest user of EHSVs -- they require EHSVs for their unparalleled accuracy and reliability in flight control systems.

Industrial Machinery: Closed-loop electro-hydraulic servo systems are becoming increasingly commonplace in smart manufacturing applications, which cover several industries, including steel, plastics, and construction, because they increase control when handling heavy loads that require precision.

Robotics: With the development of robotic systems becoming increasingly complex, EHSVs provide the accurate, responsive motion control required for extremely complex tasks.

The Path Forward

Although there is a steep cost barrier to entry for using EHSVs and the requirement for clean hydraulic fluid is an issue, convergence of new digital integration, new manufacturing processes, and new low-energy designs means progress towards overcoming these barriers is accelerating. The electro-hydraulic servo valve is not only keeping up with the modern industrial market demands, but it's also shaping the next generation of high-performance and intelligent motion control. The future is precise, efficient, and very, very smart.
