What is the difference between absolute and nominal hydraulic filter ratings?

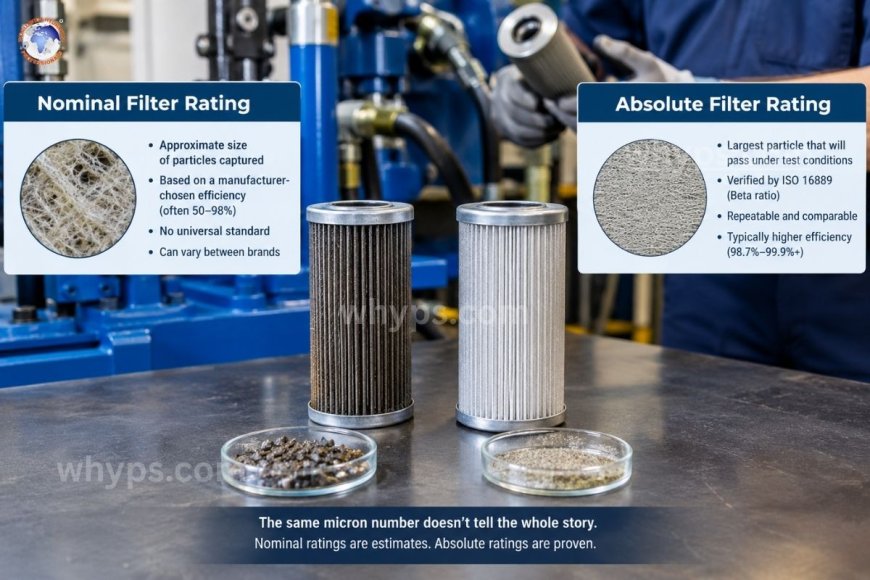

A nominal hydraulic filter rating is an approximate micron size the filter is expected to capture at a manufacturer-chosen efficiency, usually somewhere between 50% and 98%, with no standardized test behind it. An absolute rating identifies the largest particle that will pass through the media under controlled laboratory conditions, and it is verified today through the Beta ratio from the ISO 16889 multi-pass test. In short, absolute ratings are repeatable and comparable, while nominal ratings are loose estimates that differ from one brand to the next. If you have ever compared two "10-micron" filters and found that one kept your oil far cleaner than the other, you have already met this problem. The micron number on the box means very little unless you know how it was determined. This guide explains what nominal and absolute ratings really mean, how the Beta ratio fits in, and how to choose the right option for your hydraulic system.

Why do filter ratings matter in hydraulic systems?

Hydraulic components run on extremely tight clearances. Servo valves can have gaps of only a few microns, and even pumps and standard directional valves work with clearances small enough that hard particles act like sandpaper. Contamination is consistently identified as the leading cause of hydraulic component wear and failure, so the filter's real ability to remove particles directly affects pump life, valve response, seal condition, and unplanned downtime.

A filter rating is meant to tell you how well the element removes particles of a given size. The trouble is that "rating" can mean very different things depending on how it was measured.

What is a nominal filter rating?

A nominal rating describes the approximate particle size that a filter is expected to remove, based on a percentage of captured particles at that size. The key word is approximate. Historically, manufacturers defined nominal ratings in-house, and the capture percentage could be anything from 50% to as high as 98%.

Characteristics of nominal ratings

• No universal standard: Each manufacturer chooses its own test method and efficiency threshold.
• Partial capture: A 10-micron nominal filter may let a significant share of 10-micron particles pass through.
• Unreliable comparison: Two filters with the same nominal number can perform very differently.
• Typically lower cost: Depth-type media such as cellulose or simple paper elements are often rated this way.

Because nominal ratings are loosely defined, they tell you what the filter is roughly designed to do, not what it is guaranteed to do.

What is an absolute filter rating?

An absolute rating refers to the diameter of the largest hard, spherical particle that will pass through the filter under specified test conditions. In theory, nothing larger than that size gets through. In practice, the term has always carried some debate, because no real-world filter media is perfect, and conditions such as flow surges, pressure spikes, and cold starts can push particles through.

For that reason, modern filter specifications rely less on the word "absolute" and more on a measured efficiency expressed as a beta ratio. Still, when suppliers describe a filter as absolute-rated, they generally mean its performance has been verified through standardized testing rather than estimated.

The beta ratio: The modern way to compare filters

The Beta ratio (β) is the industry's most reliable measure of filter efficiency. It is determined using the ISO 16889 multi-pass test, where contaminated fluid circulates repeatedly through the filter while particle counters measure particles upstream and downstream.

The formula is simple:

β(x) = number of particles larger than x microns upstream ÷ number of particles larger than x microns downstream

Results are written with the particle size in microns, often with a (c) suffix showing that the particle counters were calibrated to ISO 11171. For example, β10(c) = 200 means that for every 200 particles of 10 microns or larger entering the filter, only one passes through.

Converting beta ratio to efficiency

Efficiency (%) = (1 − 1/β) × 100

• β = 2 → 50% efficiency
• β = 10 → 90% efficiency
• β = 75 → 98.7% efficiency
• β = 100 → 99% efficiency
• β = 200 → 99.5% efficiency
• β = 1000 → 99.9% efficiency

Many suppliers treat β ≥ 75 as the practical benchmark for an "absolute" rating, while premium elements for critical systems are often specified at β ≥ 200 or β ≥ 1000.

Absolute vs. nominal ratings at a glance

Why nominal ratings can be misleading

The biggest risk with a nominal rating is false confidence. Suppose a nominal 10-micron element captures only 50% of 10-micron particles. Half of the particles at the very size you are trying to control keep circulating through your pumps, valves, and cylinders. Over time, these particles trigger a cascade of wear: they score surfaces, generate more debris, and shorten the life of every downstream component.

Nominal ratings also hide performance differences between filters. One manufacturer's 10-micron nominal element might behave like a β10 = 20 filter, while another behaves like β10 = 100. Without test data, you cannot tell them apart.

When a nominal rating is acceptable

Nominal-rated filters are not inherently bad. They can be a sensible, economical choice when:

• The system operates at low pressure with relaxed cleanliness requirements.
• Components are robust, with generous clearances.
• The filter serves as a coarse protective stage, such as a suction strainer or pre-filter ahead of a finer element.
• The application is non-critical, and downtime carries a low cost.

Off-highway and simple industrial equipment with modest cleanliness targets often fall into this category.

When to specify absolute (beta-rated) filters

Choose filters with published Beta ratios when:

• The system uses servo or proportional valves, or high-pressure piston pumps.
• A target cleanliness code under ISO 4406 must be maintained.
• Downtime, safety, or repair costs are high.
• You need to compare suppliers on equal terms or document compliance.
• Fluid is expensive, or the system is difficult to flush.

In these situations, the higher upfront cost of an absolute-rated element is typically recovered through longer component life and fewer failures.

Matching filter ratings to ISO 4406 cleanliness targets

Filter selection should start with the cleanliness level your components need, not with a micron number. The ISO 4406 code expresses particle counts at three sizes (4, 6, and 14 microns). General industrial systems are often targeted around 18/16/13, while servo systems frequently require 16/14/11 or cleaner. Once you know the target, select a beta-rated filter, commonly β ≥ 200 at the appropriate micron size, that can reach and hold it at your system's real flow rate, pressure, and fluid type.

Practical tips for choosing the right filter

1. Ask for the Beta ratio data. If a supplier only gives a nominal number, request the ISO 16889 test results.
2. Check the particle-size basis. Confirm whether ratings use the (c) calibration so comparisons are fair.
3. Consider dirt-holding capacity. A highly efficient element that clogs quickly will bypass or need frequent changes.
4. Watch differential pressure. Use clogging indicators and replace elements before the bypass valve opens.
5. Match the filter to the fluid. Viscosity, water content, and additive packages affect media performance.
6. Monitor with oil analysis. Particle counts confirm whether the filter is delivering the cleanliness you specified.

Nominal and absolute ratings differ in one crucial way: reliability. A nominal rating is a rough estimate that varies between manufacturers, while an absolute rating, backed by Beta ratio data from ISO 16889 testing, shows what the filter actually removes. For systems with tight clearances, high pressures, or strict cleanliness targets, choosing Beta-rated filters is one of the most cost-effective ways to protect equipment. For less demanding applications, a nominal-rated element can still do the job, as long as you understand its limits.

1. What is the main difference between nominal and absolute filter ratings?

A nominal rating estimates the particle size a filter captures at a loosely defined efficiency, while an absolute rating identifies the largest particle that passes through under standardized test conditions, normally confirmed by beta ratio data.

2. Is a 10-micron nominal filter the same as a 10-micron absolute filter?

No. A 10-micron nominal filter may capture only 50%–90% of 10-micron particles, while a 10-micron absolute-rated filter should capture nearly all of them, typically 98.7% or more.

3. What beta ratio is considered absolute?

Many suppliers treat β ≥ 75 (about 98.7% efficiency) as the benchmark, though critical systems often specify β ≥ 200 or β ≥ 1000 for 99.5%–99.9% efficiency.

4. Which test standard is used to measure hydraulic filter efficiency?

ISO 16889, the multi-pass method, is the accepted standard. Particle counters used in the test are calibrated according to ISO 11171, which is why ratings often appear as β x (c).

5. Are absolute-rated filters always better?

Not always. They offer higher, verifiable efficiency, but they cost more and may have different dirt-holding capacity. The best choice depends on your system's cleanliness target, pressure, component sensitivity, and the cost of downtime.
