Hydraulic filtration in heavy equipment: return, pressure & kidney-loop filtration explained

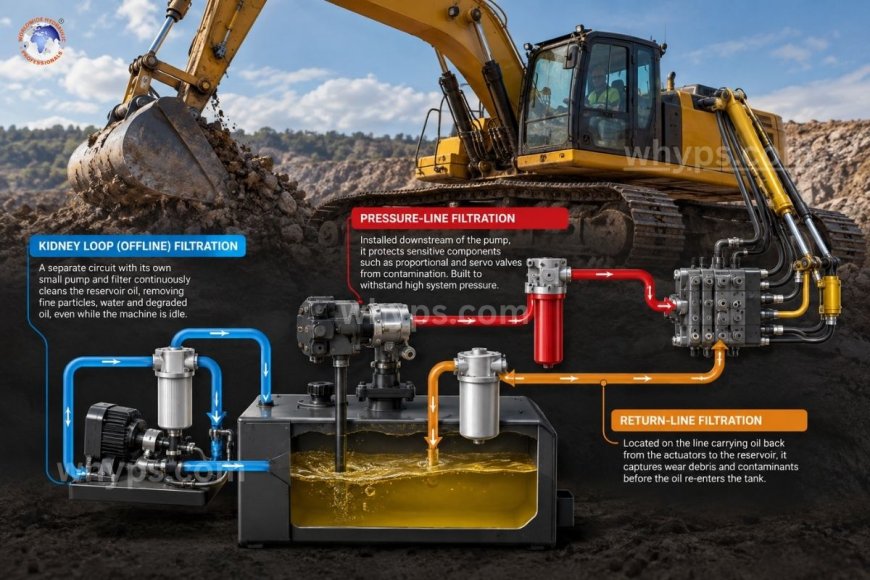

Heavy equipment hydraulic systems rely on three main filtration strategies: return-line filters that catch contamination before oil re-enters the reservoir, pressure-line filters that protect sensitive components such as servo and proportional valves, and kidney-loop (off-line) filters that continuously polish the reservoir oil independently of the working circuit. Most reliable machines combine at least two of these, matched to component sensitivity and the operating environment. Excavators, loaders, dozers, cranes, and mining trucks run in some of the dirtiest conditions in industry. Dust, wear, metals, water, and degraded oil are constant threats, and the hydraulic system is unforgiving: a large share of pump, valve, and cylinder failures trace back to contaminated fluid. Understanding where and how to filter is one of the most cost-effective reliability decisions you can make.

Why does filter placement matter?

A filter only protects what sits downstream of it. Contamination enters a hydraulic system from several sources: built-in debris from manufacturing and assembly, ingression through breathers, cylinder rod seals and open reservoirs during service, and internally generated wear particles from pumps, motors, and valves.

Because these sources act at different points in the circuit, no single filter can handle everything. That is why filtration is designed as a strategy, with each location doing a specific job.

Return-line filtration

How it works

A return-line filter sits on the line carrying oil back from the actuators to the reservoir. It captures wear debris generated by cylinders, motors, and valves, as well as contaminants pulled in through rod seals, before that oil mixes with the clean fluid in the tank.

Advantages

• Captures what the system generates. Every drop of oil passes through it on each circulation, so it cleans up wear particles from the whole circuit.
• Lower cost and simpler design. Because it operates at low pressure, the housing is lighter and cheaper than a high-pressure unit.
• Easy to service. Most are spin-on or tank-top designs that are accessible in the field.

Limitations

• It does not protect the pump. Oil leaving the reservoir reaches the pump before any return filter sees it.
• Flow surges matter. Cylinder differential ratios can push return flow well above pump flow, so the filter must be sized for peak return flow, not just pump output.
• Bypass risk. When the element clogs or cold oil raises pressure drop, the bypass valve opens and unfiltered oil passes through.

Pressure-line filtration

How it works

A pressure filter is installed downstream of the pump, protecting the components that follow it. Housings are built to withstand full system pressure, which in heavy equipment often reaches 250 to 420 bar (3,600 to 6,000 psi).

When you need one

Pressure filters are the right choice when downstream components have tight clearances and low tolerance for particles. Proportional valves, servo valves, and pilot-operated control valves are typical examples. A pressure filter also acts as a last line of defense if the pump itself fails and sheds debris.

Advantages

• Highest protection for sensitive components. It provides the cleanest oil where it matters most.
• Guards against pump failure. Catastrophic pump debris is trapped before reaching valves and actuators.
• Fine filtration is practical. Finer media can be used without the suction problems that would occur on the inlet side.

Limitations

• Higher cost. High-pressure housings and elements are more expensive.
• Needs safe servicing. The housing must be depressurized before opening, and a pressure filter should never be treated casually in the field.
• Adds pressure drop in the working circuit, which slightly reduces efficiency.

Kidney loop (offline) filtration

How it works

A kidney loop is a separate circuit with its own small pump, filter, and often a cooler. It draws oil from the reservoir, cleans it, and returns it, entirely independent of the machine's working hydraulics. The name comes from the way it continuously "cleans the blood" of the system.

Why it is so effective

Because it runs at a steady, low flow rate regardless of machine duty cycle, a kidney loop can use very fine media and offers long, consistent dwell time. It can:

• Remove fine particles that in-line filters struggle with
• Work alongside water-absorbing or water-removal elements
• Keep the reservoir clean even while the machine is idle
• Reduce oil temperature when paired with a heat exchanger

Limitations

• Additional equipment and cost. It adds a pump, motor, and plumbing.
• It does not protect against sudden events. It cleans the tank, not the oil moving through actuators in real time.
• Sizing is important. As a rule of thumb, the loop should turn over the reservoir volume several times per hour to make a real difference.

Return vs. pressure vs. kidney loop: quick comparison

Choosing the right combination

In practice, these approaches complement one another rather than compete.

• Basic mobile equipment: a return-line filter plus a quality breather filter is often the baseline.
• Machines with proportional or servo valves: add a pressure filter ahead of the sensitive components.
• Critical, high-hour, or harsh-environment machines: add a kidney loop for fine, continuous cleaning and moisture control.

Match the filter's micron rating and efficiency to the dirtiest contamination the most sensitive component can tolerate. Check the beta ratio (tested per ISO 16889) rather than relying on a nominal micron number alone, and aim for a target cleanliness code under ISO 4406 that your component manufacturers recommend.

Don't forget the breather and fill points

Even the best filtration strategy is undermined if dirty air and oil get in. Fit a filter breather sized for the reservoir's air flow, use desiccant versions in humid climates, and filter new oil through a transfer cart before topping up. New oil straight from a drum is rarely clean enough for modern hydraulics.

Monitoring and maintenance tips

1. Use differential pressure indicators. They show when an element is loading up and prevent running in bypass.
2. Change elements on condition, not just on schedule. Harsh sites may require shorter intervals than the manual suggests.
3. Take regular oil samples. Particle counts, water content, and wear-metal analysis reveal problems long before a failure.
4. Inspect the removed element. Debris found in a used filter can tell you which component is worn.
5. Keep records. Trends in pressure drop and cleanliness codes make maintenance predictable.

Common mistakes to avoid

• Sizing the return filter for pump flow instead of peak return flow
• Ignoring cold-start bypass, which sends unfiltered oil through the system
• Skipping pressure filters on machines with proportional valves
• Using an overly fine element without adequate flow capacity, causing high pressure drop
• Servicing pressure-line housings without fully depressurizing the system

1. What is the main difference between return-line and pressure-line hydraulic filters?

A return-line filter cleans oil coming back from the actuators before it reaches the tank and is built for low pressure. A pressure-line filter sits after the pump and must withstand full system pressure, protecting sensitive downstream components such as servo and proportional valves.

2. What is a kidney-loop filter in a hydraulic system?

A kidney loop is an independent offline circuit with its own pump and filter that continuously draws oil from the reservoir, cleans it, and returns it. It removes fine particles and, with the right elements, water, without affecting the machine's working circuit.

3. Do all heavy equipment machines need a kidney-loop filter?

No. Many mobile machines operate well with return-line filtration and good breathers. Kidney loops are most valuable on high-value, critical, or harsh-environment equipment and on systems that need tighter cleanliness targets or continuous moisture control.

4. Where should a hydraulic filter be placed for the best protection?

There is no single best location. Return filters catch generated debris, pressure filters protect sensitive components and the pump's downstream circuit, and kidney loops keep the reservoir clean. Combining locations based on component sensitivity gives the best overall protection.

5. How do I know when to change a hydraulic filter element?

Follow the manufacturer's interval, but rely on the differential pressure indicator and oil analysis results. If the indicator shows a clogged element, or particle counts rise above your ISO 4406 target, change the element sooner, and investigate the source of contamination.

Effective hydraulic filtration is about putting the right filter in the right place. Return filters clean up after the system, pressure filters shield its most delicate parts, and kidney loops keep the oil itself in good condition. Combine them thoughtfully, monitor them closely, and your heavy equipment will reward you with longer component life, fewer breakdowns and lower operating costs.
