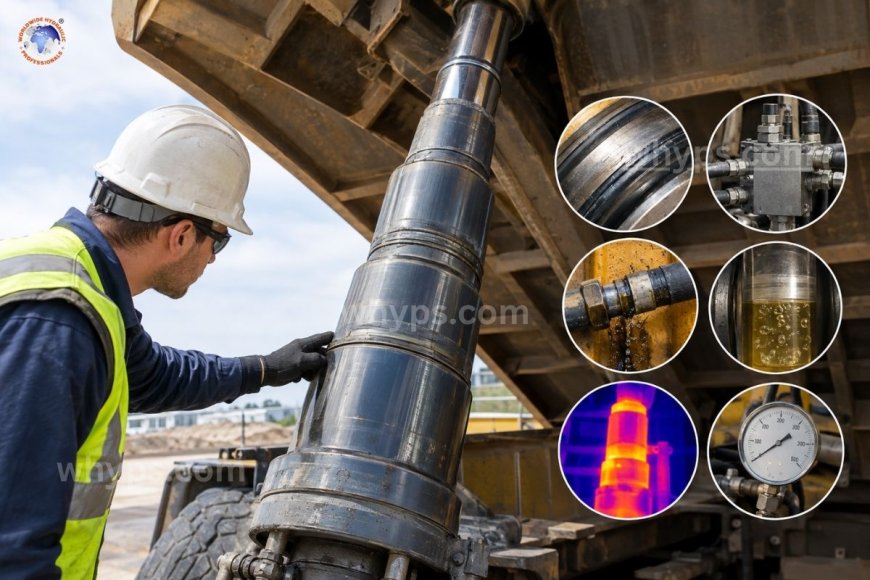

Why do telescopic cylinders drift or lose pressure?

Telescopic cylinders drift or lose pressure mainly because oil is escaping or being displaced somewhere it shouldn't be. The most common culprits are worn piston and stage seals that allow internal bypass, leaking control or load-holding valves, external leaks at glands and fittings, trapped air, and thermal contraction of the oil. Because a telescopic cylinder has several nested stages, each with its own seals and bearings, there are more places for leakage to start than in a single-stage cylinder. If you have ever watched a dump truck bed creep downward or a lift slowly settle under load, you have seen cylinder drift. It is more than an annoyance. Drift wastes energy, damages components, and can become a safety hazard. This guide explains how telescopic cylinders work, why they drift or lose pressure, and how to find and fix the cause.

How do telescopic cylinders work?

A telescopic cylinder is built from a series of hollow tubes (called stages or sleeves) that nest inside one another. When pressurized oil enters the port, the largest stage extends first, then the next, and so on until the smallest stage reaches full stroke. This design gives a long working stroke from a short retracted length, which is why these cylinders are common in dump trucks, waste compactors, cranes, and agricultural equipment.

Two configurations are common:

• Single-acting telescopic cylinders extend under hydraulic pressure and retract under gravity or the weight of the load.
• Double-acting telescopic cylinders use pressurized oil to both extend and retract, giving better control over speed and position.

Every stage has its own set of seals, bearings, and wear surfaces. Each one is a potential leak path, and problems compound as the stack of stages grows.

What do drift and pressure loss actually mean

Drift is unwanted movement of the cylinder when the control valve is in neutral and the system is supposed to hold position. Pressure loss is a drop in holding or working pressure that shows up on a gauge or as weak force and slow response.

The two are closely related. When oil leaks past a seal or valve, the trapped volume shrinks, pressure falls, and the load moves. Understanding where the oil is going is the key to diagnosis.

Main causes of drift and pressure loss

1. Worn or damaged piston seals (internal leakage)

The most frequent cause is internal bypass. Each stage has a piston or bearing ring with seals that separate the pressurized side from the low-pressure side. As those seals wear, harden, or get scored, oil slips past them, and the stage slowly retracts under load.

Typical reasons for seal wear include:

• Contaminated oil carrying abrasive particles
• Excessive heat that hardens elastomers
• Pressure spikes that extrude seal material into clearances
• Age and normal wear over many cycles

Because oil can bypass between stages, a single failing seal can cause a chain reaction in how the stages extend and hold.

2. Scored barrels and worn bearings

Sleeves in a telescopic cylinder are thin-walled compared with those in a standard cylinder. Side loads, misalignment, and contamination can score the inner wall or wear the bronze or polymer bearing bands. Once the surface is damaged, even a new seal cannot form a reliable barrier, and oil leaks past no matter how good the seal is.

3. Leaking control valves

Sometimes the cylinder is not the problem at all. Spool-type directional valves have a small designed clearance that allows a tiny amount of leakage, and that leakage grows as the valve wears. If the valve is the only thing holding the load, the cylinder will drift down slowly.

Load-holding devices such as pilot-operated check valves and counterbalance valves are meant to prevent this. When they are contaminated, worn, or set incorrectly, they can let the load creep. A piece of debris under a poppet seat is enough to cause noticeable drift.

4. External leaks

External leakage is easier to spot because you can see the oil. Common leak points include:

• Gland seals and wipers on the outer stage
• Port fittings and adapters
• Hose connections and cracked lines
• Weld seams or pitted areas on tubes

Even a small external leak lowers system pressure over time, and in single-acting cylinders it can leave the load without adequate support.

5. Air in the hydraulic fluid

Air is compressible; oil is not. When air is trapped in the cylinder or lines, it compresses under load and expands when pressure is released. This causes spongy movement, apparent pressure loss, and settling that looks like drift. Air enters through low oil levels, loose suction fittings, worn shaft seals, or improper bleeding after maintenance.

6. Thermal contraction

Hydraulic oil shrinks as it cools. A cylinder that holds a load at high operating temperature may appear to retract slightly as the oil cools overnight or in cold weather. This is normal to a degree, and it is not a leak. The effect is larger on long telescopic strokes because a large volume of oil is trapped in the cylinder. If movement stops once temperatures stabilize, thermal contraction is likely.

7. Incorrect relief or pressure settings

If a relief valve is set too low or is weeping because of contamination or a weak spring, the system cannot maintain pressure. Symptoms include a slow lift, weak force at the top of the stroke, and pressure that will not build to the expected level. Always verify settings with a calibrated gauge before assuming the cylinder is at fault.

8. Contaminated or degraded oil

Dirty, oxidized, or wrong-viscosity oil accelerates almost every failure mode above. Thin, hot oil leaks more easily past worn clearances, while contaminated oil scores surfaces and prevents valves from seating. Fluid cleanliness is one of the cheapest ways to prevent drift.

How to diagnose the source?

A methodical approach saves time and avoids replacing the wrong part.

Step 1: Inspect visually

Look for wet seals, oil trails, damaged rods or sleeves, and loose fittings. Check the oil level and condition.

Step 2: Run a drift test

Extend the cylinder under a known load, place the control valve in neutral, and measure how much the cylinder retracts over a set time. Record the result so you can compare it later.

Step 3: Isolate the components

Block the cylinder ports, or close a shutoff valve between the cylinder and the control valve, and repeat the test. If the drift stops, the valve or line was the source. If the drift continues, the leak is inside the cylinder.

Step 4: Check pressure

Install a gauge at the cylinder port. A steady drop with no visible leak points to internal bypass. A drop that stabilizes points to thermal or air effects.

Step 5: Use temperature and sound

Infrared thermometers or thermal cameras can reveal hot spots where high-pressure oil is leaking through a restriction. Ultrasonic detectors can pick up the hiss of internal leakage.

How to prevent drift and pressure loss?

Prevention is largely about good maintenance habits:

• Keep the oil clean. Use properly rated filters, and monitor cleanliness with regular oil analysis.
• Manage temperature. Keep the system inside its designed operating range with adequate cooling.
• Protect the rod and stages. Keep wipers in good condition, and clean the exposed surfaces to prevent abrasive damage.
• Avoid side loading. Make sure mounting points are aligned, and keep loads centered on the cylinder axis.
• Inspect seals on a schedule. Replace seals at the first signs of wear rather than waiting for failure.
• Use quality load-holding valves. Pilot-operated checks or counterbalance valves near the cylinder keep loads secure even when hoses fail.
• Bleed the system properly. After any service, cycle the cylinder several times at low pressure to purge trapped air.
• Keep records. Track drift test results, pressure readings, and service history so gradual changes stand out early.

When to repair and when to replace

A rebuild with new seals and bearings is usually the best option when the sleeves are in good shape. If barrels are deeply scored, tubes are bent, or stages are pitted or cracked, replacement is often more economical and safer. Rebuilding a heavily damaged telescopic cylinder can cost more than the value of a new unit, and repeated failures point to a root cause, such as misalignment or contamination, that has not yet been addressed.

Telescopic cylinders drift or lose pressure because oil finds a path it should not have: past worn seals, through leaking valves, out of loose connections, or into trapped air. The multi-stage design gives you long strokes in a compact package, but it also multiplies the places where leakage can begin. With regular inspection, clean oil, correct settings, and reliable load-holding valves, most drift problems can be prevented or caught early.

1. Why does my telescopic cylinder slowly retract when the valve is in neutral?

Slow retraction is usually caused by internal leakage past worn stage seals or by a leaking directional or load-holding valve. Isolating the cylinder from the valve during a drift test will show which one is responsible.

2. Can cold weather cause a telescopic cylinder to drift?

Yes. Oil contracts as it cools, so a cylinder holding a load may retract slightly overnight. If the movement stops once temperatures settle and no leaks are visible, thermal contraction is the likely cause.

3. How do I tell whether the cylinder or the control valve is leaking?

Block the cylinder ports or close a shutoff valve at the cylinder and repeat the drift test. If drift stops, the valve or lines were leaking. If it continues, the leak is inside the cylinder.

4. Does air in the system cause pressure loss?

Air compresses under load, which creates a spongy response and apparent settling. Bleeding the system and fixing the source of air ingress, such as a low oil level or loose suction fittings, restores stable pressure.

5. How often should telescopic cylinders be inspected?

Do a quick visual check daily or before each shift, and schedule detailed inspections based on operating hours and duty severity. Include a drift test and pressure check so gradual changes are caught before they become failures.
