How do diagnostic tools help detect internal leakage?

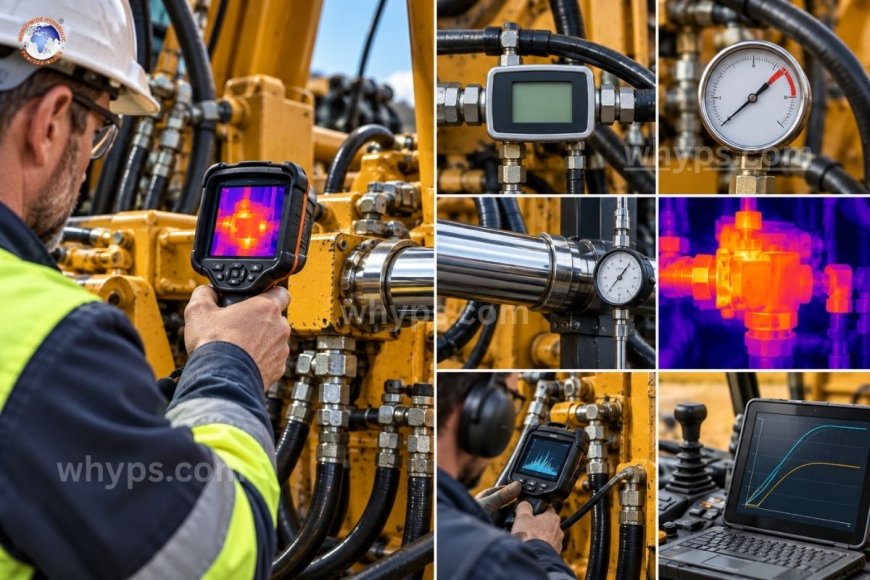

Diagnostic tools detect internal leakage by measuring the performance losses it causes rather than the leak itself—using flow meters, pressure decay tests, thermal imaging, ultrasonic detectors, and cylinder drift tests to spot the telltale signs of fluid bypassing seals internally, since internal leaks never appear as visible fluid outside the system. Internal leakage is one of the most deceptive failure modes in hydraulic equipment. Unlike an external leak, which announces itself with a puddle of oil under the machine, internal leakage happens entirely inside the system—fluid bypasses a worn seal, a scored cylinder bore, or a valve spool clearance and flows from the high-pressure side to the low-pressure side without ever leaving the circuit. The oil level stays constant, the reservoir looks fine, and the machine keeps running—just worse. That's what makes diagnostic tools essential: they translate an invisible problem into measurable data.

Why is internal leakage hard to catch by the eye?

A technician doing a routine walk-around inspection can spot a cracked hose or a weeping cylinder rod in seconds. Internal leakage offers no such visual cue. Its symptoms are indirect: a cylinder that drifts down under load, an actuator that feels sluggish, a system that runs hotter than it used to, or a machine that simply can't hold the pressure it once did. These symptoms overlap heavily with other problems, like pump wear or contaminated fluid, so guessing at the cause without instrumentation often leads to unnecessary parts replacement. Diagnostic tools remove the guesswork by isolating exactly where and how much fluid is escaping its intended path.

Flow meters and bypass testing

The most direct way to quantify internal leakage is with a flow meter connected to isolate a specific component. In a bypass or "cracked-open" test, a technician diverts flow through a meter while the component under test is held at a fixed pressure and the actuator is blocked from moving. Any flow the meter registers under these conditions has nowhere to go except through internal clearances—meaning it's leaking past seals or spool lands rather than doing useful work. This technique is standard for diagnosing suspect cylinders, motors, and directional valves, and it gives a hard number, typically in liters or gallons per minute, that can be compared against the manufacturer's allowable leakage specification.

Pressure decay and drift testing

Pressure decay testing is especially useful for cylinders and valves that hold a load. The test isolates a chamber, pressurizes it to a set value, and then monitors how quickly pressure falls off over a fixed time period with no external flow demand. A healthy component holds pressure with minimal decay; a component with internal leakage shows a measurable, often rapid, pressure drop as fluid bypasses the seal into the opposite chamber.

Cylinder drift testing works on the same principle but measures physical movement instead of pressure. With a load held stationary and the directional valve centered, a technician measures how far the rod creeps over a set time, often using a dial indicator or a laser displacement sensor for precision work. Drift beyond the allowable tolerance points directly to piston seal wear or bore scoring, letting a technician confirm internal bypass without disassembling the cylinder.

Thermal imaging

Internal leakage doesn't just waste flow—it converts pressure energy into heat as fluid is forced through tight clearances at high velocity. Thermal cameras exploit this by revealing hot spots at valve bodies, cylinder end caps, and motor casings that are running warmer than their surroundings. While thermal imaging alone can't quantify the leakage rate the way a flow meter can, it's a fast, non-invasive way to screen an entire system and flag which components deserve closer inspection with more precise tools. It's particularly valuable on large machines with dozens of valves and actuators, where checking each one manually would be impractical.

Ultrasonic leak detection

Fluid moving through a small internal clearance under pressure generates high-frequency sound, often well above the range of human hearing. Ultrasonic detectors pick up this acoustic signature and convert it into an audible tone or a numeric decibel reading, letting a technician "listen" to a valve or cylinder and pinpoint exactly where fluid is bypassing. Because ultrasonic detection responds to turbulence rather than temperature or pressure, it can catch smaller leaks earlier than thermal imaging, and it works well in noisy industrial environments where other subtle cues might be missed.

Pressure and response time testing

Beyond isolated component tests, system-level diagnostics look at how quickly a circuit builds and releases pressure. A valve or cylinder with internal leakage takes longer to reach commanded pressure and responds sluggishly to directional changes, because part of the pump's output is escaping internally instead of doing work. By comparing measured response times and pressure rise rates against baseline values recorded when the equipment was new, technicians can track gradual degradation over months or years, often catching a developing problem well before it causes a functional failure.

Oil analysis as a supporting diagnostic

While oil analysis doesn't directly measure internal leakage, it plays a supporting role. Elevated wear-metal content, especially metals matching the leaking component (bronze from a valve body, chrome from a cylinder rod), can corroborate what a flow or pressure test suggests. Combined with viscosity and contamination data, oil analysis helps confirm whether internal leakage is a symptom of a broader fluid cleanliness problem rather than an isolated component failure.

Bringing it together: A diagnostic sequence

In practice, these tools are rarely used in isolation. A typical diagnostic sequence might start with a thermal scan across the system to flag suspect components, followed by ultrasonic detection to narrow down the exact leak point, and finally a flow meter or pressure decay test on the isolated component to quantify the leakage rate against spec. This layered approach balances speed and precision: broad screening tools cover the whole machine quickly, while precise quantitative tests confirm the diagnosis before a component is pulled for repair or replacement.

Why does this matter for maintenance planning?

Catching internal leakage early, and confirming it with data rather than guesswork, has real economic value. Components showing early-stage internal leakage can often be scheduled for repair during planned downtime rather than waiting for a catastrophic failure that halts production. Diagnostic data also protects against unnecessary part swaps—a system that "seems slow" might be blamed on the pump when the real culprit is a single leaking directional valve. Quantified, tool-based diagnosis ensures maintenance dollars go toward the actual failing component.

Internal leakage hides inside the system, so detecting it requires tools that measure its downstream effects: lost flow, pressure decay, heat generation, acoustic turbulence, and sluggish response. Flow meters and pressure decay tests provide hard numbers for confirming a diagnosis, while thermal imaging and ultrasonic detection offer fast, non-invasive ways to screen a whole system for suspect components. Used together, these diagnostic tools turn a historically hard-to-pin-down problem into a measurable, trackable one—protecting uptime and keeping repair decisions grounded in data rather than assumption.

1. What is the difference between internal and external hydraulic leakage?

External leakage releases fluid outside the system, visible as drips, puddles, or wet fittings. Internal leakage stays contained within the circuit, with fluid bypassing seals or valve clearances from the high-pressure side to the low-pressure side, so the oil level never drops and there's nothing to see.

2. Can internal leakage be detected without disassembling the component?

Yes. Flow meter bypass tests, pressure decay tests, cylinder drift measurements, thermal imaging, and ultrasonic detection can all confirm and often quantify internal leakage without opening up the cylinder, valve, or motor in question.

3. How much internal leakage is considered normal?

Every component has some allowable internal leakage built into its design tolerances, specified by the manufacturer in units like drops per minute or a maximum flow rate at a given pressure. Leakage above that specified threshold indicates wear or damage that warrants repair.

4. What are the first symptoms of internal leakage in a hydraulic cylinder?

Common early signs include the cylinder rod drifting down under a static load, slower extend or retract speed, reduced holding force, and a system that runs slightly warmer than normal during extended operation.

5. Is thermal imaging accurate enough to replace flow testing?

No. Thermal imaging is best used as a fast screening tool to identify which components are running hotter than expected. For a precise leakage rate that can be compared to a manufacturer's specification, a flow meter or pressure decay test is still needed.
