How often should hydraulic cylinders be inspected or rebuilt?

Hydraulic cylinders should be visually checked every shift or day, inspected in detail every 250 to 500 operating hours (roughly monthly to quarterly), and rebuilt based on condition rather than a fixed date. In normal service, a planning benchmark of 5,000 to 10,000 operating hours between rebuilds is common, but severe duty, contamination, or side loading can cut that interval in half or more. Always start from the manufacturer's recommendations and adjust for your actual operating conditions. Hydraulic cylinders do the heavy lifting in presses, excavators, lifts, and industrial machinery, yet they are often ignored until oil starts dripping or a machine slows down. By then, damage has usually spread beyond a worn seal to the rod, barrel, or piston. A structured schedule for inspection and rebuilding is the difference between a planned, low-cost seal replacement and an unplanned failure that halts production.

Why does inspection and rebuild timing matter?

A hydraulic cylinder is a sealed system that works under high pressure and constant motion. Every stroke exposes seals, rod surfaces, and bearing bands to friction, heat, and potential contamination. Wear is gradual, so problems rarely announce themselves early.

Regular inspection catches small issues, such as a scored rod, a weeping gland, or a damaged wiper, while they are still inexpensive to fix. Timely rebuilding restores lost efficiency and protects other components from contaminated oil and unstable motion. Deferring both drives up total cost through downtime, fluid loss, and secondary damage to pumps and valves.

Recommended inspection frequency

Inspection works best in layers, from quick daily checks to deeper scheduled reviews.

Daily or pre-shift checks

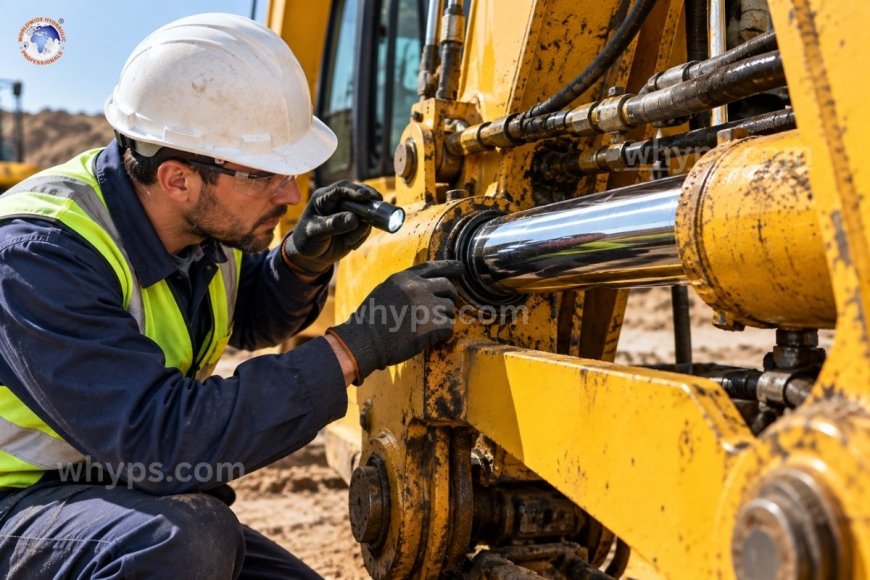

A walk-around takes only a few minutes and catches most early warnings:

• Look for oil on the rod, gland area, barrel, and port connections.
• Check the rod surface for scratches, pitting, rust, or dried debris.
• Confirm the wiper seal is intact and the rod is clean.
• Watch for jerky, slow, or drifting movement during the first cycles.
• Inspect mounting pins, clevises, and bolts for looseness or wear.

Monthly to quarterly inspections (250 to 500 hours)

At this level, inspection becomes more detailed:

• Measure and record rod condition, looking for chrome flaking or corrosion.
• Check for rod bending or visible misalignment.
• Test for cylinder drift under load, which can indicate internal leakage.
• Inspect hoses, fittings, and ports for leaks or fatigue.
• Review hydraulic oil condition and filter status, since dirty oil is a leading cause of cylinder wear.

Annual or major-service inspections

Once a year, or at major service intervals, a comprehensive review is worthwhile for critical equipment. This may include pressure and drift testing, measuring stroke speed against baseline values, verifying mounting alignment, and, where the application justifies it, oil analysis to check for wear metals and particle counts. Cylinders on safety-critical equipment such as lifts or presses may also have regulatory or insurer-driven inspection requirements.

When should a hydraulic cylinder be rebuilt?

There is no single number that fits every cylinder. Rebuild timing depends on how hard the cylinder works and how well the system is maintained.

Typical rebuild intervals

As a general planning benchmark:

• Light to moderate duty (clean environment, moderate pressure): every 8,000 to 10,000 operating hours, or roughly every three to five years.
• Heavy duty (frequent cycling, high pressure, outdoor use): every 4,000 to 6,000 operating hours.
• Severe duty (mining, demolition, marine, high contamination): every 2,000 to 4,000 hours, or sooner if inspection findings warrant it.

These are starting points, not guarantees. A well-maintained cylinder in clean oil may exceed them, while a cylinder subject to side loading may fail well short.

Condition-based rebuild triggers

Rather than waiting for a calendar date, rebuild when the cylinder tells you it is time:

• Persistent external leakage past the rod seal or gland, especially if it returns after a seal change.
• Internal leakage, shown by load drift, slow response, or reduced force even when system pressure is normal.
• Rod damage, including scoring, pitting, or plating loss that would destroy new seals quickly.
• Barrel scoring that lets oil bypass the piston.
• Excessive heat near the cylinder, which can signal internal bypass.
• Erratic motion, such as stick-slip, jerking, or sluggish stroking.
• Contamination events, such as a pump failure or a hose burst that flooded the system with debris.

Factors that shorten inspection and rebuild intervals

Several operating conditions justify tightening your schedule:

• Contamination: Particles are the top cause of premature seal and rod wear. Poor filtration or exposed rods in dusty environments accelerate damage.
• Side loading and misalignment: Off-axis forces wear bearing bands, bend rods, and score barrels.
• High pressure and pressure spikes: Shock loads stress seals and can extrude them from their grooves.
• Temperature extremes: Heat hardens seals, while cold reduces their flexibility.
• Rapid cycling: More strokes per hour mean more wear per calendar month.
• Aggressive environments: Salt spray, chemicals, and washdown can corrode rods and degrade seal materials.
• Poor fluid condition: Oxidized, wet, or contaminated oil shortens the life of every internal component.

Rebuild or replace?

A rebuild is usually cheaper than a new cylinder when the barrel, rod, and end caps are sound and only the seals and wear parts have degraded. Replacement becomes more sensible when the barrel is deeply scored or out of tolerance, the rod is bent beyond straightening, the cylinder has been rebuilt repeatedly with short intervals, or the cost of repair approaches the price of a new unit. For critical or hard-to-source cylinders, a rebuild with a re-plated or replaced rod and a honed barrel can restore like-new performance at a fraction of the cost.

What a proper rebuild involves

A quality rebuild is more than swapping seals. A thorough process typically includes:

1. Disassembly and cleaning of all components.
2. Inspection of the rod, barrel bore, piston, gland, and end caps for wear and dimensional accuracy.
3. Repair or replacement of damaged parts, including rod re-plating or barrel honing where needed.
4. Installation of a complete new seal kit, including piston seals, rod seals, wipers, wear rings, and O-rings, matched to the fluid and operating conditions.
5. Reassembly with correct torque values and clean, lubricated components.
6. Pressure and function testing before the cylinder returns to service.

Skipping the inspection or reusing old seals is a common shortcut that leads to repeat failures shortly after the rebuild.

Keep records to refine your schedule

The most reliable interval for your fleet comes from your own data. Log operating hours, leak findings, rod condition, and rebuild history for each cylinder. Patterns quickly emerge, such as one machine consistently needing rod seals early because of a misaligned mount. Recordkeeping lets you move from a generic schedule to one tuned to your equipment, and it helps justify maintenance budgets with real downtime numbers. Hydraulic cylinders reward consistent attention. Check them every shift, inspect them in depth at regular hour-based intervals, and rebuild them when condition and duty cycle say it is time rather than waiting for failure. Pairing a clear inspection routine with good filtration, proper alignment, and clean fluid will extend the time between rebuilds and keep your equipment running reliably.

1. How often should a hydraulic cylinder be inspected?

Perform a quick visual check every shift or day and a detailed inspection every 250 to 500 operating hours or monthly to quarterly, depending on duty. Critical equipment may also need an annual comprehensive review.

2. How many hours can a hydraulic cylinder run before it needs to be rebuilt?

In normal service, 5,000 to 10,000 operating hours is a common benchmark. Severe conditions such as mining, high contamination, or heavy side loading can shorten that to 2,000 to 4,000 hours.

3. What are the signs that a hydraulic cylinder needs rebuilding?

Persistent oil leaks, drifting under load, slow or jerky movement, reduced lifting force, a scored or pitted rod, and excess heat near the cylinder are all clear signs.

4. Is it cheaper to rebuild or replace a hydraulic cylinder?

Rebuilding is usually cheaper when the barrel, rod, and end caps are in good condition. Replacement makes sense when major components are badly damaged or repair costs approach the price of a new cylinder.

5. Can regular maintenance extend the time between rebuilds?

Yes. Clean, well-filtered oil, protected rods, correct alignment, and prompt seal replacement all slow wear and can significantly extend the interval between rebuilds.
