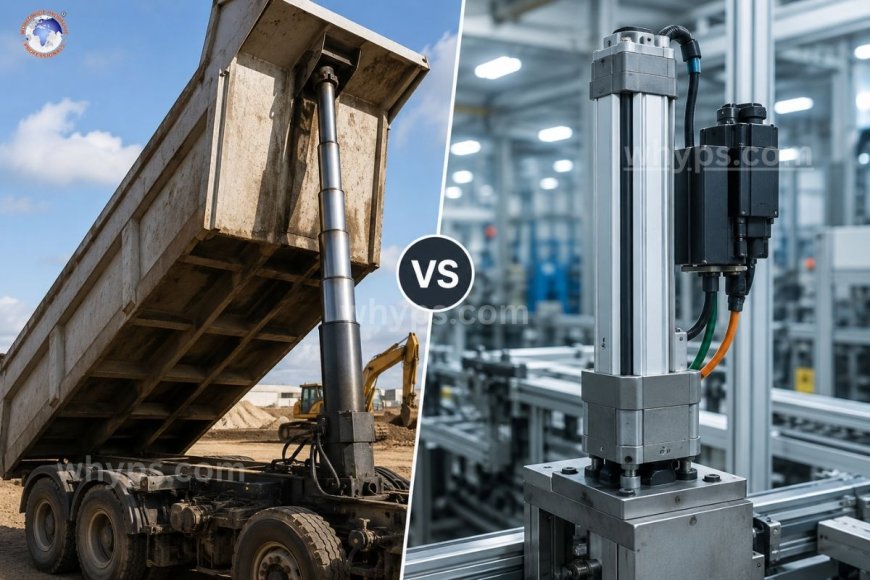

Are electric alternatives replacing telescopic hydraulic cylinders?

Not yet, and certainly not everywhere. Electro-hydraulic and electric actuators are gradually replacing hydraulic cylinders with telescopic articulation in moderate- and light-force precise-driven applications. However, for heavy-tonnage, long-stroke lifting jobs such as rubbish trucks, garbage dumps, and mobile cranes, the telescopic hydraulic cylinders will remain the preferred choice because no electric technology has yet matched their force-to-package ratio with similar cost.

For a long time in the past, when an application demanded an immense quantity of force in a length that could be retracted, a hydraulic cylinder with a telescopic design was the only choice. This is beginning to change. Electro-hydraulic rod actuators and electric rod actuators (EHAs) are maturing to the point that engineers are actually considering them in comparison to hydraulics for applications that previously relied on fluid power without giving it a second thought. This article focuses on what the implications of this shift are and where it's not and how you should consider the choice regarding your own equipment.

Why is this taking place at the moment?

Telescopic cylinders solve one particular packaging issue: delivering a long stroke using a short length that is retracted, which typically ranges from 20 to 40% of the full extension, dependent on the number of stages. This is why they are the most popular choice for dump trucks and roll-off trailers, as well as refuse vehicles—there's an insufficient space beneath the framework for a single-stage cylindrical cylinder with enough length to accomplish the job.

For a long period, electric actuators could not compete for any reason. Roller-screw and ball-screw electric cylinders are in essence single-stage units, and the development of a multi-stage electrical telescoping unit that had enough force capacity was neither feasible nor cost-effective. What has altered is the limit of force. The electric rod actuator has become increasingly flexible, accurate, and robust and has forces that are increasingly compared to hydraulics within the low-to-mid-tonnage range. It's now possible to have the discussion of a replacement for telescopic applications, even though they aren't yet in the realm of possibility.

Electro-hydraulic and electric actuators are in the lead?

The best argument to go electric isn't so much about raw force but rather about control. Hydraulic systems can handle end-to-end positioning very well; however, mid-stroke positioning has traditionally required a valve control and an operator's decision-making process because conventional hydraulics are closed-loop in this respect. Electric actuators coupled with a servo motor provide the ability to control velocity, position, and control of acceleration with a high degree of precision and reliability that hydraulics are unable to beat without significant engineering.

The advantage of this precision is why electrohydraulic actuators (EHAs) are a type of actuator that is a combination of an electric motor-driven pump and a hydraulic cylinder into an integrated, closed-loop system that are now the most popular middle ground. Modern EHAs that have electronic controllers and encoder feedback allow for positioning accuracy within the range of one 10th of a millimeter with no external tuning. Additionally, their responses are dependent on motor dynamics instead of the resistivity of the lengthy hydraulic circuit. For assembly automation, precision forming, and other equipment in which manufacturing tolerances are very tight, that combination is tough to beat a conventional cylinder that is fed by central power units to match.

There's also the clean and maintenance argument. Hydraulic systems will leak eventually; it's just an issue about when and not whether—and the cleanup and seal replacements can result in significant downtime. Electric actuators can eliminate hydraulic fluid completely. This is crucial for food processing, cleanrooms, and outdoor equipment in which fluid contamination is a problem of compliance and not just a nuisance.

The use of energy is another part that makes up the pitch. A central hydraulic power source is continuously operating at system pressure and is able to burn energy even when the cylinder in question isn't actually moving. Electronic actuators use power when they are in movement, and by 2026 the efficiency gap will be one of the strongest arguments to switch whenever the force requirements allow it.

Where can telescopic hydraulic cylinders have a chance to win?

All that is changed are the basic principles of heavy lifting. Pressures operating in the range of 200-350 bars let an ordinary hydraulic cylinder produce huge force out of a tiny bore. Multi-stage telescopic designs can extend this advantage over lengthy strokes, which electric actuators cannot reach with one unit. When the force required is more than what the commercially available electro-hydraulic or electric devices can deliver or requires a connection to an already existing duty cycle and power source, the standard telescopic cylinder remains the most practical—and usually the only viable—option.

Cost adds to this. Component-for-component, telescopic hydraulic cylinders remain the cheaper option upfront for high-force work, even as EHA prices have fallen an estimated 20-30% since 2020 as motor-drive-pump packages have matured. The gap is closing, and EH As are now competing for the total cost of ownership after energy and maintenance savings are taken into consideration, yet beginning capital costs prefer hydraulics that are at the top price.

There's an argument for robustness that should not be overlooked. Telescopic hydraulic cylinders are a long-term source of field-tested endurance in harsh environments like construction sites or agricultural equipment, mining operations, where vibration, dirt, and shock load are the same. The relatively simple structure of their mechanical components is particularly evident when single-acting designs are used that rely upon gravity or even the weight itself, which means that there are fewer electronic components exposed to elements.

What should you think about when making the choice?

The real answer doesn't have to be "hydraulic or electrical" but rather connecting the actuator type to what the application requires:

• Select a traditional telescopic hydraulic cylinder if forces are higher than the electrical or EHA capacity, when a long stroke length with a small footprint is necessary or when the unit requires integration into an already existing hydraulic system.
• Choose an electric actuator when the priority is precise, repeatable, programmable motion control at low-to-moderate force in a clean or contamination-sensitive environment.
• Select an electrohydraulic actuator if you require force delivery at the hydraulic level with control via electric level and effectiveness, and you're not limited to the multi-stage, telescopic geometries.

For the vast majority of heavy-duty telescopic equipment, including dump trucks and refuse vehicles, mobile drilling rigs, this decision tree has a direct connection to hydraulics. The trend toward electric options is real; however, it's taking place only at the edge of the force and stroke envelope and not in the middle of the telescopic cylinders that are able to earn their living.

1. Electric actuators can completely replace hydraulic cylinders with telescopic telescoping?

This isn't the case for high-force long-stroke applications. Electric actuators are single-stage devices and aren't able to match the compact multi-stage design or the highest-end force outputs of telescopic hydraulic designs.

2. What is an electro-hydraulic actuator? (EHA)?

The EHA is a unit that is self-contained, which combines an electric motor-driven pump and a hydraulic cylinder, providing hydraulic force output using an electric-style closed-loop system and without a central circuit for hydraulics.

3. Are electric options more efficient in energy use than hydraulic cylinders?

In general, yes. Electric actuators draw power only when in movement, whereas the central hydraulic power unit ensures that the system is always at a constant pressure, which means that it consumes energy even when the cylinders are idle.

4. Are electric actuators more affordable in the long run?

It's dependent on the type of how it is used and the speed of its duty cycle. The initial costs are generally favored by hydraulics when it comes to high-force work; however, electronic and EHA systems can provide lower total costs of ownership after repairs, and cost savings for energy usage are considered.

5. Which industries are embracing the most electric options?

Precision manufacturing assemblies automatization and medical devices, along with semiconductor processing, are the leading adopters driven by the need for precise positioning accuracy and a clean operation.
