What are the things you shouldn’t do with telescopic hydraulic cylinders?

The most frequent mistakes made with the hydraulic cylinders of telescopic telescopic are side loading them, operating them completely extended or retracted under loads for extended durations, and not paying attention to stage-by-stage examination and making use of the incorrect fluid, or infected oil, or skipping the proper bleeding at the time of commissioning, all of which can accelerate the wear of seals and scoring as well as stages collapsing in a design with a smaller chance of error than a conventional single-stage cylinder.

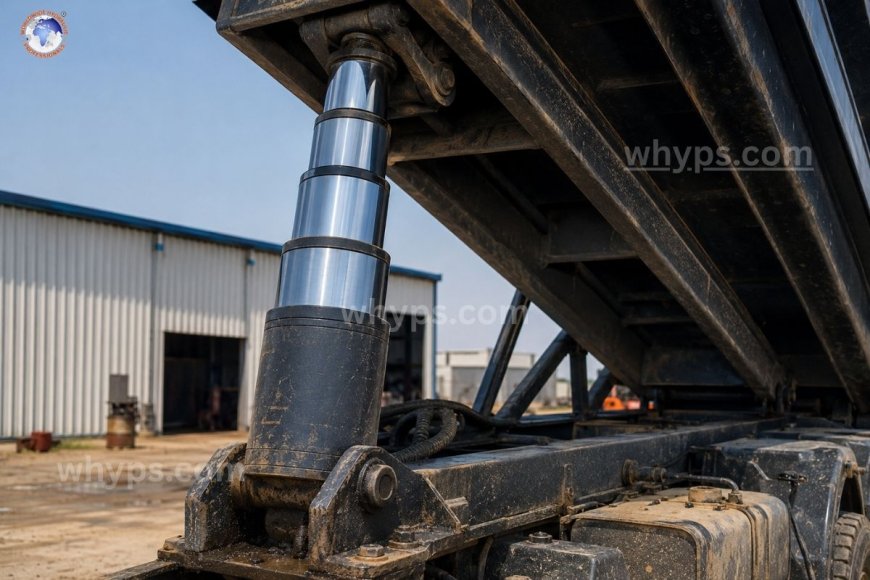

Telescopic cylinders constitute the core of dump trucks, cranes, tippers, and aerial platforms since they provide lengthy stroke lengths within a compact footprint that can be retracted. The nested-stage layout is the reason they are so prone to abuse. Each stage is equipped with its own wear band, seals, and bearing surfaces. A failure in one stage seldom remains in place but is a cascade that flows to the next. Being aware of what not to do is usually more important than knowing the checklist for maintenance, as telescopic cylinder malfunctions are often traced back to a few improbable operational lapses.

1. Do not apply side loads or off-axis force.

Telescopic cylinders were designed to allow pure axial load, which is force that is applied straight across the centerline of the stage. A side load, whether it's from an uneven bed of load or a tilted mounting point or lateral shock and wind loads, causes the stage to bend against its bearing bands instead of sliding them smoothly. In time, this wears down the chrome plating that covers the surface of the stage and speeds up the wear of the seal on the opposite end of the bore. If a stage is experiencing irregular wear and tear, it is more likely to "bend" or "cock" when extended, which puts additional pressure on the stage that follows up. The mounting bracket, the trunnions, and the pivot pins must be checked on a regular basis to ensure that the cylinder is loaded according to the axis.

2. Don't operate at maximum extension when under continuous load.

The telescopic cylinder's extension until its maximum mechanical capacity and securing it in place under pressure eliminates the security space built into the stop rings as well as stage overlap. When fully extended, the stage with the lowest diameter has the lowest bearing surface, which is then engaged by the next stage and focuses stress precisely on the areas where the cylinder is the most material to absorb this. A continuous full-stroke cycle under heavy load wears out stop mechanisms and increases the chance of a stage bursting into its own bore. If possible, the operators should keep to 90-95% of their stroke for normal heavy-duty work and use full extension only for tasks that are lighter and shorter in duration.

3. Do not ignore delays or uneven stage length.

A properly operating telescopic cylinder expands the stages within a predetermined sequence, generally from largest to smallest, and is powered by differential pressure over the entire stage's surface. If one stage fails or sticks or moves out of the sequence, it's not an aesthetic issue. It's usually a sign of worn-out wear bands or a leaky seal that allows internal bypass or contamination trapped in the bore of a stage. Continued operation of the cylinder in a way that has irregular behavior can cause the issue to escalate because the stage that's not sealing properly also loses the lubrication layer that shields it from contact between metal and metal. The irregularity of the extension pattern should be considered a stop-and-inspect signal, not a reason to be able to work around.

4. Do not skimp on the cleanliness of your fluids.

Telescopic cylinders feature long and narrow annular clearances between stages with nested ones and are less tolerant of particle contamination than the wide bore of one-stage cylinders. The abrasive effect of dirty hydraulic oil is accelerated by the damage to the chrome-plated surfaces of the stage and imprisons particles within the softer material of the seal and wear band. This is especially true for mobile equipment, which has typical telescopic cylinders, since booms and dump bodies are subject to dust, grit, and road debris that could move through unmaintained wiper seals. Fluid must be filtered according to meet the ISO cleanliness standards for the system, and wiper seals need to be maintained regularly, as they're the first security line against contamination from outside.

5. Make sure you don't make use of the wrong hydraulic fluid or mix different types of fluids.

Substituting a viscosity grade or fluid chemistry other than the one the cylinder or system was made to handle changes the lubrication thickness on the stage bearings, and they are operating with strict clearances. Mixing different types of fluids can impact seal swell as well as compatibility, which can lead to the premature hardening of seals or shrinkage. This is especially true for the telescopic design because each interface is dependent on a stable, smooth, reliable film of fluid that prevents metal contact during extension and retraction. Changes in fluids should be compared to the specifications of the manufacturer of the equipment prior to changing suppliers or grade.

6. Do not skip proper bleeding and a slow introduction of the commissioning process.

The air trapped inside the telescopic cylinder at the time of the initial installation process or following a seal or hose replacement results in an unstable, jerky movement of the stage and could cause cavitation damage inside the cylinder, as pockets of air shrink when pressure is applied. Telescopic cylinders, because they contain multiple chambers, rather than just having one chamber, can be more susceptible to trapping air pockets than single-stage cylinders. They typically require a slow, deliberate bleeding sequence, which involves extending and retracting for several cycles under low pressure prior to getting back to the normal operating process. The rush of this process on a rebuilt or new cylinder can be a major cause of seal damage in the early years.

7. Don't neglect regular stage-by-stage visual inspection.

Since failures in a telescopic cylindrical cylinder can be expected to begin on one stage and then spread out, a standard "does it move properly" test misses warning indicators. Every stage surface that is exposed should be checked for pitting, scoring, or dents whenever the cylinder extends, since damage to the chrome plating can create an opening for seals to leak because the cylinder's section goes over the sealing glands in a series of. In the event of a visible leak or loss of holding pressure prior to inspecting, it implies that the damage has gone beyond the scope of replacing a seal.

8. Do not transport or store the cylinders that are fully retractable without security.

The long-term storage of a stage in its fully reclined position can cause moisture to build up in the stage cavity, and when the stage and rod are not protected by a thin film of oil or end caps, corrosion could be present on polished surfaces prior to the time that the cylinder can be put into operation. This is especially true when it comes to spare or replacement telescopic cylinders that are kept in inventory, as corrosion pitting on the stage's surface acts like mechanical scoring once the cylinder's operating. It affects the seals passing across it.

9. Don't exceed the pressure rated to "get an extra" from the piston.

Operating over the recommended operating pressure for a short time in order to squeeze more lifting speed or force out of a telescopic cylinder causes excessive stress on the smallest stage, which is the least supported first. Because the wall thickness of the stage decreases with each nested stage, and the risk of breaking or collapse of the stage is typically the greatest at full extension and the most pressure at the same time—which is the precise situation that the over-pressure event is likely to cause. Pressure-compensated limits for pumps should be considered as fixed operating boundaries, not targets that can be adjusted.

Making the most of the Telescopic Cylinder

The majority of telescopic cylinder problems trace to unavoidable mistakes instead of a manufacturing defect. Since these cylinders combine several bearing and seal interfaces into one compact unit, tiny errors in operation multiply rather than remaining isolated. That's the reason why strict loading procedures as well as fluid cleanliness and routine inspection of the stage are more important in these cylinders than they do in other design cylinders.

Why are the telescopic hydraulic cylinders more prone to abuse than conventional cylinders?

They are made up of multiple stages nested in a row, each with an individual bearing surface and seals that operate in tighter clearances as they get tighter; therefore, wear or damage in one stage can affect the adjacent stages, rather than remaining in a single stage.

Does side loading cause damage to a telescopic cylinder when pressure is low?

Yes. Side loading can damage the chrome-plated stage surfaces, and in a way, seals wear unevenly regardless of pressure operating because the damage is from the bending force off-axis but not the hydraulic pressure itself.

What is the recommended frequency for telescopic stages of cylinders to be examined?

Stage surfaces that are exposed must be checked visually every extension at regular intervals of maintenance instead of waiting for a noticeable leak or performance decrease to trigger an inspection.

Can you safely operate a telescopic device at full stroke frequently?

A few times a day, full stroke use is common; however, prolonged heavy loads at full extension shatter the safety margins in the stop rings as well as the smallest stage and are best used for shorter- or lighter-duty tasks.

What is the most frequent reason for an unbalanced stage extension?

A delayed or uneven stage extension is typically due to a worn wear band, a damaged seal that allows internal fluid bypass, or a blockage of contamination within the stage bore.
