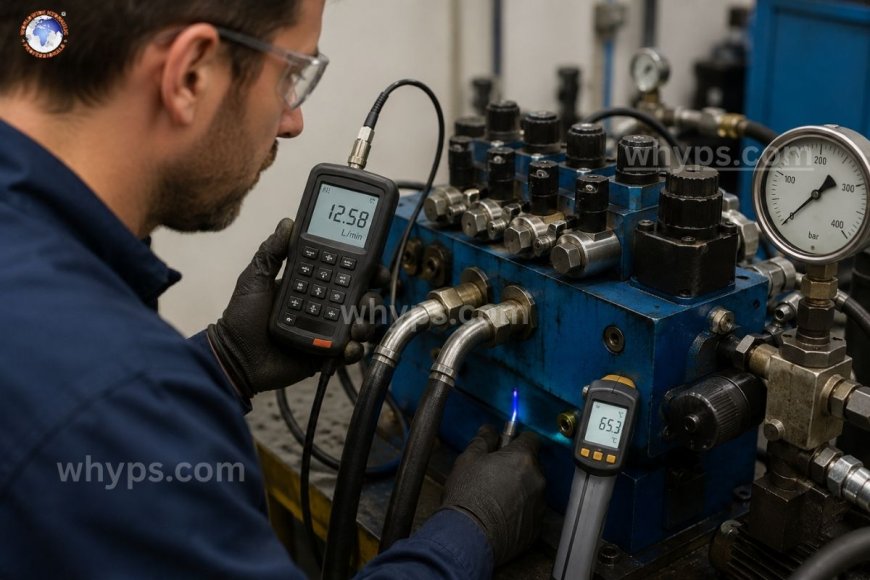

How can I identify internal leakage in hydraulic valves?

Internal leakage within the valve's hydraulic system is detected by looking for the standard symptoms—slow movement of the actuator, load drift under hold, overheated production, and declining system pressure without external fluid loss. Then, confirm the source with the use of a flow meter, thermal test, or testing the cylinder's drift instead of relying on sight alone. Since internal leakage occurs inside in the valve's body between the spool and bore or over the seat of a poppet There's not a puddle on the floor that can alert the way to the problem. This is why it's one of the more difficult problems to identify in hydraulics and is the reason it's more crucial to have a methodical approach than a simple visual examination.

What makes internal leakage different from leakage from outside?

External leakage is simple and can be seen everywhere it shouldn't be, typically in a fitting, seal, or gasket. Internal leakage refers to fluid that is moving beyond internal clearances, such as spool-to-bore gaps or worn-out poppet seats, worn-out internal seals, and then returning to the tank or bypassing the wrong port, instead of performing useful work. The oil is never removed from the system, which is why the level of the reservoir appears normal and there's no trace to follow.

This is the reason why leaks from the internal are frequently misinterpreted as a pump issue or a problem with the relief valve and "just an older machine." The system is still running but not at its full capacity. The loss is shown in the form of wasted power, energy, and heat or lower or less responsive actuators instead of as an unclean work floor.

Common symptoms that suggest internal valve leakage

A slow or insufficient actuator response

When a cylinder is extended or retracted slower than it did previously, or a motor is losing torque under load, a small portion of the fluid intended for the actuator is pouring into the valve itself and not being directed towards doing work. This is often the first thing that a user notices since it directly affects the cycle time and output of the machine.

Load or cylinder drift under hold

A check or directional valve with leakage inside will usually allow a cylinder that is loaded to slide down or let the rotary actuator slowly spin even though the valve is in a hold position. The drift test is among more reliable diagnostics in the field. Put the actuator in a static position and observe its movement over a predetermined time. Any movement that exceeds the tolerance of the manufacturer indicates internal bypass.

Temperature of the fluid in the elevated area

Leaking flow won't stop as it transforms into heat when fluid is forced through the narrow clearances with pressure. A valve or a valve bank that is noticeably hotter than the surrounding components, even though the flow of the drain in the case appears normal, is an indication of wear inside the valve. Infrared thermometers and thermal imaging cameras can be useful for this purpose because they permit you to check the temperature of the valve's body against the line temperature without opening anything.

System pressure is reduced, or the system slows down building up of pressure.

If the pump must perform more work to reach the desired pressure, or if pressure bleeds lower faster than you would expect after the pump has stopped loading, the internal leakage that occurs across the valve could be a source of. This is especially true for relief valves that have worn out, as the poppet is no longer seated fully and is continuously bypassing some flow, even at the lower pressure setting.

Unresolved loss of efficiency

Increased energy consumption for the same work load and more frequent oil temperature warnings or a system that requires more frequent cooling interventions are all indicators of internal leakage that are compounding in time.

Diagnostic methods to confirm internal leakage

Testing of flow meters

A flow meter inline placed near the outlet of the valve, or the portable flow meter, which is connected to a controlled test, will be able to determine whether the commanded flow is in line with the flow delivered. A significant gap between them is an internal leakage, and the dimension of the gap can provide an idea of how severe it is.

The drift test for actuators or cylinders

As previously mentioned, it is an inexpensive, low-cost method that does not require any special equipment that allows you to extend the actuator up until it is in a mid-stroke state and then close the valve. Apply the load if the application permits it and then measure the movements over a predetermined time (commonly five to ten minutes). Check the result against OEM-allowed drift specifications.

Measurement of the flow rate in the drain case

Pumps and valves that have an intake line for the case, measuring the flow rate, are a simple method to measure leakage within the valve. A higher rate of case drain flow in relation to the baseline is one of the most evident indicators of wear and tear inside the system, as this flow is a sign that fluid is not going through the planned route.

Pressure decay testing

The actuator is shut off and the system is isolated. Check how quickly pressure drops over time. A good valve will keep pressure within a strict tolerance. A faster-than-expected decay curve is an indication of an internal bypass.

Comparison of thermal imaging

The comparison of thermal signatures between similar valves within a bank or against a well-known baseline can rapidly identify the valve that causes excessive internal leakage without removing it from the bank.

Common causes of leakage of hydraulic valves

• Bore wear or spool wear due to abrasions caused by contamination that widen openings as time passes and allows more fluid to pass through
• Poppet seats that are damaged or worn out in check, relief, or cartridge valves, typically due to repeated high-pressure cycling, or damage caused by particulate matter
• Seals on internal components have been degraded caused by the heat, chemical incompatibility of the liquid, or simply wear and tear
• Contamination-induced scoring on precision-machined surfaces, which is one of the most common root causes industry-wide
• Incorrectly sized valves or excessive pressure differentials can cause wear to components that are designed for lower use

Repairs instead of. replace

A minor leakage in the internals that's within OEM tolerances might not require immediate intervention, especially when it's being monitored and is trending steadily, rather than escalating. If leakage is affecting cycle speed, holding accuracy, or the temperature of the system Repair or replacement is more of a cost-related issue than an issue of maintenance because the loss of energy and heat caused by a leaky valve compound is constant. Poppet and cartridge valves are typically more affordable to replace completely, whereas larger proportional or directional valves might be worth rebuilding in the event that bore wear and spool wear are within the limits of repairability.

The prevention of internal leakage is a priority going forward.

The majority of internal leakage is traced back to the control of contamination. Maintaining the cleanliness of fluids within the desired ISO standard, using appropriately filtered that is rated, and avoiding pressure surges over the rating of valves all prolong the life span of clearances inside the. Routine drift testing and drain monitoring are incorporated into an annual preventive maintenance program and catch leakage inside when it's not too significant instead of when it's increased energy costs or triggered the downstream to fail.

Internal leakage within the valve that is hydraulic causes the device to heat up?

Yes. Leaking flows transform into heat when they are forced through the worn clearances of internal components under pressure. The heat increases the general system temperature.

Do you think that leakage from the inside is always an indication that a valve is in need of replacement?

However, not all the time. Small leaks within OEM tolerances can be inspected; however, leakage that is deteriorating or has a negative impact on performance generally requires repairs or replacement.

What's the simplest method to determine internal leakage, without the use of any equipment?

Testing a cylinder, or an actuator's drift, by putting the actuator in a hold position and measuring its movement in time doesn't require specific equipment or specialized equipment. It is also a reliable indicator for field use.

Does leakage from the internal part appear in the reservoir fluid level?

No. Internal leakage is a part of the system and is returned to the tank internally, which means that the reservoir levels remain constant. This is the reason it is often overlooked until the first signs of trouble appear.

What is the frequency at which the case drains be examined to ensure leakage monitoring?

This is contingent on the criticality and duty cycle. However, incorporating drain flow tests in routine preventive maintenance intervals can catch leakage patterns early, prior to they turn into failures.
