What are the symptoms of a faulty hydraulic valve?

A malfunctioning hydraulic valve usually is evident as slow or unsteady actuator movement, abnormal noise (chatter or whining knocking), excessive heat production close to the valve's body, internal or external fluid leakage, and a loss of pressure or directional control. These signs usually result from damaged seals, worn spools or solenoid seals, a contamination issue, or fatigue of the spring, and by catching them early, you can prevent the damage from spreading to valves, cylinders, and motors that are downstream.

Hydraulic valves are at the heart of any power system. They control flows, manage pressure, and measure speed. That means when a valve fails its performance, its effects spread across the entire circuit instead of being isolated to a single component. The ability to recognize early symptoms specific to valves and separating them from cylinder or pump issues is among the most useful techniques a maintenance technician is able to develop.

The reason valve symptoms are so often misdiagnosed?

Hydraulic systems are closed loops, and issues at one point typically manifest as symptoms elsewhere. The sluggish movement of the cylinder could indicate an unreliable pump or hose that has collapsed or a faulty directional valve. This is the reason why troubleshooting a valve requires separating the valve from any other possible causes via measurements of the pressure gauges, flow tests, or swapping out of components instead of relying solely on the location of symptoms.

However, certain symptoms point to the valve more accurately than other patterns. Recognizing these patterns narrows the diagnostic scope significantly.

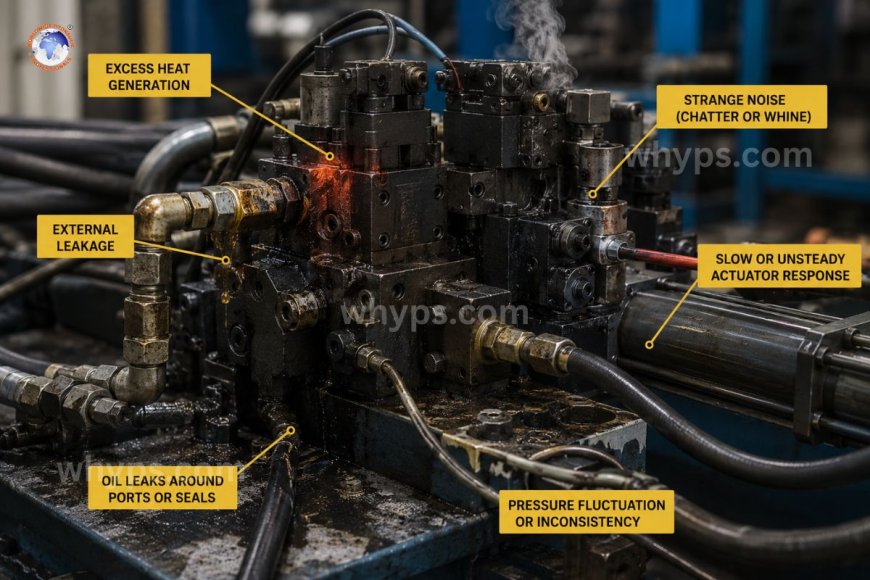

The most common signs of a damaged hydraulic valve

1. Slow or delayed actuator response

When a motor or cylinder responds slowly to a direction request or seems to be lagging in comparison to the input from the controller, the worn spool of a valve is a major cause. When spools become worn against their bores, clearances rise and the leakage inside increases, and less flow gets to the actuator, even though the pump is producing the full amount. It is frequently mistaken for wear on the pump; however, an instant pressure test downstream and upstream of the valve usually identifies the problem.

2. Movement that is jerky or unsteady

Stick-slip motion, in which an actuator is moved in tiny jumps rather than in a smooth manner, usually indicates the spool's stuck periodically within its bore. This could be caused by:

• Sludge or varnish buildup can result from an oxidized fluid
• A small amount of corrosion or scoring on the spool's surface
• A bent valve body or mounting tension
• Contamination particles settling in tight clearances

Erratic motion is a common feature in proportional and servo valves in which clearances are greater and more susceptible to contamination than conventional directionally oriented valves.

3. Strange sound: Chatter or whine

The whine of a valve is among the most useful diagnostic indicators due to the fact that different sounds can indicate different failure mechanisms. A loud whine close to the relief valve usually indicates the valve is chattering quickly, closing and opening in an attempt to maintain the pressure set by the seat that is worn or damaged. The sound of banging or knocking when a direction shift occurs can be a sign of water hammering from a valve moving too abruptly, typically due to spring or solenoid problems. Any persistent noise should not be ignored, as it causes wear on seats and could quickly transform an issue that was minor into a complete valve replacement.

4. Excess heat generation

A valve in a hydraulic system that is significantly hotter than the other manifolds typically dissipates energy via excessive leakage within the valve or pressure drops across worn parts. Since fluid travels along the path with least resistance A valve that has low internal clearances can let high-pressure fluid flow through back into the returning line and convert the heat generated by hydraulics directly. If left unaddressed, the heat causes seal degeneration across the entire system, not just around the valve.

5. External leakage

Fluid leaking from the valve body, around ports, or from the actuating part of a solenoid typically points towards a damaged seal, an over-torqued or under-torqued connection, or a damaged valve housing due to pressure spikes or physical impacts. External leaks can be seen; however, they shouldn't be viewed as only cosmetic. They signal that a seal has been damaged internally in the majority of instances, and that means that leakage within the valve and performance loss will likely occur concurrently.

6. Leakage inside the cylinder (cylinder drift)

If a cylinder is slowly retracting or expanding when it should be in a stable position, internal leakage that extends beyond the valve seat or spool is a typical cause. This is different from external leakage, as there is no visible leakage—it is flowing internally from the high-pressure side to the lower-pressure side. Cylinder drift tests, in which the motor is packed and held whilst watching its position throughout the time, are the most common method to confirm this issue.

7. Inability to shift, or total loss of function

If a directional valve doesn't move The reason is typically a mechanical, not hydraulic, out-of-date solenoid or a damaged wire or a signal for control that is not working. But mechanical reasons are also quite frequent: a spool that is jammed due to contamination, a broken return spring, or an excessive back pressure that prevents that spool from being moved. Testing the solenoid's resistance using the aid of a multimeter is an easy first step before removing the valve.

8. Pressure fluctuation or inconsistency

If gauges of pressure for the system display fluctuation instead of a stable reading, the relief or pressure-reducing valve might be faulty due to a worn seat, weak spring, or debris that prevents complete seating. This issue is usually associated with inconsistent performance between multiple actuators connected to the same circuit since pressure instability can affect the whole downstream system, not just one component.

The root cause of these symptoms

The majority of valve issues are traced to a variety of root causes:

• Contamination is the most significant cause of wear on valves, since particles as tiny as 5 microns could eat away at the spools and block small orifices.
• Degradation of fluids—when it is oxidized or moist fluid loses its lubricity and creates varnish deposits
• The stress of thermal radiation—repeated overheating speeds up the process of hardening seals and wear on spools.
• Electrical problems with electrical components—solenoid coil burning out, wiring issues, or control signal issues
• Mechanical fatigue—spring weakness, seat erosion, and cracks in the housing caused by pressure spikes
• Installation error—excessive torqued fittings, improper alignment, or the wrong size of valve appropriate for the application

Diagnostic approach

A planned approach helps save time and helps avoid unnecessary part swaps. Begin by examining the area for damage, leaks, or leaks that are external to the system or loose connections. Then, conduct an electrical test on valves operated by solenoid—check the voltage at the coil and test resistance against the specifications of the manufacturer. Then, you can take readings of pressure at the most critical points of the circuit to determine whether the pressure drop is happening at the valve or in other locations. If leakage from the internal circuit is suspected A leak test on the cylinder or a flow meter inspection across the valve will confirm the diagnosis prior to removal.

Preventing valve failure

Regular oil analyses, regular filter changes, and keeping fluid in the proper ISO cleanliness standards will go beyond any single fix in prolonging the life of a valve. This is coupled with periodic thermal imaging to detect early heat buildup, and performing a torque check on fittings during scheduled maintenance will address most sources before they escalate into symptoms of failure.

What's the most commonly used early warning indication of a failed valve in a hydraulic system?

Slow or slow actuator response is typically the first noticeable sign, as it indicates the increasing leakage inside the valve before the valve is completely destroyed.

Do valves that are not working properly cause damage to other components of the system?

Yes. The excessive heat and instability in pressure caused by a damaged valve can enhance seal wear and degrade the fluid throughout the circuit, causing damage to motors, cylinders, and pumps. motors.

How can I tell the source of the noise, either from the valve or the pump?

It is possible to isolate the sound by using the stethoscope of a mechanic or screwdriver positioned close to every component. Valve chatter tends to be more pronounced and concentrated near the manifold. On the other hand, the noise of the pump (cavitation whine, cavitation) typically is louder and more concentrated around the housing of the pump.

Is the cylinder's drift always attributable to valves?

It's not always the case. Worn seals in cylinders may cause similar symptoms. A drift test in conjunction with isolation of the valve (blocking flow directly at ports on the cylinder) will help differentiate it from the other.

When should valves for hydraulics be examined?

The majority of manufacturers recommend functional and visual inspections at regular maintenance periods (every 250-500 hours of operation) with periodic inspections in high-cycling or high-contamination settings.
