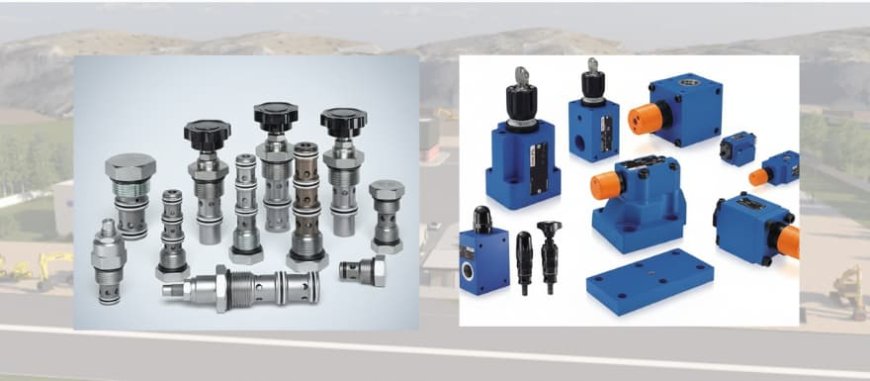

How Hydraulic Valves Rule Pressure, Flow, and Direction

The world is filled with heavy machines, from the massive excavators that shape our cities to precisely designed injection molding machinery that produces plastics for everyday use. Power is not possible without control. This control system is called the hydraulic valve. It is often hidden under layers of grime and steel. These components constitute the heart of any system that runs on fluids that converts the energy of the pump into the deliberate, controlled movement required to perform the work.

A hydraulic system is closed-loop, which means that the hydraulic liquid (usually oil) is pressurized through the pump. Valves include the traffic police as well as the regulators and safety inspectors who control the flow of this fluid. They are divided into three main groups, each one responsible for regulating one of the three essential parameters of the system: Pressure, Flow, along direction.

1. Direct Control Valves (DCVs) The Traffic Cops

Directional Control Valves (DCVs) may be the easiest to grasp. Their primary purpose is to change, stop, or begin the flow of pressurized fluid into the actuator (like a cylinder or motor). Changing the path that the fluid follows in the DCV determines the direction of the movement.

A Sliding Spool Theory

The center of the majority of DCVs is the slide spool. The spool is a precisely-machined cylindrical cylinder that has wider sections known as Lands and smaller sections known as grooves (or ways). The spool is positioned within a bore of the valve body that is equipped with several ports (Pressure 'P', Tank "T ", and actuator ports A and B).

1. Neutral position: When a valve is 3-position, the spool is centred by springs. In this situation, the land block P port or attach all ports on the T port, thereby stopping the actuator from moving or permitting the valve to "float."

2. Action Position (Shifted to the right): An external force (manual lever, solenoid, or pilot pressure) moves the spool towards one side. This motion is able to align the grooves of the spool with the ports, resulting in a new flow path. For instance, linking the ports P and A as well as the B side. This redirects high-pressure fluid towards the A side of the cylinder, which causes it to expand while the fluid leaving the 'B' end returns to the tank.

3. The Actuated Position (Shifted left): Shifting the spool the opposite way alters flow linking A to P in addition to A with T, and causes the piston to retract.

DCVs are classified according to the number of ways (ports) and positions they are equipped with (e.g., the 3-position valve with four ways). They are the primary components that enable the user to lift, lower, extend, or retract a part.

2. Pressure Control Valves: The Safety Inspectors

Pressure is the main source of all force within the hydraulic system. But pressure that is not controlled can cause catastrophic failure of the system, rupture of the hoses, and the destruction of actuators. Control valves for pressure are crucial to ensure security and safety, as well as for sequencing.

A. Pressure Relief Valve (PRV): The System Guardian

The most crucial valve for controlling pressure can be found in its Pressure Relief Valve (PRV).

• Funktion: To limit the pressure that can be applied within the entire system.

• Work Principles: A PRV is a valve that is normally closed and that is shut by a spring that can be adjusted (or an adjustable Pilot pressure). If the pressure of the fluid entering the valve is greater than the force that is set by the spring, it rips off the internal spool or poppet. The valve opens that allowing extra fluid to be discharged back into the reservoir (tank), bypassing the other components of the process. This is a controlled bypass that stops the pressure from getting above the valve's set point, which protects all downstream components.

B. Pressure Reducing Valve (PRV) The Section Regulator

In contrast to the Relief Valve, which shields the entire system from high pressure, the Reducing Valve, on the other hand Reducer Valve is designed to protect the pressure of a particular segment of the device.

• The purpose of HTML0 is to  maintain a steady, low tension on a branch circuit regardless of the principal system's pressure.

• Work Principles: This is a normally open valve which alters its opening to cause an increase in pressure. It detects the downstream pressure and then closes it just enough to limit the flow while keeping the desired pressure in the section.

C. Sequence and Counterbalance Valves

• Sequence Valves. They are used to make sure that one process (like clamping) is complete, and it reaches the pressure that is set prior to a subsequent procedure (like drilling) being permitted to begin.

• Counterbalance Valves. These are fitted to actuators that are able to support loads of high weight (like crane booms). It's a typically closed valve that maintains a backpressure on the rod of a cylinder. This prevents the load from moving away or falling down due to gravity.

3. Flow Control Valves: The Speed Control Valves

While DCVs decide the direction the fluid flows and PRVs decide the force they push, flow control valves determine the speed at which an actuator can move. Based on the concept that the flow quantity of fluid that enters a cylinder in time determines the speed at which the piston moves.

A. The Orifice and Throttling Valves, as well as the throttle

The most basic device for controlling flow is one that is a throttle valve or an adjustable orifice.

• Operating Principles: These valves simply create a limitation within the pipe. When a screw is turned or a needle is moved, the cross-sectional space of the fluid passage narrows. This narrowed area makes the fluid flow slower (or decreases the amount of fluid flowing through per minute), which, in turn, reduces the speed of the actuator.

B. Pressure-Compensated Valves to Control Flow

Simple throttles work; however, they come with an important drawback: when the pressure on the actuator shifts and the pressure downstream changes as well, which alters the rate of flow (and consequently how fast).

• Work Principles: A pressure-driven flow valve can solve this problem by incorporating an compensator spool. This spool is able to sense the drop in pressure through the orifice that is adjustable, and automatically adjusts a second compensating orifice to ensure the pressure drop stays constant. Since the drop in pressure across the orifice remains constant, the resultant flow rate also remains constant, which means that the speed of the actuator remains the same irrespective of the load fluctuation.

Automation Revolution: Proportional and Servo Valves Automation Revolution: Proportional and Servo Valves

Modern hydraulics demand speed and precision that is far beyond the capabilities that solenoid or manual valves offer. This is the point at which proportional as well as Servo Valves step in.

These valves are basically precise DCVs, also known as Flow Control Valves that operate through electric current (solenoids) rather than simple switches for on/off.

• Proportional Control instead of three or two discrete positions (on/off/neutral), A proportional valve's spool's position is infinitely adjustable in direct proportion to the strength of the electrical signal. This permits seamless acceleration as well as deceleration of large loads, which makes movements more precise, as well as lessening mechanical shock.

• Servo Control Servo valves are the pinnacle of hydraulic precision, providing very high resolution and quick response times. They are usually utilized in a closed-loop system (with feedback sensors) to ensure exact control of location, velocity, or force in active applications such as robotics and flight simulators.
