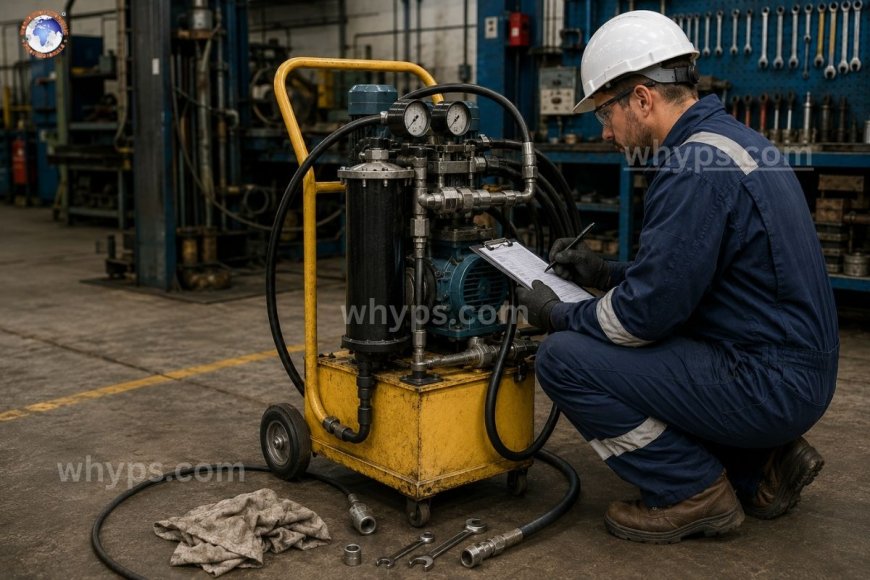

How often should a Hydraulic Filter Cart be inspected?

A hydraulic filter cart should be visually inspected before every use, have its filter condition indicator checked during each filtration cycle, and undergo a full mechanical and electrical inspection at least once every 3 months under normal duty—with high-duty or contamination-critical applications requiring monthly checks. The filter elements themselves must be replaced according to the differential pressure readings and not according to a set calendar, generally every 200-500 working hours based on the fluid's cleanliness goals.

Filter carts are among the unspoken mainstays for hydraulic repair. They're used to polish the reservoir's oil or move fluid from one system to another or "kidney-loop" to return a machine to its original state after an issue with seals or a teardown of components. Since they're portable and are used only intermittently, rather than constantly like an in-line filtering system, it's common to let inspection schedules fall off. A cart that is parked in an area for weeks between tasks doesn't receive the same amount of attention as plant equipment that is fixed—which is exactly why issues go unnoticed until the cart itself becomes a contaminant source.

What is the importance of frequency for inspections on carts for filtering?

A hydraulic filter cart's primary mission is to clean particles, water, or varnish precursors in oil. If the cart's components are damaged, such as a leaking pipe, a saturated component, or a pump seal that is failing -- it ceases to perform the job and could introduce contaminants into an area that was completely free of contamination prior to the arrival of the cart. Since filter carts are often distributed across multiple machines or even several sites An issue that's not addressed will not stay confined to one particular asset. A worn suction fitting or an O-ring that has lost its seal can slowly contaminate each device that the cart comes into contact with afterward.

The frequency of inspection isn't a fixed number; it's based on three aspects that include how frequently the cart is utilized and how dirty the fluid it uses will be, as well as how crucial it is that the systems downstream are. Carts that are used every week in a foundry's high-pressure presses require more stringent oversight as opposed to a cart that is used every quarter for routine oil transfer in a light-duty operation.

Inspections on a daily basis / pre-use

Each time a cart for filtering is put out, an initial check of the cart is only a few minutes, and it reveals the majority of preventable failures.

What should you be checking prior to every use?

• Fittings and hoses Examine and suction the hoses for cracks and abrasions, kinks, or spots of softness. Make sure that quick-disconnect couplings sit properly and do not show any fluid leaks.
• Filter condition indicator Examine the gauge for differential pressure or the clogging indicator prior to beginning. If you see a gauge that is in the red or yellow zone, it indicates that the component is required to be replaced before the machine starts to work, not after.
• Clear and clear vision The cart has a view window or a reservoir check at the surface for sludge, visible water, or an unusual hue that may indicate that the cart was not drained or flushed following its previous job.
• Motor housing and power cord If you have electric-driven carts, make sure you check for damage to the cord, make sure you have grounded them, and ensure that the motor doesn't show signs of discoloration due to overheating.
• Frame and wheels—A mobile, stable cart is safe from tipping and hose strain in operation.

The pre-use test is not so much about deep diagnostics and more about identifying obvious apparent issues prior to them becoming operational issues during the course of work.

Monitoring during use

When a filtration process is in place, the cart requires periodic maintenance, rather than a "start it and then walk away" strategy.

Checks in-cycle

• The pressure of differentials is trending upwards—monitor the indicator for clogging throughout the course of your job. A differential that is rapidly rising indicates the element is loaded faster than anticipated, which can indicate an extremely contaminated system or a filter that is too small to do the job.
• Flow rate consistency A drop in flow but without an accompanying rise in differential pressure may be a sign of wear on the pump or cavitation, rather than load on the filter.
• Leaks under pressure Fittings and hoses that seemed fine at rest may be spotted as leaks or weeping once the system is pressured. Make sure to walk the hose's runs regularly when working for longer periods of time.
• The unusual vibration and noise of pump sounds, usually an increased-pitched whine or knocking, is the earliest air-ingestion or cavitation signal that is worth taking a moment to study.

Preventive maintenance inspections on a regular basis.

Beyond the regular checks, filter carts require a scheduled and well-documented inspection that is more than a stroll.

Monthly (High-duty or contamination-critical use)

Carts that are frequently used or designed for crucial equipment such as pressing hydraulics, injection molding, and turbine lubrication systems are required to be inspected every month for:

• Pump seal condition and any indications of leakage inside the pump
• Condition of the motor bearing and amperage draw in comparison to the baseline
• O-rings in the housing of filters and gaskets for integrity
• Calibration test of the gauge's differential pressure against an established reference
• The pressure rating for the hose assembly as well as the end date (hoses have a life span independent of wear visible)

Quarterly (standard/general-purpose use)

For carts that are used for intermittently general-purpose fluid transfer or for routine top-off filtering, a quarterly inspection is usually sufficient.

• Complete functional and visual inspection of all items listed above
• Inspection of the internal filter housing for damage to the filter or wear of the element bypass
• Verify that bypass valves (if fitted) are open to the right pressure.
• Inspection of electrical safety, including ground fault protection for electric appliances

Annually

A regular inspection is more thorough and usually involves disassembling important components:

• Tests of performance or teardown of the pump against OEM flow and pressure specifications.
• Complete hose assembly replacement, regardless of the condition that is visible as per numerous industry guidelines
• Recalibration of the pressure gauge or replacement
• Examining maintenance logs to find any patterns of failure that are recurring.

Filter element replacement based on condition and not based on calendars.

It's important to differentiate "inspecting the equipment" in contrast to "replacing an element of the cart" because they both are different in their principles. The life of the element is determined by the amount of contamination present in the liquid being treated, and not the elapsed time. An indicator of differential pressure that is in either red or that is close to the manufacturer's specified bypass threshold triggers to replace the element regardless of how long or days have gone by. For a general point of reference, the polishing components in moderate-duty service can last for between 200 and 500 hours; however, one job that filters out contamination can push an element up to its limits within a matter of hours.

The creation of an inspection log that is actually utilized

The biggest issue in maintaining the filter cart isn't a lack of a plan but rather the lack of a journal that's adhered to. An easy tag that is attached to the cart, which records the date of the last inspection, as well as differential pressure readings throughout time, as well as hours of service in the time since the last time an element was changed, transforms an inspection from an assumption into an informed decision based on data. The trending differential pressure across different jobs can also help identify the time when a cart's filtering efficiency is declining slowly before it becomes a major operational issue.

How can I tell whether my filter cart's element requires replacement?

Check your differential pressure gauge, or the indicator for clogging. If the reading is close to the threshold set by the manufacturer for bypass—typically indicated in the red-to-yellow zone—the device is recommended to be replaced no matter the length of time it's been in service.

Can a hydraulic filtration cart cause contamination instead of eliminating it?

Yes. A cart that has a damaged hose, a leaky seal on the housing, or an element that has been bypassed could introduce particulate matter or water to a system, rather than eliminating it. This is the reason why pre-use inspections are important just as regular maintenance.

What is the frequency at which the hoses of a filter cart are changed?

Hoses must be checked prior to every use and should be replaced in the event of cracks, abrasions, or fitting leaks developing. A lot of maintenance programs replace the hose assemblies on a calendar, regardless of the apparent condition, as hose material deteriorates internally over time.

Does a filter cart have the same frequency of inspection as an in-line system filter?

No. In-line filters are continuously running and are continuously monitored through the system's internal instruments. Filter carts are utilized infrequently, and their frequency of inspection is built around the frequency of use that includes checks prior to use every time, as well as monthly or quarterly inspections, based on the level of duty.

What is the most significant reason behind the failure of a filter cart on the ground?

Maintenance of seals and hoses that is not done is among the most prevalent reasons, as these components are slowly degrading and may not be able to easily pass a simple visual inspection when they're already damaged under pressure.
