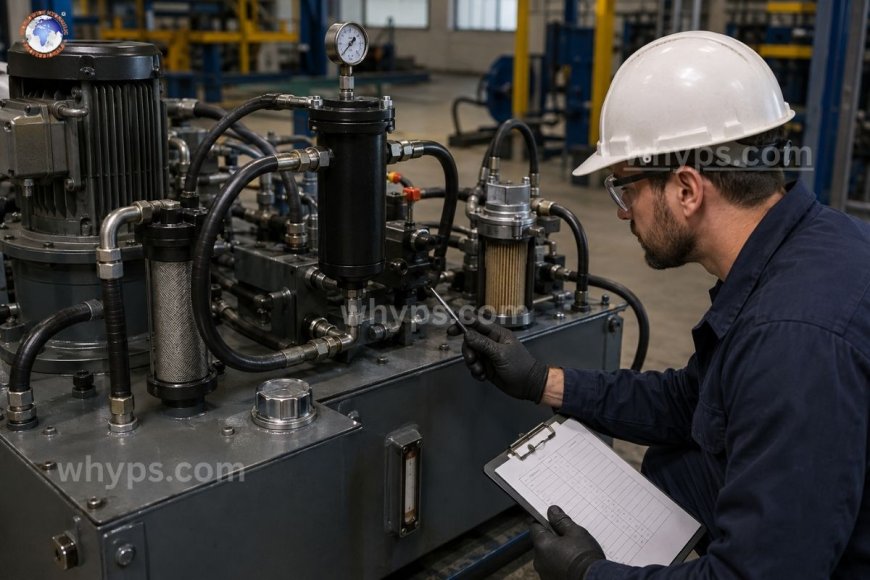

Does filter placement affect system performance?

The location where a filter is located in a hydraulic circuit affects the protection it provides as well as how it operates and the way in which the system functions. Suction filters guard the pump but limit flow if they are oversized incorrectly, and pressure-line filters protect downstream components such as servo valves but have to handle all system pressures, and return-line filters filter out the contaminants created by the system before it is recirculated. The location of the filter is not interchangeable; each location affects the protection level and flow restriction, pressure drop, and the life of components in a distinct way, making the wrong choice could cause performance degradation in the background before it leads to a complete failure.

The engineers of hydraulics often view filtering as a one-stop decision that includes the micron rating, what media is which, and what brand. However, the physical position of the filter within the circuit is equally significant. A filter that performs admirably in one place could starve a pump block of contamination or even fail prematurely in a different one. Understanding the mechanics of the various placement options is what differentiates the filtration technique that shields it from one that merely is a way to check a box.

The reason for this is because the place of placement affects the filter's function?

Each location of the filter in a hydraulic system is an individual combination of flow velocity, pressure, and the type of contaminant. Filters aren't just a generic barrier but rather an element that is tuned to the circumstances at a particular location within the loop. Moving the same filter's housing from one place to the next alters the pressure differential over the element, as well as the possibility of cavitation occurring upstream and the type of particles it's likely to meet first.

This is the reason why filtration specifications (micron rating beta ratio, micron rating, and collapse the pressure) only tell a portion of the tale. The second half is about where the element is located with respect to the pump actuators along with the reservoir.

Suction filters protect the pump, but at the cost of

The suction (or the inlet) filters are located in between the reservoir as well as the pump's intake. Their purpose is to block massive debris—such as weld particles, assembly contamination fine particulate, and so on—from getting into the pump's space before it begins moving the fluid at a high pressure.

The trade-off is restriction. Pumps are extremely sensitive to the inlet vacuum, and excessive restrictions on the suction side can cause cavitation, which damages the internals of the pump and creates the distinctive whining sound that operators identify as wear and tear on the pump. Because of this, suction filters are typically restricted to micron ratings of coarse (74-149 millimeters) and have a significantly larger surface area compared to return or pressure filters to ensure that pressure drop remains low enough to prevent the pump from being starved.

When done properly, suction filtration prolongs the life of the pump by removing most harmful particles. If it is not done correctly—inadequately sized or with a too fine rating, or left unattended until it becomes blocked—it's the most frequent reason for premature cavitation failures on the job.

Pressure-line filters are designed to protect the most delicate components.

Pressure filters are fitted just downstream of the pump, usually prior to the flow reaching vital components like proportional valves and servo valves and precision cylinders. Since they are on the high-pressure side, they need to be rated to withstand the full pressure fluctuations and system pressure without breaking or collapsing, which is a significant difference from return and suction filters, which are only able to see low-pressure conditions.

This position allows for more precise filters (down to 3-10 microns for precision systems) because the pump already generates flow and isn't affected by the filter's resistance as it is on the side that is suction. The pressure filters will be the most common option for protecting components that have tight clearances inside, because they are the most susceptible to fine particulate contaminants and are the most costly to replace.

Performance impact: Pressure filtration directly safeguards the components that are most susceptible to silent progressive wear—valve spools, mechanical servo mechanisms, and precisely machined surfaces. A properly specified pressure filter usually will have the greatest impact in extending the lifespan of hydraulic components with high value.

Return-line filters are able to remove contamination right at the source.

Return filters are located in the line, bringing liquid back into the reservoir once it has completed its job within the actuators. This is where a significant portion of contamination within the system comes from wear debris that comes from valves, cylinders, and seals that occur in normal operation.

Because the return line pressure is lower and the filters are able to accommodate fine micron ratings, without the pressure-rating requirements of an apressure-line filter. This makes them an economical way to attain high filtration efficiency. The capture of contamination here, prior to it entering the reservoir again and getting recirculated, is one of the most efficient methods to maintain the system's cleanliness low in time. It is more effective over the long run than filtering only on the pressure side because it eliminates wear debris in its source instead of repeatedly removing it downstream.

Return filtration's impact on performance is the primary factor that lowers the level of baseline contamination over time. It's a process that takes months or many years, not only protecting a single component at a particular period of time.

Combining placements for the best system performance

In actual use, most well-designed hydraulic systems don't have one filtering location; they mix suction pressure, suction, and return filtration, each performing something that the others cannot. Suction filtration helps protect the pump from a rash of debris. Pressure filtration guards those downstream parts that are most vulnerable in real-time. Return filtering reduces the overall level of contamination in this system through the capture of wear debris generated by the system prior to recirculation.

Systems that do not use any of the layers will typically display them in predictable ways. The suction-only or pump-only filtering results in premature servo and valve failure, even in a "clean-looking" system, because tiny particles of dust that are not threatening the pump's integrity remain a threat to tighter tolerance components downstream. Pressure filtration by itself, without return-side filtration, can display progressively rising system-wide contaminant levels over time as wear debris circulates instead of being absorbed.

Placement mistakes that are commonplace and can affect performance

Some placement mistakes appear repeatedly during field troubleshooting. Oversized micron ratings on suction filters (using a pressure-filter-grade element on the suction side) cause chronic cavitation. Insufficient surface area on any filter element increases bypass valve activation and means that contamination of the fluid bypasses the element completely, and the system continues to run in a state of non-filtration without any obvious alarm. In addition, ignoring return line filtration for systems that have high cycling of actuators like presses and repetitive-motion equipment -- permits wear debris to accumulate continuously, even if the fluid appears clean.

These errors aren't necessarily obvious at first. They usually appear months later, as components wear out, increased production of heat, or the gradual decline in system efficiency. This is exactly why filter placement requires the same level of attention to engineering as the selection of filters.

Does the placement of filters affect more than the micron rating of filters?

They are a team effort, rather than each one of them being more important. The micron rating defines the amount of information a filter is able to capture, while the location determines what conditions it's taking in and the components it shields. Fine-micron filters placed in the wrong place can limit flow or even fail prematurely, whereas the filter that is placed correctly and with the proper rating will function exactly as it was designed.

Does one filter location have to be used to meet the requirements of all contaminants?

It's not always reliable. Pressure, suction, and return filters all address different sources of contamination and safeguard various components. The most reliable systems employ a combination of these instead of relying solely on one area on its own.

Why do suction filters not have the same fine micron ratings as the pressure filter?

Fine media causes more resistance to flow, and the suction side is extremely vulnerable to restriction as it is based on the vacuum pressure between the reservoir and the pump. A high level of resistance can cause cavitation, which is why suction filters have more coarse ratings and have larger surface areas instead.

What is the most obvious indication that the placement of filters could be causing problems?

Failure or wear of components that is recurring—particularly in servo or valve components, despite the fluid being visually clean—is a frequent indication that the filtration system isn't properly placed to capture the fine contaminant that is causing the issue.

Does return line filtration lessen the requirement for pressure-line filtering?

No, they are serving different time frames. Pressure filtration safeguards components in real-time while fluid flows into them. Return filtration decreases the baseline of contamination in the system over time. The removal of either can weaken the overall control of contamination.
