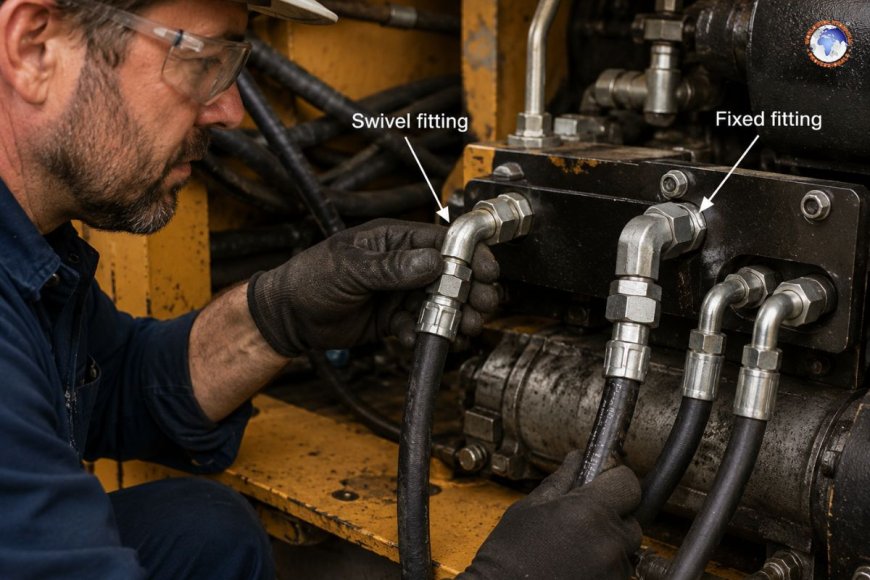

Hydraulic swivel fittings vs fixed fittings: choosing the right joint for tight spaces

Swivel fittings permit rotational movement between the components that are connected They are therefore indispensable in installations that have small clearances or dynamic loads. They also allow for frequent changing of positions. Fixed fittings are strong as well as leak-proof and cost-effective for straight-run, static installations. The best choice is contingent on the routing geometry and tension rating, maintenance frequency, and the space available for assembly.

What is the significance of choosing the right type more than you believe it is?

In the hydraulic system design, fittings don't get the attention they merit. Engineers take their time selecting the correct valve, pump, or cylinder, and then they leave the fitting selection to habit or the convention. This method is effective until the moment it fails and a wrong fitting to an articulated joint that is tight leads to hose twisting and premature failure of the seal, cracks in fatigue, and ultimately a leak under pressure.

The difference between a swing fitting and a fixed one is clear on paper. In reality, deciding between the two in real-world installations, particularly in layouts that are constrained or confined, will require knowing how each one handles movement, load, and stress on the assembly.

How do I identify a fitting that is fixed?

Fixed fittings create an unmoving, rigid connection between a tube and the port. Once the fitting is tightened, its body is secured in place. The fitting is mechanically straightforward; the fitting sits against the port's face or thread, and a seal is created (via O-rings, metal-to-metal, or compression) The joint remains in place.

Fixed fittings constitute the most reliable type for hydraulic plumbing. They are offered in every standard thread such as NPT, BSP, JIC, SAE, ORFS, and DIN—and are able to handle very high pressures with ease when they are installed correctly. Straight elbow (45 deg, 90 deg) and run tee configurations are the most common routing requirements in solid, non-moving systems.

The problem is evident when the assembly is completed. When using a fixed elbow, for instance, the mechanic has to orient the fitting to the proper angle prior to final tightening, and after torque is applied to it, the angle is set. If the area is overly tight, it can create problems with sequencing The hose route must be planned precisely, and there isn't any adjustment tolerance following the installation. If the hose's path changes slightly due to a component change or conditions in the field, then an angle for the fitting is incorrect, and the hose will develop a twist or side load on the port.

What is a fitting with a swivel?

The swivel fitting allows for the fitting body to turn freely around its axis prior to final tightening (adjust the swivel) or continually during the operation (leave the swivel). The freedom to rotate fundamentally alters how the fitting is able to handle the geometry of the assembly and how it moves dynamically.

Swivels that can be adjusted (the most commonly used kind) make use of a backnut as well as an O-ring face seal, or O-ring boss. You can rotate the fitting body at any angle prior to fixing the backnut, making routing in tight spaces much more convenient. The hose is connected to the fitting first, and then it rotates to match the port. Then the back nut is torqued; there is no need to plan ahead.

Live swivels (also known as continuous swivel joints) provide 360-degree rotation under operating pressure. They are employed in cases in which connected components are able to move in relation during normal machine operation. Examples include reel assemblies, rotating booms drilling heads, reel assemblies, as well as turntable hydraulics. Live swivels prevent the hose from twisting when the component is rotated.

Multi-plane swivels provide another degree of freedom by allowing the articulation of two or more axes. They are found in steering cylinders and multi-axis machine head designs where single-axis swivels would still transmit torsional strain.

Head-to-head: swivel or fixed in tight space

The term "tight spaces" actually covers many different installation issues, and fixed and swivel fittings deal with them in different ways.

Assembly clearance. If there isn't enough room to move a wrench or turn a hose assembly, adjustable swivel fittings make it simpler to put in. It is possible to thread them without turning—by using the back nut with the last angle dialed in before locking. Fixed elbows, in the same way, will require all hose to be rotated during tightening which isn't always possible when nearby components hinder the movement.

Hose routing geometry. For machines that have complex 3D hose runs—agricultural machinery, construction equipment, and marine hydraulics—fixed fittings need each elbow angle to be precisely right. The swivel fittings permit minor angular corrections on the ports, which reduces the pressure at the hose's ends and increases the hose service duration.

Applications that are dynamic. If any component of the system is moved in the course of operation, a fitting fixed will transmit the movement into the hose in the form of side loading, torsion, or tension stress. Even tiny, repeated movements lead to wear and tear at the hose fitting interface. Live swivels absorb the rotational part of the motion completely, thereby making sure that the hose remains in a neutral position no matter what component is connected.

Resistance to leaks. Fittings that are fixed and have the proper thread sealant as well as O-ring face seals can be among the more secure leak-proof connections that are available. Swivel fittings provide an additional dynamic seal—the O-ring that is placed between the body rotating with the backnut, adding a possibility of leak paths. For extremely high-pressure applications (above 500-400 bar) Fixed fittings are usually preferred in cases where movement is not possible.

Weight and cost. Fixed fittings are cheaper, lightweight, more compact, and more mechanically simple. When manufacturing machines are high-volume and the routing is consistent and fixed, the cost savings of fixed fittings over hundreds of connections are significant. Fittings that swivel are justified by the problems they solve rather than as a blanket upgrade.

Common application scenarios

Fix fittings only when:

• The hose runs are straight or utilize normal elbow angles, which can be precisely adjusted in the process of assembly.
• Operating pressures are high, and leaks are the main concern
• This system remains staticThere is no relational movement between connected components during operation.
• The price of volume is crucial and the route is clearly defined

Use swivel fittings when

• The geometry of the assembly makes an alignment for fixed fittings difficult or even impossible
• Connected components turn or pivot in the course of machine operation
• The system needs regular reconnection and disconnection of the hose (swivels reduce the accumulation of torsional stress)
• You're dealing with long hose lines in which end-to-end twist accumulates in the course of installation
• The application is a spinning circuit (winch turntable for cranes' continuous reel)

The material and the pressure rating are important considerations.

Both types of fittings are offered in brass and stainless steel. Carbon steel coated with zinc plating can be used for the majority of hydraulic applications in industry. The corrosive properties of stainless steel are a prerequisite for environments like food processing, marine, chemical handling, and food processing. Brass is restricted to lower pressures and commonly used in pneumatic or fluid transfer applications, not high-pressure hydraulics.

Fittings for swivels have a lower pressure limit than comparable fixed fittings of the identical dimensions and materials because of their dynamic seal. Always confirm the manufacturer's recommended working pressure for your specific type of swivel, specifically for live swivels that have to maintain their seals under continuous rotation. SAE as well as ISO standards offer guidelines; however, datasheets from the manufacturer are the primary source for every product line.

Installation best practices

When using swivels that can be adjusted, make sure the O-ring sits properly prior to tightening the nut on the back. A pinched or off-center O-ring will leak right away under pressure. Utilize the specifications for torque of the manufacturer Over-tightening a reverse nut swivel distorts an O-ring groove, causing the same leak that it was intended to prevent.

To fix fittings that are tight spaces, connect the fitting-to-hose connection in full before inserting the fitting into the port. The hose's end must be tightened first before threading the fitting fixed into the port in the proper direction. If it is impossible to achieve the correct orientation with hose twist, think about whether a swivel fitting would be better suited to the location.

Do I have to utilize a swivel fitting instead of a fitting fixed in all places?

Technically, yes, in many instances; however, it is not advised. The cost of swivel fittings is higher; they include dynamic seals, and in systems with high pressure, they can reduce the pressure margin. Make use of them when the movement or geometry demands it.

What can I tell whether a hose was bent during the installation?

Verify the lay line, the printed line that runs through the hose. If it spirals instead of is straight, it means that the hose was installed under tension in the torsional area. Reinstall the hose using a swivel or alter the routing.

Are live-swivels swivels in need of maintenance? Need maintenance?

Yes. The seals inside wear out with the cycle of rotation and should be checked regularly. High-cycle rotating unions usually have a specified time frame for service according to the specifications of the maker.

The most frequent source of leaks from swivel fittings?

O-rings damaged during installation due to cross-threading or insufficient torque or a pinched seal. Be sure to inspect the O-ring prior to installation or replacing it when you have any doubt.
