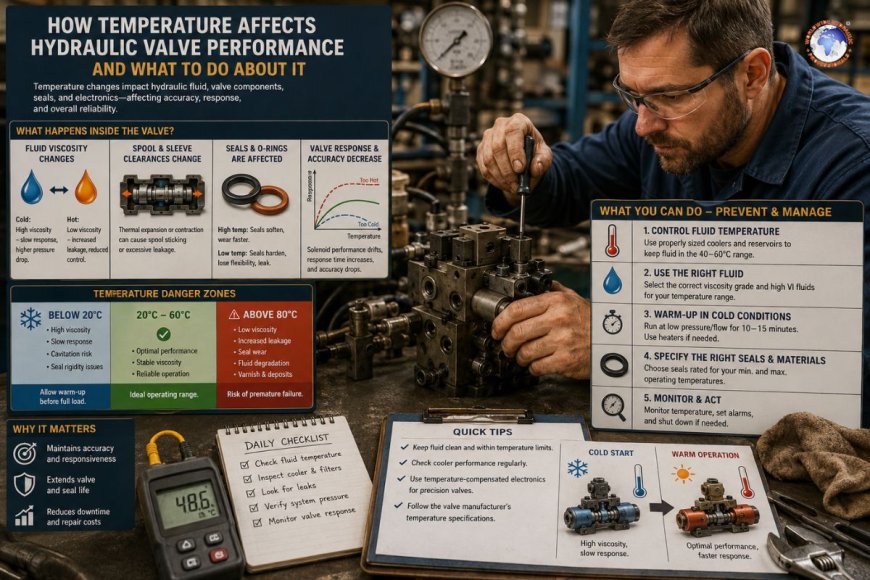

How temperature affects hydraulic valve performance and what to do about it?

Temperature fluctuations alter the viscosity of hydraulic fluid and alter the dimensions of seals as well as shift the spool clearances for valves and weaken internal components—all of which affect the accuracy and reliability with which the valve is opened and closed as well as regulate the flow. The ability to control temperature isn't a luxury and is essential to keep an entire hydraulic system functioning to the highest standards.

Why is temperature the most important factor in the performance of valves?

The majority of problems with hydraulic valves are blamed on wear and contamination or improper pressure settings. However, temperature—either too high or too low—is silently behind a myriad of valve failures that are not explained as well as erratic actuator performance and premature cycle replacement of components.

The reason is straightforward: nearly every parameter that governs valve function is temperature-dependent. Viscosity of fluids fluctuates. Parts of metal expand and contract. The materials that seal them expand or harden. Electronics inside smart valves drift. If any of these move out of the design window, the valve ceases to operate as it was designed to behave.

Knowing the mechanisms can help you avoid problems, instead of reacting to them.

What is happening inside the valve when the temperature fluctuates?

The fluid viscosity of HTML0 is the most obvious casualty

Viscosity is the single most temperature-sensitive property in a hydraulic system. When the temperature of the fluid increases, the viscosity decreases, often dramatically. Mineral oil operating in ISO VG 46 will thin substantially between 40°C and 80°C. Thicker fluids leak more easily through the internal spool clearances, decreasing the pressure differential that a valve is able to maintain and boosting internal bypass, meaning that it appears that the valve is controlling flow, but it isn't.

Cold start is the mirror issue. At lower temperatures, viscosity increases, which requires more differential pressures in order to push fluid through the valve's outlet. Proportional and servo valves could get sluggish or completely inactive at cold start due to the fluid not being thick enough to be able to flow quickly enough to be able to follow the electrical signal.

Spool and sleeves clearances change

The directional valve spool rests inside a precisely machined sleeve that has a clearance in microns. Both components are made of metal (usually hardened steel), and both expand when heated. Since spools and sleeves are typically made of the same material that expands at a similar rate, which can help. However, uneven heating, differing sections, or mixing of materials (e.g., the cast iron body containing an iron spool) can result in an expansion of the thermal surface that makes the fit tighter, which causes the spools to stick or open the space, which increases the leakage.

Spools that stick in cold temperatures are also common. The combination of high-viscosity fluids as well as greater tolerances to thermal contraction could make an item that functions perfectly when operating at a temperature that feels completely stuck at the point of startup.

Seals and O-rings react to temperatures

Seals are extremely dependent on temperature. The NBR (nitrile) seals, which are the most commonly used general-purpose hydraulic seals, will become brittle at 20°C and then degrade after 100°C. FKM (Viton) seals can withstand higher temperatures but are more expensive. The PTFE seals are able to withstand extreme temperatures in both directions; however, they possess their specific compression and creep characteristics.

The high temperatures cause the seals made of elastomeric to expand and increase friction on moving parts such as the pilot pistons as well as spools. In time, seals will get harder, crack, and expand into clearances that can cause valve bypass, leaks outside, and, eventually, catastrophic failure of the seal. The cold conditions cause seals to become stiff and less flexible, which reduces their ability to adapt to mating surfaces and allows leaks.

Response time of the valve and accuracy decrease

For servo and proportional valves, temperature influences not only the fluid's behavior but also the control electronics as well. Solenoid coil resistance rises when temperatures rise, which in turn reduces the current flowing to the solenoid at a particular voltage. This means that the force that is applied to the spool is altered regardless of whether the command signal does or not. For precision motion control applications, this can result in error in positioning and hysteresis, which alters as operating temperatures change.

The speed of response is also affected. A valve that is designed to respond in 50 milliseconds when tested under normal tests may be less quick when the liquid is viscous or cold or display overshoot and oscillation when the liquid is extremely small and the flow is moving faster than what the control loop anticipates.

The danger zones of temperature

The majority of hydraulic systems are designed to operate with temperatures ranging from 40°C to 60°C within the reservoir. Troubles usually begin to manifest out of this range:

Below 20 degrees Celsius (cold start) High viscosity, low valve response, the risk of cavitation, and sealing rigidity issues. The systems should not be used at full load until the oil has a chance to warm up.

60°C to 80°C (elevated yet manageable) The viscosity is not high; internal leakage rises and seal wear increases. Systems are able to run in this range for a short time, but fluid degradation accelerates.

Above 80°C (danger zone) The fluid oxidizes rapidly, varnish deposits build up on valve spools, seals break prematurely, and metal surfaces suffer an acceleration of wear. The majority of hydraulic fluids aren't designed to operate for long periods of time above the temperature of this zone.

What can we do to address it How can we prevent it? Prevention and management strategies?

1. Keep the temperature of the fluid within the design window.

The most effective method is to ensure that your system maintains fluid temperatures within the 40-60°C range in normal operation. A properly sized heat exchanger—either water-cooled or air-blast depending on the environment you are operating in—is the main tool used to manage the heat load. It should be sized to accommodate the highest heat output and not the typical load.

Don't forget about the size of the reservoir too. A reservoir that's too small will mean that the fluid circulates at a high rate and does not shed heat prior to returning to the pump. A good rule of thumb is a reservoir with a capacity that is three to five times the pump's flow rate per minute.

2. Make sure to use the correct grade of viscosity for your fluid.

The viscosity of your fluid should be in line with the temperature range that your system operates in. If your system is frequently hot, you should consider using a fluid with a higher viscosity ratio (VI)—which means it has less viscosity when temperature increases. Synthetic fluids generally offer a flatter viscosity-temperature curve than mineral oils and are worth the cost in systems with wide temperature swings.

Make sure you check the manufacturer's viscosity requirements. Many proportional and directional valves have a small acceptable viscosity range, and operating outside of it will void the warranty of performance.

3. Set up a warm-up process to combat cold temperatures.

In the colder climates or for outdoor applications, an unloading warm-up process before launching the system isn't necessary, but it is. The system should be run at a lower pressure and flow for 10 to 15 minutes to let the fluid achieve a working viscosity. Utilize low-watt immersion heaters in the reservoir when temperatures frequently drop below 5°C.

Certain systems are equipped with thermostatic bypass valves, which circulate fluid through the cooler only when the fluid has reached the minimum temperature, thus safeguarding the system in cold starts.

4. Make sure you specify seals and materials to the temperature range you are actually using

If your system is operating in extreme temperatures (above 80°C), choose FKM and PTFE seals, rather than the standard NBR. Verify with the valve vendor that all seals inside and O-rings are certified to the maximum and minimum temperatures you will experience. Seal kits are usually offered in a variety of temperature grades, and selecting the wrong one is an easy cause for premature valve failure.

5. Take action and monitor temperature data

A temperature sensor on the reservoir, which is monitored via the control unit of the machine, or an independent temperature switch is an inexpensive way to insure. Set an alarm for 70°C and shut down at 85°C. If you're using proportional or servo valves for precision applications, include temperature compensation into the controller to compensate for the drift in solenoid resistance.

In the case of systems where the performance of the valve directly affects the quality of the product or safety, you should consider regular thermal scanning of the manifold of the valve. Hot spots that are not expected typically reveal bypasses inside or a partially blocked spool before they cause system malfunctions.

Do I have to utilize the same valve for low and high temperature conditions?

It is not enough to verify the seal material and compatibility with fluids for the entire temperature range. A valve that is designed for normal industrial use might have seals that fail at extreme temperatures. Always confirm the valve's operating temperature with the actual conditions.

What causes my proportional valve to become inaccurate as the system heats up?

Two things usually happen at the same time: the solenoid current decreases as coil resistance increases with temperature, while the viscosity of the fluid decreases, altering the flow-pressure relationship through the valve's outlet. This means that the same command signal can produce an output that is different with different temperatures. The compensation for temperature in the drive electronics or a closed-loop position feedback system could correct for this.

When should I test the temperature of my hydraulic fluid during the course of

Continuous monitoring is recommended in all systems where temperature is a factor, which is the majority of them. It is recommended to check the temperatures at the beginning of each day, at high load, and also after each operational shift. If temperatures are rising in time, with the same workload, you should suspect the cooler is failing, there's an increase in loss of internal fluid, or there's a blocked filter.

Do biodegradable hydraulic fluids behave in a different way in temperatures that are extreme?

Yes. Biodegradable liquids, especially those based on HETG (vegetable oil-based) kinds, are generally found to perform less well at low temperatures and have an operating temperature range that is smaller as compared to mineral oil. The HEES (synthetic isomer) fluids have better performance across a greater range. Always refer to the data sheet prior to specifying biodegradable liquids for applications involving extreme temperatures.

Temperature management is a form of valve management. Maintaining your hydraulic fluid in the correct temperature range helps to protect spool clearances, prolongs the life of seals, maintains fluid viscosity, and also keeps an accurate proportional valve at the level that the specification says it is. Take your cooler, your fluid grade, and the warm-up procedure with the same care as you do your filtration system because the degradation of valves due to temperature is equally costly and less apparent.
