What Is the Function of a Hydraulic Control Valve?

A control valve for hydraulics regulates the direction and flow speed of hydraulic fluid in an entire system, turning the input of the controller or operator to precise and controlled motion. In the absence of control valves, power from the hydraulic system would flow without control from the actuator to the pump, which would make controlled lifting or steering, clamping, or adjusting impossible. Control valves act as part of the "brain" of a hydraulic circuit that converts commands into secure, reliable, repeatable hydraulic action.

Each hydraulic system—whether it's an excavator, injection molding press, aircraft landing gear, or agricultural baler—relies on valves that control the massive forces created by pressurized liquid. Knowing what these valves can do and how to use them is vital for anyone who's designing and maintaining or troubleshooting hydraulic equipment.

The primary function of a valve for hydraulic control

The most basic of all hydraulic systems is made up of a flow-generating pump and an actuator (cylinder or motor) working and fluid that connects them. If the flow were not controlled, it would force an actuator to its limit of mechanical velocity and full force each time the pump was running. Control valves are placed between the actuator and the pump to stop the flow and then shape it into something that is useful.

Control valves are responsible for three essential tasks:

1. Control of direction—understanding the direction fluid flows and, consequently, the way in which an actuator is moving (extend, retract, extend, turn in a clockwise or counterclockwise manner, or keep in the position).
2. Pressure control—limiting or reducing pressure to safeguard components and control the force output.
3. Controlling flow—regulating the flow of fluid to regulate actuator speed.

The majority of hydraulic circuits employ a mix of all three types of valves, usually being used together in one manifold or bank.

Control valves for directional movement: managing the flow of

Direct control valves (DCVs) can be the best widely recognized type. They are typically defined through the amount of ports as well as switching positions. For instance, a 4/3 valve is equipped with four ports and three positions. They route pressurized liquid onto one end of the motor or cylinder motor while opening a return route to the opposite side.

A typical spool valve 4/3 offers three different positions for use:

• Neutral - Fluid is either recirculated or blocked in the tank, which holds the actuator in the correct position
• The position A—Fluid routes to expand the Cylinder
• Position B—Fluid routes for retracting the Cylinder

DCVs can be operated by hand (levers) as well as mechanically (cams, springs, cams) or electrically (solenoids) as well as via pilot pressure. In modern industrial and mobile equipment, solenoid-operated directional valves rule because they are able to integrate seamlessly with control electronics that allow operators to control multi-functional machines with the same joystick or control panel.

Control valves for pressure: safeguarding the system

Pressure is the reason hydraulics are powerful; however, uncontrolled pressure damages components and causes grave safety hazards. Pressure control valves deal with this issue in a variety of different ways:

Relief valves are designed to limit the system's pressure by directing excess flow back into the reservoir when a certain threshold is met, safeguarding hoses, pumps, and seals from catastrophic events of overpressure.

Reduced valves reduce pressure to an additional circuit that needs less force than the primary system. This is common on machines where the clamping function requires lower or higher pressures than the lifting feature on the same pump.

Sequence valves guarantee that the motion of one actuator is completed before the second actuator starts by triggering an increase in pressure, signaling that the first one has completed its travel. This is essential in processes such as drill-and-clamp sequences on machines.

Counterbalance valves ensure back-pressure on one side that returns to a vertical valve. stopping a load suspended from falling free-falling in the event that a hose breaks or the directional valve changes abruptly.

Control valves for flow: controlling the speed

Since the speed of actuators is directly related to flows (not pressure), flow control valves decide how quickly a cylinder extends or spins. These valves limit the cross-sectional area that is available for fluid flow. The most common configurations are

• Needle valves—easy and manually adjustable orifices that allow for the fine tuning of speed
• Controls of flow with pressure compensation keep the flow constant despite the fluctuation in pressure caused by changing load conditions
• Flow dividers divide one stream source in two routes and are often used to sync several cylinders

Flow control is crucial for applications that require fluid, predictable motion, for example, putting up boom sections of a crane or feeding materials through a press where abrupt speed fluctuations could cause damage to the piece of work or even put workers at risk.

Proportional and servo valves' precise control

Beyond the standard on/off and fixed-orifice designs, a lot of modern hydraulic systems employ proportional valves or servo valves that allow for infinitely adjustable control, rather than fixed positions. A proportional valve makes use of an electrical signal to alter its spool's location continuously, providing users smooth ramp-up and decrease control instead of abrupt shifts.

Servo valves go further by using closed-loop feedback to compare the actual position of the actuator or force to a predetermined value and then adjusting the actuator in real-time. They are commonly used for applications that require high accuracy—such as injection molding and flight simulators as well as robotic manipulators, where even minor errors in positioning are inadmissible.

The compromise is cost and complexity proportional, and servo valves need cleaner fluid, more precise tolerances for manufacturing, and more advanced electronic controls that are more sophisticated than pressure or directional valves.

How do control valves fit into a complete circuit?

In a true hydraulic circuit, the valves are rarely used in isolation. A typical circuit for mobile equipment could include the following:

• A relief valve close to the outlet of the pump is used to stop the pressure of the system.

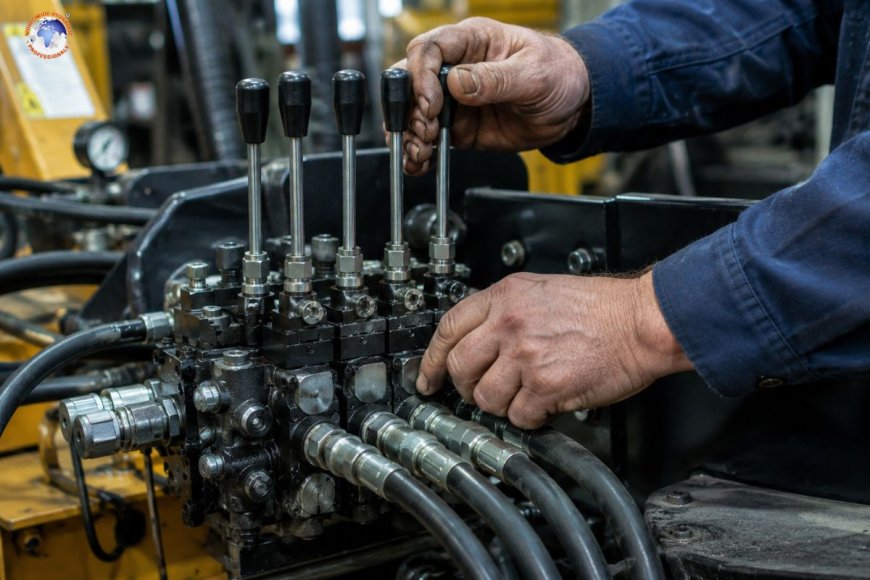

• A directionally controlled valve (often a multi-section valve bank) for routing the flow to various actuators
• The flow control valves are located on the specific actuator circuits are used to regulate the speed
• A counterbalance valve for any actuator that supports an unsupported load

This multi-layered design lets a single pump effectively and safely power multiple functions. Think of an excavator that is simultaneously bending its bucket and swinging its boom and then extending an outrigger all with one hydraulic power source.

What is the reason valve selection and maintenance are important?

Selecting the wrong valve type, size, type, or method could result in slow performance and excessive heat production, premature wear, or even unsafe operation. Insufficiently sized valves cause heat and pressure drop when they are too large. Oversized valves can result in unpredictability and jerky control. Contamination is a further issue Many valve failures can be traced to particulate matter contaminating the surfaces of spools or clogging tiny orifices of the flow control valves and proportional valves.

Routine maintenance must include monitoring for leakage within the valve (indicated by the slow drift of actuators) and checking the solenoid coil resistances on valves that are electrically operated and maintaining the cleanliness of the fluid as per ISO 4406 targets appropriate to the technology used for valves. The proportional and servo valves are in particular requiring absolute cleanliness of the fluid, usually the ISO 16/13 standard or cleaner, for their reliability over their lifespan.

Hydraulic control valves are key decision-makers of any hydraulic system, turning the pump's outputs into controlled, deliberate motion. Directional valves decide where the fluid flows, while pressure valves guard the system from damage and regulate the force, and flow valves regulate the rate for actuator motion. If a system employs simple spool valves that are manually operated or sophisticated closed-loop servo valves, the fundamental function is the same: turning hydraulic power into precise, reliable mechanical operation.

What is the primary function of a valve for hydraulic control?

Its primary function is to control how much pressure, direction, and rate at which hydraulic fluid flows. It controls the timing, how it moves, and the speed at which the actuator moves.

What are the 3 most common kinds of valves for hydraulic control?

The three most common kinds are directional control valves, pressure control valves, and flow control valves, each one focusing on a specific aspect of the hydraulic system's performance.

What's the distinction between the relief valve and a reducer valve?

A relief valve reduces the maximum pressure of the system by diverting excess flow into a tank, while a reducing valve decreases the pressure that is supplied by a second circuit, which is less demanding than the system in which it is located.

Why do proportional valves get used instead of directional valves?

Proportional valves permit the continuous and variable control of a spool's location instead of fixed on/off states, which allows for smoother acceleration, deceleration, and better motion controls.

What are the main causes of valves for hydraulic control to fail?

Infection of fluids is the primary reason, since particulates could cause spool surfaces to be damaged, block small orifices, and cause valves to leak or stick internally, specifically in proportional and flow control valve designs.
