How hydraulic pressure relief valves prevent catastrophic system failures?

Hydraulic systems form the basis of modern machinery, from agricultural tractors and construction equipment to aerospace presses and industrial presses. They rely on pressurized fluids to deliver power in a precise and efficient manner. However, with the power comes a risk of significant danger. When pressure exceeds acceptable limits, it could cause serious damage, costly downtime and even risky accidents. This is why hydraulic relief valves for pressure are crucial.

In this informative blog post we'll discuss the way that these valves function and why they are crucial and how they help protect against devastating system malfunctions.

Understanding hydraulic pressure

The heart of any hydraulic system lies the idea of transferring force through the fluid under pressure. Pumps create flow, and resistance the flow results in pressure. In the ideal scenario, systems work within a specified pressure range that is designed to ensure optimal performance.

But, the real-world environment is often not ideal. Events such as sudden load changes or blocked lines, temperature variations or malfunctions in components can trigger pressure spikes suddenly. Without a way to manage these surges, the system can become susceptible to failure.

What is a hydraulic pressure relief valve?

The hydraulic pressure relief valve (HPRV) is protection device that is designed to limit the pressure within an hydraulic system. It serves as an "pressure regulater of last resort" making sure that the pressure is never over a set threshold.

If the system's pressure is over the set limit the valve opens, and redirects the excess fluid into the reservoir, or to another secure way. When the pressure is back to a normal level it closes the valve.

In simple terms, it acts like a pressure release mechanism--protecting the system from dangerous overloads.

Why overpressure is dangerous?

Before examining how relief valves can prevent failure it is crucial to comprehend what might go wrong when the pressure rises too much.

1. Component damage

Pumps and cylinders, hoses and seals are engineered to withstand pressure limit. The excess pressure could cause:

• Hoses that burst
• Fittings that are cracked
• Deformed seals
• Pump failure

2. System leakage

The force of high pressure can force fluid to pass through joints and seals which can cause leaks. This can not only decrease efficiency but also causes dangers to the environment and health.

3. Heat generation

Overpressure can cause more tension and flow creating excessive heat. Heating up causes damage to hydraulic fluids and can damage internal components.

4. Sudden system failure

In extreme instances uncontrolled pressure can lead to catastrophic failure, such as an explosion of tube or ruptured cylinder - posing serious dangers to the users.

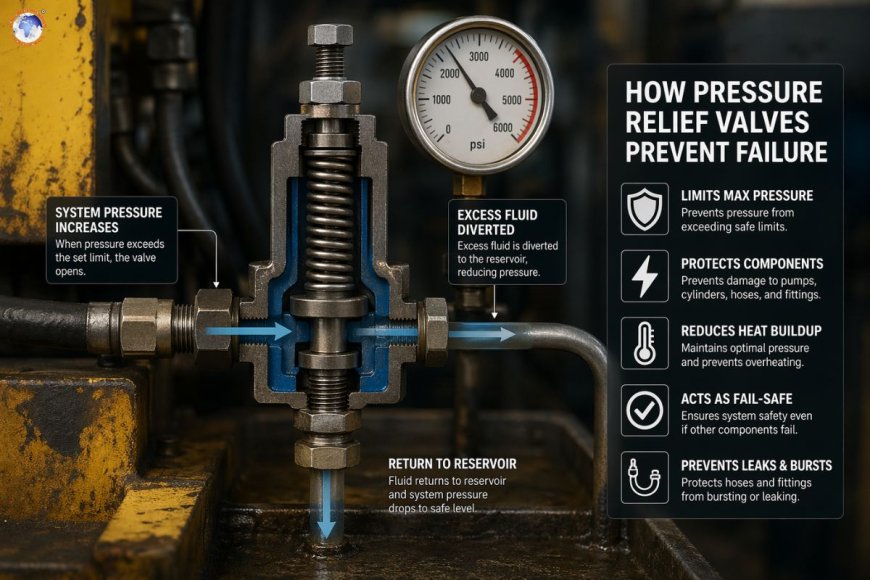

How pressure relief valves work?

Pressure relief valves for hydraulics work using a simple, yet highly efficient principle. They are typically spring-loaded devices that react to changes in pressure.

Basic operation:

1. normal conditions
   A valve remains shut while the pressure in the system is lower than the limit set. The system can flow fluid in the manner intended.
2. Pressure increase
   When pressure increases, it puts pressure on the valve's internal mechanism (often the spool or poppet).
3. Set pressure attained
   When the pressure is greater than the force of the spring the valve will begin to become open.
4. Pressure relief
   In excess fluid is diverted to reduce the pressure in the system.
5. Set
   When the pressure is lower than the threshold the valve is closed again.

The continuous monitoring and adjustments occur almost instantly, making sure that the system is within the safe operating parameters.

Types of hydraulic pressure relief valves

Different applications require different valve designs. These are some of the more popular kinds:

1. Direct-acting relief valves

They are quick-acting and simple valves in which the pressure of the system directly impacts the element of valve. They are great for smaller systems or in situations where immediate response is required.

2. Pilot-operated relief valves

These are based on a two-stage mechanism where a small pilot valve is controlled by the larger main valve. They can provide:

• Greater precision
• More stability
• Capacity for higher flow

They are typically utilized in larger or more complicated systems.

3. Differential relief valves

It is used to keep the pressure difference between two components of a system. It is used most often used in industrial applications that require specialized expertise.

4. Thermal relief valves

They protect against the rise in pressure due to the thermal expansion caused by trapped liquid.

How do relief valves prevent catastrophic failures?

Now let's look into the main question: how can these valves help prevent catastrophic system failures?

1. Limiting maximum pressure

The primary purpose of relief valves is to regulate the system's maximum pressure. In order to ensure that pressure does not exceed an acceptable limit, it shields the downstream elements from being overloaded.

In the absence of this security, an insignificant problem--like a clogged line can result in pressure rising uncontrollably.

2. Protecting against sudden load changes

Hydraulic systems typically experience rapid shifts in loads. Examples:

• A bucket of a loader striking an unaffected surface
• A press encountering unexpected resistance

These situations can trigger immediate pressure spikes. Relief valves react in real-time by opening instantly to release the excess pressure and avoid injury to the shock.

3. Preventing pump overload

Pumps for hydraulics are expensive and are essential components. The pressure that is excessive causes it to use more energy, which increases the risk of failure and wear.

Relief valves ease the burden on the pump by removing the excess pressure, prolonging the life of the pump and ensuring its the efficiency.

4. Reducing system heat

If pressure is too high, energy gets converted into heat rather than doing any useful work. Relief valves can help maintain the proper pressure and reduce unnecessary heat production.

This will prevent:

• Fluid degradation
• Seal damage
• System efficiency is reduced

5. Acting as a fail-safe mechanism

For many applications, the relief valves function as the final option for defense. Even in the event that other control components fail, like directional valves and pressure regulators, the relief valve will ensure that the pressure stays within safe limits.

This function of fail-safe is vital in highly risky environments such as mining, construction, or manufacturing.

6. Protecting hoses and fittings

Fittings and hoses are typically the weakest point in the hydraulic system. The pressure can cause them to rupture, leading to damage to the fluid as well as injuries.

Relief valves avoid these potentially dangers by keeping the pressure within the safe limit always.

Real-world example

Imagine a hydraulic excavator carrying a heavy object. If the operator suddenly ceases the motion or the load moves unexpectedly and suddenly, the pressure in the hydraulic lines may increase significantly.

In the absence of a valve for relief

• Pressure can exceed the ratings of hoses
• The hose could burst.
• The machine could be unable to control itself.

When you have a working relief valve

• The excess pressure is released immediately.
• The system becomes stable.
• The operation continues safely and securely.

Key design considerations

To ensure that relief valves are efficient, they must be correctly selected and set up.

1. Correct pressure setting

The valve should be set to a little above the normal operating pressure of the system but not over the maximum permissible limit.

2. Proper sizing

The valve has to be able to handle the maximal flow capacity. An undersized valve won't relieve pressure effectively.

3. Response time

It is essential to respond quickly in order to avoid pressure spikes creating damage.

4. Stability

The valve must operate with ease, without excessive oscillation or chatter.

Maintenance and common issues

Like all other components that is used, relief valves need regular maintenance in order to operate properly.

Common problems:

• Uncorrect pressure setting
  Could result in inadequate protection or a loss of energy that is not needed.
• Infection
  The accumulation of dirt and other debris could prevent the valve from properly sealing.
• Wear and tear
  The seals, springs, and other parts may degrade as time passes.
• Chattering or sticking
  can reduce effectiveness and lead to tension fluctuation.

Maintenance tips:

• Make sure to regularly check and adjust pressure settings
• Maintain fluids in the hydraulic system in good condition.
• Inspect for leaks and wear.
• Test valve operation regularly

It's the cost of failure vs prevention

The installation and maintenance of a pressure relief valve can be fairly inexpensive when compared with the cost that could result from system failure.

Without proper pressure control you run the risk of

• Equipment damage
• Production downtime
• Expensive repairs
• Safety hazards

Relief valves are an affordable expense that provides significant security as well as peace of mind.

Future trends in pressure relief technology

The modern hydraulic system is getting more sophisticated, thanks to innovations like:

• Electronic Pressure Control
  Smart valves that can adjust settings dynamically
• Integrated Sensors
  Real-time monitoring of the pressure levels
• Predictive Maintenance
  Utilizing data analytics to spot problems before failure

These advances further improve the capability of valves for relief to stop catastrophic failures.

Pressure relief valves for hydraulics are among the most vital safety components within any hydraulic systems. They control pressure, respond to sudden spikes and thereby acting as a fail-safe system to protect equipment, they increase efficiency, and guarantee the safety of the operator.

Without them even the best-designed hydraulic system is susceptible for catastrophic breakdown.

When you're operating heavy equipment or industrial equipment or developing hydraulic systems, understanding how to maintain pressure relief valves are vital. They might be tiny components but their effect is immense, securing systems while stopping disasters from happening every day.
