What is the difference between open and closed hydraulic systems?

Hydraulic systems form the foundation for modern machines, supplying everything from excavators to tractors to industrial presses and aircraft controls. Although the fundamental principle of using fluid to transmit force remains identical, the method by which hydraulic fluid flows through the system could differ dramatically. Two major models dominate the market: open-loop (open circuit) and closed-loop (closed circuit) hydraulic systems.

Understanding the differences between these two systems is crucial for operators, engineers, and maintenance experts. Each has its own strengths, weaknesses, and best use-cases. We'll look at how they function as well as how they differ, and the places where each is most effective.

What is a hydraulic system?

Before examining the distinctions, it is important to know the fundamentals. A hydraulic system makes use of the use of an impermeable fluid (usually oil) to transmit power from one location to another. The major components usually comprise:

• Pump
• Reservoir (tank)
• Valves
• Actuators (cylinders or motors)
• Filters and pipe

The system operates by converting electrical energy into hydraulic energy and afterwards back into mechanical motion.

What is an open hydraulic system?

An open-hydraulic system (also known as an open-loop system) can be described as the more popular type of machine used in general industry.

How it works

A system that is open:

1. The hydraulic pump pulls the fluid from the reservoir.
2. It then sends pressurized liquid through valves for control to actuators.
3. After completing the work, the fluid is returned to the reservoir.
4. The cycle continues.

The main feature is the fact that the fluid will always return to the tank before being returned to the tank.

Key features

• Continuous flow of water from the tank to the pump
• The fluid passes through valves before reaching the actuators
• Reservoirs play an important role in filtration and cooling
• Typically, it is a stationary displacement pump

Advantages of open systems

1. Efficiency and Simplicity The open systems are simpler to build, as well as install and maintain. This makes them perfect for applications that require a high level of cost.

2. Improved Cooling As the fluid is returned into the reservoirs, heat is dissipated more efficiently. This ensures the optimal operating temperature.

3. Easy Maintenance Contaminants can be deposited in the reservoir, and filters can easily eliminate the impurities.

4. Flexibility Multiple actuators are independently controlled by directional valves.

Disadvantages of open systems

1. Lower Efficiency Fluid circulates even when there isn't any work being completed, which results in energy loss.

2. Slower Response in comparison to closed circuits, open circuits might respond slower to inputs for control.

3. More System Sizes The requirement for a reservoir as well as return lines increases system dimensions and weight.

Common applications

Open hydraulic systems are extensively utilized in:

• Tractors for agriculture
• Construction equipment (basic uses)
• Industrial machinery
• Material handling equipment

What is a closed hydraulic system?

The closed system of hydraulics (or closed loop system) is different in that it circulates liquid directly from the actuator and pump without constantly returning that fluid to the reservoir.

How it works

In closed systems:

1. The pump is able to send liquid directly to an actuator (usually the hydraulic motor).
2. The fluid is returned directly from the actuator to the pump.
3. A small portion of the fluid is channeled to an evaporator to cool and filter.
4. Charge pumps: Charge pumps refill the fluid that has been lost and keep the pressure.

The main aspect is the fact that the fluid circulates in an enclosed loop between the actuator and pump.

Key features

• Direct circulation of fluid between the actuator and the pump
• Minimal reliance on a reservoir
• Often uses variable displacement pumps
• Incorporates a charge pump for the stability of the system

Advantages of closed systems

1. High Efficiency Fluids only flow when necessary, reducing energy consumption and increasing overall efficiency.

2. Rapider response time. Closed systems offer fast as well as precise controls, specifically in terms of speed and direction.

3. Compact Design Smaller reservoirs and fewer return lines make the system less bulky.

4. Perfect For Continuous Motion. Perfect for applications requiring continuous movement, like drive systems.

Disadvantages of closed systems

1. Higher Complexity Closed systems require more sophisticated components, including charge pumps and sophisticated control systems.

2. The problem of heat management is that fluid doesn't return frequently to reservoirs, and the cooling may be less efficient.

3. Maintenance Sensitivity Contamination may be circulating within the loop, causing harm if it is not handled properly.

4. Costs are higher. The initial cost, advanced components, and design complexity can raise upfront costs.

Common applications

Systems of closed hydraulics are usually employed in:

• Hydrostatic transmissions
• Travel drives for Excavators
• Skid steer loaders
• Equipment for mining and forestry
• Mobile machinery with high-performance

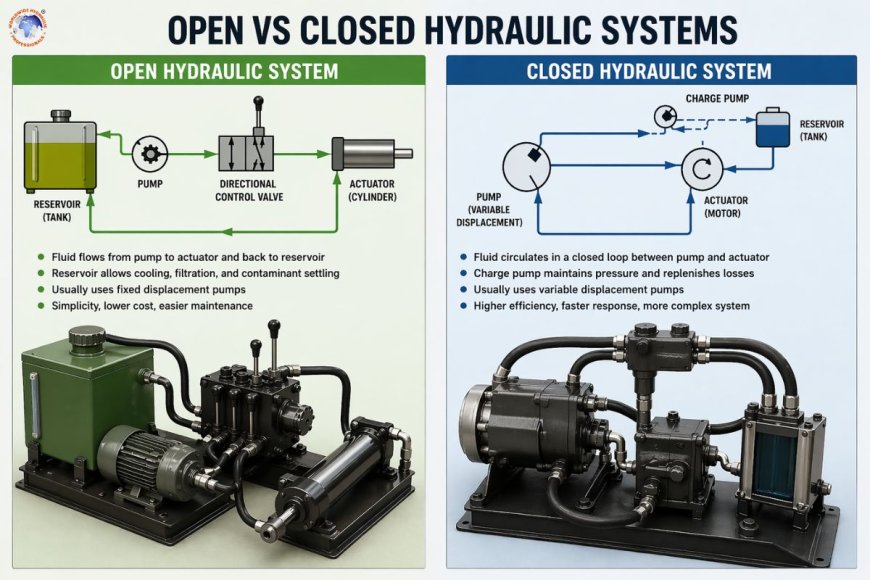

Key differences between open and closed hydraulic systems

Let's look at the distinctions in a more systematic manner:

1. Fluid flow path

• The Open System Flux flows through reservoir - actuator - pump
• Closed Systems: Fluid flows from the actuator to the pump (loop)

2. Efficiency

• Open: Lower efficiency due to continuous circulation
• Closing: More efficient with specific flow

3. System complexity

• Open: Simple design with smaller components
• closed: Complex system with advanced charge pumps and controls

4. Cooling mechanism

• Open: Excellent cooling via reservoir
• Closed: Limited cooling, requires other solutions

5. Cost

• Open: Lower initial cost
• Ends: Higher upfront investment

6. Response and control

• Open: Slower response
• Finalized: Faster and more precise control

7. Size and weight

• Open: Larger due to the reservoir
• Final: More compact

Choosing between open and closed systems

The best system to choose depends on the needs of your specific application.

Choose an open system if:

• You require an easy and affordable solution
• The dissipation of heat is an important problem
• The system is characterized by intermittent operation.
• Simple maintenance is crucial.

Choose a closed system if:

• You require high efficiency and speed
• The application demands continuous movement
• The weight and space available are also limited.
• Controlling direction and speed precisely is vital.

Real-world example

Take a look at the possibility of a tractor:

• The hydraulics for the implement (like lifting the plough) generally utilize the open system since operations are often intermittent and require a lot of flexibility.
• A drives (hydrostatic transmission) often uses a closed system to ensure a constant and effective power supply.

This mixed approach suggests that both systems could be integrated into one machine, each of them serving a particular objective.

Maintenance considerations

Open system

• Regular oil adjustments
• Replacement of filters
• Monitoring reservoir levels

Closed systems

• Regularly rechecked for contamination
• Monitoring the charge pump's performance
• Ensure that cooling mechanisms are properly installed.

Closed systems require more stringent maintenance since contaminants are able to circulate throughout the loop.

Future trends in hydraulic systems

With a growing focus on efficiency in energy use and emission reduction, closed technology is becoming increasingly common in the field of advanced equipment. But open systems still lead in general-purpose and cost-sensitive applications.

Trends that are emerging include:

• Integration of electrohydraulics
• Digital sensors and smart sensors
• Hybrid hydraulic-electric systems
• Fluid technology improvements

Both closed and open systems are changing to meet the latest needs.

Closed and open hydraulic systems each play a crucial function in modern machines. The debate isn't just about which one is superior; it's about which one is most suitable for the specific job.

• Systems that are open are simple, reliable, and efficient, which makes them perfect for general-purpose usage.
• Systems that are closed provide high efficiency, precision, and compactness, which makes them the perfect choice for applications that require high performance.

Understanding these differences allows engineers to create more efficient systems. Operators manage machines more effectively, while companies make better investment decisions.

As technology improves and advances, the gaps between these systems could shrink. However, the fundamental differences between them will determine the way hydraulic power is utilized across various industries.
