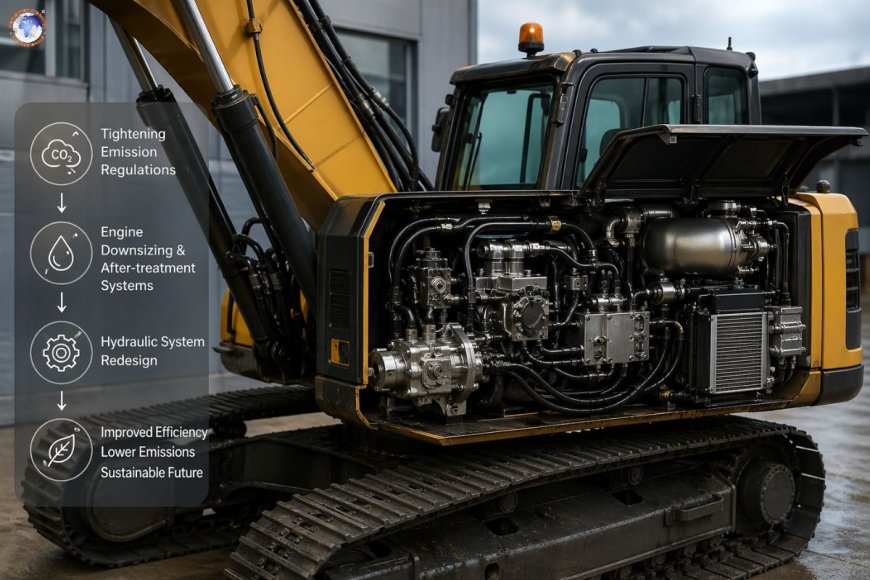

How new emission regulations are pushing hydraulic system redesigns?

In recent years, tightening emission regulations--especially frameworks like the European Union's EU Stage V emission standards--have significantly reshaped the design of mobile machinery. While the majority of focus is on exhaust after-treatment and engines, these regulations are driving significant changes to hydraulic systems. From energy-efficiency enhancements to electrification and more efficient control systems, hydraulics is undergoing a subtle yet significant shift.

This blog explains how the latest emissions standards are impacting the design of hydraulic systems, why these changes are required, and what they could mean for the future of mobile equipment.

1. Understanding the Regulatory Pressure

Regulations on emissions for non-road mobile machines (NRMM)--such as excavators, tractors, loaders, and industrial equipment have changed dramatically in the last two decades. Standards have advanced from the early-stage limits to strict Stage V regulations, which are aimed at pollutants like the nitrogen oxides (NOx) as well as particles of matter (PM), hydrocarbons (HC), and carbon monoxide (CO).

One of the major advances that Stage V has made is the introduction of particle number (PN) limitations, which limit not just the mass, but also the amount of particulate emission.

The regulations have already cut harmful emissions by over 95% in comparison to earlier standards. They will continue to push manufacturers towards better, cleaner methods of production.

But getting compliance is not only about cleaner engines. It requires changing the way energy is created, transferred, and utilized across the entire machine, including hydraulics.

2. Why are hydraulics affected by emission rules?

At first glance, hydraulic systems might appear in no way connected to emissions. However, they are linked through the consumption of energy.

Hydraulic systems within mobile machinery are responsible for transferring energy to actuators like motors and cylinders. The traditional hydraulic systems are usually not efficient, and energy losses occur because of:

• Losses in the throttles due to the throttles
• Pumps that run at constant speed, operating at maximum capacity
• The production of heat requires additional cooling

These deficiencies increase the consumption of fuel, which in turn leads to greater emissions.

As regulations on emissions become stricter, the need to reduce fuel consumption is essential. This puts hydraulic efficiency at the forefront of strategies to comply.

3. Engine downsizing and its ripple effect

Modern standards for emissions have resulted in widespread engine reductions. Engines with smaller engines emit less carbon dioxide and produce less power.

To compensate for this, the hydraulic system has to be more effective and adaptable. This has resulted in:

• Hydraulics that sense load to make sure that pressure and flow are in line with demand
• Pumps with variable displacement to reduce the waste of energy
• Optimized system architectures that reduce energy consumption

The result is a transition from hydraulic power, which is brute force, to controlled energy delivery that is precise.

4. Integration of advanced after-treatment systems

Stage V compliance usually requires sophisticated exhaust after-treatment technology, such as:

• Diesel Particulate Filters (DPF)
• Selective Catalytic Reduction (SCR)
• Diesel Oxidation Catalysts (DOC)

The systems introduced introduce new limitations:

• Higher engine backpressure
• Thermal management challenges
• Limitations in the packaging of the machine

Hydraulic system designers are now required to overcome these limitations and often change layouts to:

• Make space for any after-treatment components
• Reduce the heat production in hydraulic circuits.
• Increase the overall efficiency of cooling systems.

This has resulted in smaller, more integrated hydraulic systems.

5. Electrification and electro-hydraulic systems

One of the most significant changes triggered by regulations on emissions is the shift towards the electrification of vehicles.

Even though fully electronic machines are being developed, hybrid and electrohydraulic systems are becoming more common. These systems blend electric motors with hydraulic actuation to increase efficiency.

The most important developments are:

a. Electric pump drives

Instead of being directly driven by an engine, hydraulic pumps are driven through electric motors. This enables:

• Operation on demand
• Reduction of idle loss
• Energy efficiency improvements

b. Energy recovery systems

Hydraulic systems are now able to recover and reuse energy, for example, by capturing energy from lower operations and then conserving it in accumulators or batteries.

C. Smart control systems

Electronic control units (ECUs) control both hydraulic and engine performance in real-time, maximizing efficiency while reducing emissions.

Electro-hydraulic integrations are crucial to meet the latest emission standards and ensure high efficiency.

6. Thermal management and efficiency improvements

As emission systems get more complicated, thermal management is now an essential design issue.

Inefficiencies in hydraulics generate heat, which

• Reduces system efficiency
• More cooling needs
• Emissions and engine performance are affected.

To combat this, manufacturers are redesigning their Hydraulic systems to

• Minimize pressure losses
• Make use of high-efficiency components
• Utilize advanced cooling strategies

This improves performance, but also aids in emission compliance by reducing the overall energy consumption.

7. Compact machine design and packaging constraints

Modern emission systems require extra components that can take up a lot of space in machines already small.

Hydraulic systems have to adapt to:

• Compacter
• Modular
• Incorporated with different subsystems

This has led to new ideas that include:

• Blocks of valves with integrated valves
• Combination of hydraulic-electric modules
• It is a space-saving route for hoses, components, and hoses

Designers are now required to balance efficiency, performance, and packaging in ever smaller areas.

8. Increased use of digitalization and smart hydraulics

Digitalization is playing an important part in achieving emissions standards.

Hydraulic systems of the present are fitted with:

• Sensors for flow, pressure, and temperature
• Monitoring systems that monitor real-time
• Predictive maintenance capabilities

These technologies can be used to:

• Accurate control of hydraulic power
• Reduction of energy waste
• More efficient machines

Through optimizing the performance of the system, digital hydraulics aid in reducing emissions and fuel consumption.

9. Cost implications and lifecycle considerations

While emission regulations are a driver for innovations, they also add to the cost of doing business.

Machines that meet the requirements of advanced standards typically will require:

• Advanced hydraulic components for the system.
• Electronics and sensors in addition
• Integration of engine and after-treatment systems.

As an example, the cost of equipment has increased because of the introduction of emission control systems and system enhancements.

However, the costs are compensated by:

• Increased efficiency of fuel
• Reduced operating expenses over the course of time
• The equipment's lifespan is extended

Hydraulic design makes a vital contribution to getting these benefits over the long term.

10. Impact on different industries

The effect of regulations on emissions on hydraulic systems is different across different industries:

Construction equipment

The excavators, as well as loaders, are incorporating electrohydraulic systems as well as energy recovery techniques to increase efficiency.

Agriculture

Tractors are using more efficient hydraulics to cut down on the amount of fuel used while maintaining efficiency.

Material handling

Forklifts, as well as lifting equipment, are increasingly electrified, decreasing dependence on hydraulics that are traditional hydraulics.

Industrial applications

Hydraulic systems are designed to reduce energy consumption and are integrated with control systems for digital.

In all industries, the trend is evident that hydraulics need to evolve to make it easier for cleaner and more effective machines.

11. Future trends in hydraulic system design

In the future, emission regulations are expected to continue to tighten across the globe, which will drive further innovations in hydraulics.

Principal trends include:

• Complete electrification for the hydraulic system
• Digital twins, as well as design based on simulation
• Artificial Intelligence-driven Optimization of Hydraulic Performance
• Higher connectivity with autonomy systems

Hydraulics are still important, but their importance is shifting towards advanced, efficient energy transmission.

New emission regulations aren't only changing the engines; they are also transforming the entire structure of mobile machines. Hydraulic systems, previously thought of as mechanical subsystems, are now the mainstay of getting into compliance.

From efficient designs that are energy efficient and electrification to intelligent control systems and compact integration of hydraulic systems, they are rapidly meeting the needs for more sustainable, cleaner equipment.

In the new world, it is clear that the future for hydraulics is efficiency, intelligence, and integration. Companies that are able to embrace these changes are not only able to comply with regulatory requirements but will also benefit from a competitive advantage in an ever-greener market.
