Key hydraulic fluid standards shaping the future of the industry

The hydraulic fluid serves as the mainstay in modern-day industrial equipment. From construction excavators and tractors to aerospace actuators as well as offshore drilling equipment, hydraulic systems rely on formulated fluids carefully designed to transfer power, lubricate moving components, control temperature, and ensure the integrity of seals. As industries come under greater pressure from energy efficiency, environmental regulations demands, and more advanced equipment, the standards for hydraulic fluids are going through the biggest change they have seen over the past few decades.

Knowing these standards is no longer a mere compliance exercise. For engineers, maintenance personnel, or procurement teams as well as manufacturers of equipment, staying on top of changing standards is an essential requirement. Here's a complete overview of the major hydraulic fluid standards that are shaping our future field.

The three pillars of the ISO system: ISO, ASTM, and DIN

The world's hydraulic fluid landscape is managed principally by three bodies that set standards, which include the International Organization for Standardization (ISO), ASTM International, and Germany's Deutsches Institut für Normung (DIN). Together, they develop the classifications, benchmarks for performance, and test methods that manufacturers and OEMs of equipment rely on throughout the world.

ISO provides the world's most recognized framework. The classification system ISO 6743-4 classifies hydraulic fluids into categories that range from mineral oil-based (H-series) to environmentally friendly kinds (HE-series) as well as fire-resistant types (HF-series). Specifications for the performance of these categories are provided in standards that are companion to them, like ISO 11158 (mineral-based fluids) and ISO 15380 (environmentally acceptable fluids). Importantly, ISO standards cover not just chemical composition but also cleanliness, viscosity stability, as well as oxidation resistance and anti-wear properties.

ASTM International takes a more focused approach to testing, which is extensively used throughout North America and in global quality assurance. Specific standards like ASTM D6158 define the performance requirements for mineral hydraulic oil, and most significantly, the standard was designed to be aligned tightly with ISO 11158—an intentional move to simplify the evaluation of international markets. ASTM also regulates crucial testing methods, including D943 for resistance to oxidation and D6546 for elastomer seal compatibility, as well as the more recent D8385 that regulates dry filtering by using mass flow rates.

DIN, specifically DIN 51524, has traditionally established the standard in Europe for hydraulic fluids made of mineral oil, including the most widely used HLP (anti-wear) grade as well as its variations. Although ISO harmonization is growing, DIN standards remain influential for European mobile and industrial hydraulic equipment.

ISO 15380:2023—The bar is raised for environmentally-friendly fluids

The most significant recent changes to the standards for hydraulic fluids have been the updating of ISO 15380, which governs the use of environmentally friendly hydraulic fluids (HE fluids). The 2023 edition includes four categories of biodegradable fluids: HETG (vegetable oil-based triglycerides), HEPG (polyalkylene glycols), HEES (synthetic esters), as well as HEPR (polyalphaolefins and similar chemical hydrocarbons).

These fluids are engineered to be easily biodegradable and to be low ecotoxic and minimize environmental impacts in areas of operation that are sensitive. People who operate near beaches or in forests, along waterways, or in urban areas are increasingly required, through regulation or through contractual obligation, to utilize these eco-friendly alternatives.

The revision of 2023 tightened a number of performance standards and clarified the instructions for changing from mineral oils that are conventional to HE fluids. The transition requires careful focus on sealing compatibility, flushing procedures for systems, and the risk of mixing fluids. With the government and industrial procurement organizations accelerating their sustainability requirements, ISO 15380 is quickly becoming a niche reference to becoming a standard.

ISO 18464:2025 -- A milestone standard for efficiency in systems

Perhaps the most innovative development in the world of hydraulic standards is the announcement of ISO 18464:2025. It is the first international standard focusing on the design process for energy-efficient hydraulic systems. The standard, which was developed in collaboration with ISO Technical Committee 131, was approved between 2022 and 2025 and was officially released earlier in the year.

ISO 18464 is significant because it shifts the focus from the chemistry of fluids to the design of holistic hydraulic systems. It is a methodological framework that engineers can use to assess and optimize energy usage throughout the entire hydraulic circuit, taking into account the selection of a pump, actuator sizing, the control architecture, and most importantly, the properties of fluids. Fluids that can maintain a steady viscosity throughout a broad temperature range, offer outstanding lubricity, and withstand the effects of thermal degradation are involved in meeting efficiency benchmarks.

The standard can have a cascading effect on the selection of fluids. OEMs developing systems in accordance with ISO 18464 will inevitably specify fluids that are able to meet system-level efficiency goals, not just meet the minimum standards for quality of fluids. For the manufacturers of fluids, this presents both a problem and an opportunity to make the most of formulations that were suitable for older design concepts but may not be adequate for future-generation hydraulic designs.

ASTM's efforts to tighten filterability and better control of contamination.

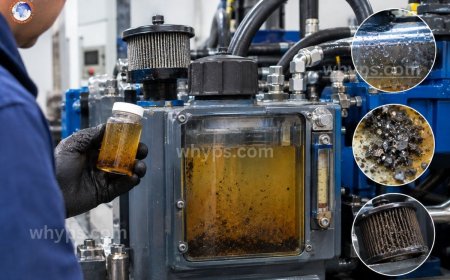

Contamination is the primary reason for failures in hydraulic systems worldwide, causing the majority of premature wear on components and infrequent downtime. Recognizing this, ASTM has been strengthening its contamination-related standards.

Standard ASTM D8385 has introduced an assessment method for dry filterability of lubricants as well as hydraulic fluids based on mass flow rates. It is an improvement over previous tests of filtration, since it allows for automation and decreases variability among operators. In conjunction with the wet filterability standard D8277 These methods provide both the manufacturer and the end user the ability to more accurately determine whether a particular fluid can keep its purity throughout its lifespan. In the words of ASTM member Paul Michael, fluids with a high filterability don't just remain cleaner for longer, but also increase the durability in hydraulic machines by delaying malfunction.

This is directly linked to the tightening of ISO cleanliness codes, including ISO 4406, which defines the levels of contamination by particles within hydraulic fluids. Pump manufacturers are pushing for greater operating pressures as well as tighter tolerances for components, and cleanliness standards are getting more stringent in all areas.

ASTM's new tractor hydraulic fluid specification

The agricultural industry is experiencing its own evolution in standards. The petroleum product committee of ASTM (D02) is preparing the new standard to describe Tractor Hydraulic Fluids (THF), an area that plays the crucial dual purpose that simultaneously lubricates transmissions, wet brakes, and hydraulic systems for farming equipment.

The hydraulics of a tractor are one of the top high-performance lubricant types available that must meet the friction requirements of brakes and wet clutches and also provide anti-wear protection to high-pressure hydraulic pumps. A specific ASTM THF specification will bring an increased standardization of a market that was previously dominated by OEM-proprietary approvals, possibly easing procurement and enhancing the interoperability of manufacturers of equipment.

Convergence of ASTM and ISO: The global harmonization process is in progress

A major and important development for multinational fluid buyers and operators is the intention to align ASTM as well as ISO standards. The latest updates are bringing ASTM standards more in tune with ISO standards, which makes global compliance significantly easier. Fluids that have been tested and certified according to ASTM D6158, for instance, are now more easily mapped according to ISO 11158 categories, reducing the burden of documentation for procurement, export, and regulatory compliance in different countries.

Harmonization reduces the cost of duplication of testing and allows the supply chain worldwide for the procurement of hydraulic fluid.

What does this have to do with industry stakeholders

The ever-changing standards landscape communicates a clear message throughout all value chains:

For fluid formulators their differentiation will likely be based on biodegradability, high-viscosity index formulations, superior filterability, and energy efficiency contributions in addition to basic anti-wear properties.

For OEMs of equipment, ISO 18464 signals that fluid specifications will be an integral element of the design process and not just an extracurricular consideration.

For operators and maintenance engineers, the shift to environmentally friendly fluids, stricter controls on contamination and more stringent cleanliness standards means that the fluid management plans will need to evolve -that includes more effective monitoring, shorter drain intervals when needed and an attentive eye to cross-contamination hazards.

For professionals in procurement, the global harmonization of ISO as well as ASTM simplifies the process of writing specifications and makes it easier for managing supply chains across international borders.

The world of hydraulic fluid standards is in rapid development that is driven by three converging factors: environmental responsibility, energy efficiency demands, and the ever-growing technological advancedness in hydraulic systems. Standards such as ISO 18464 as well as the revised ISO 15380, 2023, and ASTM's growing frameworks for filtering and contamination aren't formalities for bureaucrats. They are blueprints for a cleaner, higher-efficiency, solid hydraulic industry.

For professionals at all levels, staying on top of the latest developments isn't an option. It's the basis for long-term sustainability in compliance with regulations, as well as competitive advantage in a field in which the fluid flowing through the system is just as vital as the machine that it runs.
