What Role Do Smart Sensors and IoT Play in Hydraulic Cooling Systems?

Intelligent sensors, as well as IoT connectivity, transform cooling systems for hydraulics from reactive, passive components to actively monitored assets that can report in real-time the fluid temperatures and flow rate of coolant, the performance of the pump and fan, as well as heat exchanger fouling, to centralized platforms. Maintenance teams are able to detect trends in overheating prior to causing loss of seals, viscosity degradation, or thermal shutdown, changing the management of cooling systems from scheduled inspections to condition-based, prescriptive intervention.

Hydraulic cooling systems have historically been the least understood component in the design of fluid power. Engineers measure their heat exchangers, place the thermostat or bypass valve, and then move on, monitoring the temperature only when a device detects a high-temperature alarm or a technician spots discolored fluid. This reactive approach is costly. The excess heat is one of the most common causes of early seal breakdown, oxidation of fluids, and wear on pumps in both industrial and mobile hydraulic equipment. Intelligent sensors as well as IoT platforms are improving the gaps in visibility and are fast becoming the standard feature on modern hydraulic systems, rather than a supplementary add-on to an aftermarket purchase.

The reason why visibility of cooling systems has been historically poor?

The majority of hydraulic systems depend on a single analog temperature gauge or a simple switch connected with an alert light. These devices alert the user that the system is at present too hot; however, they do not provide any information about the past, nor do they provide any rate-of-change data or any way to differentiate between a real cooling system malfunction and a temporary spike caused by the ambient temperature or a duty cycle. At the point that the alarm sounds, the damage to seals, hoses, and fluid additive packages could have begun.

This is a crucial blind spot since heat can cause other issues. The higher temperature of the fluid decreases viscosity, which decreases the lubricating film in valves and pumps, speeds up the process of depleting additives, and can cause the amount of internal leakage. An air conditioning system that is slowly losing its efficiency—for example, the possibility of a partially blocked fin-fan cooler, a loose fan clutch, or a damaged heat exchanger's core could send the system into this failing spiral for months before anyone is aware.

What are smart sensors actually measuring?

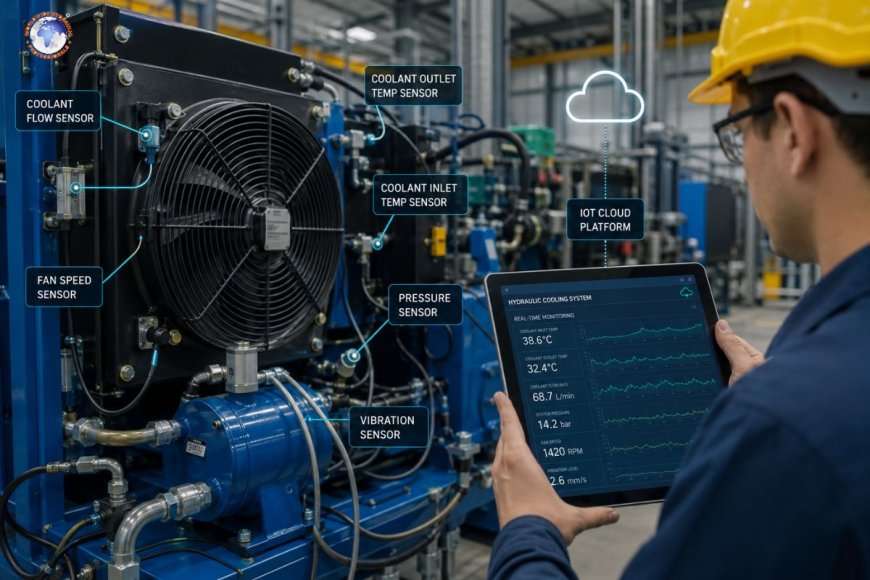

A smart-sensor-equipped hydraulic cooling system typically monitors several parameters simultaneously rather than a single temperature point:

The temperature of ambient air and the fluid

Instead of having a single gauge, smart systems have temperature sensors on the reservoir's cooler inlet along with the outlet cooler. By comparing these numbers, you can calculate the real cooling efficiency instead of raw temperature. This is because a high temperature reading for an extremely hot day could be normal, whereas the same reading under cool conditions indicates the presence of a problem.

Hydraulic flow rate and cooling

Inline flow sensors verify that the fluid is flowing in the heater at an anticipated rate. A decrease in flow caused by a partially shut valve, failing pump, or air intake -- decreases the capacity to reject heat long prior to the thermometer displaying anything alarming.

Motor performance and fan performance

In systems that are fan-cooled, the current draw sensors and RPM sensors on the motor of cooling are used to detect wear to the bearings and belt slippage as well as motor degradation. Electronic fan drives measure speed and torque directly. The hydraulically driven fans are monitored via pressure drops across the motor circuit.

Heat exchanger fouling

Pressure sensors on the different sides of the heat exchanger's central core can detect the gradual accumulation of dirt, debris, or scale that impedes the flow of coolant or airflow. Fouling is among the most frequent and avoidable causes of cooling system failure and develops gradually enough that a manual inspection frequently is not able to spot it until the efficiency loss is severe.

Vibration

Sensors for vibration on fan motors as well as cooling pumps are able to detect mechanical wear balance, wear on bearings, and/or misalignment, which can lead to an absolute failure, sometimes several weeks in advance.

How IoT connectivity converts sensors' data to action

Sensors on their own are not enough to solve the problem. Raw readings need to be interpreted by someone else than them. IoT platforms can close the loop by transmitting the sensor's data onto a cloud or edge gateway, where it can be context-specific, trended, and then compared to thresholds automatically.

Remote monitoring in real time

Plant maintenance and fleet operator teams can monitor the status of cooling systems across each machine on a single dashboard instead of walking around to each machine. This is especially useful for mobile equipment such as construction equipment, agricultural machinery, cranes, and other equipment that are operating on remote sites for work.

Trend analysis and alerts that are predictive

IoT platforms don't simply alert the moment a threshold is reached They also detect subtle trends, for example, the differential pressure of a heat exchanger rising by 2% each week, and trigger an alert to maintain the system prior to the trend reaching an important point. This is the basis of the predictive maintenance of cooling equipment, which replaces cleaning schedules based on calendars with triggers triggered by conditions.

Integration with more extensive condition monitoring

The data from cooling systems is far more reliable when it is linked to other parameters of a hydraulic system, such as fluid cleanliness codes, pressure of the outlet pump, and cycles count. A rise in temperature and a rise in particle count, for instance, could be a sign of the filter being damaged, not the problem with cooling. The integrated IoT platform could reveal this correlation in real-time, instead of requiring technicians to put it all together using separate data readouts.

Automated fault isolation

Certain IoT-enabled systems go even further, utilizing sensor combinations to determine the most likely reason for a cooling problem automatically, separating the heat exchanger that is leaking from a failed fan motor from a bypass valve that is stuck—before a technician starts a service ticket.

Practical advantages of hydraulic system operator

The importance of IoT and smart sensors for hydraulic cooling isn't only a theoretical idea. Operators who use condition monitoring to monitor cooling systems usually have a number of results that can be measured:

• The reduction in unplanned downtime is due to the fact that thermal issues are identified and resolved during scheduled maintenance window times instead of triggering mid-shift shutdowns.
• Longer service life for the fluid, as maintaining fluid within its temperature range is beneficial to slow down the process of depletion and oxidation, which can allow more time between oil analysis-driven adjustments.
• Lower costs for replacing components because the ability to detect a failed fan motor or a fouled cooler early can stop the damage caused by failures due to heat for seals, pumps, and valves.
• Increased efficiency in energy use, especially on cooling fans driven by electricity that have variable speed control based on actual sensor data, prevents running the fan at its full capacity when it's not needed.

What direction is this technology heading

Monitoring of cooling systems is becoming increasingly integrated directly into designs for hydraulic power units instead of being retrofitted. Manufacturers are adding sensor arrays to fan assemblies and heat exchangers from the factory, with IoT connectivity being an industry standard protocol for communication instead of an accessory. With machine learning algorithms beginning to become more advanced, they can anticipate predictive algorithms to go beyond basic thresholds and trend alerts to accurately forecast the usable life of cooling components based on the accumulation of operating data from all equipment fleets.

For those who still rely on one gauge and an annual maintenance schedule, the gap between predictive and reactive cooling management is one of the more easily accessible improvements available in the modern design of hydraulic systems, which is often achieved by retrofitting existing power units using sensors instead of requiring an entire system overhaul.

1. Are smart sensors compatible with existing units for power hydraulics, or do I require new equipment?

Many sensors that are smart are retrofittable to the existing power unit for hydraulics. Temperature, pressure, and flow sensors are generally fitted to existing ports or inline fittings. IoT gateways can be connected to equipment that is older without the complete replacement of the system.

2. What's the difference between a basic temperature alarm and IoT-based cooling monitoring?

An alarm of a basic nature only signals the threshold has been exceeded, but without prior history. Monitoring using IoT tracks the trends over time, connects with multiple sensors, and generates preemptive alerts before a situation is deemed to be critical.

3. How much will intelligent cooling monitoring help reduce in the event of an unplanned shutdown?

The amount of reduction is dependent on the application and previous maintenance methods; however, most operators experience an improvement in the amount of downtime as cooling-related issues get discovered in trend analysis, rather than detected through a sudden thermal shutdown.

4. Which components of the cooling system are most benefited by monitoring with sensors?

The heat exchangers (via differential pressure to aid in fouling detection) and fans that cool (via the current drawn and vibrating) and those in the flow circuit (via temperature differentials and flows) are the ones to gain the most immediate benefit from monitoring continuously.

5. Is IoT monitoring of cooling practical for hydraulic equipment that is mobile or just stationary ones?

It's useful for both. Mobile devices typically benefit more as satellite or cellular IoT gateways enable remote monitoring of equipment in workplaces where manual inspections are rare or impossible.
