What is the role of surface finish in plunger cylinder durability?

Surface finish is the primary factor that determines the length of time a plunger cylinder is able to last because it regulates sealing wear and lubrication retention as well as erosion resistance on the interface between the plunger and the glass. The surface of the plunger or rod that is too rough can cause the abrasion of seals and causes premature leakage. On the other hand, an unfinished, smooth surface is unable to retain the thin oil film required to lubricate, leading to dry-running wear. Industrial plunger cylinders generally perform best when they have a roughness (Ra) between 0.1 and 0.4 micrometers. This is achieved by the precise grinding process, honing, or hard chrome plating, followed by polishing. Finding the right balance will extend the seal and rod life by a number of times in comparison to a badly polished surface.

The importance of surface finish is greater than what engineers generally think.

Plunger cylinders differ from regular piston cylinders in that the plunger's internals pass through a single seal, instead of using a seal for a piston in the bore. The plunger's external smoothness is one of the most crucial and overlooked aspects of the whole system. Every single stroke moves the lip of the seal across that same surface a thousand times each day, and every flaw in the surface is a wear point, which gets worse with time.

As opposed to bore honing that affects piston seals within a controlled environment, the surfaces of the plunger are exposed to temperature fluctuations and contamination as well as side loading. A damaged finish doesn't only result in slow leakage; it could cause catastrophic seal failure in the first few weeks of the time it is installed in applications such as presses, jacks, and mobile equipment with long strokes.

The relationship between seal life

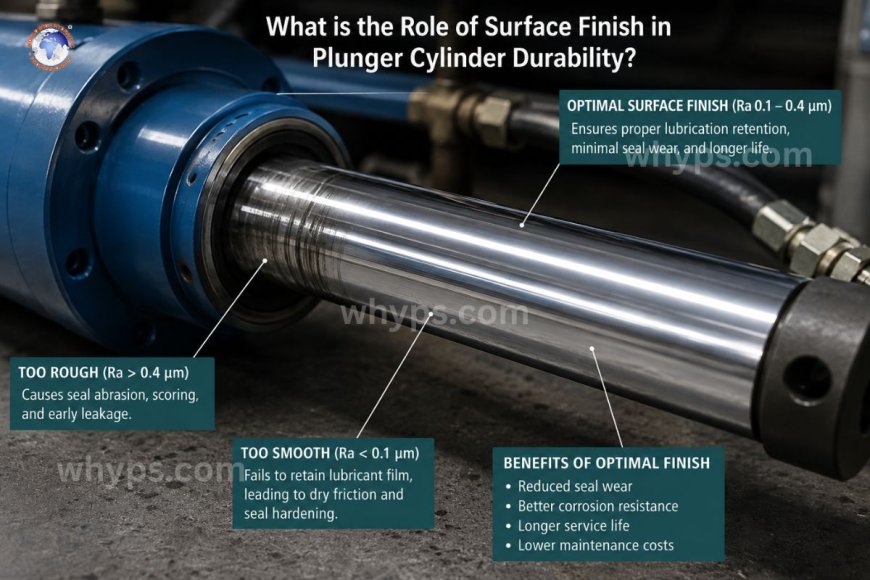

Surface roughness is usually expressed as R (average roughness) in micrometers or microinches. This measurement describes microscopically-sized peaks and valleys of the plunger's surface. It is in a near-linear relationship to seal wear rates up to a specific threshold.

• Too rough (Ra over 0.4 um): A few peaks on the surface behave like tiny abrasive pieces against the lip of the seal, scratching away the sealing edge, making tiny scratches that expand into leak pathways.
• The surface is too smooth (Ra less than 0.1 millimeters) The surface is unable to keep the thin film of oil, which lubricates the contact between the seal and plug and causes friction with the stick, heat buildup, and an acceleration of seal hardening.
• The optimal spectrum (Ra 0.1-0.4 millimeters): The surface provides the same lubricating layer and still provides enough texture to keep contact, without creating excessive friction.

This is the reason that the specifications for the surface finish of the drawings of plunger cylinders aren't just arbitrary. They reflect a carefully calculated equilibrium between friction, lubrication retention, and wear resistance to mechanical.

How does surface finish impact the different failure mechanisms?

Abrasion of seals and leakage

The most frequent failure due to a poor surface finish is the gradual degrading of seals, which leads to the leakage of liquid over the gland. Surfaces that are rough create an action of sawing against the seal lip each time the plunger expands or retracts. Over the course of thousands of years, abrasion dries the sealing material to the point that it's no longer able to sustain contact pressure and the hydraulic fluid is able to bypass.

Pitting caused by corrosion

Surface finish also impacts the resistance to corrosion. The surface that is not finished properly has many tiny crevices that water, contaminants, and additives to hydraulic fluids could gather. After pitting has begun, a single pit could cut a seal's lip off on contact and turn a small cosmetic issue into a major seal replacement.

Scoring due to contamination

Plunger cylinders in environments that are dirty, such as agriculture, construction, and scrap-handling equipment, are particularly susceptible to being scuffed. If the finish on the base is rough, the contaminants embedded in the cylinder will find more places to stick and penetrate the surface with each stroke, causing wear to be much more quickly than on a done plunger.

Cracks of fatigue on the surface layer

In high-cycle applications, tiny imperfections in the surface caused by poor finishing may serve as stress concentration points. Over the course of millions of cycles, these may cause fatigue cracks, especially in chrome-plated plungers, where the plating can cause micro-cracks in the case that the surface finish was not perfect prior to plating.

Methods for manufacturing that produce the perfect final

Precision grinding

Grinding is often the first stage in achieving a controlled surface finish on rods for plungers. It removes materials uniformly and may reduce Ra values to the desired range; however, grinding on its own can leave lines of direction that might not be the best to maintain lubrication over the long term.

Honing and superfinishing

Honing occurs after grinding in a variety of applications that require high durability, which refines the surface and frequently creates a cross-hatch design that aids in retaining the lubricant. Superfinishing techniques go further, employing extremely fine abrasives to remove any remaining peaks and preserve valleys that hold the oil film.

Hard chrome plating

It is often employed on plungers' cylinders, as it provides corrosion resistance and the durability of a tough, wear-resistant finish. But the quality of the plating is only dependent on the surface finish beneath it. Any roughness, pitting, or abrasion on the surface prior to plating can cause problems in the chrome layer since plating tends to mimic the surface's topology instead of completely smoothing it.

Polishing after plating

After plating the surface, a final polishing process will bring the surface to the desired Ra range. The process of skipping this step or hurrying it is among the main reasons that new plunger cylinders display wear and tear, despite having an "hard" chrome surface.

Practical guidelines on how to specify a surface finish

When deciding on or evaluating the durability of a plunger-cylinder Consider the following factors:

1. Make sure the finish matches the material used to seal. Polyurethane-based seals that are more flexible might be able to tolerate some slight differences in Ra ranges than PTFE-based seals.
2. The operating conditions must be considered in the account. Cylinders used in corrosive or rough environments benefit from finishes that are at the lower portion within the accepted Ra range, as well as an additional layer of protection against corrosion.
3. Make sure you check the finish after plating, not only before. A properly ground substrate could cause a poor quality if the plating or polishing processes are not in sync.
4. Request finish documents from suppliers. Manufacturers with a good reputation will supply Ra measurements in high-quality documentation, not only the claims of visual inspection.
5. Inspect used plungers during maintenance. A plunger that had an acceptable finish could degrade because of scoring or corrosion, and it is recommended to check this at the time of any overhaul to a cylinder.

The cost of getting the surface finish off wrong

The financial cost of a shoddy surface finish goes well beyond the price of the cylinder. Inadequately planned downtime due to sealing failure and contamination of hydraulic fluids from leaky seals, as well as the labor costs of repairing multiple times, surpass the additional cost of a correctly completed plunger right from the beginning. In industrial and mobile machines where access to cylinders can be a challenge, one premature seal failure could result in prolonged downtime as well as damage to the surrounding components due to fluid contamination.

The right surface finish early is among the best value-for-money durability choices that can be made in the design of hydraulic cylinders, especially since the price of a properly finished plunger and a less completed one is usually tiny in comparison to the total manufacturing costs.

What is the optimal roughness of the surface (Ra) for a cylinder for a plunger?

The majority of plunger cylinders work best when they have an Ra between 0.1 and 0.4 micrometers. The exact amount depends on the seal material and operating conditions.

Does a surface finish be too smooth to have good sealing?

Yes. A finish that's too smooth is not able to hold the lubricating oil layer that the seal requires, which causes the friction to be dry, a buildup of heat, and a faster hardening of the seal.

Does hard-chrome plating remove the need for a great base finish on the surface?

No. The plated surface tends to mimic the substrate beneath it, and any imperfections or pitting of the substrate will transfer onto the surface of the plated and decrease its sturdiness.

What can I do to determine whether a cylinder's surface finish is causing the wear of a cylinder prematurely?

Examine for wear patterns that are uneven, such as irregular seal patterns, early-stage leakage, or visible marks on the surface of the plunger when you inspect the plunger, particularly in the event that these issues are detected ahead of the scheduled service interval.

Surface finish is more important than the material's hardness to ensure the durability of plungers.

Both are equally important, but the finish quality can have an immediate impact on the longevity of seals, because even a hard surface that has a poor-quality finish will damage seals more quickly than a surface that is properly finished with moderate hardness.
