How do position-sensing cylinders improve automated machine control?

How do position-sensing cylinders improve automated machine control?

Position-sensing cylinders improve automated machine control by giving the controller real-time feedback on exactly where the piston rod is in its stroke. This closed-loop information allows precise positioning, synchronized multi-cylinder motion, faster cycle times, lower energy use, and better diagnostics, turning a basic hydraulic actuator into a measurable, programmable motion axis. Hydraulic cylinders have always been valued for force density and durability. What they historically lacked was awareness: a standard cylinder moves until it hits the end of its stroke or until a valve shifts, and the machine has little idea where the rod actually is in between. Position-sensing cylinders solve that problem. By building a sensor directly into or onto the cylinder, they let PLCs and motion controllers treat hydraulics with the same precision expected from electric servo axes, without giving up the power and ruggedness that make fluid power attractive in the first place.

What are position-sensing cylinders?

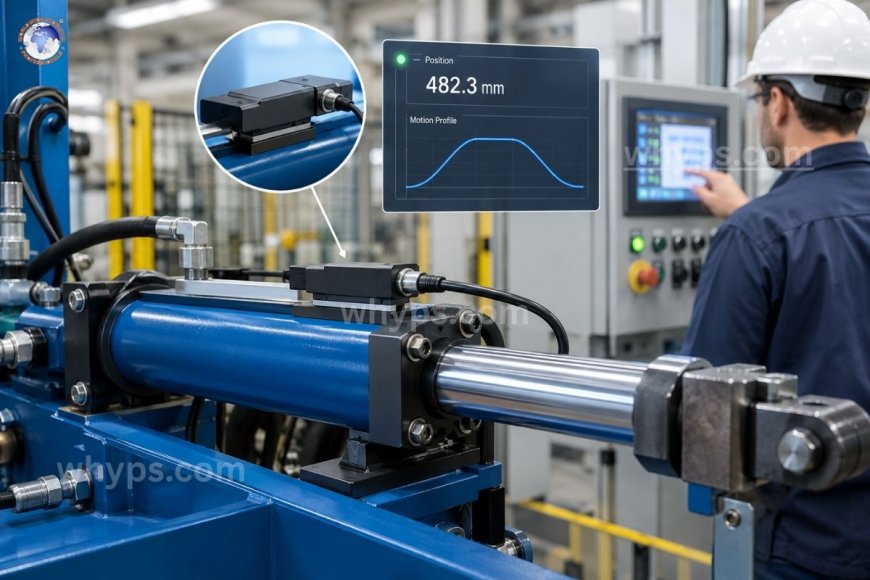

A position-sensing cylinder is a hydraulic cylinder equipped with a transducer that continuously or discretely reports the piston rod position. Depending on the design, the sensor may be integrated inside the cylinder barrel and rod or mounted externally along the cylinder body.

The sensor output, typically an analog signal (4-20 mA or 0-10 V) or a digital protocol such as SSI, CANopen, or IO-Link, is sent to a controller. The controller compares actual position with the commanded position and adjusts the hydraulic valve accordingly. This comparison-and-correction cycle is what engineers call closed-loop control.

Common position-sensing technologies

Choosing the right feedback technology is the first design decision, because each type offers different accuracy, durability, and cost.

Magnetostrictive sensors

Magnetostrictive linear transducers are the standard for high-performance applications. A waveguide runs inside the cylinder rod, and a magnet on the piston marks the position. The sensor measures the time taken for a torsional pulse to travel to the magnet, producing an absolute, non-contact position reading with resolution that can reach the micron range. Because there is no wear on the sensing element, they perform well in long-duty, high-cycle machines.

Hall effect and magnetic sensors

Hall-effect sensors detect a magnet embedded in the piston and are often used for intermediate-accuracy needs or for discrete position switching. They are compact, economical, and tolerant of vibration, making them a common choice on mobile equipment and general automation.

LVDT and potentiometric sensors

Linear variable differential transformers (LVDTs) offer excellent linearity and robustness, while potentiometric sensors are a low-cost option for less demanding tasks. Potentiometers involve a contact element, so wear and signal noise must be considered over the life of the machine.

Proximity and end-of-stroke sensors

Inductive or reed-style sensors confirm that the piston has reached a specific point, such as full extension or retraction. They do not provide continuous feedback, but they are valuable for interlocks, homing, and simple sequencing.

How position feedback closes the control loop

In an open-loop hydraulic circuit, the controller sends a command to a valve and assumes the cylinder responds as expected. In reality, load changes, oil temperature, valve wear, and internal leakage all affect the actual motion, so the result drifts from the target.

With position feedback, the process changes:

  1. The controller sends a position setpoint to a proportional or servo valve.
  2. The valve meters oil to the cylinder to start motion.
  3. The sensor reports the real rod position back to the controller.
  4. The controller calculates the error and adjusts the valve signal.
  5. The loop repeats many times per second until the target is reached and held.

This constant correction compensates for disturbances automatically, which is why closed-loop hydraulic axes can hold tight tolerances even when conditions change.

Key benefits for automated machine control

Accuracy and repeatability

The most obvious benefit is accurate positioning. Machines such as presses, injection molding systems, and test rigs need to stop at the same point cycle after cycle. Position feedback lets the controller reach the target within a narrow tolerance and repeat it consistently, which directly improves product quality and reduces scrap.

Synchronization of multiple cylinders

Lifting platforms, large presses, and material handling systems often use several cylinders working together. Without feedback, uneven loads or differing leakage rates cause one cylinder to lead or lag, leading to racking, binding, or structural stress. With a sensor on each cylinder, the controller can compare positions and correct each axis, keeping the load level and the motion smooth.

Faster cycle times and motion profiling

Because the controller always knows the rod position, it can apply acceleration and deceleration profiles instead of simply running at one speed. A cylinder can move quickly through the free-travel portion of the stroke, slow down before contact or end-of-stroke, and then apply controlled force. This reduces impact loads and shortens total cycle time without sacrificing precision.

Energy efficiency

Precise control reduces wasted motion and unnecessary pressure. When the system knows exactly where the load is, pumps and valves can be commanded to deliver only the flow required, which lowers heat generation and energy consumption. In systems with variable-speed drives or load-sensing pumps, position feedback improves this effect further.

Safety and diagnostics

Position data supports safer machines. Controllers can verify that a cylinder has reached a safe position before allowing the next step, detect unexpected movement, and trigger alarms if a load drops or drifts. Over time, trend data from the sensor can also reveal developing problems. Slower stroke times, increasing drift, or rising correction effort may indicate worn seals, valve degradation, or contamination well before a failure occurs, supporting predictive maintenance.

Typical applications

Position-sensing cylinders are used wherever hydraulic power must be combined with precise, repeatable motion:

  • Industrial presses and forming machines: controlled ram position, pressing depth, and die-height adjustment.
  • Injection molding and die casting: mold clamping, ejector movement, and injection stroke control.
  • Steel mills and heavy industry: roll gap control, strip guiding, and positioning of large loads.
  • Mobile and construction equipment: boom, bucket, and blade control in semi-automated and machine-guided systems.
  • Agricultural machinery: implement height control, steering, and precision-farming attachments.
  • Test and simulation equipment: fatigue testers, flight and motion simulators, and material testing rigs.
  • Marine and offshore systems: stabilizers, hatch covers, and crane positioning.

Selecting the right position-sensing cylinder

A successful installation depends on matching the sensor and cylinder to the job. Key factors include:

  • Required accuracy and resolution: choose magnetostrictive for high precision and Hall-effect or proximity types for moderate needs.
  • Stroke length: longer strokes may limit some sensor types or require special rod designs.
  • Operating pressure and temperature: internal sensors must withstand system pressure spikes and fluid temperature.
  • Output signal and controller compatibility: confirm the analog or digital interface matches the PLC or motion controller.
  • Environmental conditions: shock, vibration, moisture, and electrical noise all influence sensor choice and cabling.
  • Valve selection: pair the cylinder with a proportional or servo valve that has the response and resolution the control loop requires.
  • Serviceability: consider whether the sensor can be replaced without fully disassembling the cylinder.

Installation and maintenance best practices

Even the best sensor will underperform if the installation is poor. Follow manufacturer guidance on mounting, alignment, and cable routing, and use shielded cables with proper grounding to prevent electrical interference. Keep hydraulic oil clean, since contamination accelerates seal wear and can degrade valve response, both of which hurt closed-loop performance. Calibrate the sensor and verify the zero and end-of-stroke points during commissioning and after any cylinder or sensor service. Finally, log position data where possible; the trends it reveals are one of the most useful maintenance tools available.

Position-sensing cylinders give hydraulic systems the awareness needed for modern automated machine control. By feeding real-time rod position back to the controller, they enable accurate and repeatable positioning, synchronized multi-axis motion, optimized motion profiles, improved energy efficiency, and stronger safety and diagnostic capability. For manufacturers and machine builders who want the power of hydraulics with the intelligence of electronic control, they are one of the most effective upgrades available.

1. What is a position-sensing cylinder?

A position-sensing cylinder is a hydraulic cylinder fitted with an integrated or external sensor that reports the piston rod position to a controller. This allows the machine to know exactly where the rod is during the stroke and to control it in a closed loop.

2. Which sensor type is most accurate for hydraulic cylinders?

Magnetostrictive transducers are generally the most accurate and widely used for demanding applications. They provide absolute, non-contact measurement with high resolution and long service life, making them suitable for presses, molding machines, and heavy industry.

3. Do position-sensing cylinders need special valves?

For continuous closed-loop control, they are normally paired with proportional or servo valves that can modulate flow smoothly. Simple on/off directional valves can use end-of-stroke sensing but cannot deliver precise intermediate positioning.

4. Can position-sensing cylinders help with predictive maintenance?

Yes. Monitoring stroke time, drift, and correction effort over time can reveal worn seals, valve degradation, or contamination before they cause a breakdown, allowing maintenance to be planned instead of reactive.

5. Can existing cylinders be upgraded with position sensing?

In many cases, yes. External magnetic or inductive sensors can often be added to existing cylinders, though fully integrated magnetostrictive sensing usually requires a cylinder designed or modified to accept the internal probe. Always consult the cylinder manufacturer before modifying a pressure-rated component.
