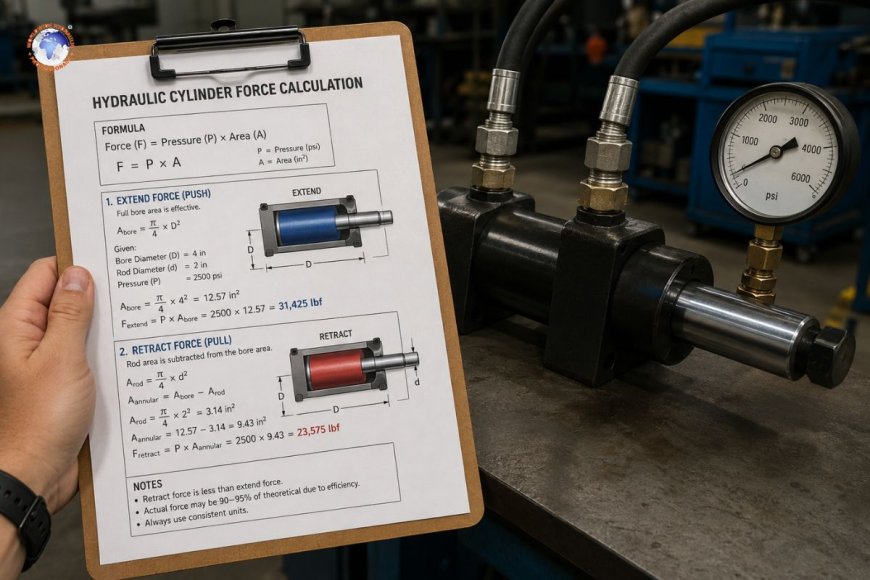

How do you calculate hydraulic cylinder force?

Hydraulic cylinder force is calculated by an equation: Force = Pressure + Area (F = P + A). To extend force, you must use the entire bore (piston) area. For retract force, take the rod's cross-sectional size from the bore's area since the fluid only affects the annular area on the rod's side. Find tension in PSI and square inches to calculate the force in pounds. You can also make use of square centimeters and bars (with the conversion factor) for metric results converted into Newtons. Always calculate extend and retract force separately, as retract force can be 20-40% less than extend force for single-rod cylinders.

What is the importance of force calculation?

Every hydraulic cylinder used in an industrial or mobile system is designed to perform one task that is to convert pressure from fluid into a linear mechanical force. If you're planning to size a machine press, excavator arm, or material handling device, making sure that the force calculation is correct will determine if the cylinder is able to perform the job required or if it's likely to stall under load, overheat your system, or even fail early.

A cylinder that is too small cannot produce enough force to move the load. Oversizing is a waste of money; it creates unnecessary weight and could make the system less efficient, needing more flow to reach similar speeds. The formula for force is straightforward on paper; however, applying it correctly requires the nuances that could make even the most experienced engineers stumble.

The fundamental formula is F = P A

The basic relationship in hydraulics is derived directly from Pascal's Law: pressure applied to a fluid that is confined remains constant throughout the entire direction. This means that the force produced by a cylinder is based on two parameters:

• P = Pressure in the system (measured in bar or PSI)
• A = Area that the pressure exerts (measured in square centimeters or square inches)

Force = Pressure x Area

It's deceivingly easy. The difficulty lies in determining the right area to utilize, since the hydraulic cylinder doesn't comprise only one region It has two areas, and they generate different forces.

Calculating the extent (Push) force

When a cylinder expands, then hydraulic fluid is injected into the end cap (blinding the end) of the piston and pushes it against the entire dimension of the piston. The area of the cylinder is calculated by using the conventional circular area equation:

A(bore) = p x (Bore Diameter / 2)²

For example, a piston with a bore of 4 inches has a piston surface of A = π x (2)² equals 12.57 square inches

At 2,500 PSI system pressure, the cylinder produces F = 2,500 × 12.57 = 31,425 lbs of extend force. 12.57 = 31,425 pounds of force to extend.

Calculating the retract (Pull) force

Retraction is where most calculations fail. When the fluid is directed towards the rod's end of the piston in order to retract the piston, it does not work on the entire bore area. Instead, the rod of the piston occupies a portion of the space. The rod is displaced, and the area that is effective is the bore's size minus the rod's cross-sectional space.

A(annular) = A(bore) - A(rod)

Utilizing the same bore of a 4-inch cylindrical cylinder with a rod of 2 inches: A (radius) = p + (1)² equals 3.14 Square inches A (annular) = 12.57 - 3.14 = 9.43 square inches

The same 2,500 PSI F = 2,575.943 = 23,575 lbs of retract force. 9.43 = 23,575 lbs force to retract.

This is about 25 percent less force than the stroke to extend—a distinction that is significant in instances where retraction is required to perform a significant task like pulling, clamping, or lifting with returning strokes.

Metric calculations

For systems in millimeter or bar units the formula structure is identical; however, unit conversion requires care. A common working formula:

F (kN) = P (bar) x A (cm²) / 10

A 100mm bore cylinder at 200 bar A = π (5)² = 78.54 cm² F = 200 x 78.54 10 equals 1,570.81 kN

Make sure that the gauge you are using reads bar or PSI or the specs for your cylinder specify bore diameters in millimeters or inches. Mixing units is among the most frequent sizing mistakes within the industry.

Real-world efficiency loss accounting

The Formula F = P x The calculation assumes a 100% mechanical efficiency; however, this is not the case in reality. Internal leakage, seal friction, and side-loading all decrease the actual output force. Most cylinder manufacturers and developers use an efficiency ratio of 90-95 percent when a system is well-maintained with high-quality seals.

Practical Force = Theoretical Force x Efficiency Factor

For applications that are critical, such as pressing equipment and lifting machines or any equipment with strict tolerances, it is worth testing the actual force of output rather than just relying on the calculation, especially because seals wear out and clearances within the internal chamber change over time.

Moving backwards: Finding the needed dimension or size of bore

The process of sizing a new system usually requires using the formula in reverse. If you know what load that you have to be moving, you will be able to determine the required pressure (given the fixed cylinder) or the bore size (given an adjustable system pressure).

To determine the required pressure: P = F/A

To calculate the diameter: A = F + P. Then, solve for diameter: Diameter = 2x (A + P)

For instance, if a task requires 20,000 pounds of force and your machine is operating at the rate of 2,000 PSI, then 10,000 x 2,000 is 10 sq. inches. Diameter = 2x (10 / p) equals 3.57 inches (round to the next bore size, usually 3.5" or 4")

Rounding up instead of down is the norm, because it provides a margin of safety for efficiency loss as well as unexpected loads that spike.

Common errors in calculations of force

Some errors are evident often in the field.

• Utilizing bore area to retract force. This is overstating retract capabilities and could result in selecting the wrong sized cylinder for pull-force applications.
• Do not take into account rod diameters when comparing cylinders of different manufacturers; it is not a good idea, as two cylinders of identical bore sizes could differ in retract force in relation to rod diameter.
• Mixing pressure units. The confusion between PSI and bar or forgetting that 1 bar is 14.5 PSI produces force calculations that do not match by a significant margin.
• Not recognizing side loads and friction effects in long-stroke cylinders where even the most accurate theoretical force could be dramatically diminished by bending moments as well as seal drag.
• Assuming the maximum, the system's pressure will always be present on the pump. Pressure drops across hoses, valves, and fittings mean that the pressure that actually reaches the cylinder may be less than the output of the pump, especially in systems that have long hose runs or tight fittings.

Connecting it all

Calculating the force of a hydraulic cylinder is easy once the principle is clearly understood. The force is always pressure times area; however, the area varies on the direction of the stroke, and output in real-world conditions is usually lower than what is theoretically the highest. The correct calculation, including accounting for the displacement of rods, conversions to units, and efficiency losses, is the main difference between a cylinder that operates well under load and one that fails on the job.

1. What is the formula for hydraulic force in a cylinder?

Force is equal to pressure multiplied by the area (F is PxA). Pressure is usually determined as PSI as bar and area is measured in square centimeters or square inches which produce forces in Newtons/lbs and Newtons/kilonewtons respectively.

2. Why is retract force less in comparison to extend force?

In retraction, the hydraulic fluid operates on an annular space (bore area minus rod area) instead of the entire piston's surface, as the rod occupies a portion of that area. The smaller area of effective force produces less force, but at similar pressure.

3. How can I convert cm² and bar for force to kN?

Apply the formula Use the formula F (kN) is P (bar) x A (cm²) x 10. This is what accounts for the conversion of units from bars (a pressurized measure) and the force unit metric of kilonewtons.

4. How much efficiency in hydraulic cylinders can influence the calculation of force?

Yes. Theoretical force calculations take into account no losses; however, seal friction and internal leakage can affect output in real-world terms by 5-10 percent. Utilizing an efficiency factor of 0.90-0.95 will give the most realistic force value.

5. What is the best way to determine the size of bore I require for a certain force need?

Divide the force required by the system's operating pressure to find the area. You need to solve for the diameter by using Diameter = 2x (Area * p). Round to the closest normal bore size to put within a safety margin.
